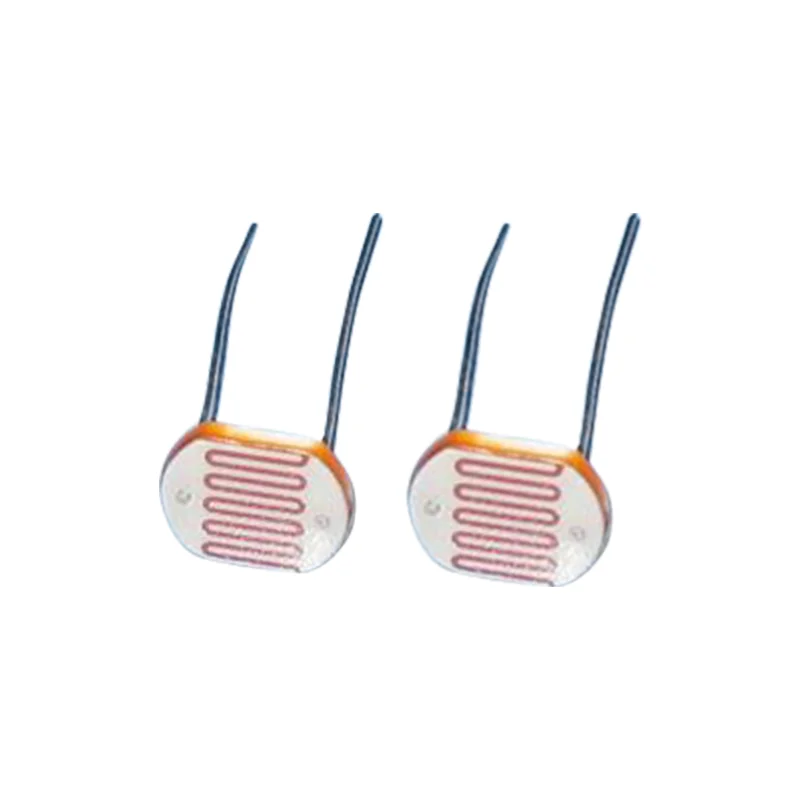

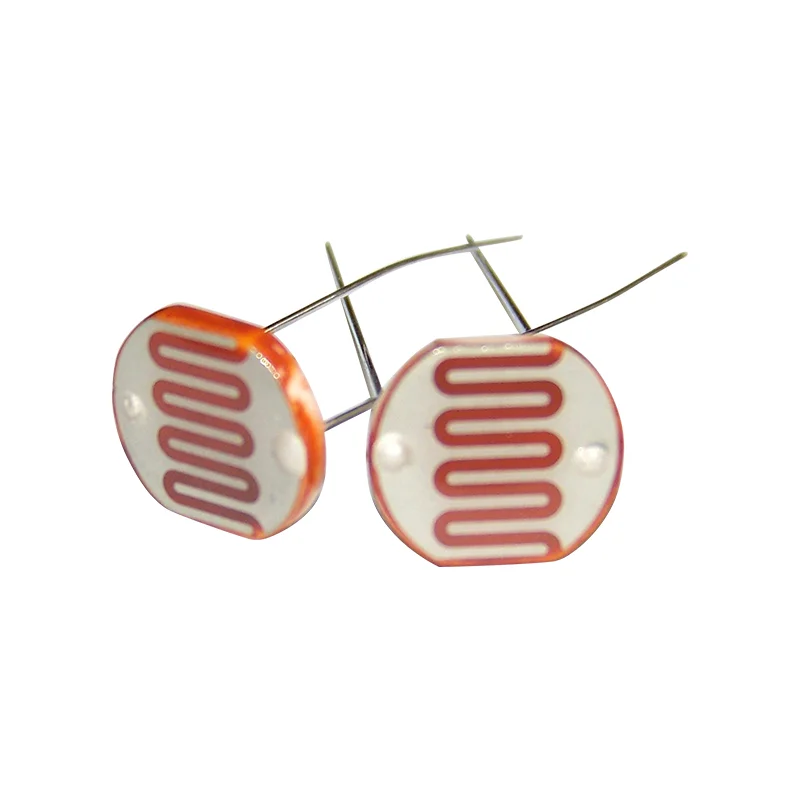

High performance LDR photo resister light sensor light dependent resistor

Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated  area based on this characteristic.Photoresistor is widely used in many industries, such as toys,lamps,camera,etc.



Three material shell:

1.)the epoxy body

2.)the metal body

3.)the glass body

All specification or diameter:  3mm, 4mm, 5mm, 6.5mm, 7mm, 8mm, 10mm, 11mm, 12mm, 20mm, 25mm and so on .



We have 13 kind of specification more than 100 model photoresistance products,

our factory mostly include all photoresistance product series, the annual output have reached more than 200,000,000pcs.



Performances and Features:

Coated with epoxy

Good reliability
Small volume

High sensitivity
Fast response

Good spectrum characteristic



Typical Applications:

Camera automatic photometry

Photoelectric control
Indoor ray control

Annunciator
Industrial control

Light control switch
Light control lamp

Electronic toy





Specification	Type	Max. Voltage (VDC)	Max.  power (mw)	Environmental  temp.	Spectrum  peak value (nm)
φ10  series	MJ10516	200	200	-30~+70°C	560
	MJ10528	200	200	-30~+70°C	560
	MJ10537-1	200	200	-30~+70°C	560
	MJ0537-2	200	200	-30~+70°C	560
	MJ10539	200	200	-30~+70°C	560



Specification	Light  resistance  (10Lux)  (KΩ)	Dark  resistance  (MΩ)	r100/10	Response time  (ms)		Illuminance  resistance  Fig. No.
				Increase	Decrease
φ10 series	5-10	1	0.6	30	30	3
	10-20	2	0.6	30	30	3
	20-30	3	0.7	30	30	4
	30-50	5	0.7	30	30	4
	50-100	8	0.8	30	30	6
