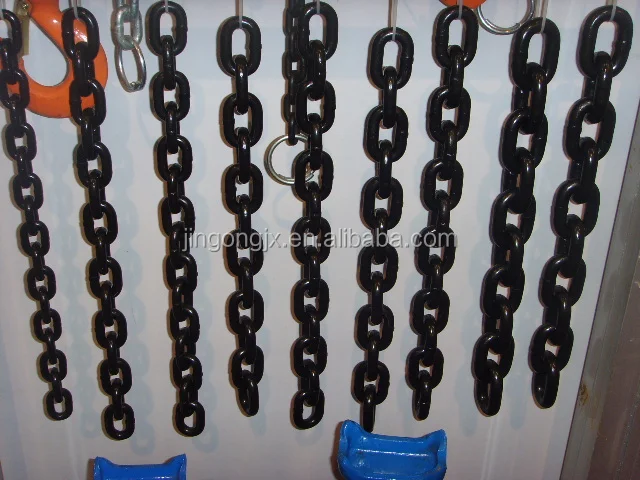

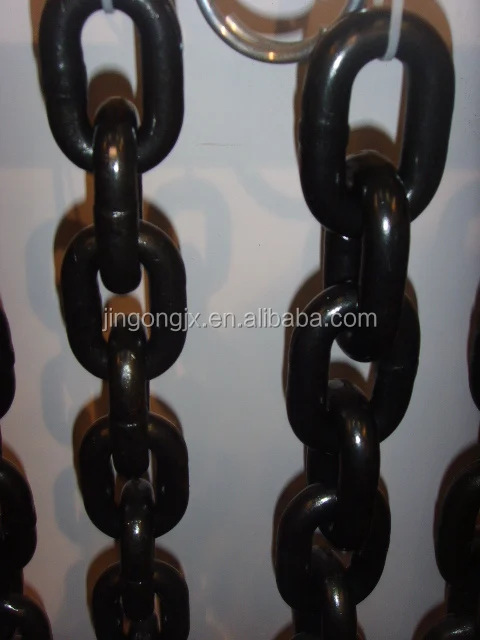

grade 80 alloy steel chain stainless steel hoist chain
1) Grade: G80
2) 4 times breaking force test
3) self-color, black treated, red painted etc.
4) Surface treatment: Electro galvanized, hot dipping galvanized, Zinc plated
5) Material: alloy steel

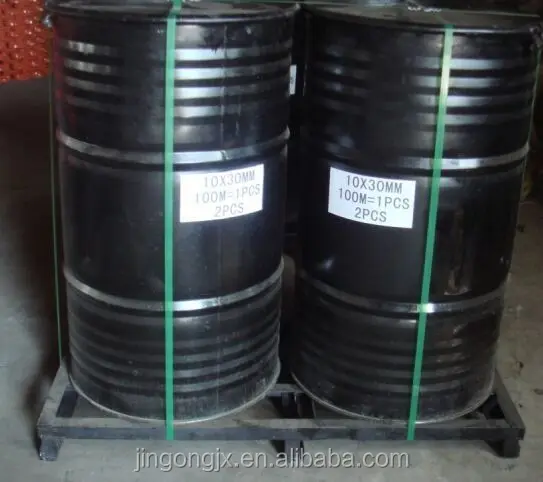

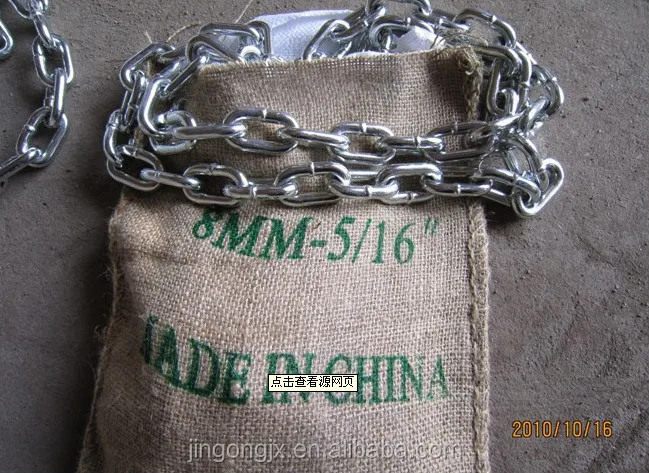

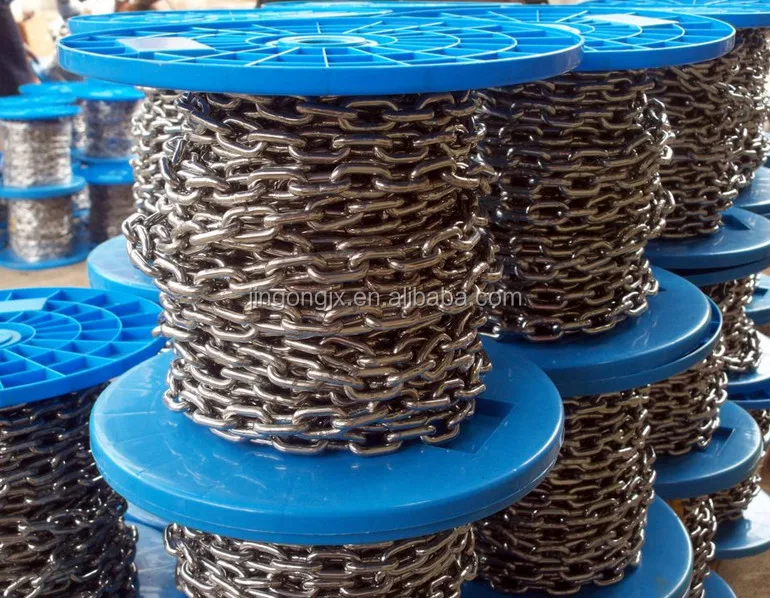

6) Packing: gunny bags, plastic reel, steel drum or as your request
7) Size: M6,M7,M8,M10,M13 and M16
Chain Diametter | Tolorance | Inside Length | Tolorance | Inside Width | Out side Width | Weight | W.L.L. | M.P.F. | B.F. | MIN | |
mm | inch | mm | mm | mm | mm | mm | kg | Kg | KN | KN | mm |
6 | 1/4 | ±0.24 | 18 | ±0.5 | 7.8 | 22.2 | 0.8 | 1120 | 28.3 | 45.2 | 4.8 |
7 | 9/32 | ±0.28 | 21 | ±0.6 | 9.1 | 25.9 | 1.1 | 1500 | 38.5 | 61.6 | 5.6 |
8 | 5/16 | ±0.32 | 24 | ±0.7 | 10.4 | 29.6 | 1.4 | 2000 | 50.3 | 80.4 | 6.4 |
10 | 3/8 | ±0.40 | 30 | ±0.9 | 13 | 37 | 2.2 | 3150 | 78.5 | 126 | 8 |
13 | 1/2 | ±0.52 | 39 | ±1.2 | 16.9 | 48.1 | 3.8 | 5300 | 133 | 212 | 10 |
16 | 5/8 | ±0.64 | 48 | ±1.4 | 20.8 | 59.2 | 5.7 | 8000 | 201 | 322 | 13 |
18 | 1-1/16 | ±0.90 | 54 | ±1.6 | 23.4 | 66.6 | 7.3 | 10000 | 254 | 407 | 14 |
20 | 3/4 | ±1.00 | 60 | ±1.8 | 26 | 74 | 9 | 12500 | 314 | 503 | 16 |
22 | 7/8 | ±1.10 | 66 | ±2.0 | 28.6 | 81.4 | 10.9 | 15000 | 380 | 608 | 18 |
26 | 1 | ±1.30 | 78 | ±2.3 | 33.8 | 86.2 | 15.2 | 21200 | 531 | 849 | 21 |
32 | 1-1/4 | ±1.60 | 96 | ±2.9 | 41.6 | 118 | 23 | 31500 | 804 | 1290 | 26 |
Jingong Machinery Co., Ltd, established in the middle of 1980s, is a professional factory that produces
many kinds of hoisting machinery equipments. We are specialized in the production of "Wuhua" "Ark"
"Hudiao" and "Shuangyi" brand products, which mainly contains chain block, lever block, electric hoist,
permanent magnetic lifter, lifting pulley,trolley and multifunction hand puller, etc. We also provide the
manufacture, selling, consultation and service of non-standard hoist machinery.
1: Various style for completely series pneumatic products for you to choose.
2: High quality with competitive price.
3: Sample order & small quantity order is ok.
4: Provide free products information.
