Product Description

8m aluminum manual telescopic antenna mast with 3 legs

          manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

          rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
          depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle
          situation.
          Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
          upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
          no rain go in.
          The mast available extended height is 2m to 45m.The payload up to 300kg from 5kg.
          It can help lamplight,camera,ham radio,photography,antenna,yagi ,lightning rod,or else communication devices.......
          It can be used on the ground, vehicle mounted ,trailer , the wall or the mine......
Specification
\t
Specification
8m aluminum manual telescopic antenna mast with 3 legs
\t
Model No.
\t
TAL-M8-1.8-20-A
\t
Extended height
\t
8.0m
\t
Retracted height
\t
1.8m
\t
Max head-load
\t
20kg
\t
Mast self weight( without tripod)
\t
around 28kg
\t
Mast sections No.
\t
6sections
\t
Material
\t
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
guy wire: nylon
\t
Color
\t
the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
\t
main pole in sections
\t
SectionNo.     OD                  Thickness
1#                      42mm             3.0mm
2#                      55mm             3.0mm
3#                      69mm             3.0mm
4#                      83mm             3.0mm
5#                      98mm             3.0mm
6#                      114mm           3.0mm
\t
Acessories
\t
Mount model
\t
Ground fixed type---without tripod
\t
Accessories
\t

handle lifting bar----------------------------------------1p
Top flange--------------------------------------------------1pc
Guy wire-----------------------------------------------------3pcs
Guy stakes--------------------------------------------------3pcs
stainless steel stakes------------------------------------3pc
Ground anchors-------------------------------------------3pcs
tripod-----------------------------------------------------------1pc
Packing & Delivery

PACKING:

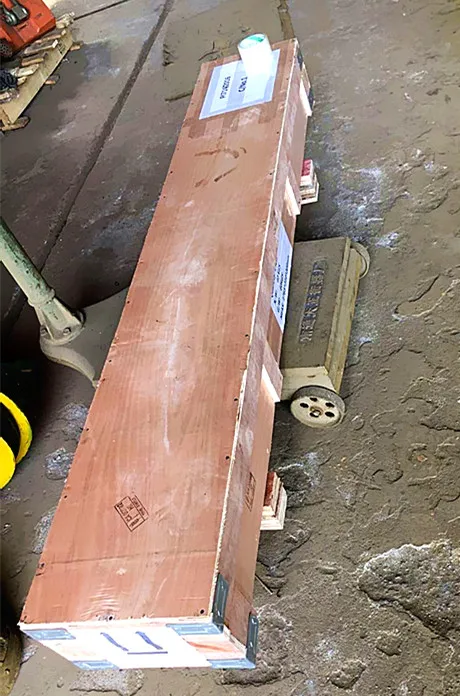

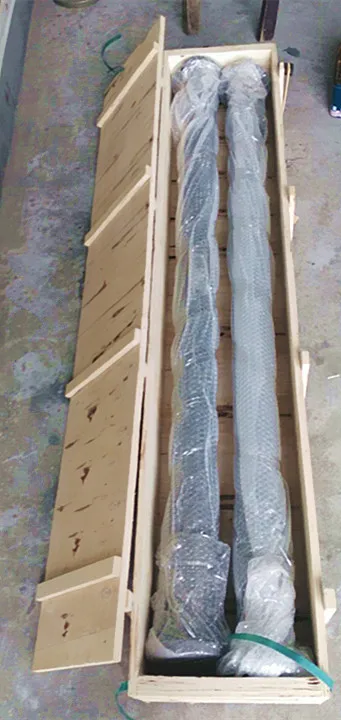

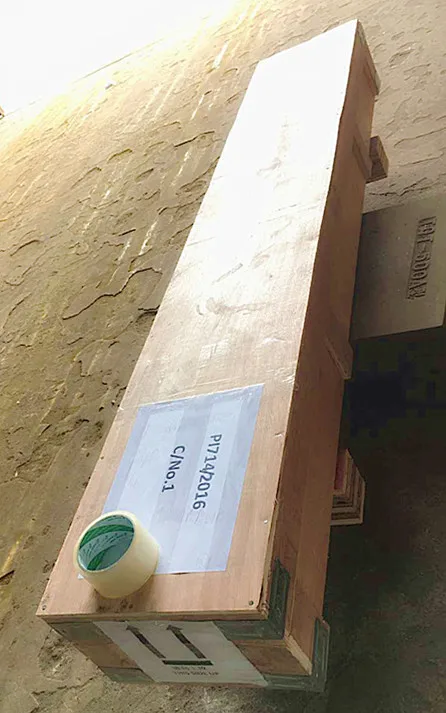

 One unit of telescopic antenna mast(main pole and all accessories )to be wrapped with Poly tapes and

then into A plywood case with metal belts reinforced.


Installation Instructions:

1)The telescopic antenna mast can be installed on the ground, or on the vehicle. No matter where to install, its installation

shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the lifting rod tilts

seriously or maintain a long time, damage and danger could not be avoided.
2)The telescopic antenna mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile.

At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be

solid and reliable.

Warranty period

Except the damages due to misuse, unauthorized modification and man-made sabotage, the damaged parts will enjoyed free after-sales maintenance within one year's time from the date of delivery on the condition that the buyer himself will bear the

shipping cost back and forth and the said damage should be confirmed by the seller through photos and description.

Catalogue

we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.

Besides,we can design different of models for ODM and OEM.

\t
Extended  height
(m)
\t
No. Of section
\t
Retracted height(m)
\t
Outer tube range(mm)
\t
Self weight
(kg)
\t
Max.payload
(kg)
\t
3
\t
3
\t
1.0
\t
70-90
\t
15
\t
20
\t
4
\t
3
\t
1.5
\t
50-80
\t
15
\t
30
\t
4
\t
3
\t
1.0
\t
70-90
\t
16
\t
20
\t
4
\t
3
\t
1.6
\t
60-80
\t
14
\t
10
\t
5
\t
4
\t
1.65
\t
50-80
\t
17
\t
10
\t
5
\t
5
\t
1.2
\t
40-90
\t
20
\t
15
\t
5
\t
5
\t
1.5
\t
50-90
\t
20
\t
60
\t
5
\t
6
\t
1.7
\t
60-130
\t
35
\t
100
\t
6
\t
5
\t
1.7
\t
50-90
\t
21
\t
10
\t
6
\t
6
\t
1.5
\t
60-130
\t
40
\t
100
\t
6
\t
7
\t
1.3
\t
40-130
\t
32
\t
60
\t
7
\t
7
\t
1.8
\t
40-105
\t
23
\t
30
\t
8
\t
8
\t
1.5
\t
40-130
\t
34
\t
20
\t
9
\t
7
\t
1.8
\t
40-105
\t
25
\t
40
\t
9
\t
7
\t
1.8
\t
40-105
\t
25
\t
30
\t
9
\t
7
\t
1.8
\t
60-160
\t
43
\t
100
\t
9
\t
7
\t
1.9
\t
30-90
\t
25
\t
5
\t
10
\t
7
\t
1.95
\t
30-90
\t
26
\t
10
\t
10
\t
7
\t
2
\t
30-105
\t
31
\t
40
\t
12
\t
7
\t
2.2
\t
30-90
\t
28
\t
10
\t
12
\t
7
\t
2.1
\t
30-90
\t
28
\t
15
\t
12
\t
8
\t
2.2
\t
40-130
\t
44
\t
40
\t
15
\t
8
\t
2.45
\t
30-105
\t
33
\t
10
\t
15
\t
9
\t
2.6
\t
30-130
\t
40
\t
35
\t
15
\t
7
\t
2.5
\t
70-200
\t
200
\t
70
\t
16
\t
8
\t
2.6
\t
30-105
\t
35
\t
10
\t
18
\t
9
\t
2.7
\t
30-130
\t
47
\t
10
\t
18
\t
9
\t
3.2
\t
30-130
\t
48
\t
30
\t
18
\t
7
\t
3.7
\t
50-130
\t
47
\t
100
\t
20
\t
9
\t
2.95
\t
30-130
\t
55
\t
10
\t
20
\t
8
\t
3.20
\t
40-130
\t
58
\t
20
\t
22
\t
9
\t
3.15
\t
30-130
\t
58
\t
10
\t
25
\t
10
\t
3.4
\t
30-150
\t
72
\t
10
\t
25
\t
10
\t
3.5
\t
80-280
\t
90
\t
250
\t
25
\t
9
\t
3.6
\t
40-150
\t
71
\t
20
\t
30
\t
10
\t
3.85
\t
30-150
\t
84
\t
10
\t
35
\t
10
\t
4.5
\t
40-180
\t
130
\t
25
Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
