H2S service three phase separator / gas oil water separator / 3 phase high pressure separator for oilfield
Product Description

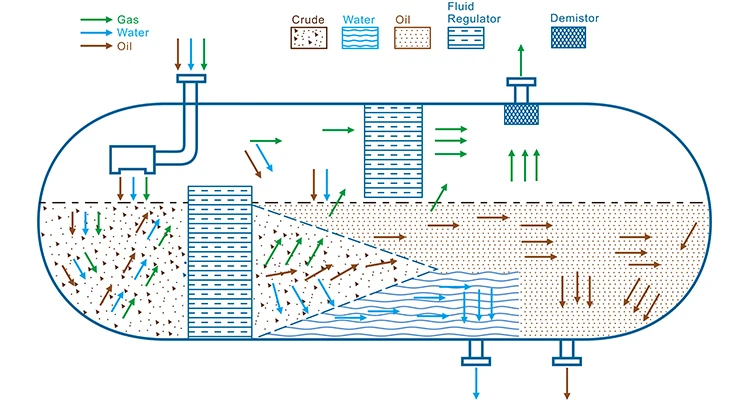

The Three Phase Test separators (3P Test Separator) are used in well testing, well clean-ups and other flow operations for efficient and safe separation and efficient measurement of oil, gas and water. 3P Test Separators usually supplied with high-accuracy instruments, control and shut-off valves, piping and skid, and referred as Test Separator Package / Module / Skid. Separator vessel is equipped with internal components, such as inlet deflector, vane pack, coalescer, wave breaker, weir plates, and mist extractor. Separator modular unit can be used both in offshore or onshore, either in standalone item or part of the package, and designed to fit the trailer for ensure fast and effective mobility during operation.
From one well to another, your three phase separation parameters may vary. But one thing remains constant ---- HUICHUAN PETROLEUM EQUIPMENT has the right equipment to fit your diverse needs. We offer top-quality two and three-phase separators in horizontal and vertical designs that can be configured for both low and high-pressure applications
Parameters of three phase separator:
Design pressure | Vessel size | Liquid Capacity | Dimensions | Dimensions | |||
psi | bar | MPa | in x foot | cm | BOPD | ft | m |
800 | 55 | 5.5 | 34 x 8 | 86x244 | 3500 | 13 x 7 x8.5 | 4.0 x 2.1 x 2.6 |
1440 | 99 | 10(9.93) | 30 x 10 | 76x305 | 3500 | 15 x 6.5 x 8 | 4.6 x 2.0 x 2.5 |
42 x 10 | 107x305 | 10000 | 15 x 7.5 x 9 | 4.6 x 2.3 x 2.7 | |||
42 x 15 | 107x457 | 12000 | 20 x 7.5 x 9 | 6.1 x 2.3 x 2.7 | |||
48 x 10 | 122x305 | 13000 | 15 x 8 x 9.5 | 4.6 x 2.5 x 2.9 | |||
48 x 12 | 122x366 | 19000 | 17 x 8 x9.5 | 5.2x 2.5 x 2.9 | |||
48 x 15 | 122x457 | 19000 | 20 x 8 x9.5 | 6.1x 2.5 x 2.9 | |||
2160 | 149 | 15(14.9) | 24 x 10 | 61x305 | 1000 | 15 x 4 x7.5 | 4.6 x1.2x 2.3 |
| 42 x 15 | 107x457 | 12000 | 20 x 7.5 x 9 | 6.1x2.3x2.7 | |||
| 48 x 15 | 122x457 | 15000 | 20 x 8 x 9.5 | 6.1x2.5x2.9 | |||
| Well test separator | 48"x10ft 1440psi Oilfield well test 3 phase skid mounted horizontal test separator |
| Nominal Vessel Size | 48"x10ft Horizontal |
| Design Pressure | 1440psi @ 122Deg F |
| Design Temperature | -20 to 250 Deg F |
| Maximum Working Pressure | 1330psi @250 Deg F |
| Service conditions | H2S/CO2 |
| MAX Liquid rate(High liquid level) | 14000BLPD |
| MAX Gas rate(Low liquid level) | 80MMScfd |
| MAX Gross Mass | 25000Kgs |
| Tare Mass | 23000Kgs |
| Payload | 2000Kgs |
Main features of our 3 phase high pressure separator with high quality as below:
• Accurate, safe separation and measurement of oil,gas and water from well effluent.
• Uninterrupted operation from begginning to end.
• High automation and high measurement precision.
• Electronic data acquisition, accurate data details.
• Double safety devices:rupture disk and spring safety valve.
• The parameters alarms by sound and light
• Automatically generate reports
• Clear curves of temperature, pressure, flow rate
• Skid mounted for easy transport.
• Suitable for sour services.
• Equipped with automatic control system and integrated choke manifold system, easy to operate
• Imported Burton recorder,Daniel orifice-plate flowmeter, and Fisher automatic control valve.

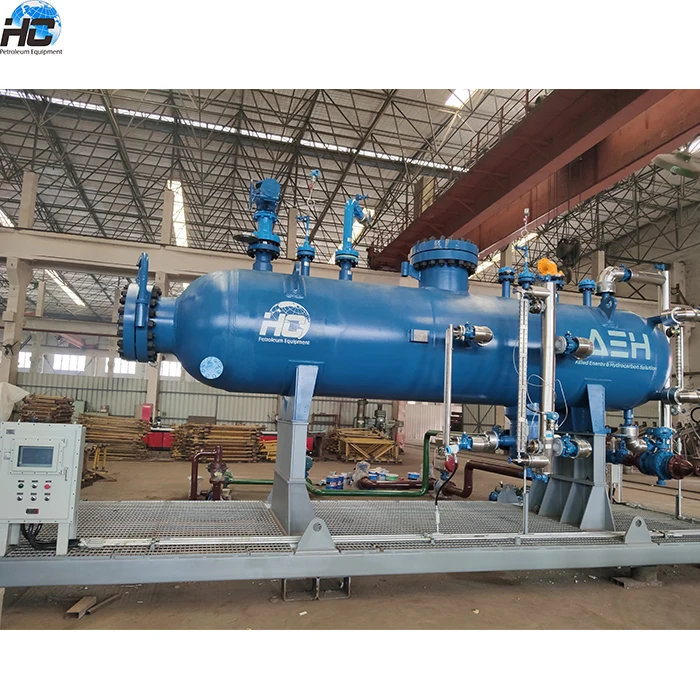

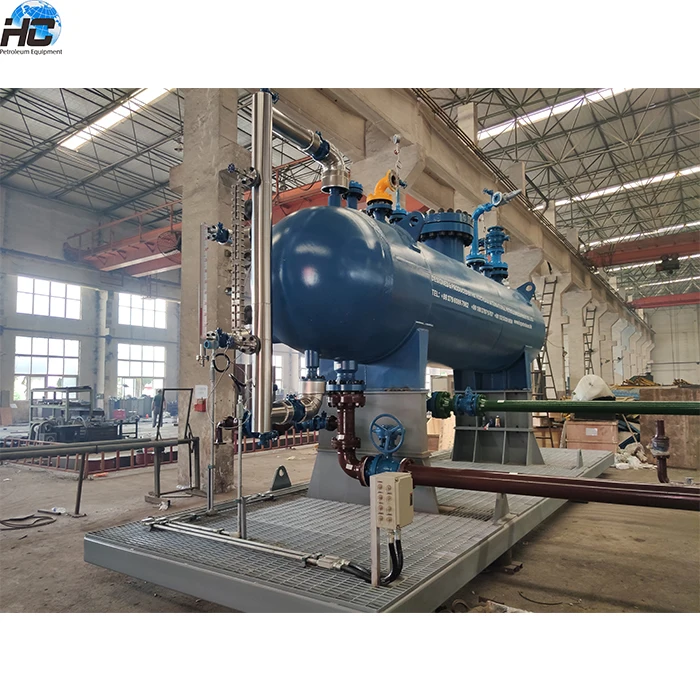

Production Details
Company Information
Why choose us HC International Petroleum Equipment?
1. Own factories in China mainland
2. Engaged in the industry for over 16 years
3. Achieve patents for intellectual property protection
4.QUALITY SESTEM to make sure the superior high quality
5.Large product series for one-stop service
6.Consulting, suggesting, help find perfect solution
Our Services

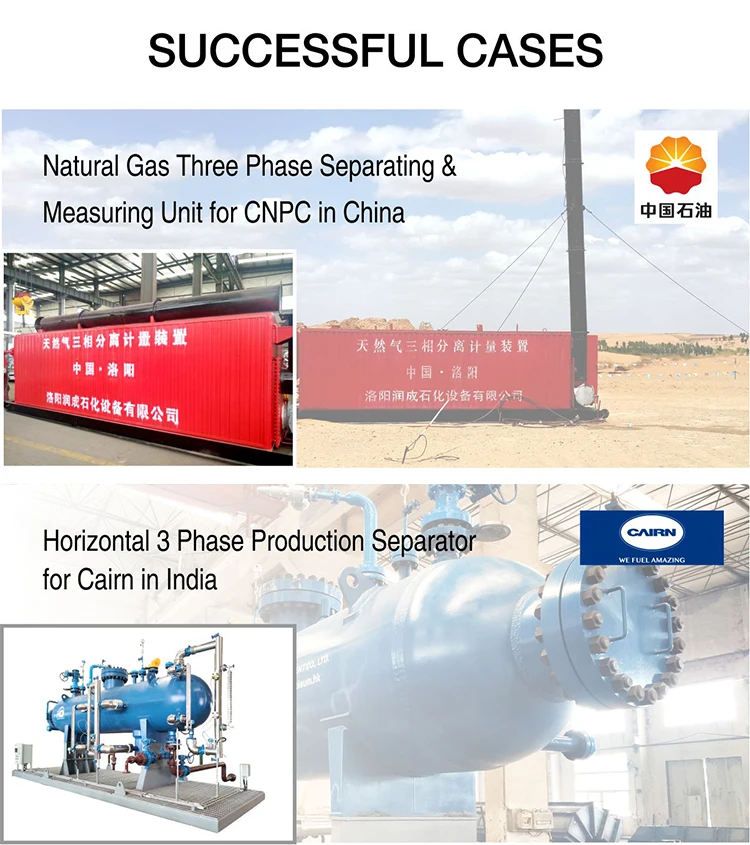

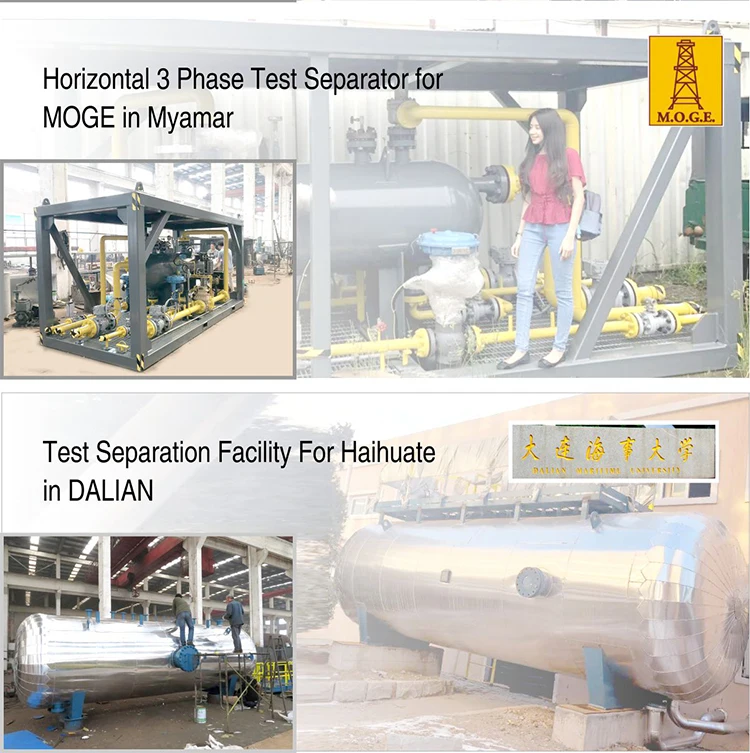

Successful cases
Trade Shows
