Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Производитель платформы трубогибочный станок/высококачественные Трубогибочные машины для
- Категории: >>>
- Поставщик: Xuchang,Hengyisheng,Commercial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
The platform pipe bending machine is applicable for bending stainless steel and other kinds ofthin-wall metal pipes into arc shapes. It is suitable for round, square and rectangular pipesand features smooth round bending.
Model | WG-26 | WG-38 | WG -51 | WG-76 | WG-76(2) | |||||
Bending diameter range | 4-26mm (thickness:2mm) | 4-38mm (thickness:2mm) | 4-51mm (thickness:2-3mm) | 4-76mm (thickness:2-3mm) | 4-76mm (thickness:2-4.5mm) | |||||
Bending Speed | 20r/min | 16r/min | 8r/min | 8r/min | 6r/min | |||||
Max Bending Angle | 180 | 180 | 180 | 180 | 180 | |||||
Min Bending Angle | 5 | 5 | 5 | 5 | 5 | |||||
Motor power | 2.2kw | 3kw-4 | 3kw-4 | 4kw | 5.5kw | |||||
Power supply | 380V,50HZ,3P | 380V,50HZ,3P | 380V,50HZ,3P | 380V,50HZ,3P | 380V,50HZ,3P | |||||
Foot switch voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | |||||
Overall dimension(mm) | 800*650*900 | 900*800*1000 | 950*850*1000 | 1000*900*1100 | 1100*900*1100 | |||||
Total weight | 180kg | 260kg | 320kg | 350kg | 400kg | |||||
MOQ | 1 set | 1 set | 1 set | 1 set | 1 set | |||||
Remarks: this type of machine without molds, the molds needs to customize as client’s request. | ||||||||||
WG-26 model
WG-38 model
WG-51 model
WG-76 model
WG-76(2) model
If you are interested in our products,please sent us these details as follows:
1.Your tube material, stainless steel tube or iron tube or others?

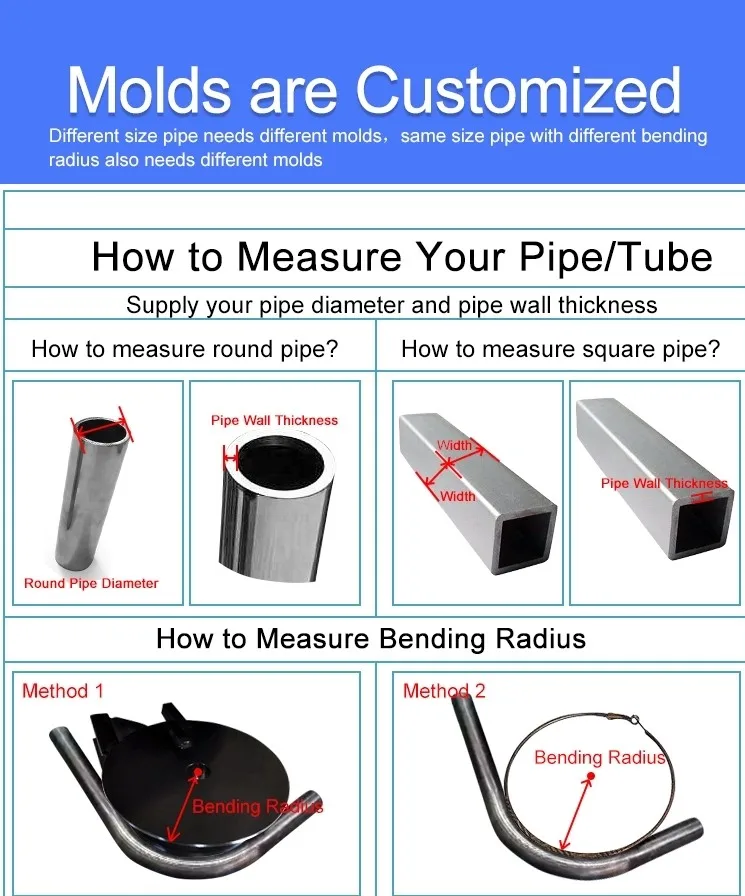

2.Each kind of your tube outer diameter, wall thickness with the bending radius.Then we will recommend a suitable machine with mold for you.
3.If you have drawings,please sent us, then we will give you a suggestion according to your demand and the budget.
2.Each kind of your tube outer diameter, wall thickness with the bending radius.Then we will recommend a suitable machine with mold for you.
3.If you have drawings,please sent us, then we will give you a suggestion according to your demand and the budget.
Operation

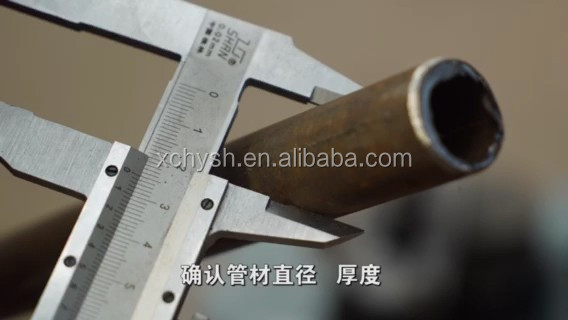

First: ensure the diameter and thick of the tubes

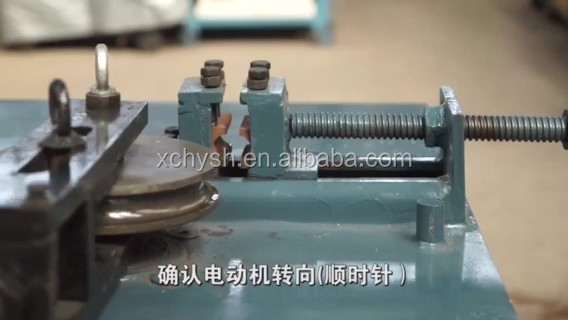

Second: ensure the steering of the motor

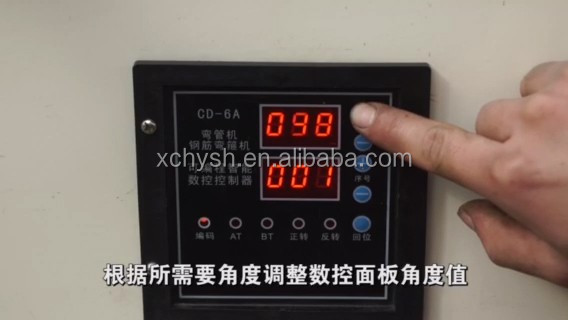

Third:adujust the angle according to the need

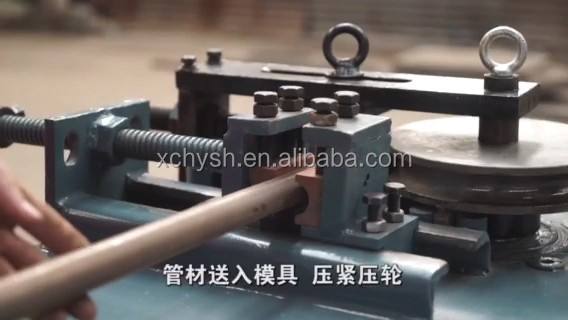

Forth:put the tubes into the dies and impact the pinch roller

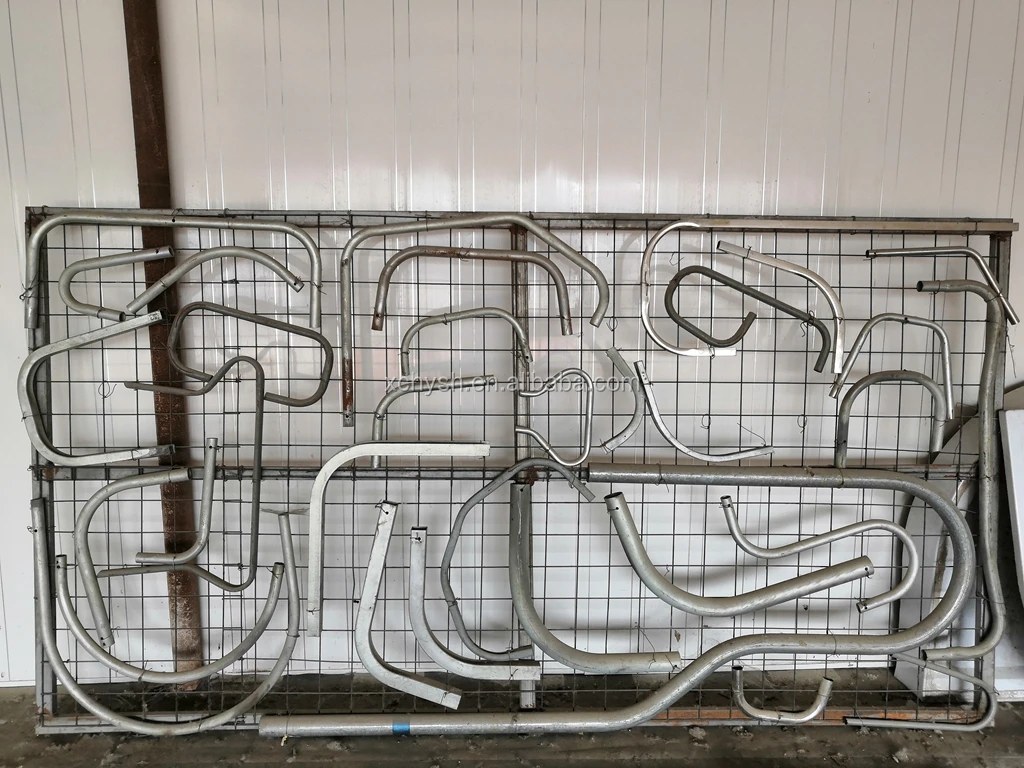

Bending effect

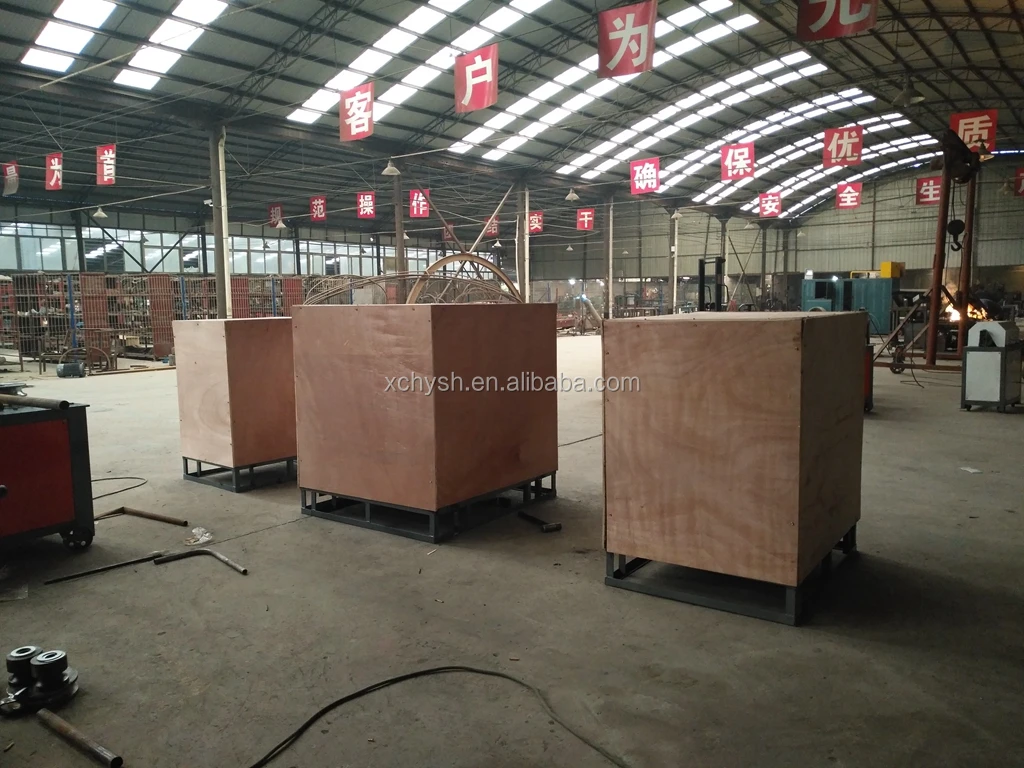

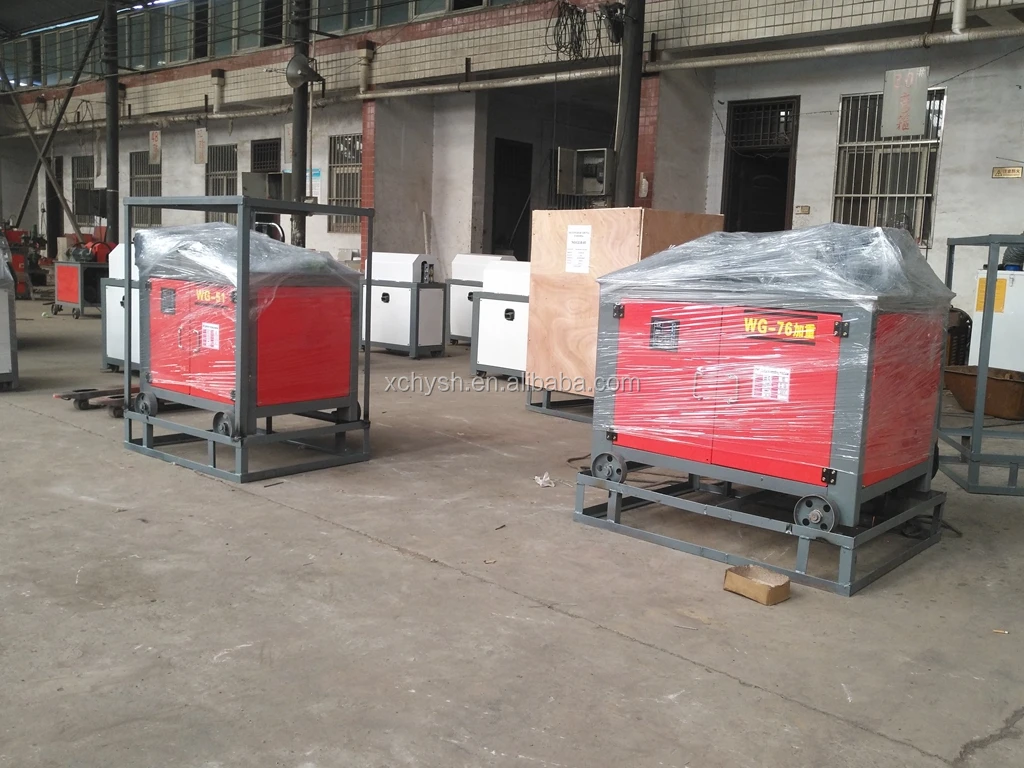

Packing & Delivery
Our Service
