Машина для производства пластиковых резервуаров для воды Juneng
US $35000-$38000
Полностью автоматическая машина для выдувного формования бутылок HDPE
- Категории: Экструзионно-выдувные формовочные машины >>>
- Поставщик: Zhangjiagang,U,Tech,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Introduction

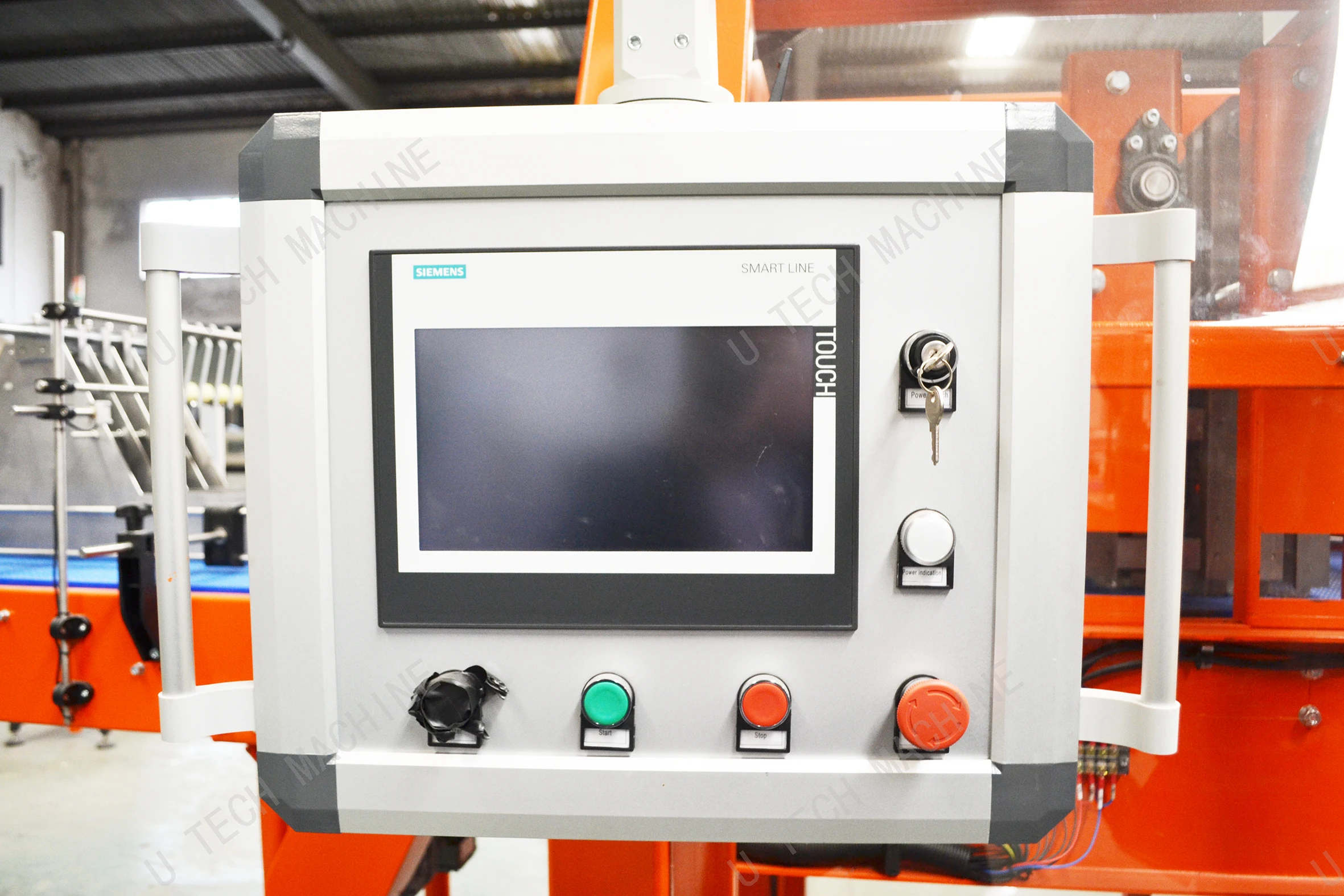

1) Electrical control system: The machine works under the PLC control(made by the Mitsubishi Co. of Japan) via a man-and-machine interface(displayed in Chinese version or in English version).The machine is equipped with a modularized temperature controller and operated through a touch-type coloure screen.All the production data can be set up,modified,searched and monitored and the machine trouble diagnosis can be completed both on the touch-type screen.The electric elements work on the non-contact working principle,thus being durable in service life.
2) Hydraulic system:The machine works under the proportional pressure control. The machine is equipped with hydraulic valves and hydraulic pumps imported from world-famous companies,thus assuring consistent and reliable working performance.
3) Plasticizing system:The high performance screw used on the machine assures thorough and homogeneous plasticization and mixing of plastics.
4) Speed regulation system:Frequency-converter-controlled speed regulator + speed change gearbox with hardened alloy steel gears.Speed regulation can be completed smoothly with less noise generated.Therefore the machine is durable in service life.
5) Mould opening,closing & moving system:A big 3-point central beam mechanism for opening & closing the mould halves and locking the mould assures balanced distribution of locking force and is free of any deformation after long-time operation.The mould is horizontally moved on linear spherical ball guideways at high traveling accuracy and rapid speed and with less resistance.
6) Air-bolowing needle bracket:The air-blowing needle bracket is of solid L-square design.The sturdy bracket assures smoothness of the product cut.
Technical parameter
Model |
| BST65 |
Max. Product Volume | (L) | 5L |
Dry cycle | (pc/h) | 700 |
Screw Diameter | (mm) | 65 |
Screw L/D ratio | (L/D) | 25 |
Screw drive power | (KW) | 15 |
Screw heating capacity | (KW) | 5.04~6.7 |
No. of heating zone | (ZONE) | 3 |
Max. Output of HDPE | (Kg/hr) | 60 |
Oil pump drive power | (KW) | 7.5 |
Clamping force | (KN) | 60 |
Platen distance | (mm) | 148~508 |
Mold moving stroke | (mm) | 380 |
Max. Size of Mold(W*H) | (mm) | 370*390 |
Max. Die diameter | (mm) | 145 |
Die heat capacity | (KW) | 2.5 |
No. of heating zone | (ZONE) | 3 |
Central distance of Double head | (mm) | 160,180 |
Blowing pressure | (Mpa) | 0.6 |
Air volume | (M3/MIN) | 0.4 |
Cooling water pressure | (Mpa) | 0.2~0.3 |
Water consumption | (L/MIN) | 50 |
Size of machine ( L*W*H) | (m) | 3.43*1.77*2.58 |
Weight of machine | (TON) | 4 |
a) Hydraulic Parts
Name | Supplier |
Oil Pump | PARKER or SUNNY, America |
Valve | YUKEN or SUNNY |
Hose, Joint | PARKER SIR |
Sealer | Top DZ Europe |
b) Electrical Parts
Name | Supplier |
Microcomputer Control System | MITSUBISHI PLC, Japan |
Touch Screen | HITECH color screen, Taiwan |
Temperature Controller | MITSUBISHI, Japan |
Conductor | SCHNEIDER |
Air Switch | SCHNEIDER |
Motor | SIMENS BEIDE Asynchronous Motor |
Power Resource | MEAN WELL, Taiwan |
Inverter | MITSUBISHI |
c) Pneumatic Parts
Name | Supplier |
Solenoid Valve | FESTO, Germany |
Cylinder | FESTO, Germany |

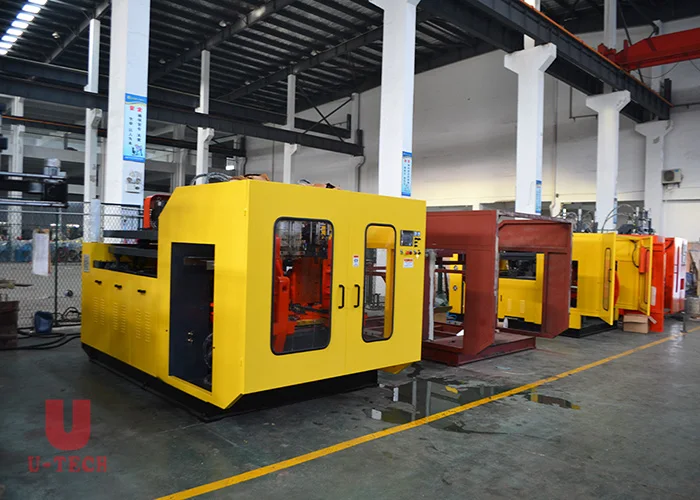

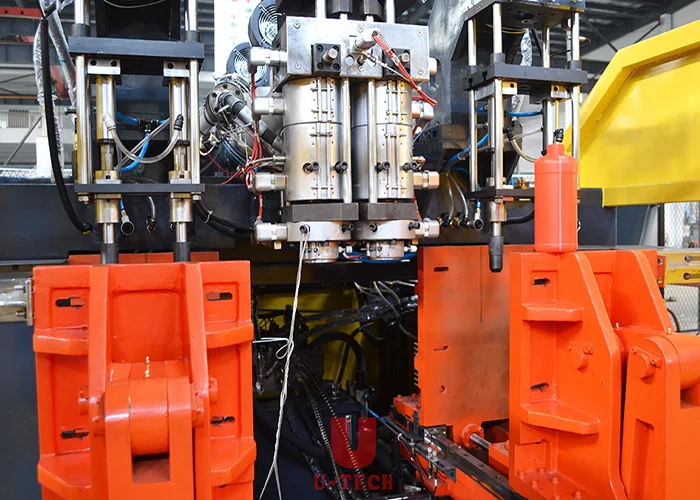

Machine details
Our Services
What service U Tech Machine Co.,Ltd can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 2 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sle service offered, please get back to us if you got any questions
FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
