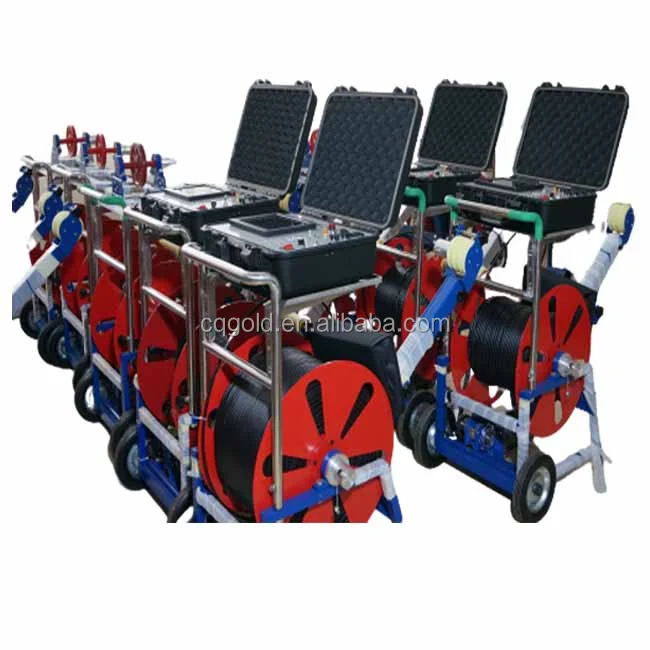

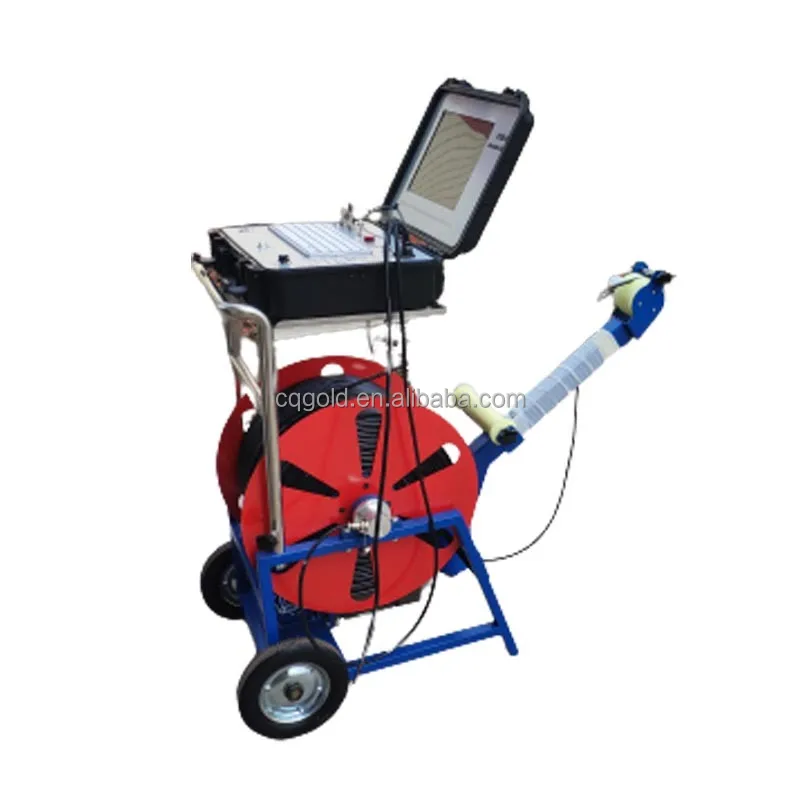

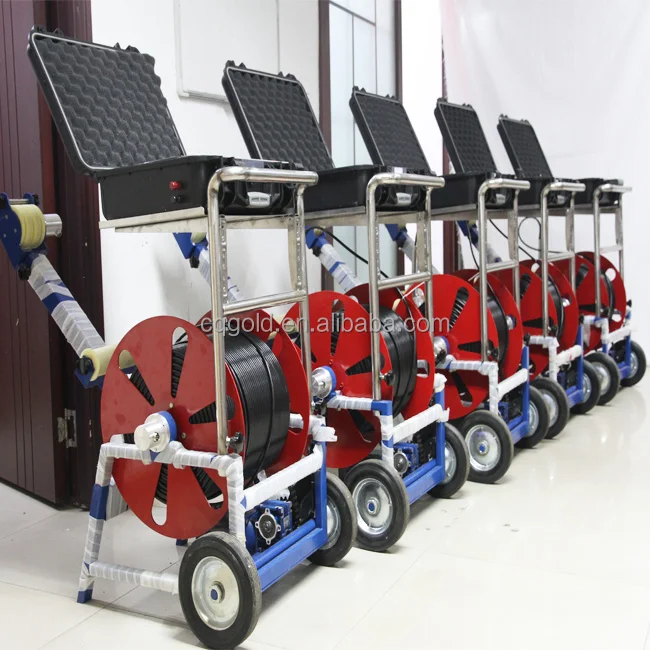

 Water Well Inspection Camera GYGD-II Borehole Inspection Camera Well Inspection Camera with  Depth Encode





Water Well Camera Application:

• Stratum structure divide,


•


• Well wall stratum crack,


•


• Karst development discrimination,


•


• Distinguish fractured development zone,


•


• Determine the karst distribution position,


•


• Long time underground borehole monitoring



Water Well Camera Feature:

Water Well Inspection Camera GYGD-II Borehole Inspection Camera Well Inspection Camera with  Depth Encode

1. Real time video, collect, record,


2.


3. Clearly image show on ground instrument,




5. Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole,


6.


7. Widely used in water well, oil field, coal field, engineering geology, dam, reservoir, oceaneering,


8.


9. Stable performance and modern design,


10.


11. High resolution LED screen,


12.


13. Large storage SD card(max to 32GB),8GB could continue record 32 hours,







Water Well Camera Specification:

No.	Configuration	Dimension	Specification
1	Camera probe	Diameter: 50/80mm Length: 470mm	1. Camera lens are manufactured with high-quality resins. 2. High-quality steel body with solid structure, not easy to     be damaged. 3. Maximum bearable pressure: 20Mpa (can reach the depth      of 2000m under water) 4. 6-12 LED lamps are available
2	Camera		1. Sony inducer 1/3’’ CCD 2. HD 850 TVL image definition 3. Waterproof 4. Panoramic lens camera
3	Specialized cable	Length: 0-2000m (optional)	1. With steel wire 2. Max bearable tension: 260kg
4	Control unit		1. 220V/380V/12V optional voltage mode 2. Aeronautic aluminium case
5	Downhold pulley		Logging depth counter equiped
6	Logging winch		Manual & electric winch available
7	HD DVR		SD card
