Автоматическая алмазная пила для силиконовой

Описание и отзывы

Характеристики

AUTOMATIC

Dicing Saw

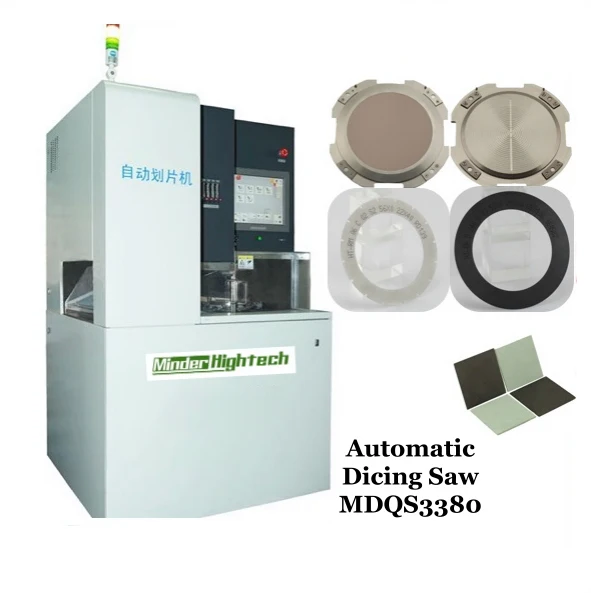

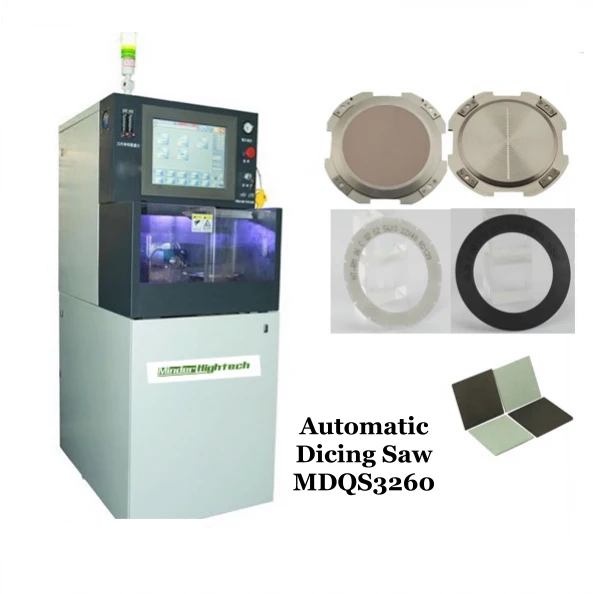

MDQS3260/3380

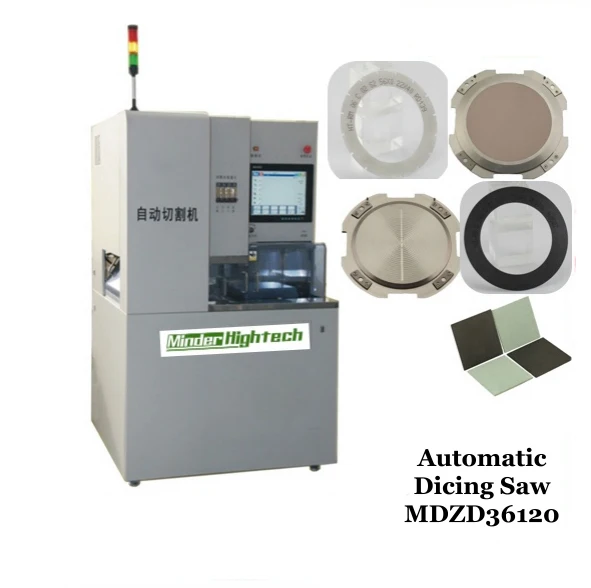

MDZD36120











Application:



IC,LED,Solar cell,optical glass,optical fibre.

Ceramic, silicon wafer, QFN,BGA,PCB,GaAs,GaP.

Quarts,Lithium tantalum, sensitive resistor materials.





Principle and character:

>MDQS3260 for  6” or 245*164mm MDQS3380 for 8” or 260*260mm sq. and MDZD36120 for 12” workpiece.

>Automatically cutting, automatic alignment, automatic focus, automatic kerf check, and other image recognition functions.

>Placed on and removed from the chuck table by hand.

>Easy of use, it provided a Graphical User Interface(GUI) system by LCD touch screen.

>Real-time display the process status.

>With bridge shape structure can reduce the vibration and improve stability and cut quality.

>Shaft lock for easier blade changing.

>High quality component like spindle as well as guide screw etc.

>Customize fully automatic dicing saw(including unloading from cassette and unloading to cassette).







Specification:



		MDQS3260	MDQS3380	MDZD36120
Workpiece size	mm	6’’ or 156*156mm	8’’ or 260*260	8’’ or 12’’ 300*300
X-axis	cutting range(mm)	245	260	300
	cutting speed(mm/s)	0.01-400	0.01-500	0.1-600
Y-axis	cutting range(mm)	165	260	300
	single error(mm)	0.003	0.002	0.003
	total error(mm)	0.005/160	0.003/260	0.003/200
Z-axis	Max.stroke(mm)	20	30	20
	blade size(mm)	d50-d63.4	d50-d63.4	d50-d58
	repeatability(mm)	0.003	0.002	0.002
θ- axis	rotating angle(deg)	320	380	380
Spindle	output(kW)	1.5	1.8	1.8
	speed(rpm)	3000-60000	0-60000	6000-60000
Align system	magnification	150X	150X	150X
	display	15’’ touch screen	17’’ touch screen	17’’ touch screen
Power		AC 3*380V+-10%
Air source	pressure(MPa)	0.5-0.8
	consumption(L/min)	300
Water	cutting area(L/min)	3
	main spindle cutting (L/min)	1.5
Dimension	mm	602*888*2060	1080*1040*1900	1080*1040*1990
Weight	kg	550	990	1020





Accessary:  ceramic/metal chuck table, blade,blade maintain plate…….







——————————————————————————————————————————
