Тяжелая роликовая цепь ANSI 160-1H оцинкованная со специальным расширенным штифтом каждую

Описание и отзывы

Характеристики

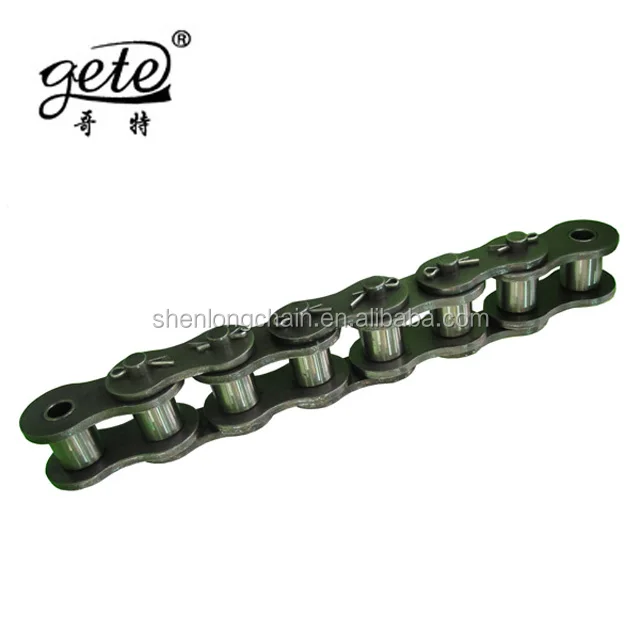

Heavy roller chain ANSI 160-1H zinc plated with special extended pin every second out link, extended pin on one side with thread M12





Question one : Why choose US?



 High quality with good delivery time. Very patient comunicate and service. Strong team support you here.  ISO9001-2008 quality system, CE goods certificate.



Question Two:  What are Our factory's main products ?

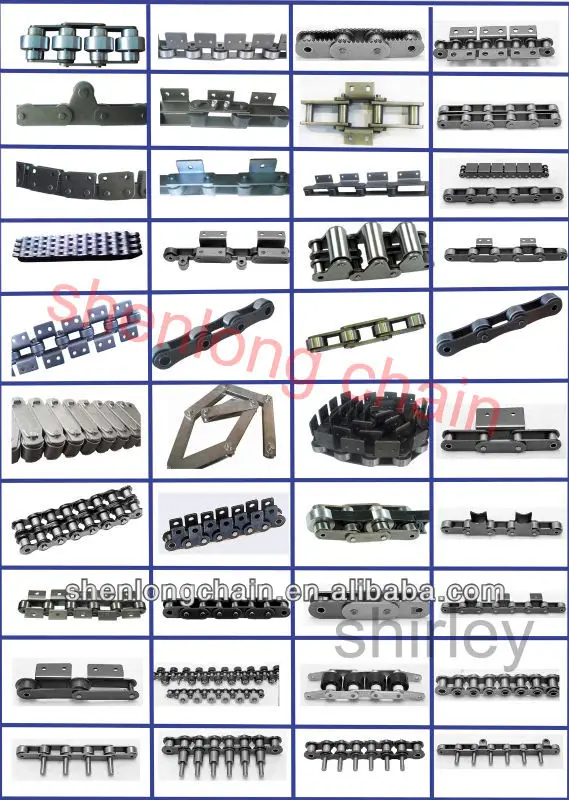

Roller chain, conveyor chain, leaf chain, agricultural chain, hollow pin chain and double plus chains. chain with different attachments.



Question three:  Which market we export our goods to?



USA, Europe market(Germany, Turkey, Poland, Ukraine, Russia,France...) South of America, North of America,  Middle East. Asia(Korea)..

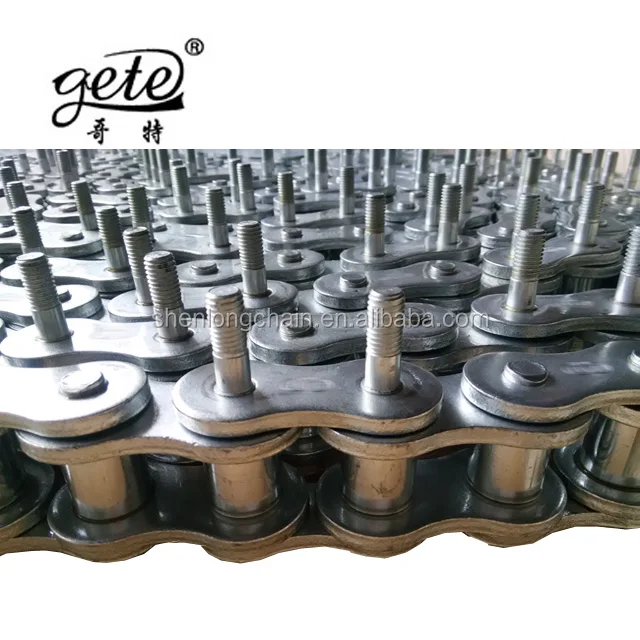

Heavy roller chain ANSI 160-1H zinc plated with special extended pin every second out link, extended pin on one side with thread M12

Pitch: 50.8mm

Roller diameter: 28.58mm

Width between inner plate: 31.55mm

Pin diameter: 14.27mm

Plate thickness: 7.2mm

with thread M12 on extended pins, match self-locking nuts.

material for chain parts:

Inner and out plate: 45Mn

Bush and roller :  35#

Pin: 40Cr





More goods can read from: http://www.shenlongchain.cn/productgrouplist-209394930-2/roller_chain.html?isGallery=Y
