Сварочный аппарат для точечной сварки с двумя иглами аккумуляторного блока цилиндра

Double Needle Battery Spot Welding Welder  For 18650 Cylinder Battery Pack

1.Characteristic:

• This machine adopts international precision grade chip to control the welding time.
• There are manyadvantages including precise time control, good reliability, wide application, low power consumption, small size, light weight, easy to carry and operation.

2.  Area of application:

• Suitable for welding of low carbon steel, stainless steel, copper alloy, nickel, platinum and other metal materials.

3.  Example application:

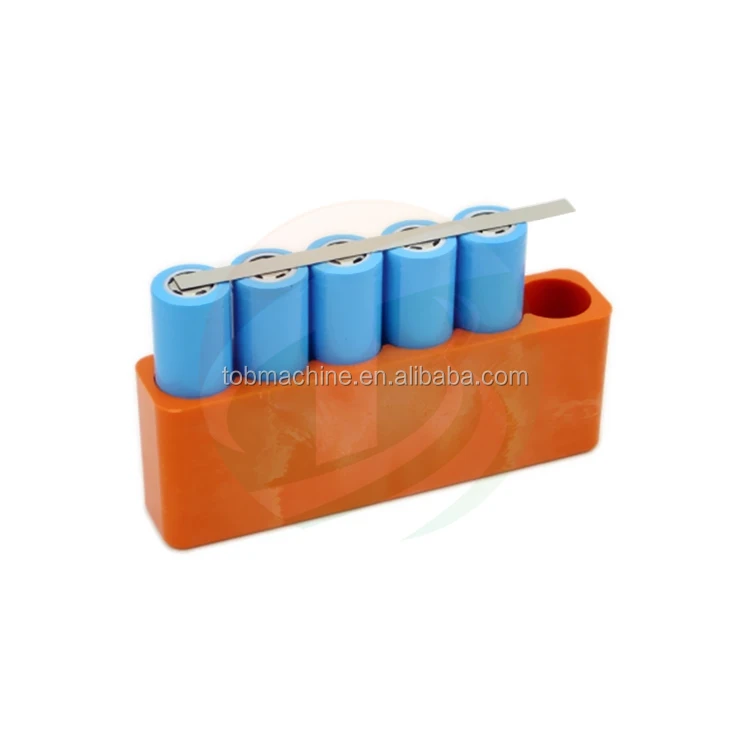

• Series parallel welding of cell phone battery.
• Laptop battery board repair.
• Can be used in lithium batteries, nickel cadmium batteries, nickel hydrogen batteries, lithium manganese battery welding.Hand held welding, flexible and convenient.Is a good helper for battery maintenance, but also an ideal choice for battery manufacturers.

• Product model	DN-2.5	DN-5	DN-10	DN-16
  power supply	AC 220V	AC 220V	AC 220/380V	AC 380V
  Welding time	20-300ms
  Welding Thickness	0.03-0.2mm	0.03-0.4mm	0.06-0.65mm	0.06-1mm
  Product size	410*110*260mm	410*110*260mm	410*110*260mm	410*110*260mm
