Product Description

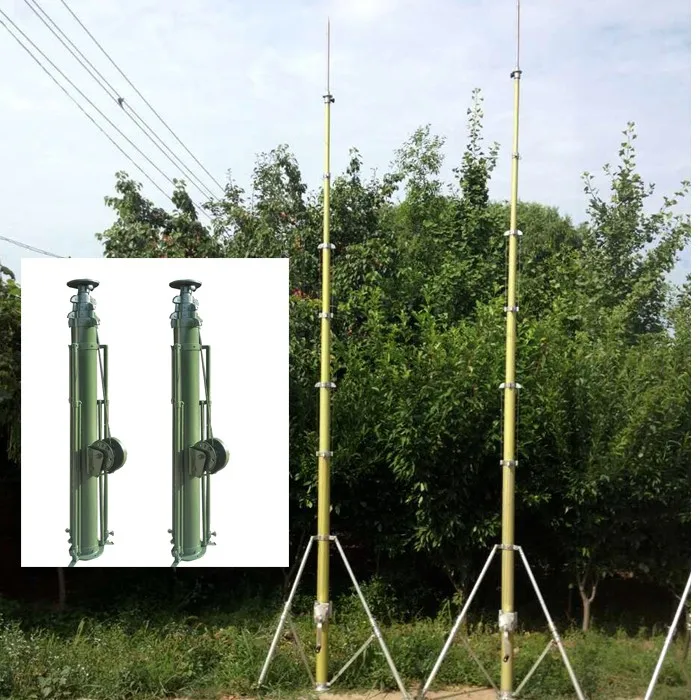

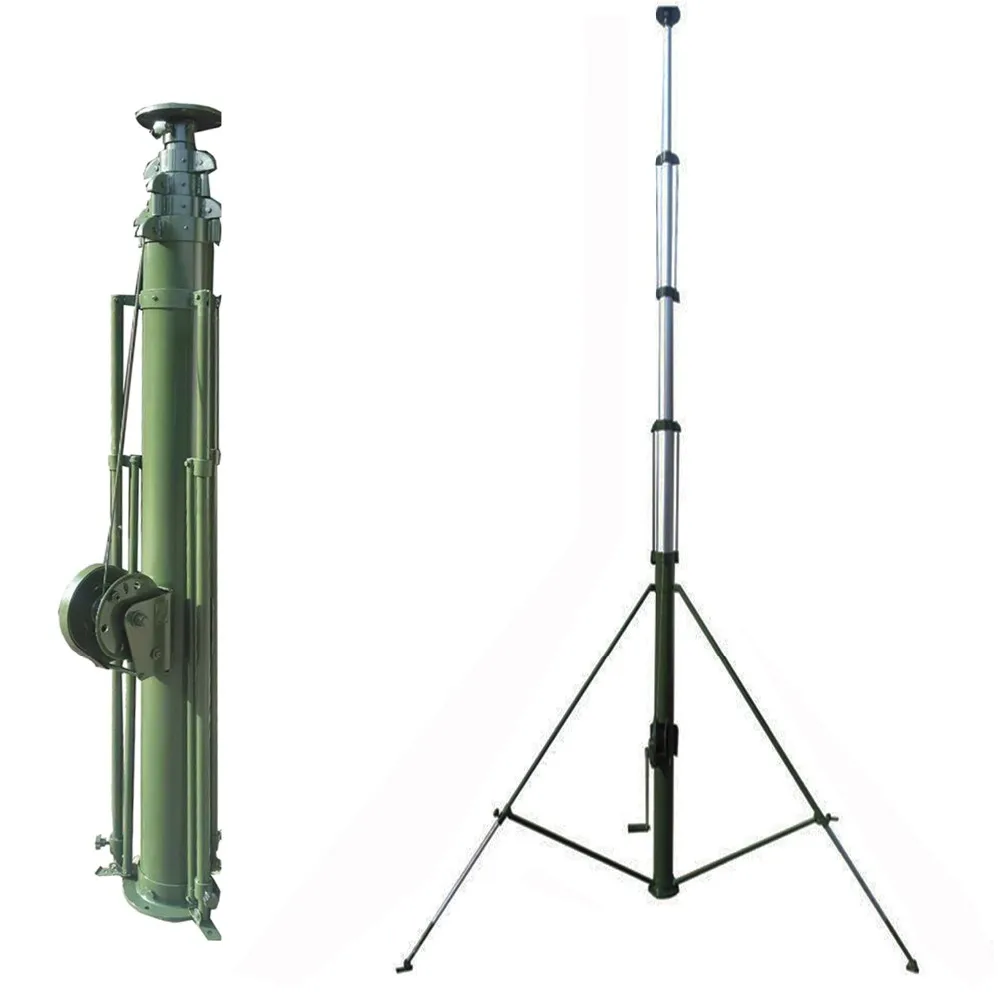

                                     10m manual aluminum telescopic camera mast pole




Detailed specification
Closed length
1.95m (Bottom base included)
Extended length
10.0m (Bottom base included)
Top payload
around 10kgs
Diameter range
30mm-90mm
Accessories
Main pole, ground anchor, pulling cord box with handle bars, hand lifting bar,tripod
Color:
The whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color. Technology: painting
Material:
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)
Number of section
7


Application

It can help lamplight, camera, Antenna, mobile and other equipments rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field. Our product has the advantages of large play load, low noise, fast lifting, strong buffering & stable performance and the like. With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places. It can be installed on the ground or on the vehicle to ensure the application effect.





Detailed Images

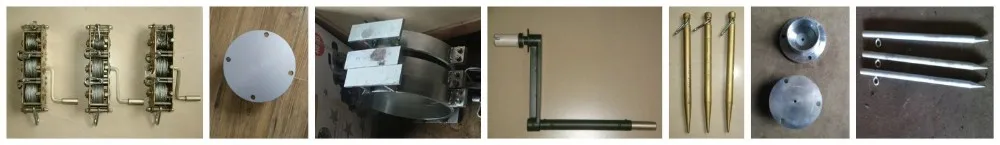

Accessories:
Pulling cord box with handle bars
3 units
Ground anchor
3 pieces
Handle lifting bar
2 pieces
20cm 304 stainless steel stakes
6 pieces
Tripod
1 unit




Packing & Delivery

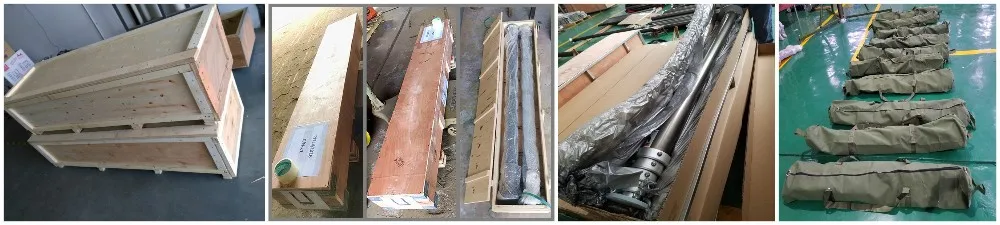

PACKING:

One unit of telescopic camera pole mast (main pole and all accessories) to be wrapped with Poly tapes and  then into a plywood case with metal belts reinforced.






Installation Instructions:

1）The telescopic camera pole mast can be installed on the ground, or on the vehicle. No matter where to install, its installation shall keep vertical with the ground.Tilted telescopic antenna mast will affect the rise and fall of itself, and if the telescopic antenna mast tilts seriously or maintain a long time, damage and danger could not be avoided.
2）The telescopic camera pole mast needs to be installed on a fixed object, without any shaking, such as walls, car body, or pile.  At least two fixed points will be installed, and one point must be installed on the body of the telescopic antenna mast. And the distance between two points should be longer than 2/3 of the height of telescopic antenna mast. Its connection must be solid and reliable.



Other Specification


Model No.
Extended height(m)
No. Of section
Retracted height(m)
Outer tube OD(mm)
Head-load
(KG)
TAL-M3-1-20
3
3
1.0
70-90
20
TAL-M4-1.5-30
4
3
1.5
50-80
30
TAL-M5-1.65-10
5
4
1.65
50-80
10
TAL-M5-1.2-15
5
5
1.2
40-90
15
TAL-M5-1.2-10
5
6
1.2
40-90
10
TAL-M5-1.7-100
5
6
1.7
60-130
100
TAL-M6-1.7-10
6
5
1.7
50-90
10
TAL-M6-1.5-100
6
6
1.5
60-130
100
TAL-M6-1.3-60
6
7
1.3
40-130
60
TAL-M7-1.8-30
7
7
1.8
40-105
30
TAL-M8-1.8-10
8
6
1.8
40-90
10
TAL-M8-1.5-20
8
8
1.5
40-130
20
TAL-M9-1.8-30
9
7
1.8
40-105
30
TAL-M9-1.8-100
9
7
1.8
60-160
100
TAL-M9-1.9-5
9
7
1.9
30-90
5
TAL-M10-1.95-10
10
7
1.95
30-90
10
TAL-M10-2-40
10
7
2
30-105
40
TAL-M12-2.1-15
12
7
2.1
30-90
15
TAL-M12-2-40
12
8
2.2
40-130
40
TAL-M15-2.45-10
15
8
2.45
30-105
10
TAL-M15-2.6-35
15
9
2.6
30-130
35
TAL-M15-2.5-200
15
7
2.5
70-200
70
TAL-M16-2.6-10
16
8
2.6
30-105
10
TAL-M18-2.7-10
18
9
2.7
30-130
10
TAL-M18-3.2-30
18
9
3.2
30-130
30
TAL-M18-3.7-100
18
7
3.7
50-130
100
TAL-M20-2.95-10
20
9
2.95
30-130
10
TAL-M22-3.15-10
22
9
3.15
30-130
10
TAL-M25-3.4-10
25
10
3.4
30-150
10
TAL-M25-3.5-250
25
10
3.5
80-280
250
TAL-25-3.6-20
25
9
3.6
40-150
20
TAL-M30-3.85-10
30
10
3.85
30-150
10
TAL-M35-4.5-25
35
10
4.5
40-180
25

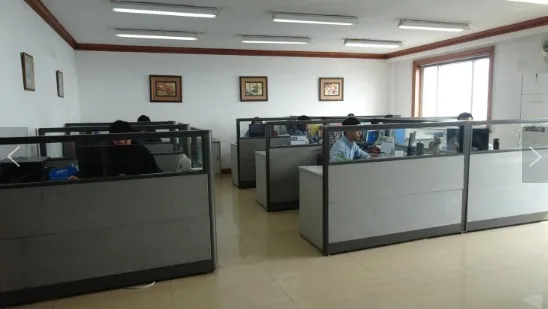

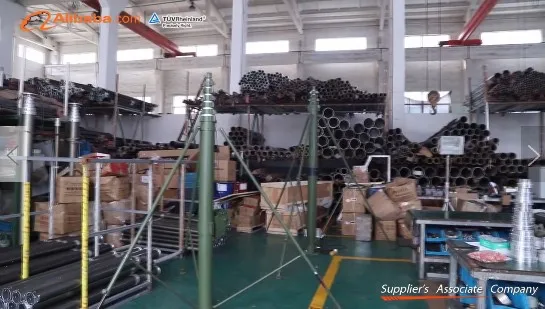

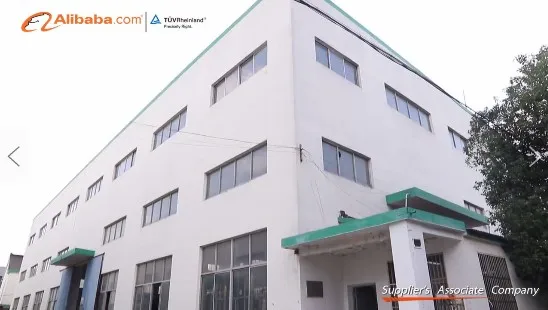

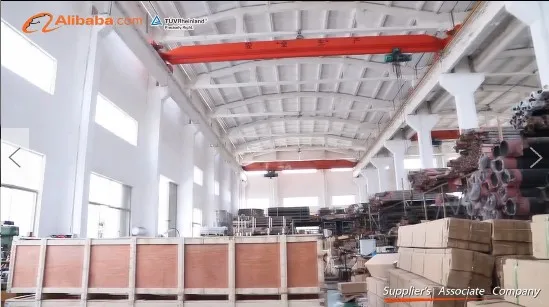

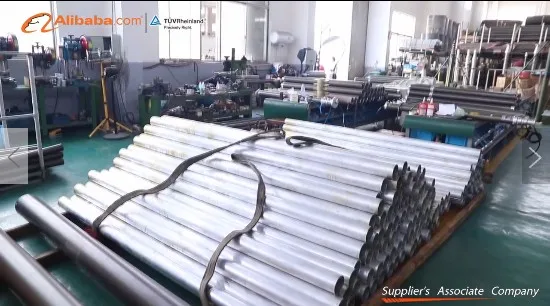

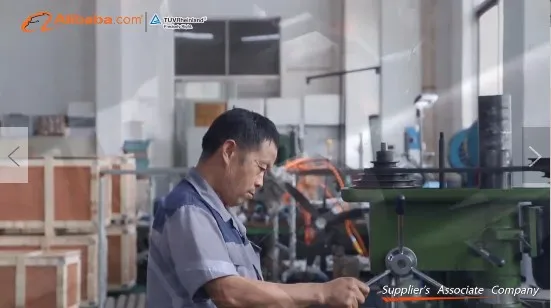

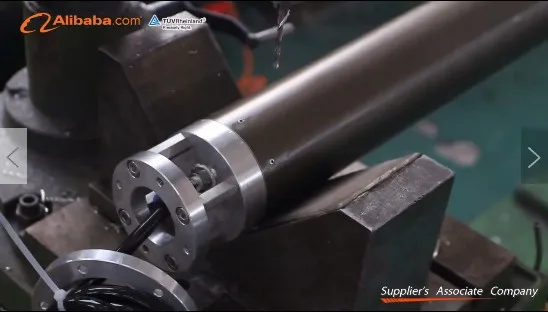

Factory view


Alibaba verified factory

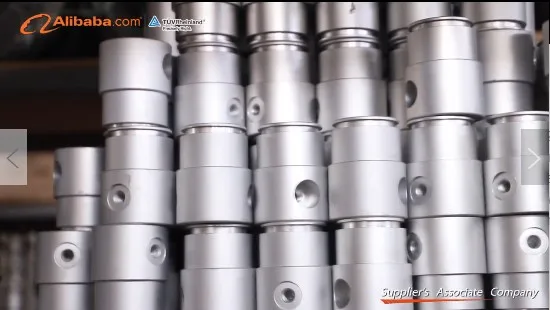

we have the mold for the tubes, all accessoreies are customized. Assemble by professional worer.
also we have professional technician






FAQ


Operation???
with winch system structure,
hand lifting bar to control it,
After-sale???
1 year after sale warranty.
Also Any problem, our professional technician could provide the best advice to solve iin using process of the mast.
Cutomized???
Welcome..
just let us know following points:
1.appliation
2.extended height
3.retracted height
4.your e-mail address


Company Information




About"Talents"
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic
operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbonfiber tube. Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economicmasts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply thesolutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that weare achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents andthe four Oceans. Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with ourcustomers an one for one timely information feedback, we have organized an expert team for quality control and inspection system,we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. we thinkoutside the box and are continually developing new products to meet customer requirements, what you are asking for is our motivepower of task, we wish one of our products will well-meet what you demand.
