Welcome to use our ST76A Infrared LED Sensor Lamp!

Hot New Fashional ST76A Infrared Sensor Light LED ceiling Restaurant Garage Bedroom PC fixture

The product is an energy-saving automatic sensor lamp, adopting integrated circuit and precise detecting components. It gathers automatism, convenience, safety, saving-energy and practical functions. Its performance is stable. It can identify day and night. The lamp can turn on when one enters detection field and can turn off automatically when one leaves detection field.







Specifications:

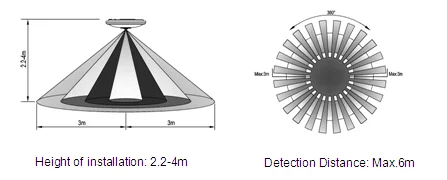

Power Source: 110-240V/AC                         Detection Range: 360°



Power Frequency: 50/60Hz                            Detection Distance: max.6m(<24℃)



Ambient Light:<3-2000LUX(adjustable)          Working Temperature: -20~+40℃



Time Delay:Min.10sec±3sec                          Working Humidity: <93%RH



                  Max.3min±30sec                         Installation Height: 2.2-4m



Rated Load: 12W (850LM)                            Detection Moving Speed: 0.6-1.5m/s



Lifetime and Warranty:

Lifetime (hr)	26000-45000 at least
Warranty	3 years



FUNCTION:

Ø  Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “moon” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

Ø  Adjustable Time Delay: the length of time delay could be set according to the customers’ requirement, the minimum time of this item is 10sec±3sec, and the maximum is 5min±1min.



INSTALLATION:

Ø  Switch off the power.

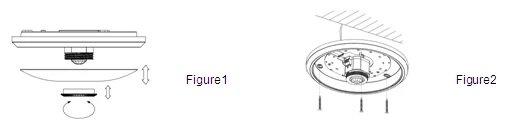

Ø  Unload the plastic cover anti-clockwise to open it. (refer to figure1)

Ø  Pass the wire through the hole in the bottom and connect the power wire into connection-wire column according to the connection-wire diagram. Install the sensor lamp in the position where you need with inflated screws. (refer to figure2)

Switch on the power and test it.
