Product Description

Product Application

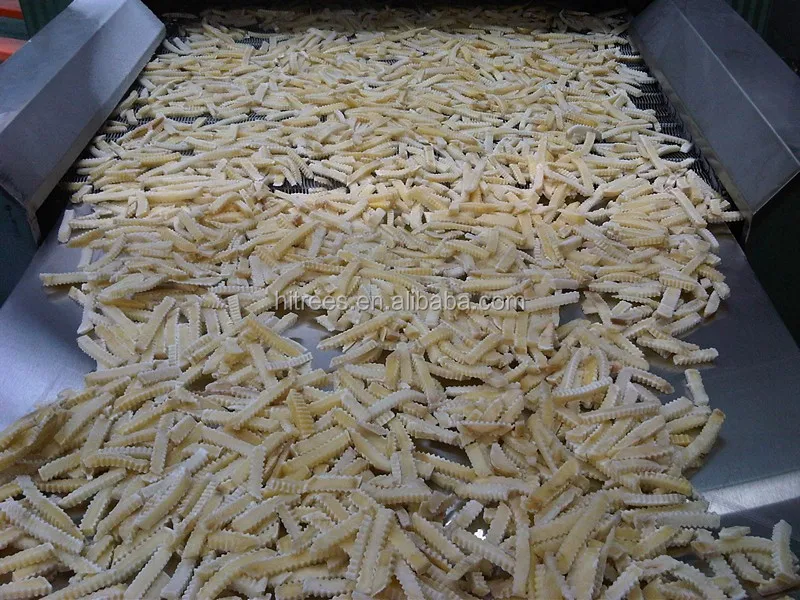

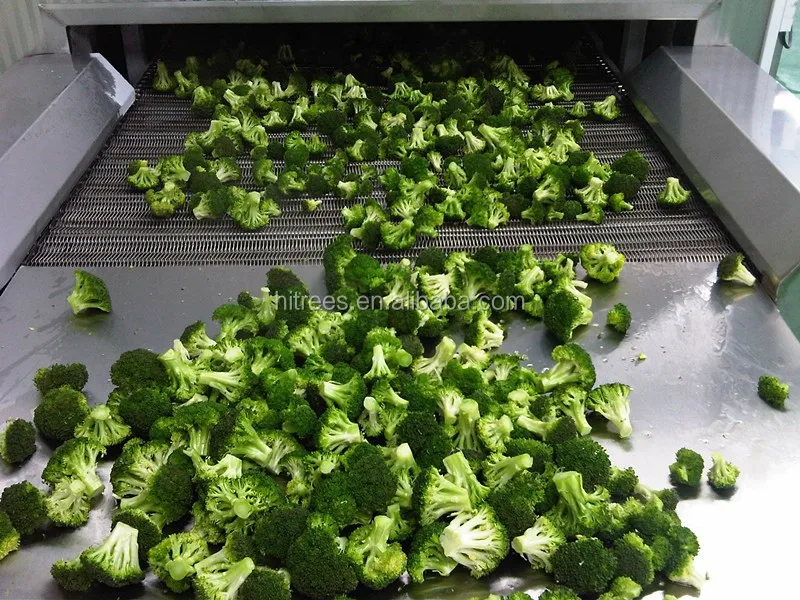

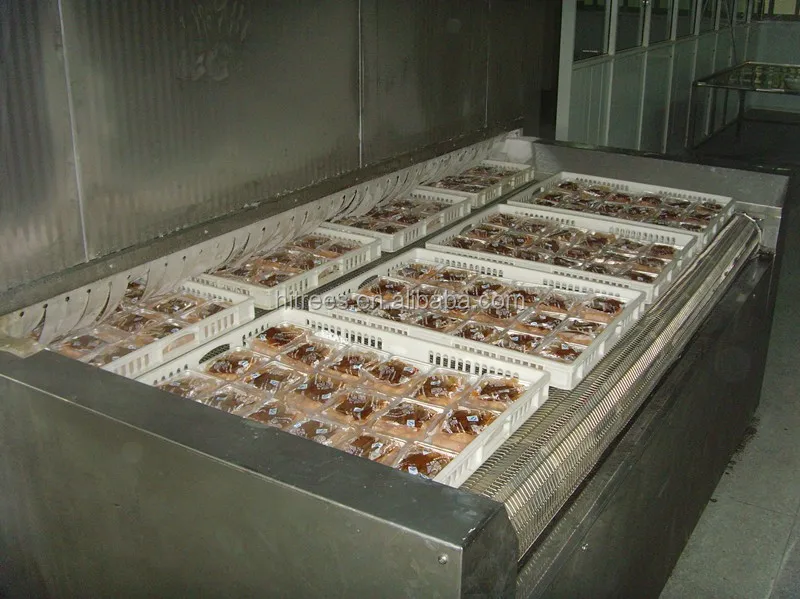

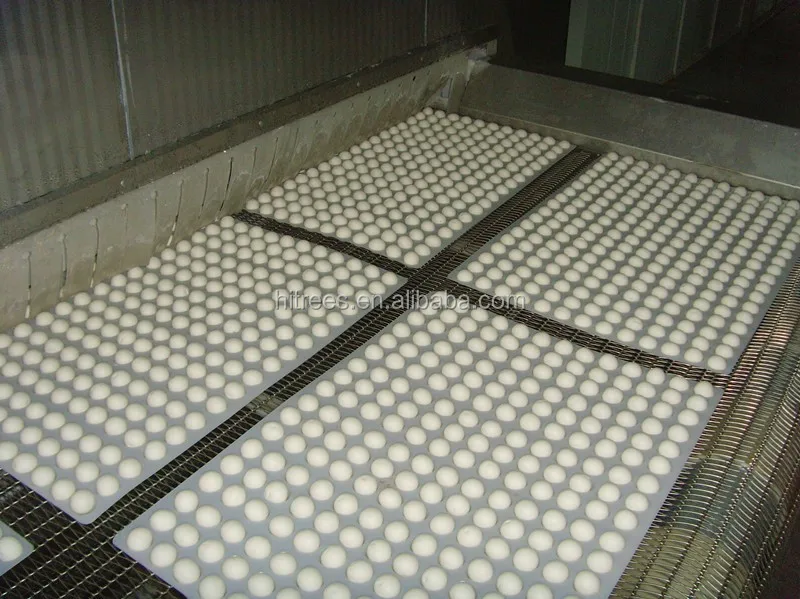

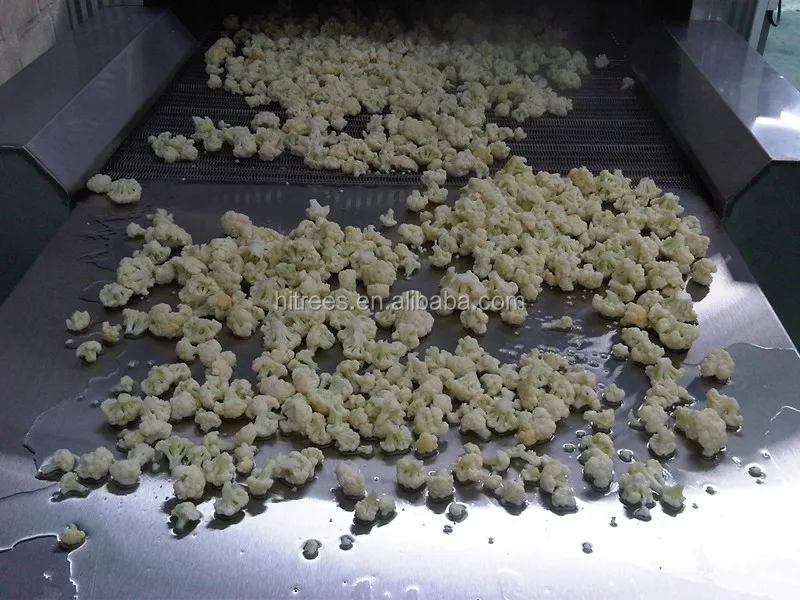

Tunnel IQF freezers are mostly used for flour food freezing, fruits & vegetables freezing, meat freezing, seafood freezing and prepared food freezing.

\t NO.	\t ITEM	\t CONTENT
\t 1	\t Equipment Type	\t Tunnel Freezer TF200
\t 2	\t Belt Type	\t Stainless steel material
\t 3	\t Output Capacity	\t 200kg/h
\t 4	\t Inlet Temperature	\t +15 degree Celsius
\t 5	\t Outlet Core Temperature	\t -18 degree Celsius
\t 6	\t Inner Air Temperature	\t -38±3 degree Celsius
\t 7	\t Overall Dimension	\t 10200mm1800mm2300mm LWH
\t 8	\t Belt Width	\t 1300mm
\t 9	\t Tunnel Passable Height	\t 100mm
\t 10	\t Inlet Device Length	\t 600mm
\t 11	\t Outlet Device Length	\t 600mm
\t 12	\t Inlet & Outlet Device Height	\t 850mm
\t 13	\t Retention Time	\t Adjustable
\t 14	\t Defrosting Method & Interval	\t By Water every 12 hours
\t 15	\t Refrigeration Consumption	\t 30 KW (+40 degree C/-40 degree C)
\t 16	\t Evaporating Area	\t 360 square meters

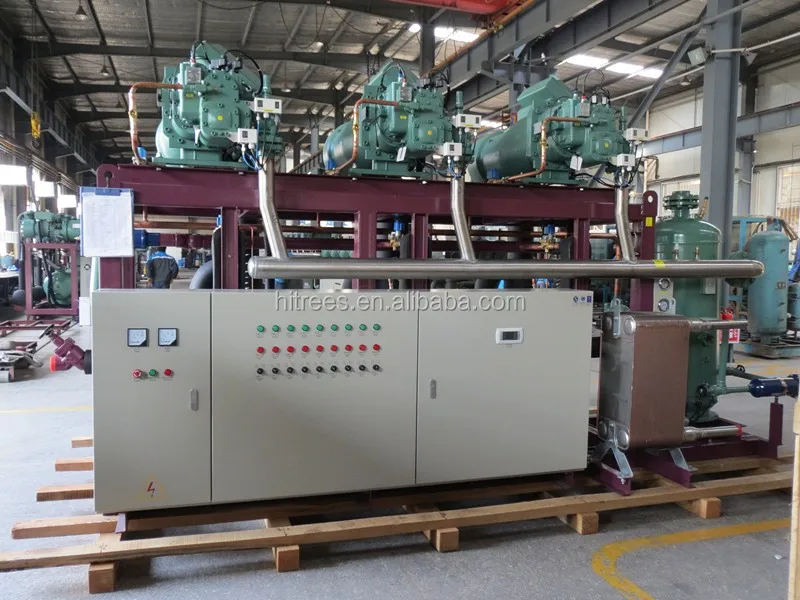

\t 17	\t Compressor Model	\t BITZER 6GE-34Y * 2 sets
\t 18	\t Refrigeration Capacity	\t 30.26 KW (+40 degree C/-40 degree C)
\t 19	\t Refrigerant	\t R404a
\t 20	\t Condensing Type	\t Air cooled
\t 21	\t Installed Power for tunnel freezer	\t 5.15KW
\t 22	\t Installed Power for Compressor System	\t 30KW

Main Structure

(1) Stainless steel conveyor belt;

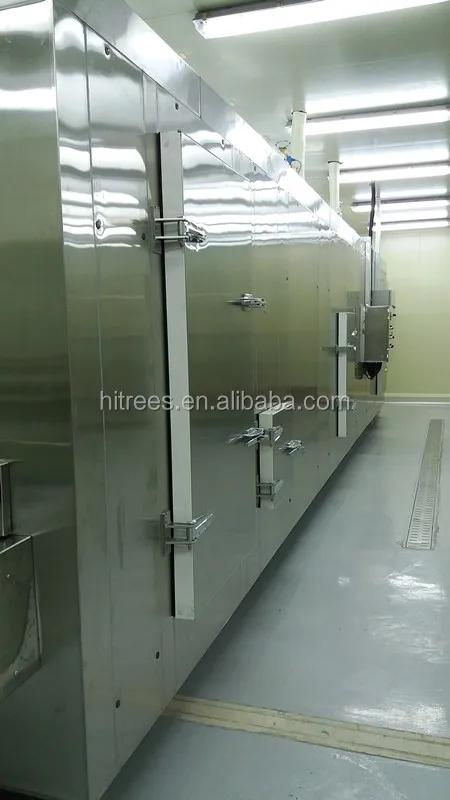

(2) Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;

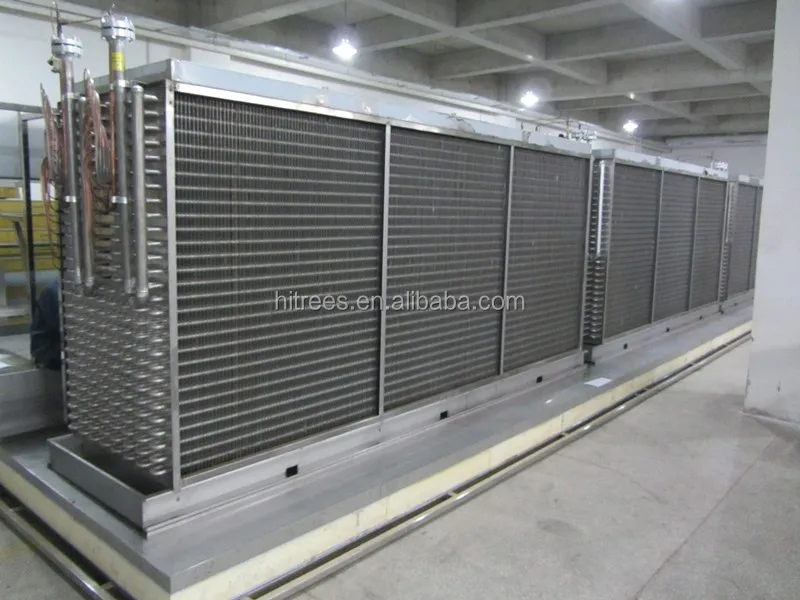

(4) Aluminum evaporators, different fin pitches;

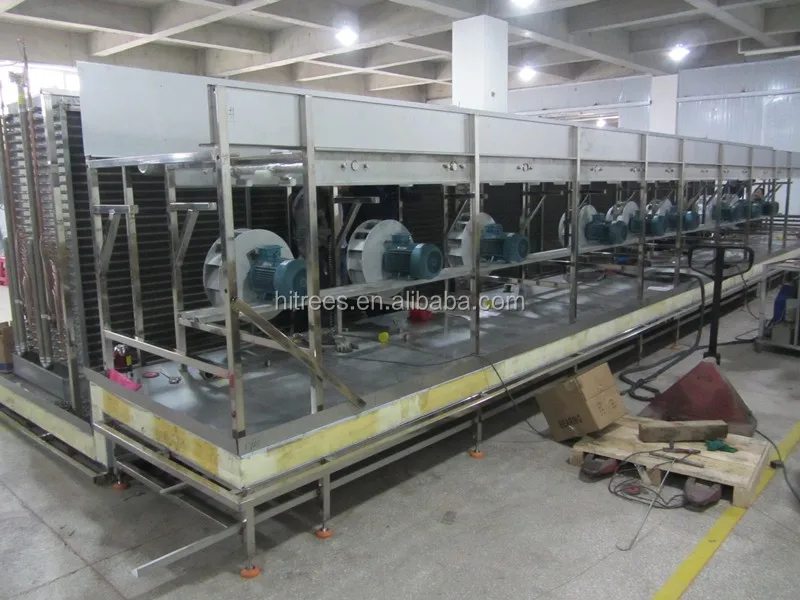

(5) Axial fans: stainless steel air box, aluminum blades;
(6) Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through stainless steel draining pipes;
(7) The inlet device, outlet device and all structure parts are made of stainless steel;

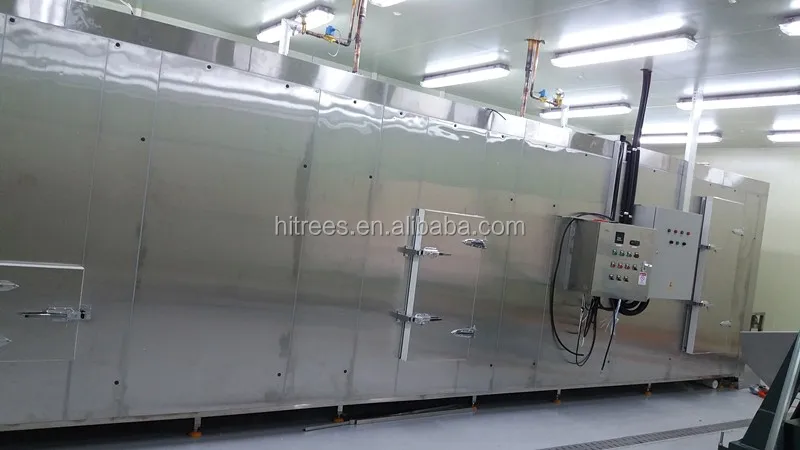

(8) Control panel is made of stainless steel;
(9) Schneider or Siemens electric components;
(10)SEW speed reducer.

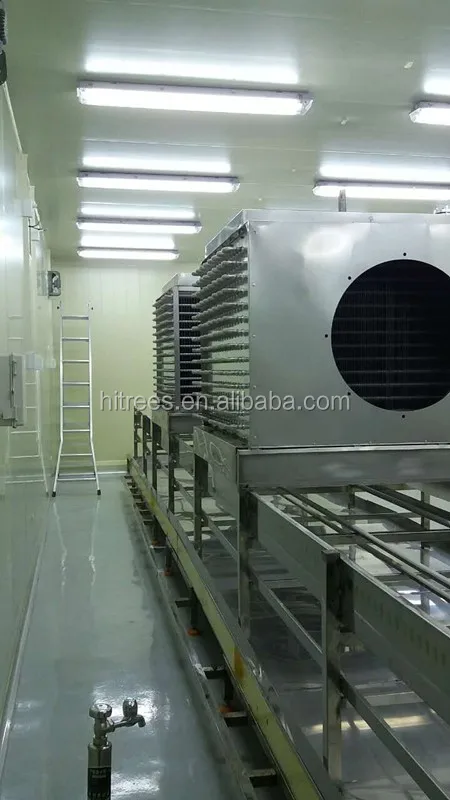

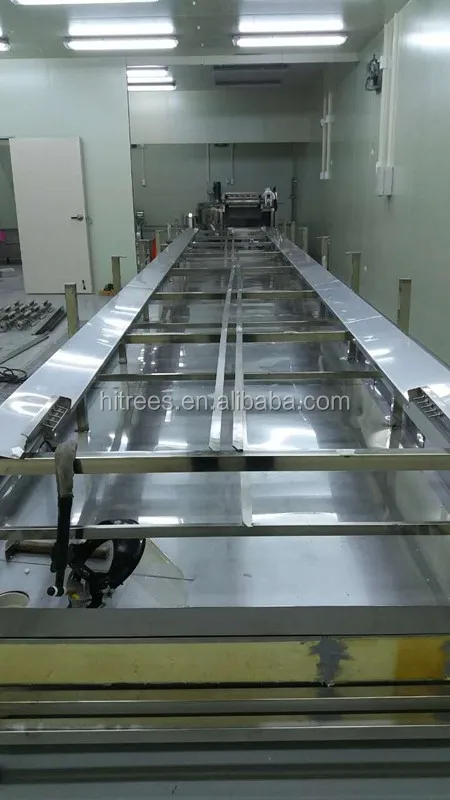

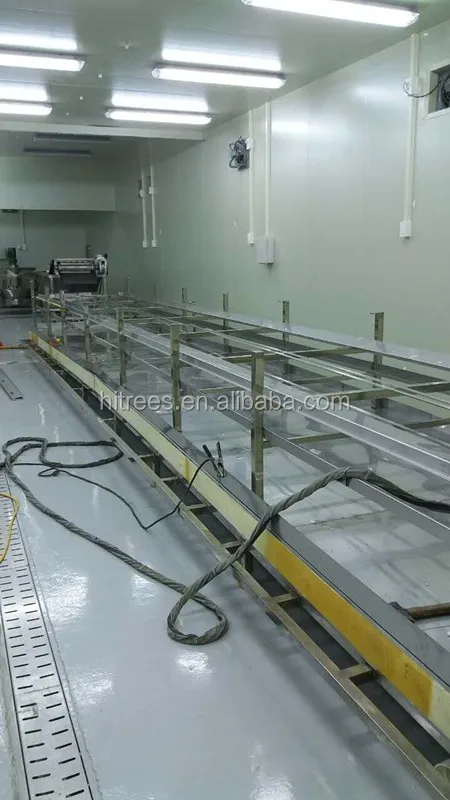

Assembling Process
