Портативная УФ-машина для отверждения и покрытия офсетной трафаретной


Поделиться:

Цена:20,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Features

Portable UV curing machine for UV glue, UV ink, UV test.

Small size with light weight,
Portable design, one lamp, easy operation.
One side and multi-side curing flexible controlling.
Special for test(UV ink, UV oil, UV painting, UV coating^. )
Ecnomic style with steady performance.
Technical
\t
Irradiation distance
\t
80-200mm
\t
Power density
\t
80-120 W/cm
\t
Spectral peak
\t
365nm
\t
Lamp measuring range of values
\t
1000-9500 mJ/cm2
\t
Power
\t
AC 220 V 50Hz
\t
UV lamp power
\t
1 KW
\t
The length of the lamp
\t
230mm
\t
Lamp tube lighting area
\t
125mm
\t
Lamp life
\t
800 hours
\t
Weight
\t
power wight
\t
15KGS
\t
light weight
\t
3 KGS
\t
Dimension
\t
electronic control box
\t
360L*164W*246H(mm)
\t
light box
\t
341L*160W*285H(mm)
\t
Package size
\t
450L*430W*350H(mm)
Product details

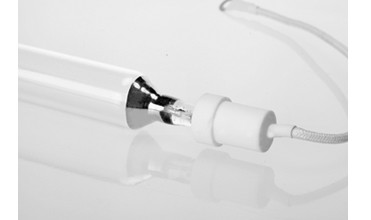

UV Lamp
With ultraviolet UV lamp madeof high quality pure silica glass composition,to a high degree and a large number of UV penetration,curing effect is more significant

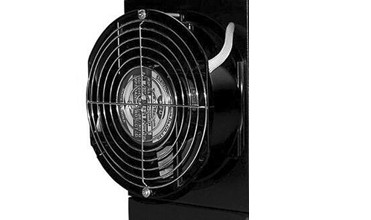

Exhausting fan

To attach importance to functionality and operability on the basis of design,enhanced ventilation cooling system,exhaust fan volume size is adjustable to a achieve the best colling effect

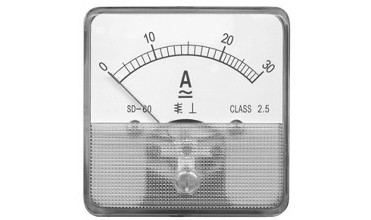

UV meter

UV meter can better understand the lamp current during use, to make the operation easier and faster, better operational control and machine

Application
