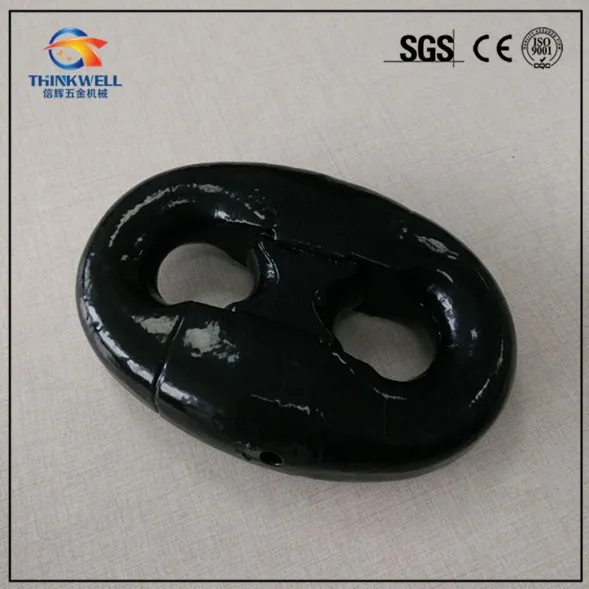

On sale Good Quality Marine Kenter Shackle Joining Shackle for anchor chain
Product Description
Name: kenter shackle
Grade :U2&U3
Material: alloy steel, generally including CM390, SM490, CM690, or aoording to your requirement
Surface treatment: self color, black painted, galvanized or according to customer's requirement.
Size Table Sheet:
| Dia. | Outside Length | Outside Width | U2 | U3 | Weight | ||
| (mm) | (mm) | (mm) | Proof Load | Breaking Load | Proof Load | Breaking Load | (KG/27.5M) |
| (KN) | (KN) | (KN) | (KN) | ||||
| 16 | 96 | 56 | 66.2 | 132.3 | 92.42 | 184.83 | 138.14 |
| 17.5 | 105 | 61.25 | 78.89 | 157.78 | 110.55 | 221.1 | 165.8 |
| 19 | 114 | 66.5 | 93.6 | 187.2 | 130.32 | 260.64 | 194.9 |
| 20.5 | 123 | 71.8 | 108.64 | 217.27 | 151.7 | 303.42 | 227.13 |
| 22 | 132 | 77 | 125.4 | 250.9 | 174.4 | 349.4 | 262.29 |
| 24 | 144 | 84 | 149.9 | 298.9 | 207.9 | 415.8 | 312.26 |
| 26 | 156 | 91 | 175.4 | 350.8 | 244 | 488 | 366.76 |
| 28 | 168 | 98 | 203.8 | 406.7 | 283 | 566 | 423.36 |
| 30 | 180 | 105 | 234.2 | 467.5 | 324.9 | 649.8 | 486.85 |
| 32 | 192 | 112 | 265.6 | 531.2 | 369.6 | 739.3 | 554.7 |
| 34 | 204 | 119 | 299.9 | 599.8 | 417.3 | 834.6 | 628.08 |
| 36 | 216 | 126 | 336.1 | 672.3 | 467.8 | 935.7 | 701.54 |
| 38 | 228 | 133 | 374.4 | 748.7 | 521.3 | 1042.5 | 781.92 |
| 40 | 240 | 140 | 414.5 | 829.1 | 577.6 | 1155.2 | 861.17 |
| 42 | 252 | 147 | 457.7 | 915.3 | 636.8 | 1273.6 | 950.94 |
| 44 | 264 | 154 | 502.7 | 999.6 | 698.9 | 1398 | 1053 |
| 46 | 276 | 161 | 548.8 | 1097.6 | 763.9 | 1527.8 | 1142 |
| 48 | 288 | 168 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1245 |
| 50 | 300 | 175 | 648.8 | 1293.6 | 902.5 | 1805 | 1348.5 |
Key Features:
Made from heavy duty forged steel
Used to join two chains together
Used in the marine industry to join together mooring and anchor chains
Variety of sizes and weight available
Supplied as an ex-stock item

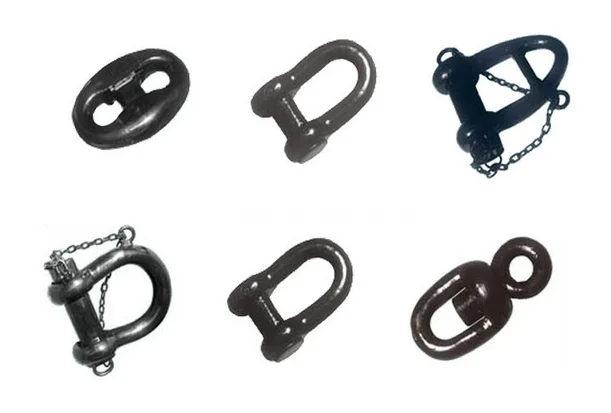

Other Chain Shackle you can choose:
![TJJFXKX6STY4}JZ6GKE]%EW.png](http://sc02.alicdn.com/kf/HTB1ukcbJVXXXXaDXXXX760XFXXXR/224259114/HTB1ukcbJVXXXXaDXXXX760XFXXXR.png)

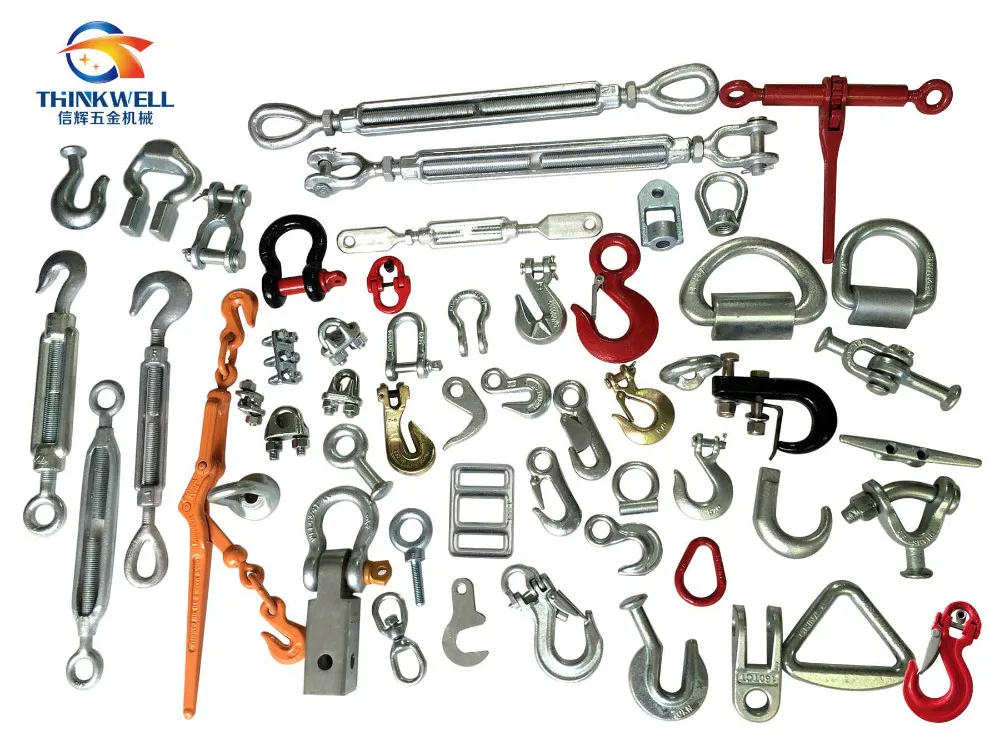

QingdaoThinkwell also manufacture hooks, shackles, turnbuckles, wire rope clips, load binders and other rigging hardware accessories.
