0 02 мм эмалированная круглая медная проволока для
- Категории: Electrical Wires >>>
- Поставщик: Tianjin,Ruiyuan,Electric,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
0.02mm enamelled round copper wire for coil
Enameled copper wire is a copper coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding. This single-strand wire is annealed for improved ductility.
Features:
1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot air,Solvent and others

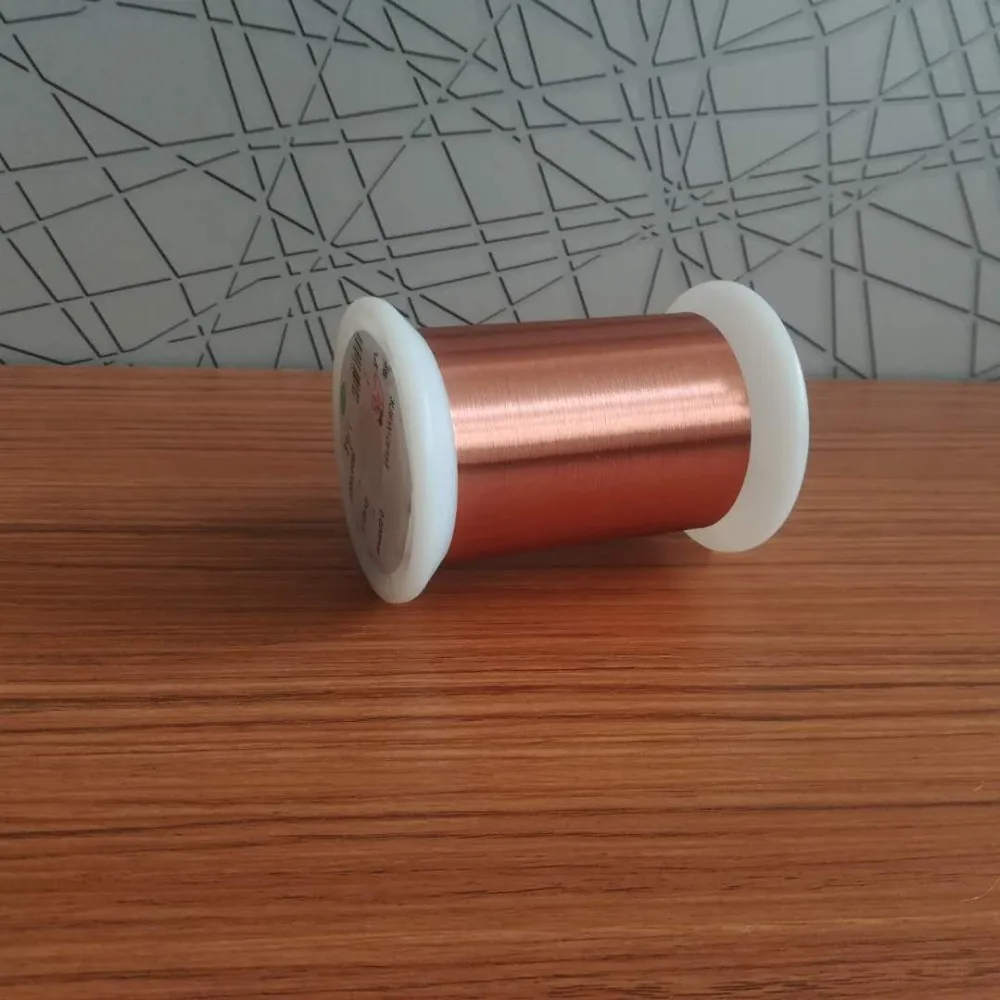

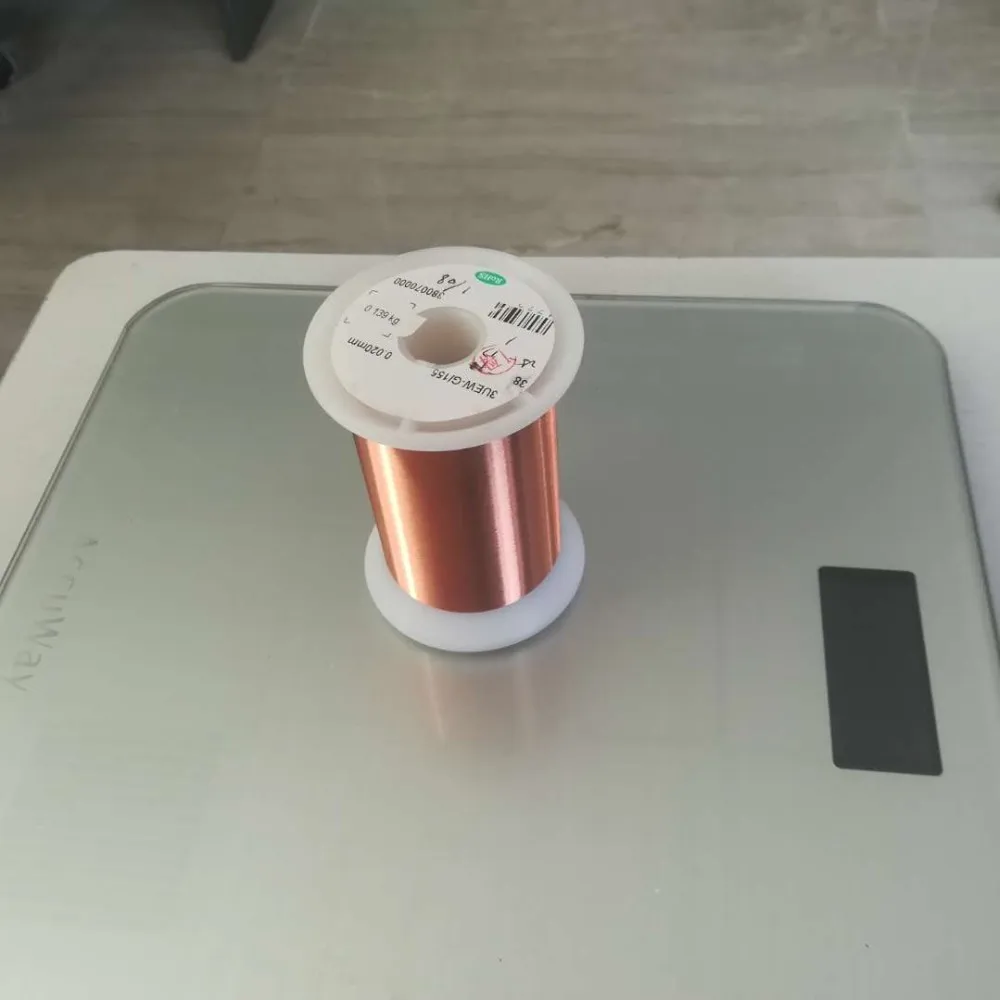

Detailed Images
Specification
Characteristics | Technical requests | Test Results | ||||
Sample1 | Sample 2 | Sample 3 | ||||
Surface | Good | OK | OK | OK | ||
Bare Wire Diameter | 0.020±0.001 | 0.020 | 0.020 | 0.020 | ||
Insulation thickness | / | / | / | / | ||
Overall diameter | 0.022-0.024 mm | 0.023 | 0.023 | 0.023 | ||
Electrical Resistance | ≤60.810Ω/m | 56.453 | 56.436 | 56.551 | ||
Elongation | ≥ 8% | 11 | 11 | 12 | ||
Breakdown voltage | ≥130V | 253 | 261 | 238 | ||
Pinbole test | ≤ 8 hole/5m | 1 | 0 | 1 | ||
Test items | Technical Requests | Results | ||||
Adhesive | No crack | OK | ||||
Cut-through | 200℃ 2mins no crack | OK | ||||
Heat Shock | 180±5℃/30min no crack | OK | ||||
Solder Ability | 390± 5℃ 2Sec Smooth | OK | ||||

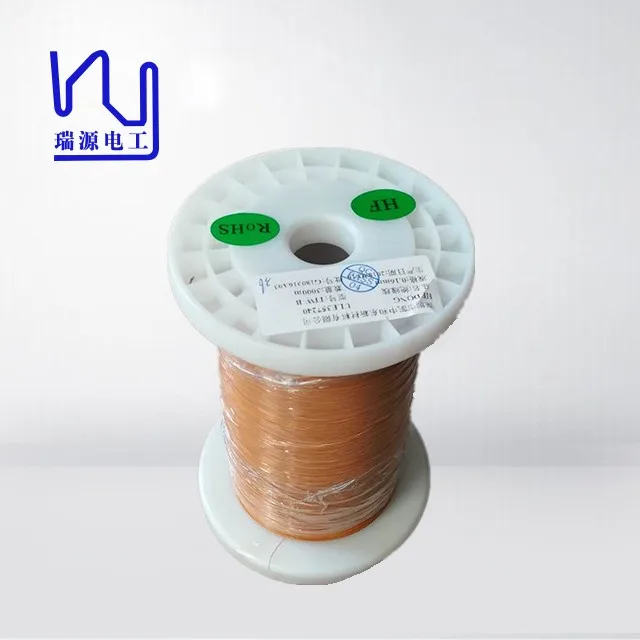

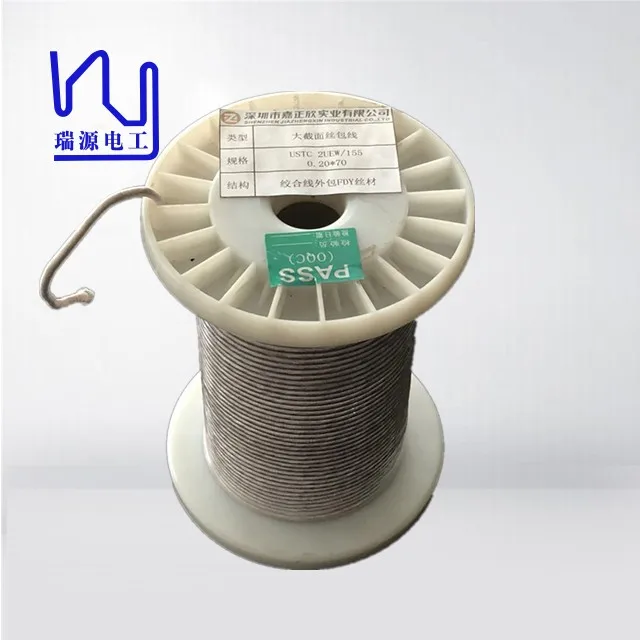

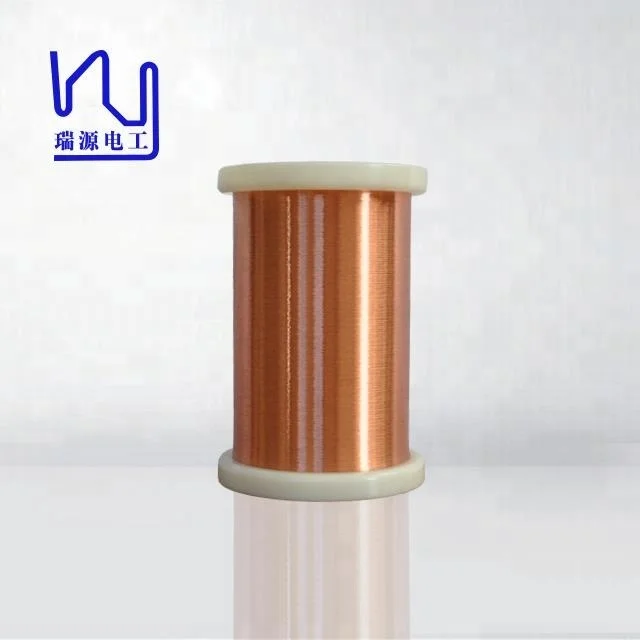

Related Products

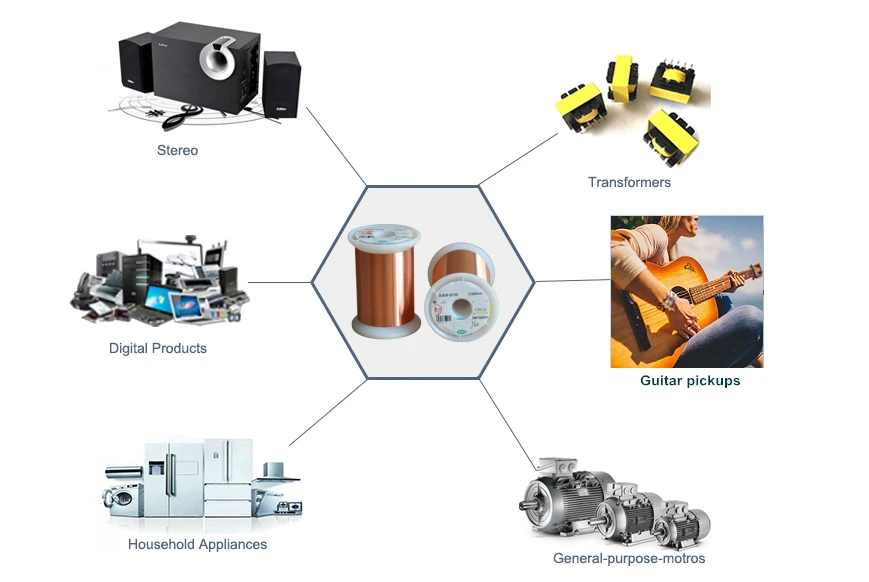

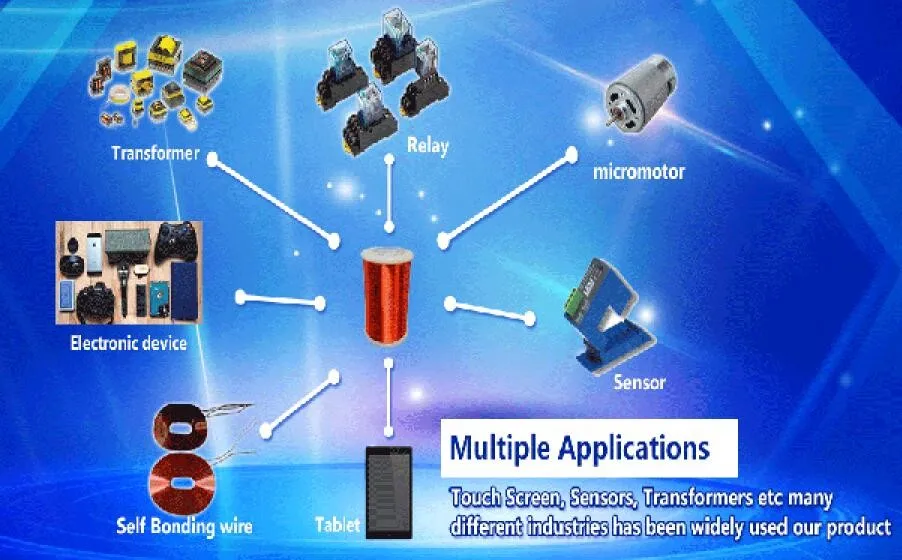

Applications
1.Touch screen
2.Watch coil
3. Voice coil
4. Transformer
5. Intelligent Cloth
6. Micro Motor
7. Relay
2.Watch coil
3. Voice coil
4. Transformer
5. Intelligent Cloth
6. Micro Motor
7. Relay
Manufacturing Technique
Enamel inspection
inspection of copper bar
middle wire drawing
fine wire drawing
Micro wire drawing
production
Anneal
enamel coating
hang up
product inspection

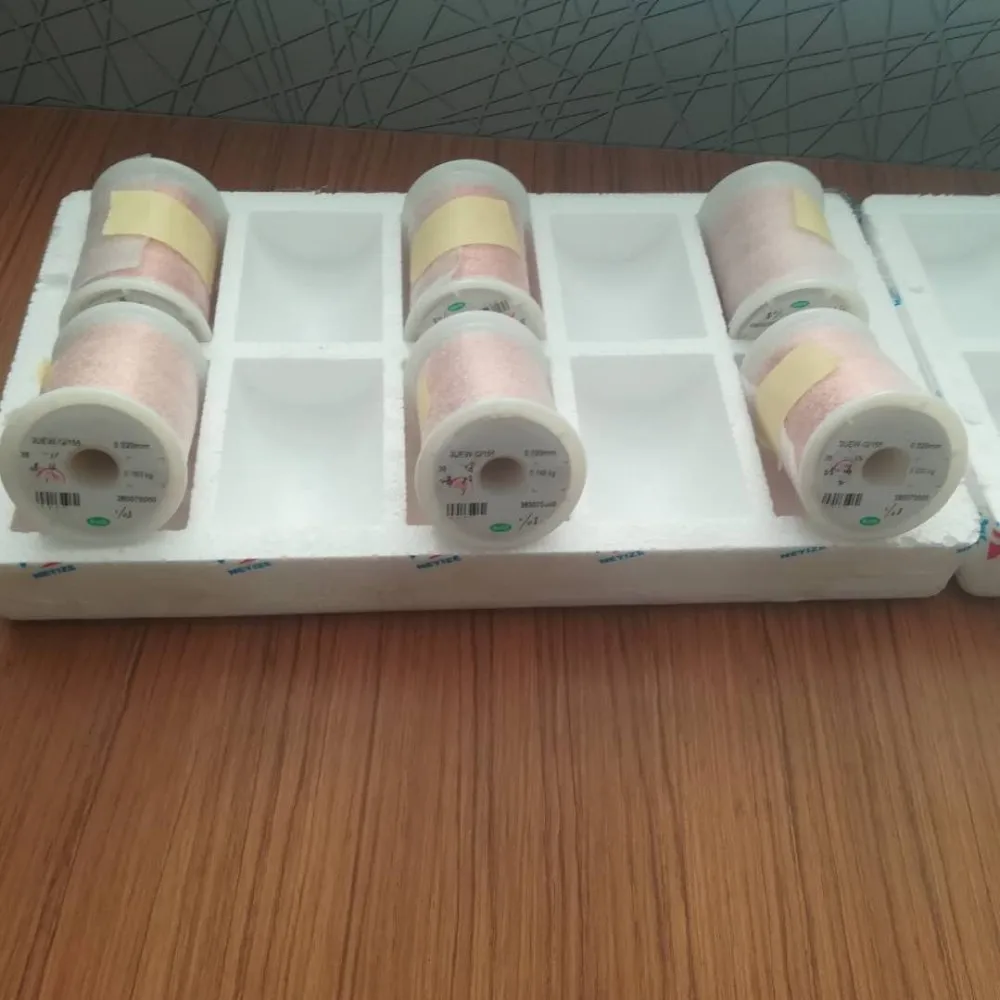

Package
Storage
Company Profile
Ruiyuan was established in 2002. We have been focusing on different kinds of high quality wires: enameled round copper wire, rectangular enameled copper triple insulated wire, silk covered Litz wire, bonding wire and special enameled wire for 19 years. All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.
Ruiyuan has a heritage of innovation, along with advancements in enameled wire, our company has grown through an unwavering commitment to integrity, service and responsiveness to our customers. We look forward to being your most trusted partner.
FAQ
1. Can I get sample for testing before bulk order?
Of course.Samples can be offered to you by free, but express costs should be undertaken by buyer.
2..What is your lead time?
Small sample order 3-5 working days; Large order should be within 15 working days after order confirmed.
3. What's your trade term?
EXW,CPT FOB CIF DDU DDP are all acceptable.
4.What's your payment term?
T/T, D/P, D/A, L/C, PayPal.
5. What's your express service?
Fedex, DHL,TNT,UPS with great discount up to 80%.
Of course.Samples can be offered to you by free, but express costs should be undertaken by buyer.
2..What is your lead time?
Small sample order 3-5 working days; Large order should be within 15 working days after order confirmed.
3. What's your trade term?
EXW,CPT FOB CIF DDU DDP are all acceptable.
4.What's your payment term?
T/T, D/P, D/A, L/C, PayPal.
5. What's your express service?
Fedex, DHL,TNT,UPS with great discount up to 80%.
