Product Description






Specification

Model No.
TAL-M15-2.45-10-A
Extended height
15.0m
Retracted height
2.45m
Max head-load
10kg
Mast self weight( without tripod)
around 63kg
Mast sections No.
7sections
Material
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)
Color
the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
main pole in sections
SectionNo.     OD                  Thickness
1#                      42mm             3.0mm
2#                      55mm             3.0mm
3#                      69mm             3.0mm
4#                      83mm             3.0mm
5#                      98mm             3.0mm
6#                      114mm           3.0mm
7#                      132mm           3.0mm


Acessories
Mount model
Ground fixed type---without tripod

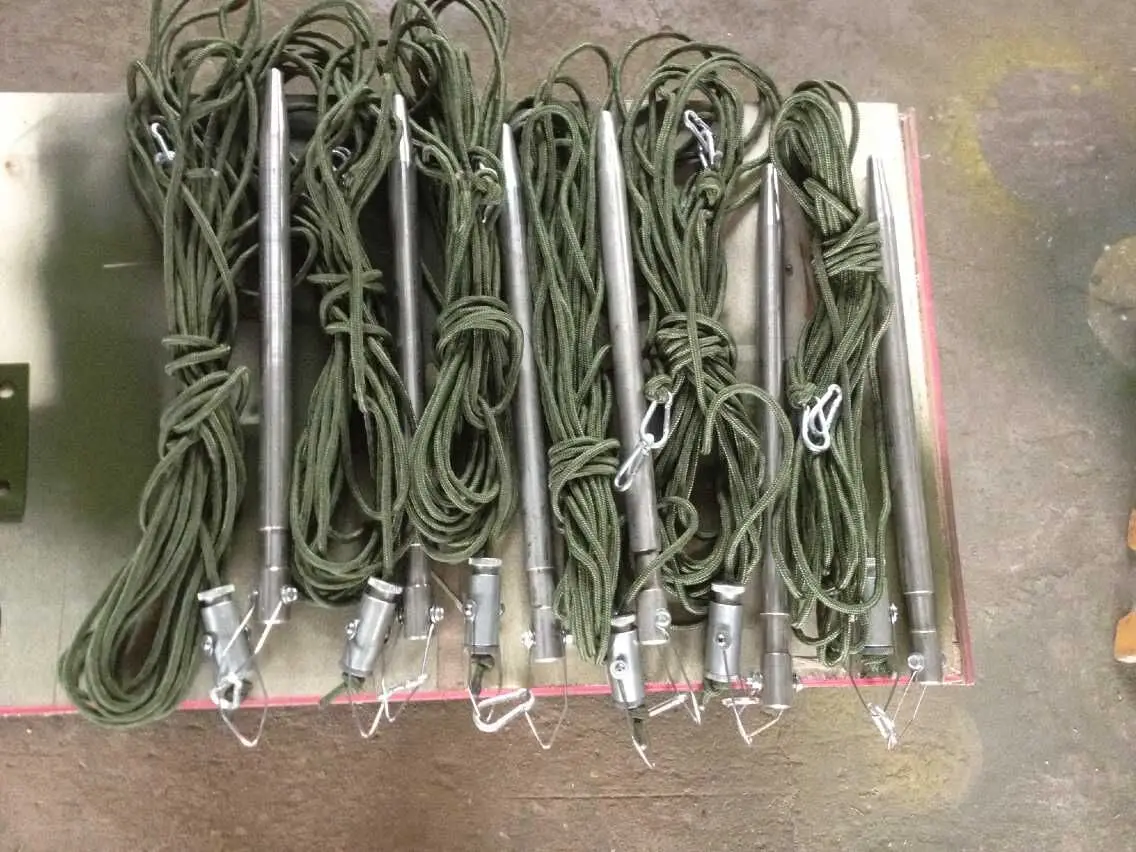

Accessories

handle lifting bar----------------------------------------1p
Top flange--------------------------------------------------1pc
Guy wire-----------------------------------------------------3pcs
Guy stakes--------------------------------------------------3pcs
stainless steel stakes------------------------------------3pc
Ground anchors-------------------------------------------3pcs
tripod-----------------------------------------------------------1pc


Details





Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile.Rotary bearing for whirling.

If you have other accessories requirement, please contact us separately.



Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

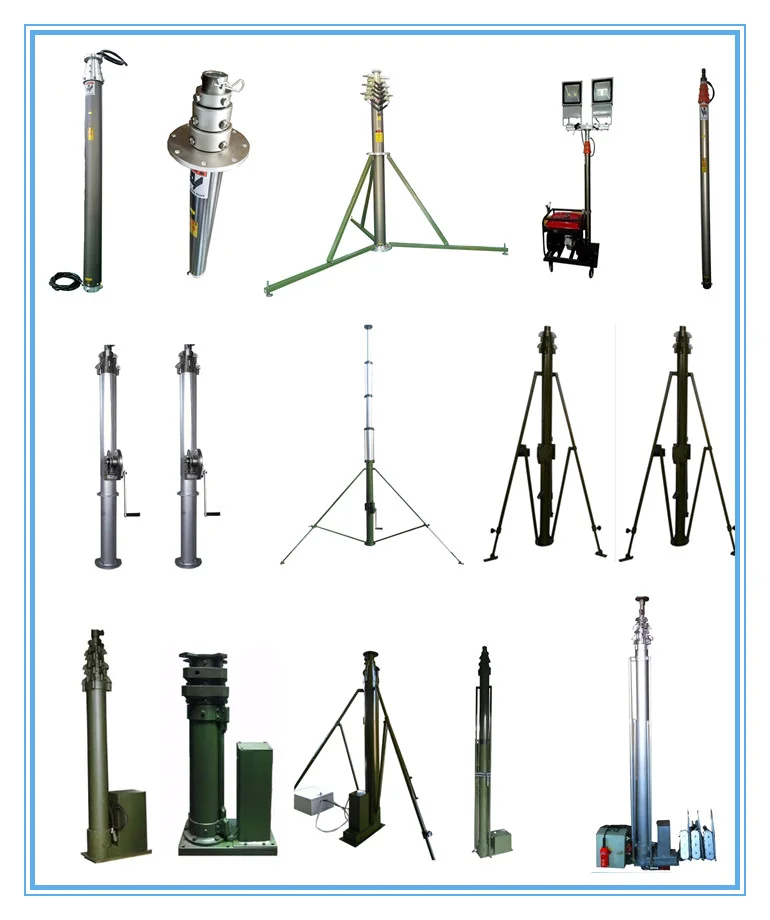

Catalogue


we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.

Besides,we can design different of models for ODM and OEM.



Extended  height
(m)
No. Of section
Retracted height(m)
Outer tube range(mm)
Self weight
(kg)
Max.payload
(kg)
3
3
1.0
70-90
15
20
4
3
1.5
50-80
15
30
4
3
1.0
70-90
16
20
4
3
1.6
60-80
14
10
5
4
1.65
50-80
17
10
5
5
1.2
40-90
20
15
5
5
1.5
50-90
20
60
5
6
1.7
60-130
35
100
6
5
1.7
50-90
21
10
6
6
1.5
60-130
40
100
6
7
1.3
40-130
32
60
7
7
1.8
40-105
23
30
8
8
1.5
40-130
34
20
9
7
1.8
40-105
25
40
9
7
1.8
40-105
25
30
9
7
1.8
60-160
43
100
9
7
1.9
30-90
25
5
10
7
1.95
30-90
26
10
10
7
2
30-105
31
40
12
7
2.2
30-90
28
10
12
7
2.1
30-90
28
15
12
8
2.2
40-130
44
40
15
8
2.45
30-105
33
10
15
9
2.6
30-130
40
35
15
7
2.5
70-200
200
70
16
8
2.6
30-105
35
10
18
9
2.7
30-130
47
10
18
9
3.2
30-130
48
30
18
7
3.7
50-130
47
100
20
9
2.95
30-130
55
10
20
8
3.20
40-130
58
20
22
9
3.15
30-130
58
10
25
10
3.4
30-150
72
10
25
10
3.5
80-280
90
250
25
9
3.6
40-150
71
20
30
10
3.85
30-150
84
10
35
10
4.5
40-180
130
25


Our Service


OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery





Our Company


Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
