Автоматическая щетка для унитаза с ЧПУ/щетка для хоккея
US $15000-$35000
Сверлильный станок с 2 головками и 1 головкой ЧПУ 5
- Категории: Brush Making Machines >>>
- Поставщик: Jiangmen,Meixin,Comb,Brush,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Company Information
Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brsh,industry roller brush,strip brush,round disc brush,dish washing brush,comb,massage brush,wooden brush,barbecue brush and so on.
Product Description
Machine paremeter
| 1 | machine size | 2045*1520*2040mm(L*W*H) |
| 2 | axis | 5 axis |
| 3 | Power | about 8KW |
| 4 | Power voltage | 380VAC/220VAC |
| 5 | wire | round wire(stape nail) |
| 6 | hole diameter | 3.5-4.2mm, |
| 7 | max outside filament length | 20-50mm |
| 8 | Journey of A axis | 750mm |
| 9 | Journey of Y axis | 250mm |
| 10 | Angle of Z axis | 360° |
| 11 | roller diameter | 70-220mm |
| 12 | Tufting speed | 3 holes/sed |
| 13 | Weight | about 900kg |
| 14 | Packing | wooden box |
| 15 | Function | Drilling and Tufting |
| 16 | Production | about 2000pcs/10 hours |
- Machine Features and characteristics:
- Can tuft or fill kinds of plastic filament brushes and brooms(Shape:flat,cursed,cylindrical,ached and so on)
- installed with one tufting motor head,high speeding processing,high volume,cost effective.
- Wide-range in applicance:household,industrial,school,factory,street floor cleaning and sweeping and scrubbing
- brush or broom handles:plastic or wooden or PVC board block
- Drilling and tufting two function machine or only tufting machine or only drilling machine
Only tufting machine,the brushes handle have to be moulded with holes firstly.
- Brush broom raw material:PP,PET,PVA,PA,Abrasive filament,pig hair,horse hair,bristle
- filling nail:flat or round nail(wire)
- Low or middle or high production all machines can be customized for you.
- allow to save as 2000 procedure and easy for the creation of new models
- System course:All kinds of brush broom we can make the program for you.
- PLC and touch Panel Control System of Man-Machine,Chinese and english display,simple to understand
- Gripper(fixture):one gripper for one kind of brush or broom,if make other kinds of brush broom,it need to change gripper
What we have to know from you?
Pls tell me the below info
1.brush middle hole size
2.max outside filament lenght
1.brush middle hole size
2.max outside filament lenght
3.filament diameter

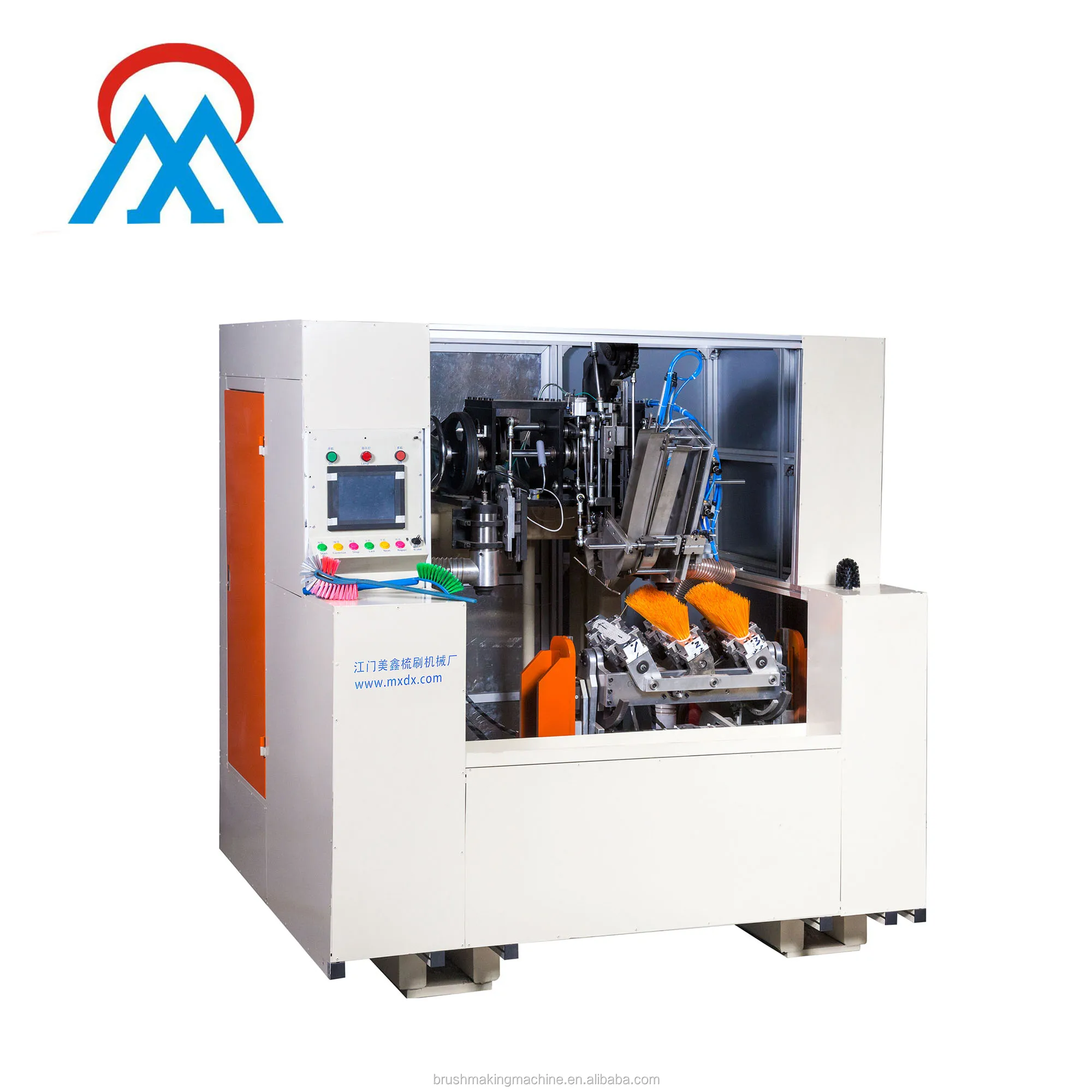

5 axis 2 drilling heads and1 head tufting machine:
Motors conbination:

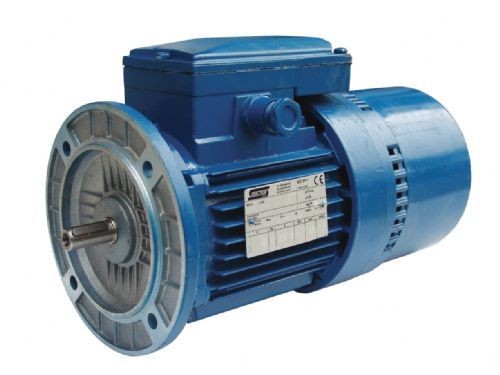

1.Italy brake motor
2.driving Motor: servo motor(Panasonic)
3.driving screw:TBI ball screw
4.Lubrication:TBI straight line guide rail
5.Japan bearing( IKO,BB15 and BB20)
6.Schneider low voltage electrical appliances
7.Stepless speed:Frequency converter using Delta inverter
8.PLC(ADTECH CNC Control System) Fiber box container:two or three colours
all use good quality for the machine
Voltage,Frequency and duty
Frequency:50Hz,60Hz
Rated Voltage:220V/380V,380V/660V
connection:Y-connection for 3KW and below whereas delta-connection for 4KW and above.
Duty:Continuous(S1)
Insulation class:B,F
Protection:IP44,IP54 or IP55
NOTES:Imported bearing and locked bearing at D-end on request
(1) . High quality with smooth slide,low noise,long life use.
(2) . High rigidity, Four direction equal load capacity
(3) . Interchangeability ,TRH15,25,45 are interchange with HIWIN 15,25 and 45. TRH20,30 are interchange with THK20,30.
(4).Compact Structure
(5).Easy Installation
(6).Very fast delivery time,big stock.

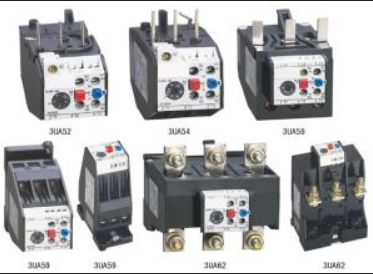

Schneider low voltage electrical appliances
the structural characteristics
1, the contactor for the protective type, the action structure for the direct action, the contact for the double breakpoint, with a small size, light weight, low power consumption, long life, safe and reliable;
2, the contactor can be composed of mechanical reversible interlocking magnetic starter, star delta decompression starter, can also be selected according to the user to increase the auxiliary contact group, the first combination of a variety of air delay derivative products.
3. DC pull-in voltage 85-110% Us, the release voltage: 10-75% Us.
Professional installing and testing:
Packaging & Shipping
Certificate Patent and CE
Our Services
In the warranty period(one year),we will send you one set of wear parts(for example:matching tufting needles,hair mouth,hair pulling blade,cutting wire knife)
If machine is broken,engineers is available to service overseas(but buyer has to our engineer round trip ticket fee,living and eating fee and pay our engineer daily salary)
After warranty year,the easy broke parts will be fixed for wholelife.f the wear parts are broken,we can send new for you,but you paid the wearing parts fee and shipping fee.
FAQ
1.What No.you are you in this field?
We are top in this field,our boss already in this field over 30 years.he is also engineer.
He knows domestic market very well.our machine is not only popular in domestic ,but also hot sell in foreign countries.
We already sold out many machines since we start the trading business,the production increases very fast.
2.How about your price?
We always quote reasonable price.
3.How about your service?
We will follow every our custome,when need our help,we will solve asap for you.
4,.how about our technology.
We can make kinds of brushes (flat,curved,cylindrical shape),usually is 2-5 axis,we also can design ad per your demand.
Looking forward to our coopertation in the early time!
