Power (KW) | Room volume (m³) | Voltage 50/60Hz | Current (A) | Power wire (N*mm2) | Size (mm) |
3.0 | 2~3 | 220-240V~ | 13.6 | 3*2.5 | 425*155*315 |
4.0 | 3~4 | 220-240V~ | 18.2 | 3*2.5 | |
4.5 | 3.5~4.5 | 220-240V~ | 20.5 | 3*2.5 | |
380-415V3N~ | 6.8 | 5*1.5 | |||
5.0 | 4~5 | 220-240V~ | 22.7 | 3*2.5 | |
6.0 | 5~6 | 220-240V~ | 27.3 | 3*4.0 | |
380-415V3N~ | 9.1 | 5*1.5 | |||
7.0 | 5.5~7 | 220-240V~ | 31.8 | 3*6.0 | 476*180*449 |
8.0 | 7~8 | 220-240V~ | 36.4 | 3*6.0 | |
9.0 | 8~9 | 380-415V3N~ | 13.6 | 5*2.5 | |
10.5 | 9~10.5 | 380-415V3N~ | 15.9 | 5*2.5 | |
12.0 | 11~12 | 380-415V3N~ | 18.2 | 5*2.5 | |
15.0 | 13~15 | 380-415V3N~ | 22.7 | 5*2.5 | 509*180*460 |
16.5 | 15~16.5 | 380-415V3N~ | 24.7 | 5*2.5 | |
18.0 | 16~18 | 380-415V3N~ | 27.3 | 5*4.0 | |
22.5 | 21~22.5 | 380-415V3N~ | 34.1 | 5*6.0 | |
24.0 | 22~24 | 380-415V3N~ | 36.4 | 5*6.0 |

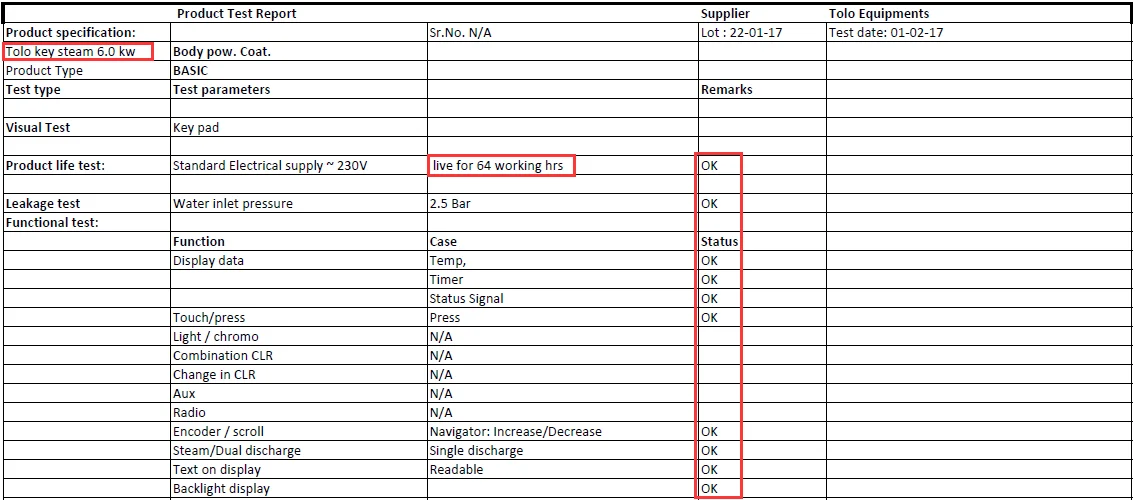

TOLO-KEY Passed 64 Hours Non-Stop Run Test
Many clients bought our steam machine for spa,club center use,even working 5-7 days a week,and 20-24 hours per day,it still performs well.
Standard Functions: | |||
Auto water inlet | Yes | ||
Auto draining | Yes | ||
Auto flushing(cleaning) | Yes | ||
Auto power off | Yes | ||
Overheat protection | Yes (Stop heating elements instead of stop relay board, much safer) | ||
Time setting | 1-60min. or Continuous | ||
Temperature setting | 35~55℃ |

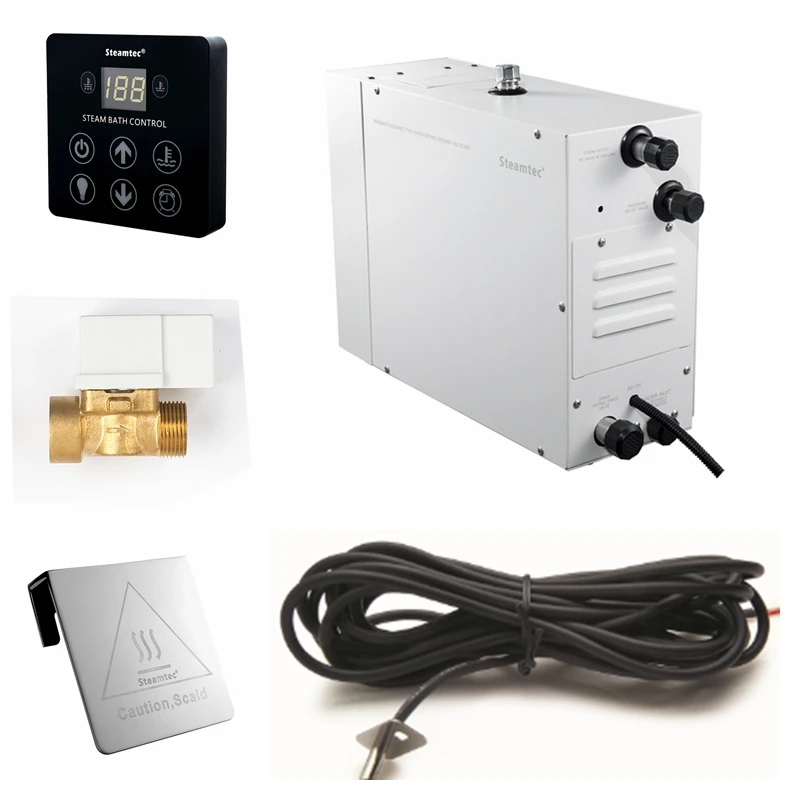

KEY Standard Configurations: | |||
Painted iron housing body | |||
Black press button controller | |||
Steam nozzle with aroma oil pocket | |||
Big diameter auto draining valve | |||
Temperature sensor |

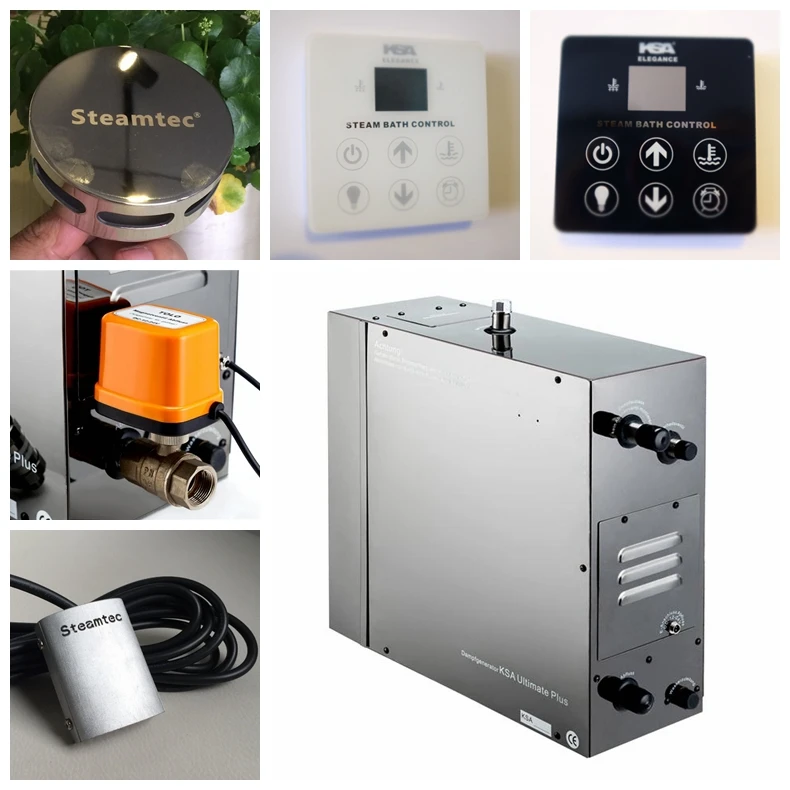

KEY High Level Configurations:(Can upgrade each item per your need) | |||
SS#201 stainless steel body | Corrosion and Rust Protection | ||

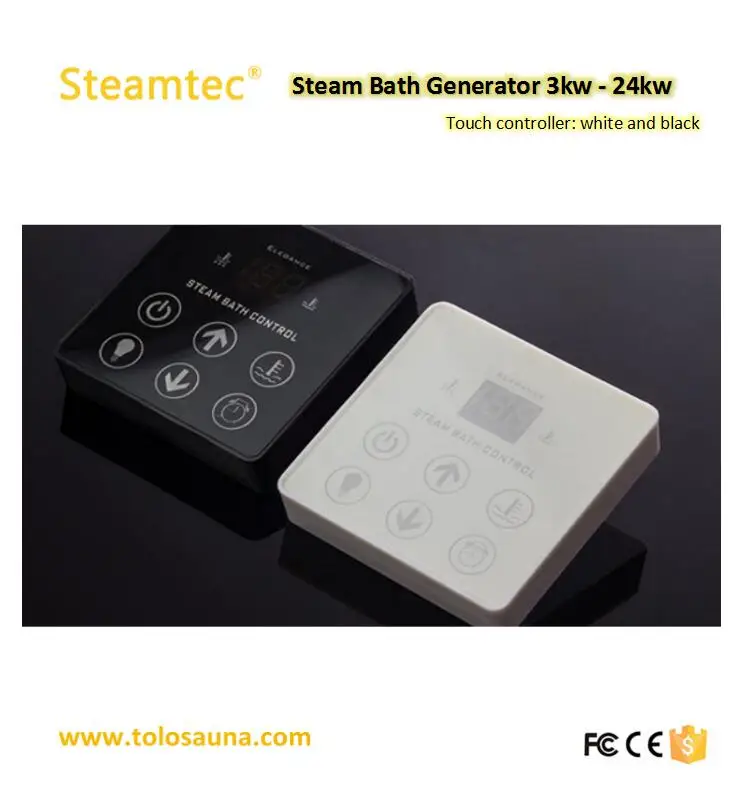

Touch screen control panel | Back & white,waterproof,install inside & outside steam room | ||
SS#304 steam nozzle | Durable | ||
Full bore big diameter auto drain valve | No water scale block problem,extend service life | ||
Temperature sensor with box | Durable | ||
Water processor | Softner hard water,extend service life |
To steam machine ,waterscale is a big headache,how to reduce waterscale will be essential to extend the service life of machine, and all of our steam machine are using stainless steel 304 water tank,and stainless steel 316 heating elements,as you know ,higher the stainless steel standard is ,and fewer waterscale will form.
Water tank:
--Stainless steel 304 ,while most factory are using SS201
--Weld to make no leaking ,while most factory are screwing the steam pipe to water tank as if do in weld ,costing increased and also high welding techique required
Heating elements:
--Stainless steel 316 ,while most fatory are using SS 304
How to choose KW for steam generator
1). Calculate room m³, (Length*Width*Height) in meter. (1 feet = 0.3048 meter,1 inch=0.0254 meter)
If Acrylic ,steam generator KW= steam room m³
If Ceramic Tile ,steam generator KW= 1.5 X steam room m³
If All Glass tile or Glass Block Walls,steam generator KW= 1.5X steam room m³
If Porcelain tile,steam generator KW= 1.6 X steam room m³
If Natural stone tiles* up to 1/2″,steam generator KW= 2 X steam room m³
If Natural stone slabs over 1/2″ ,steam generator KW= 2.25 X steam room m³
Our products are exported to all over the world . Our quality is recognized by many countries, and our price is reasonable and competitive, we've got a lot of awards from many foreign clients. Best quality, best service are our purpose. We will insist on this goal all the time.

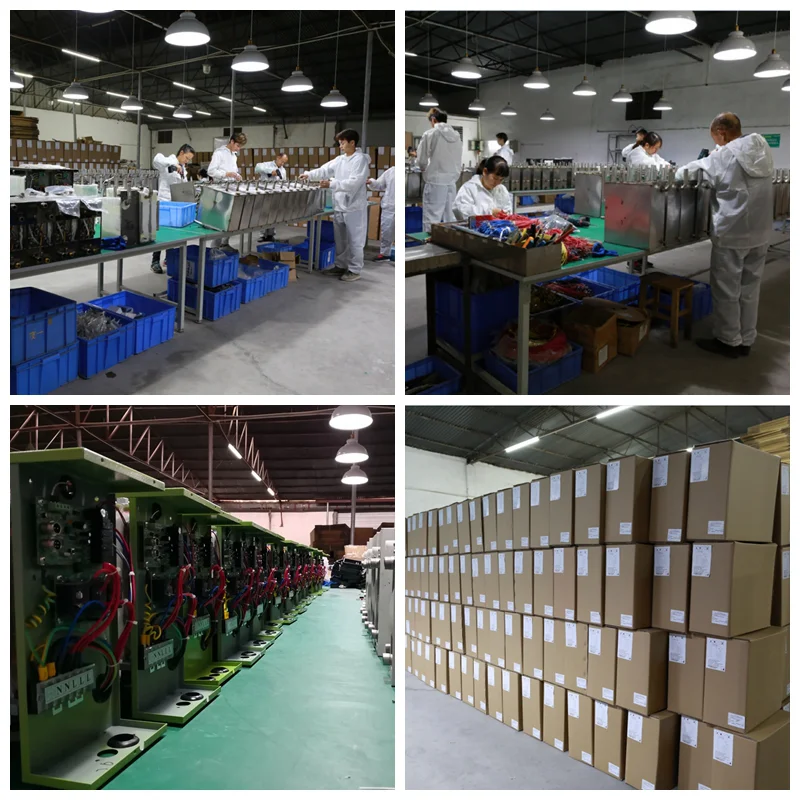

Shenzhen TOLO Leisure Equipment Co., Ltd is a fast-growing manufactory of steam bath
generator and sauna heaters, alway keep passion in developing and manufacturing the
excellent sauna machines and creating the best sauna experience to users. TOLO is getting
more and more stronger with the effort of our experienced engineers(over 15 years) and
skilled workers(over 10 years) in the sauna field.
We are the First one and Top one in China who making Touch control system for Steam
generators and Sauna heaters.
App. control via Wifi for steam generators, which is the most advanced system in the market,
and combine all the functions in one unit.
Unique accessories and equipments make the machines with extra advantages in the markets,
our customers feel happy to have more profits and save much time and cost on afterservice.
In a word, markets teach us to produce excellent quality, excellent quality make who we are
today, and thanks a lot for the support from our dear customers. Thank you for choosing us.
Our factory is very near Guangzhou -Canton Fair,it's our honor if you have time to visit us.
