3 5 М алюминиевая Мобильная пневматическая антенна Телескопический
- Категории: Telecommunication Towers & Accessories >>>
- Поставщик: Tianjin,Talents,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Common application
Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.
Detail
Operation steps
1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
9. when lift down the mast, please pull down the lifting control valve handle bar..

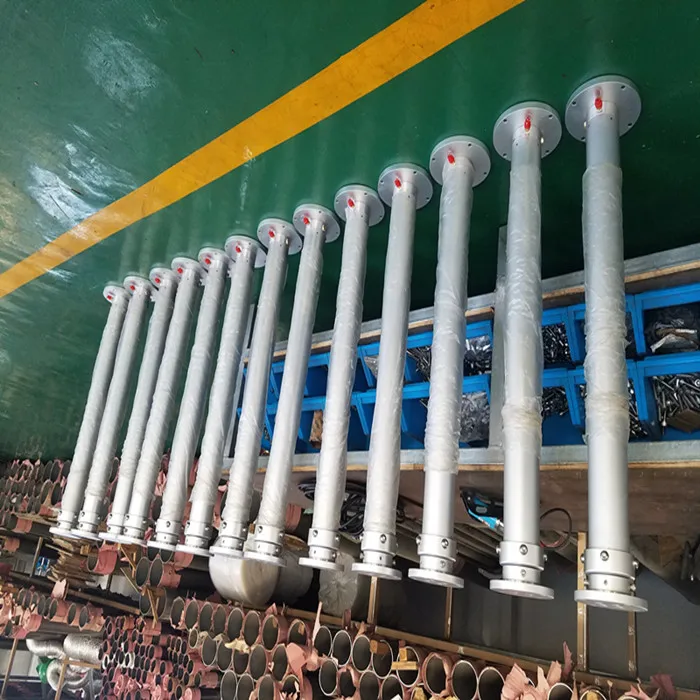

Packing & Delivery
Package information based on different specifitation | ||
extended height less than 9m also weight less than 70kg | packed into a carton, inner space filled with foam to protect mast. wooden case if customer request. | |
extended height more than 9m also weight more than 70kg | packed into plywood case, inner space filled with foam to protect mast. | |
Other Specification
Pneumatic telescopic mast | ||||||||||||
MODEL No. | Extended Height (m) | Retracted Height (m) | Bottom OD (mm) | TOP OD (mm) | Section NO. | Head-load (KG) | ||||||
TAL-2.0-1.3-150-AT8 | 2 | 1.3 | 118 | 98 | 2 | 150 | ||||||
TAL-3.0-1.5-50-AT8 | 3 | 1.5 | 98 | 66 | 3 | 50 | ||||||
TAL-4.0-1.3-20-AT8 | 4 | 1.3 | 87 | 43 | 4 | 20 | ||||||
TAL-4.5-1.65-50-AT9 | 4.5 | 1.65 | 118 | 66 | 4 | 50 | ||||||
TAL-5.0-1.7-40-AT8 | 5 | 1.7 | 98 | 51 | 4 | 40 | ||||||
TAL-5.0-1.75-30-AT9 | 5 | 1.75 | 98 | 51 | 4 | 30 | ||||||
TAL-6.0-1.7-30-AT8 | 6 | 1.7 | 118 | 51 | 5 | 30 | ||||||
TAL-6.0-1.75-12-AT8 | 6 | 1.75 | 87 | 28 | 5 | 12 | ||||||
TAL-6.0-2.0-50-AT9 | 6 | 2 | 118 | 66 | 4 | 50 | ||||||
TAL-6.0-1.95-30-AT8 | 6 | 1.95 | 87 | 43 | 4 | 30 | ||||||
TAL-6.0-1.5-25-AT9 | 6 | 1.5 | 118 | 51 | 5 | 25 | ||||||
TAL-7.0-1.95-40-AT8 | 7 | 1.95 | 118 | 51 | 5 | 40 | ||||||
TAL-8.0-1.8-50-AT9 | 8 | 1.8 | 160 | 51 | 7 | 50 | ||||||
TAL-8.0-2.2-60-AT7 | 8 | 2.2 | 140 | 66 | 5 | 60 | ||||||
TAL-8.0-2.0-25-AT8 | 8 | 2 | 118 | 36 | 6 | 25 | ||||||
TAL-9.0-2.15-30-AT8 | 9 | 2.15 | 140 | 51 | 6 | 30 | ||||||
TAL-10.0-2.4-30-AT7 | 10 | 2.4 | 140 | 51 | 6 | 30 | ||||||
TAL-12.0-2.7-250-AT8 | 12 | 2.7 | 279 | 140 | 7 | 250 | ||||||
TAL-15.0-3.5-150-AT9 | 15 | 3.5 | 229 | 98 | 6 | 150 | ||||||
TAL-16.0-3.0-30-AT8 | 16 | 3 | 180 | 51 | 8 | 30 | ||||||
TAL-18.0-3.0-100-AT8 | 18 | 3 | 279 | 66 | 10 | 100 | ||||||
TAL-20.0-3.3-55-AT8 | 20 | 3.3 | 229 | 66 | 9 | 55 | ||||||
TAL-30.0-4.0-30-AT8 | 30 | 4 | 316 | 51 | 13 | 30 | ||||||
NOTE:
above specification does not include all we can do.
Certifications
Our Service
OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option
One year free after-sale warranty after delivery
Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers
an one for one timely information feedback, we have organized an expert team for quality control and inspection system,
we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We
think outside the box and are continually developing new products to meet customer requirements, what you are asking
for is our motive power of task, we wish one of our products will well-meet what you demand.
