JMRRC Самый дешевый новый профессиональный Дрон для распыления сельскохозяйственный опрыскиватель UAV с GPS защиты сельского хозяйства и


Поделиться:

Цена:3 350,00 $ - 3 412,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики






JMRRC cheapest New professional spraying drone, agriculture sprayer UAV drone with GPS for farming protection and survey drone









Introduction

     JMR-X1380S 10L is one of popular agriculture UAV products of Shenzhen GC Electronic Co, Ltd company. It is an economical practical spraying platform, which is specially designed for farmers. It is an umbrella folding, its structure makes it convenient for transportation.



    The drone has the advantages of flexible and stable, simple operation, safe and reliable, simple maintenance and low maintenance costs. It applies to the majority of agriculture users.





- With the features of a light weight, high intensity of structure and corrosion resistance, it can effectively avoid pesticide residues on the frame caused by corrosion.



- Its function component has a modular design, and it is convenience for maintenance and upgrade.



- It adopts industrial-grade flight control system and it has a safety protection function which can return automatically.



- High stability and efficiency power device, It has the advantages of high temperature resistance, corrosion resistance, low calorific value, stable and reliable operation.





JMR-X1380S Agricultural UAV Specification List
Model10L Quad UAV JMR-X1380S
Measurement (W/O propeller)108*108*38 cm
Meas. After folded.58*58*40 cm
Maximum take-off weight25kg
Economy payload10kg
control radius1000 meters
spray speed1-9 meter/s
maximum flight height30 meter
hovering time (no load)18-25 min
spraying time (load)12-17 min
flight modeATT/spray work/GPS
working temperature0-45℃
Net weight9.5kg
spraying width3-6 meter
* auto navigation is optional hardware





Main function of AG

 Spraying Mode:



A- Semi-Auto spray mode: the drone reaches the work starting point (home point), go forward automatically by commend. After receiving instruction of changing line, aircraft will automatically fly to the left or the right, then hovering, waiting for continuing operation command. The speed is equal to the setting speed, and spray width is equal to the settings.

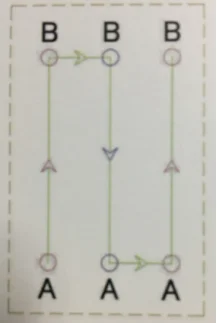

B- A to B Auto spray mode: After recording the A and B points. Executing AB mode, then drone will start spray and automatically fly from A to B point, backward from B to A, the speed is equal to the setting speed, and spray width is equal to the settings.

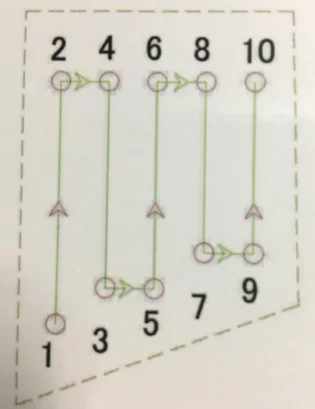

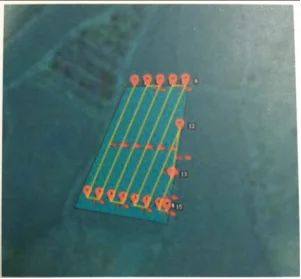

C- GCS mode: Under regional flight mode, the aircraft can fly back and forth at a certain distance in specified region to cover the entire region. The speed, spray width, height are all equal to the settings.





Function List:



Flight mode

GPS/ATT/Spray working mode

Security Protection

Low voltage protection

One-key to return

Failsafe mode

Flight restriction

Flight speed and height can be set

Intelligent orientation control mode

A-B point auto navigation with fixed speed

Skyway flight mode(Max support 128 waypoints)

including in the drone price

Breakpoint continue to spray

including in the drone price

Radar (Auxiliary setting height)

* is optional hardware request

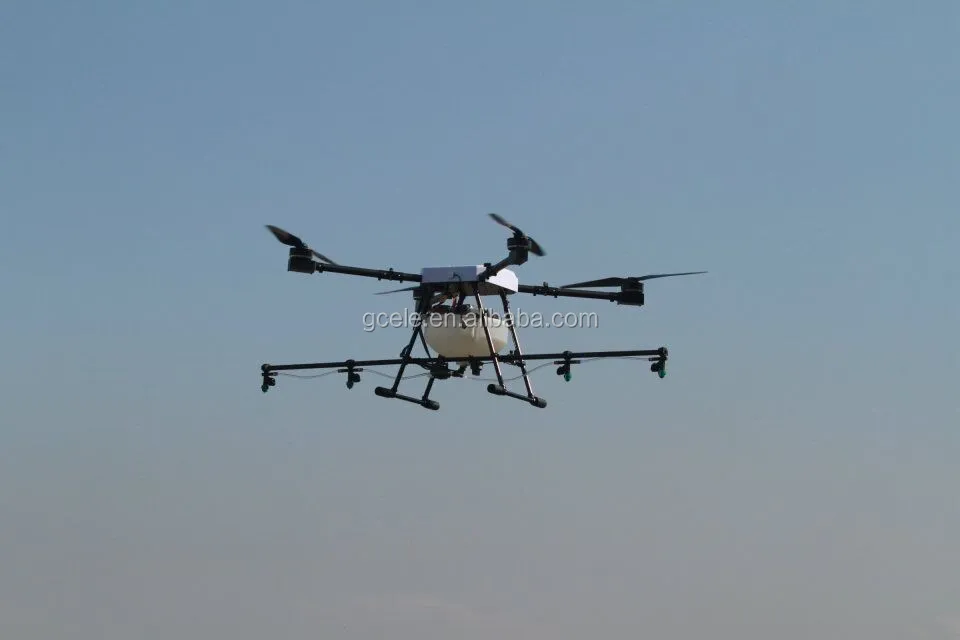

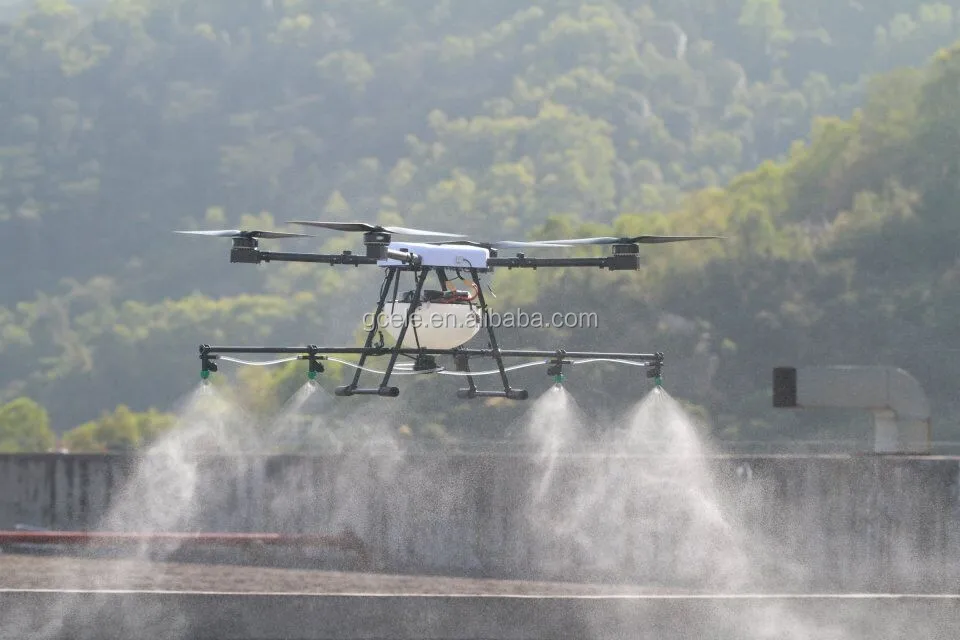

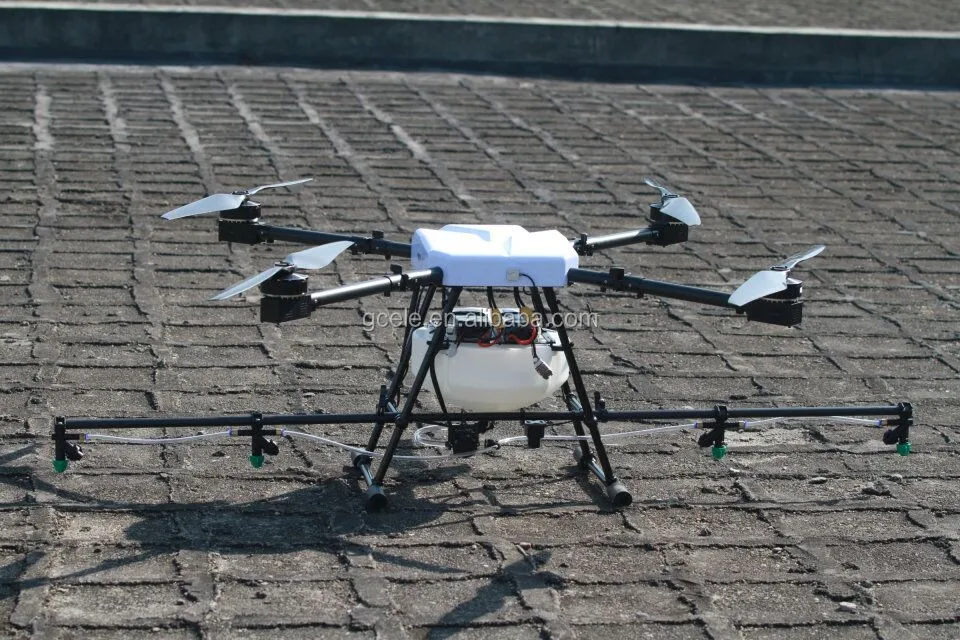

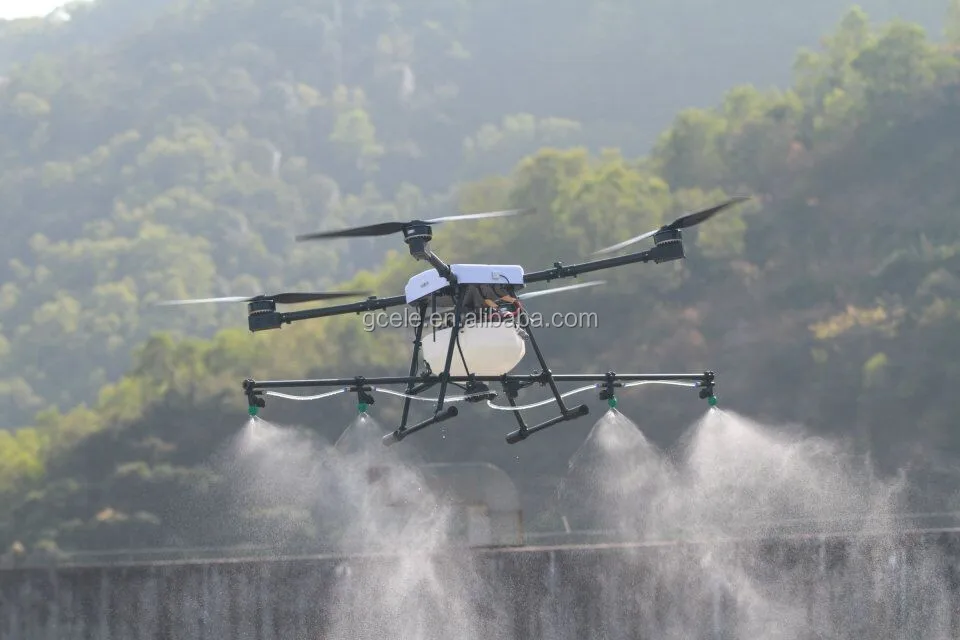

Pictures
















Other features of the drone for you to purchase:

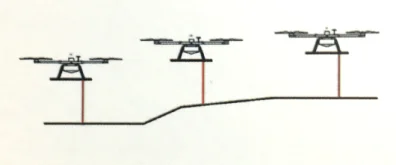

A- Radar

  Radar helps to keep the height during flight. It is very good for rice, wheat, cotton, corn spray working.

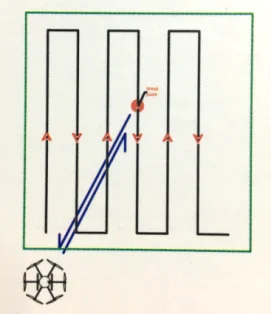

B- Continue to spray at the breakpoint

  When encountered the following situation, AG drone will record the breakpoint and can perform the function of continued spraying from the breakpoint. The omission of the operation area can be avoided.



C- Low voltage protection:

  1- When the lower voltage is trigger, the voltage achieve the lever the drone will return to home and land automatic.

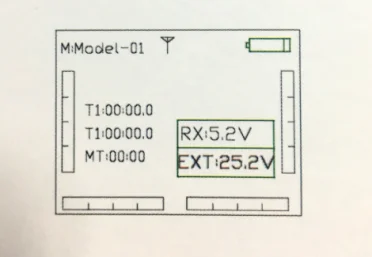

  2- The voltage of the drone can be display on the remote control and alarmed when the voltage reach the set. (EXT is the voltage of the drone’s voltage)





About GC Electronic

 Shenzhen GC Electronic Co, Ltd specializes in the production of multi-rotor completed UAV drones and accessories. The company takes "always providing customers with high-quality products" as its core. We have designed a variety of 3k full carbon fiber frames for 4,6,8 Axis aircraft. We also producing the high efficiency brushless power system.



Our products are mainly used for aerial photography, entertainment, agriculture and security, etc. We try to make lighten frame and reasonable structure to bring a better performance.


Using for plantation


Contact Information



Contact name: Dora Yin

Company website: www.4fpv.com

Email: r9@gcele.net

Skype: gcelectronic

Phone/whatsapp: +86 15173192084

Wechat: yyy147888

QQ: 1401079384
