Коммерческий пивоваренный бак 15BBL Jinan кассман пивоваренное оборудование с пивоваренным домом оригинальное немецкое

References

Up to now, Cassman equipment has been exported to Russia, USA, Australia, Korea and other more than 27 countries.

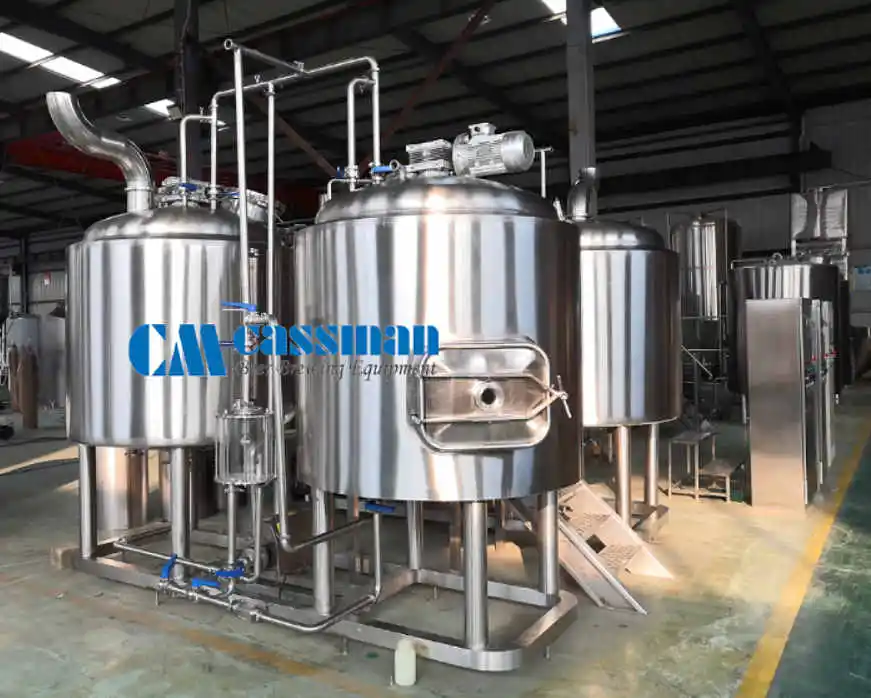

Brew House System

Brew length: 100L -5000L or 1bbl-40bbl

Two vessels: Mash/Lauter+Brew kettle or Mash/Brew kettle+Lauter

Three vessels: Mash+Lauter+Brew kettle

Four vessels: Mash+Lauter+Kettle+Whirlpool

Combined system: Mash+Lauter&kettle

Double brew length hot liquor tank

1-Certified stainless steel 304

2-Mash and brew kettle with steam jacket or directly heated by electricity

3-Lauter with side grain out doors and variable speed controlled rakes

4-Sanitary wort pumps, hot liquor pumps with variable speed control

5-Sanitary plate heat exchanger and wort aeration system

6-Mash Hydration

7-Lights with all the tanks

8-Big-size glass manway in all the tanks

9-work platform with sanitary process piping & sanitary valves

10-wort buffer tank and hop filter

11-UL and CE certification available

12-Siemen control system

13-Option: Double roller miller, grist hoper, auger.

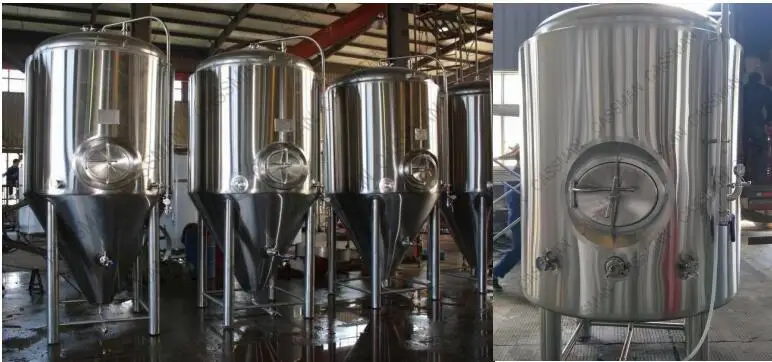

 Beer fermentation/ Uni tanks

Brite beer/beer serving tanks

Available Capacity: 100L-20000L or 1bbl-150bbl

1- 100% TIG welded joints with Certified stainless steel 304

2- Interior shell 3mm-8mm, Exterior shell 2mm

3-test pressure 0.3Mpa, working pressure 0.2Mpa

4-60 degree cone bottom, with an average of 20%-25% head space

5- 100mm Polyurethane insulation

6- Dimple cooling jackets (two or three sections according to the size)

7- Perlick sample valve, SMC solenoid valve, water seal pressure valve.

8- Side manway, dry hops port, rotating racking port

9- CIP arm and rotary spray ball, sanitary tri-clamp connections,

10- Carbonation port and Level gauge for serving tank

 Support system

1-Gas or electricity type steam generator

2-Air-type glycol chiller.

3-Cleaning system

4-Stainless steel kegs(Euro, US and Din)

5-Keging line(Keg filler and washer)

6- SUS 304 HLT and CLT with insulation.

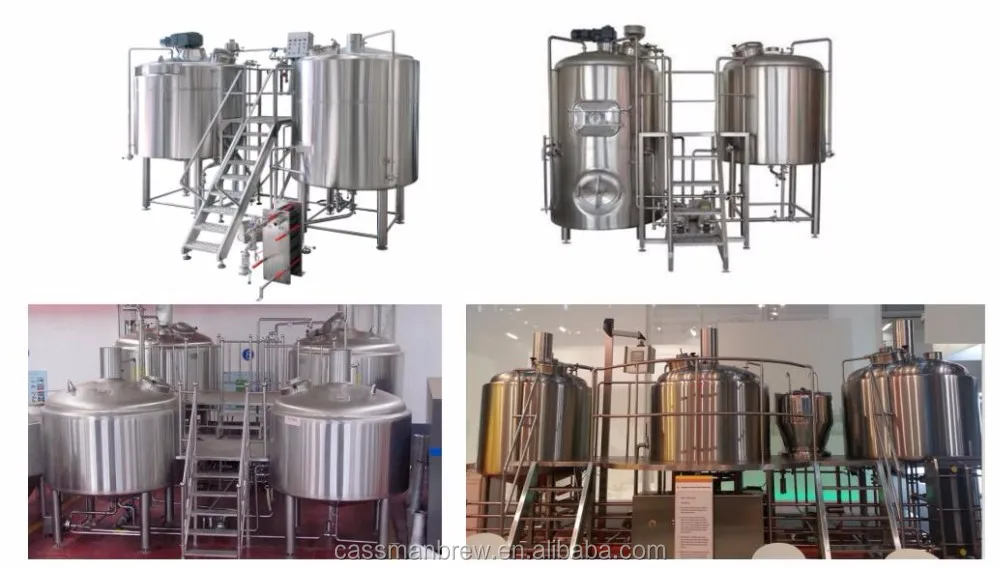

Brew House Configuration

Traditional Two vessels --Lauter +Kettle+Hot water(option)

US Brew house--Mash&Lauter+Kettle+Hot water

Euro Brew house--Mash+Lauter+Kettle+Hot water

Germany Brew house--Mash+Lauter&Kettle(combined)+Hot water

Capacity available: 100L-5000L or 3BBL-40BBL.

1---All the tanks, pipelines, and valve are manufactured by SUS 304,ribbon polished on welds.

2---The brew kettle heated by steam(two zones dimple jacket), electricity or direct fired.

3---All the tanks are insulated, thickness 100mm.

4---VFD ABB motor of the mash and Lauter

5---Top manhole with 360 degree glass, LED light.

7---circle pipe with rotary spray ball inside of the tank

8---Wort Buffer tank,Yeast dosing tank

9---Simply pipelines designed and equipped with SUS 304 plate heat exchanger

10-100% TIG Welded and Sanitary Polish

11-The whole system can be separately controlled by a panel.

12-CE certificated

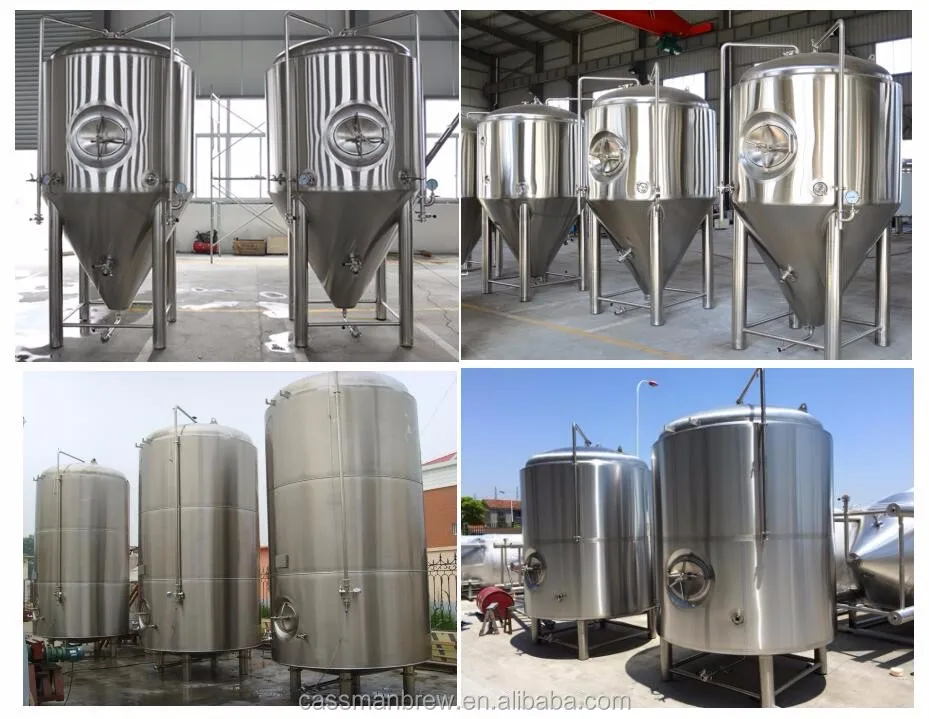

Fermentation and Bright Beer tank Configuration

Both the fermentors and BBT are made from quality Stainless steel 304, with dished head, the design can be cylindrical with 60 degree conical bottom or horizontal type.

With all the connections of coolant inlet and outlet, two or three sections of the cooling dimple jacket, safety valve, sample valve, PT100 temperature sensor,sanitary spray ball, CIP cleaning port, beer and drain outlet, top or side manway.

We always attaching high importance to be in line with international standard and fortunately, Cassman has taken up most markets in the U.S. And Europe. We also can custom fabricate any tank to meet your brewery’s space and height restrictions.

Capacity available: 100L-20000L or 3BBL-50BBL.

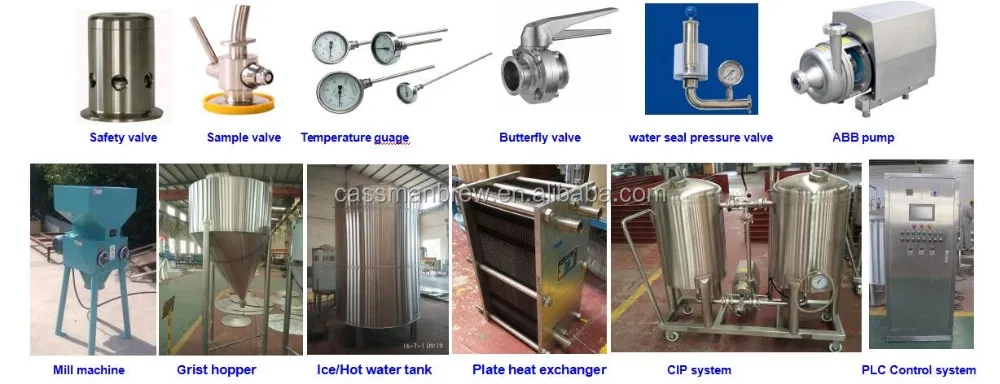

Support Equipment

Besides of the brew house and beer tanks, the support equipments are also the important part of the brewery, Cassman provide the turn key projects of the brewery and have the best suppliers of the support equipment.

Mill system

We offer the roller miller with the capacity of 80kg/h,300kg/h,500kg/h,and 800kg/h.

For the micro brewery, we can also offer the flex auger, grain bin and stainless steel grist hopper.

Steam generator

Safe and high quality Steam generator with soft water treatment.

Specification: 30kg/h,50kh/h,100kg/h,200kg/h,300kg/h,500kg/h and 1000kg/h.

Type: natural gas or electricity

Cooling system

Cooling system is one of the most part of the brewery, we provide the air-chilled and water-chilled industrial chiller. The specification is 2HP,4HP,5HP,8HP,10HP,15HP,20HP and 30HP.

Meanwhile, there will be insulated glycol tank or cold water tank connected with the pumps.

CIP system

Two or three tanks connected with pumps, caustic tanks heated by electricity.

Specification: 100L, 200L,300L,500L,1000L,2000L.

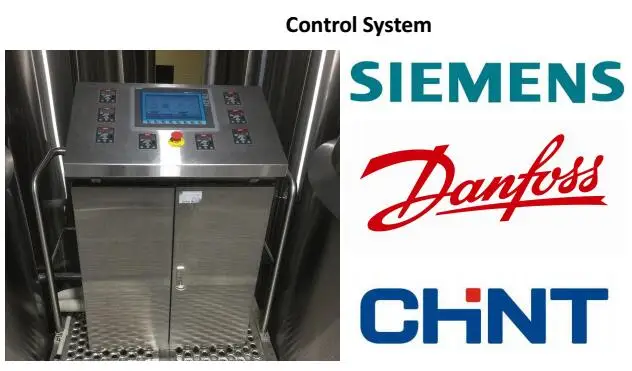

Control system

PLC or DCS system. Siemens(S7) Brand PLC control system,Control the power of the brew house, the variable frequency of the wort pump ,control the temperature and the pump of the hot water tank,Control the temperature & pressure of the fermenter and bright beer tanks,

UL certification as a option for the Control cabinet, touch screen and all the electrical elements.

Kegging line and Stainless Steel Kegs

Keg filling machine and Keg washing machine.

DIN 20L,30L,50L. US 1/6bbl,1/4bbl,1/2bbl Euro 20L,30L,50L.

Delivery time 20-50 days

According to the quantity of the fermentation tanks, the delivery time need 20-45 days, which include the equpiment design, manufacture and Inspeption before the delivery.

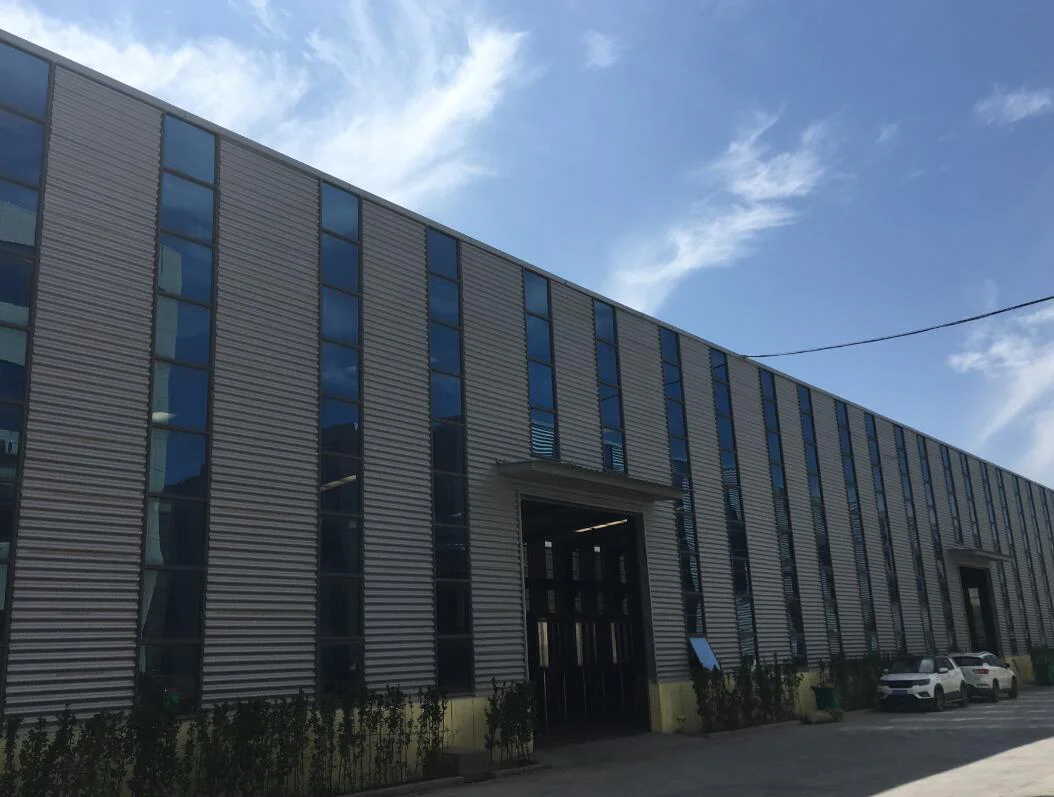

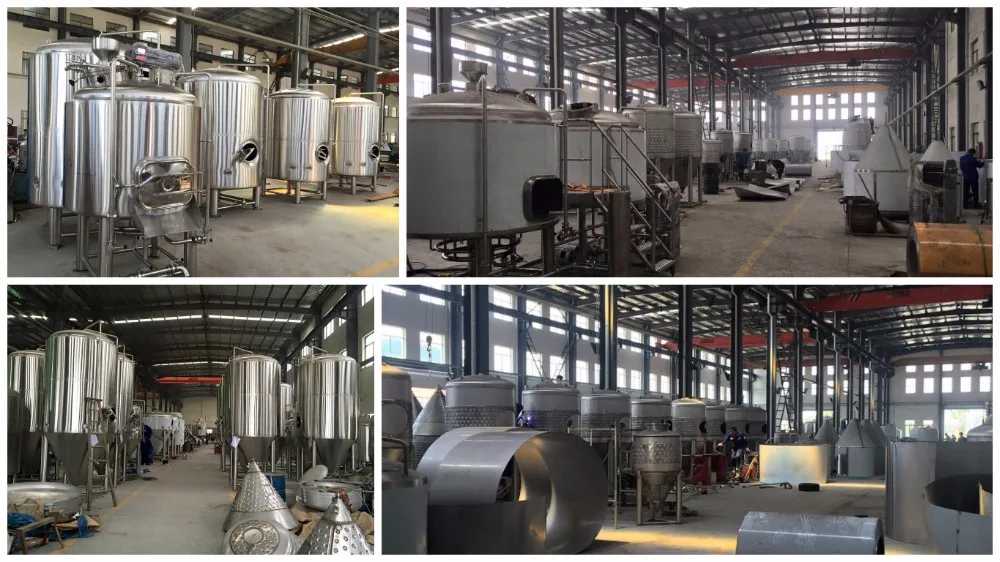

Cassman Factory

Cassman Facility:the plant covers an area of 4,000 square meters, with four workshops, equipped argon gas welding machines, auto polish machine, Stainless steel handling machine.   Certified with self-support imports and exports right,Obtained the ISO and CE certification. More than 20 engineers and brew masters were registered.
