Cipher Lab CPT 8000C/L Wireless Data Terminal/Collector scanner

8000 runs on two AAA batteries/8001 runs on a rechargeable Li-Ion battery - for over 100 continuous hours between charges
Easy to install, lightweight, and cost-effective

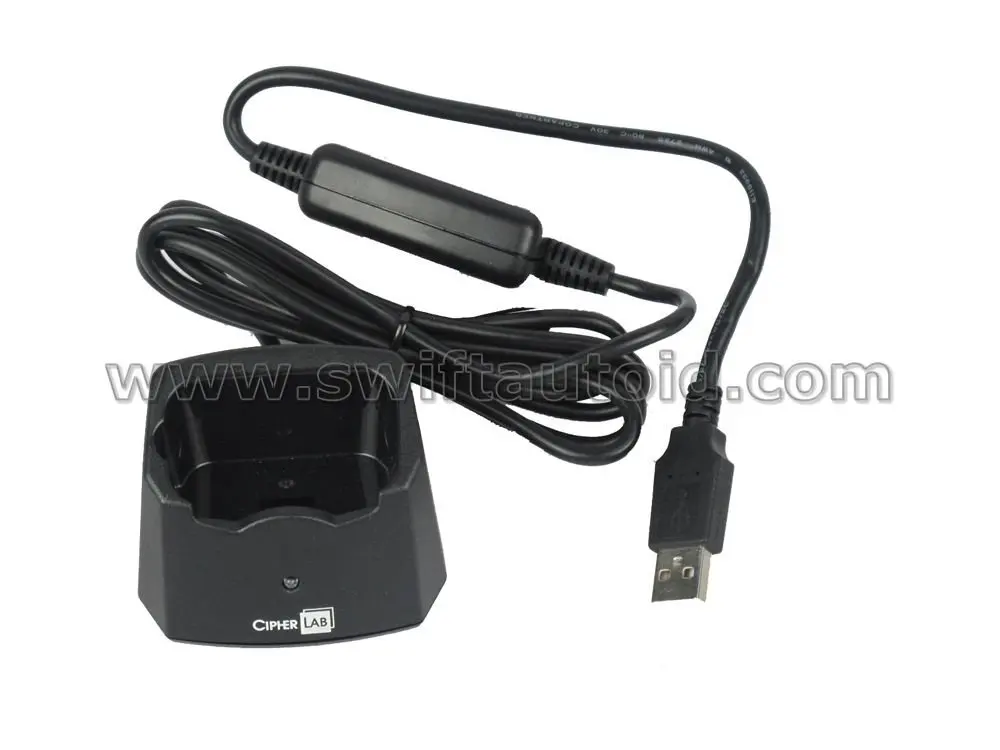

Infrared communications or cradle for batch data uploads
Choice of linear imager or laser reader
User-friendly interface and easy-to-read backlit LCD screen
Supports a variety of C and BASIC programming
CipherLab Application Generator enables custom applications



Wireless Communication	Options	Batch
	Specifications	Laser or CCD read head
	Coverage line of sight	Typically 30 cm / 12 in.
Power	Operation battery	2 AAA alkaline
	Backup battery	Rechargeable lithium 3.0 V, 7.0 mAh
	Working time:one scan per five seconds	100 hours
	Data retention	30 days
General Characteristics	CPU	16-bit CMOS, low power consumption
	Program memory	2MB flash memory
	Data memory	2MB SRAM
	Display	LCD 100 x 64 with LED backlight
	Keypad	21 rubber keys with LED backlight
	Buzzer	Programmable, 1 KHz to 4 KHz
	LED	Dual color: red and green
Dimensions	Size L x W x H	122 x 56 x 23 mm 4.8 x 2.2 x 0.9 in.
	Weight laser including battery	123 g / 4.4 oz.
Scanner	Light source	Linear imager: 650 nm red LED / Laser: visible laser diode
	Scan rate	Linear imager/Laser: 100 scans per second
	Scan angle	Laser: 47°
	Reading range	Linear imager: 3 to 29 cm / 1.2 to 11.4 in. Laser: 1 to 45 cm / 0.4 to 1.5 ft. dependent on barcode resolution
