Overview

FortiGate® 100E Series

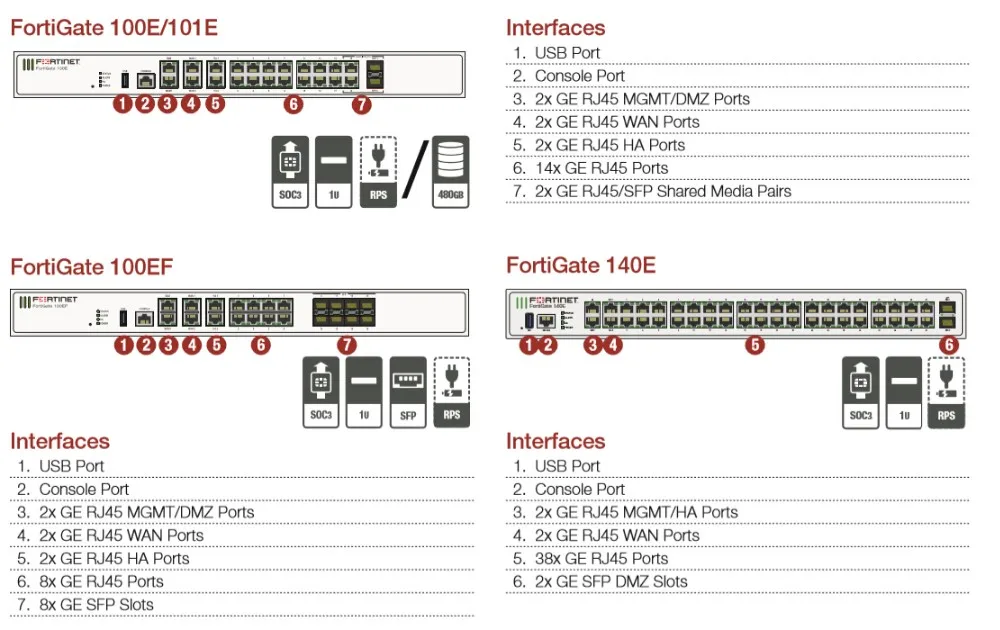

FortiGate 100E, 101E, 100EF, 140E and 140E-POE

The FortiGate 100E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.

Hardware
Security Fabric
Specifications

Hardware  Specifications

FG-100E

FG-101E

FG-100EF

FG-140E

FG-140E-POE

GE RJ45 Ports
14
14
8
38
14
GE RJ45 Management/HA/DMZ Ports
1/2/1
1/2/1
1/2/1
1/1/-
1/1/-
GE SFP Slots
-
-
8
2
2
GE RJ45 PoE/+ Ports
-
-
-
-
24
GE RJ45 WAN Ports
2
2
2
2
2
GE RJ45 or SFP Shared Ports
2
2
-
-
-
USB Port
1
1
1
1
1
Console Port
1
1
1
1
1
Internal Storage
-
1x480GB SSD
-
-
-
Included Transceivers
0
0
0
0
0
System Performance - Enterprise Traffic Mix
IPS Throughput
500 Mbps
NGFW Throughput
360 Mbps
Threat Protection Throughput
250 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)
7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte UDP packets)
3 μs
Firewall Throughput (Packets Per Second)
6.6 Mpps
Concurrent Sessions (TCP)
2 Million
New Sessions/Second (TCP)
30,000
Firewall Policies
10,000
IPsec VPN Throughput (512 byte)
4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels
2,000
Client-to-Gateway IPsec VPN Tunnels
10,000
SSL-VPN Throughput
250 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)
300
SSL Inspection Throughput (IPS, avg. HTTPS)
130 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)
130
SSL Inspection Concurrent Session (IPS, avg. HTTPS
125,000
Application Control Throughput (HTTP 64K)
1 Gbps
CAPWAP Throughput (1444 byte, UDP)
1.5 Gbps
Virtual Domains (Default / Maximum)
10 / 10
Maximum Number of Switches Supported
24
Maximum Number of FortiAPs (Total / Tunnel Mode)
64 / 32
Maximum Number of FortiTokens
1,000
Maximum Number of Registered FortiClients
600
High Availability Configurations
Active / Active, Active / Passive, Clustering
Dimensions
FG-100E/FG-101E/FG-100EF
FG-140E/FG-140E-POE
Height x Width x Length (inches)
1.75 x 17 x 10
1.75 x 17 x 15.5
Height x Width x Length (mm)
44.45 x 432 x 254
44.45 x 432 x 394
Form Factor
Rack Mount, 1 RU
Weight
7.28 lbs (3.3 kg)
12.4 lbs (5.6 kg)
