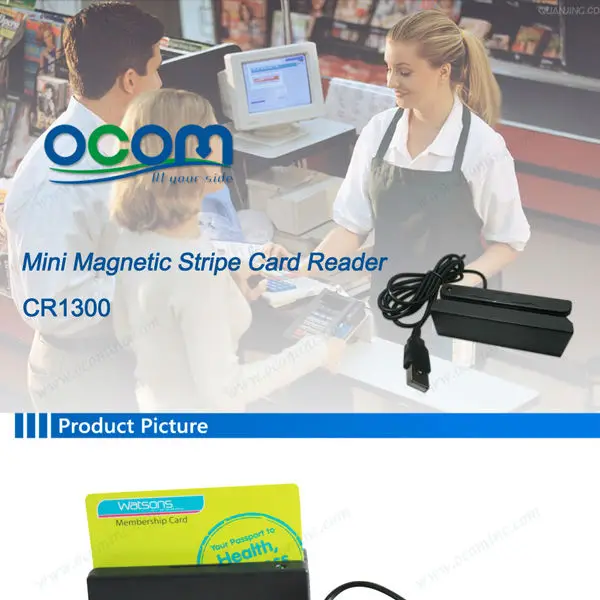

CR1300 Mini Magnetic Stripe Swipe Card Reader For Vehicle Tracking Application
Swipe Card Reader,Magnetic Card Reader,Card Reader
Product Description
Features:

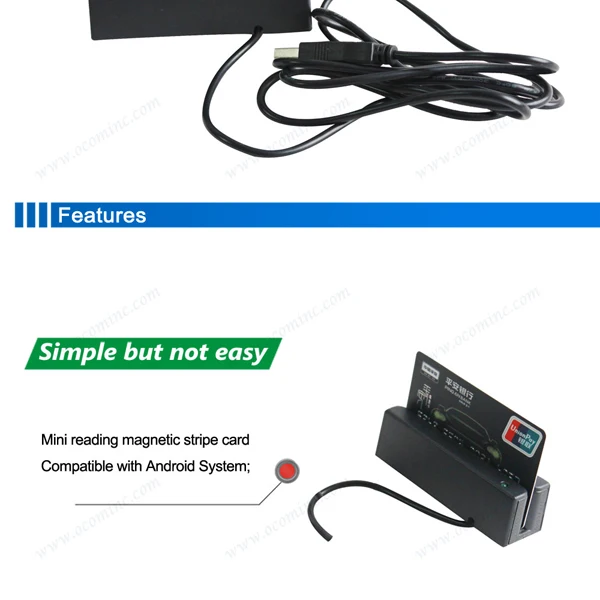

l Compatible with Android System.

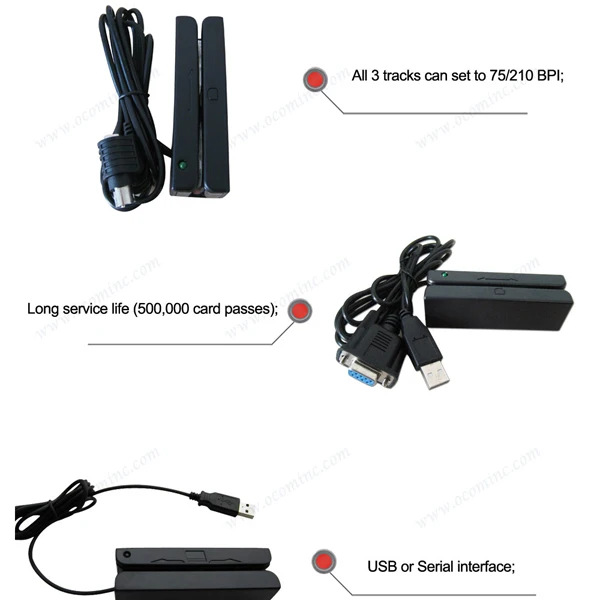

l 1/2/3 tracks reading, and all tracks can set to 75/210 BPI;
l USB, Serial, PS2, TTL, UART interface for option;
l Long service life (500,000 card passes).

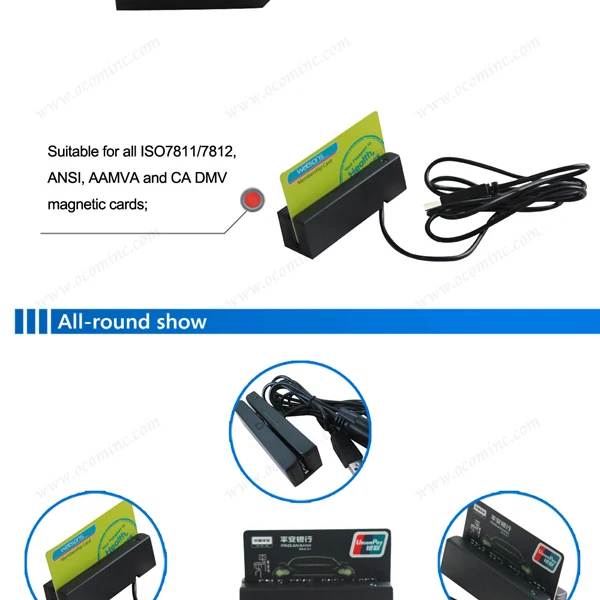

l Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards.
l Set up the prefix or surfix by the software tool provided.
l Encryption reading can supported
l Buzzer optional
l Mini Size 90*26*28

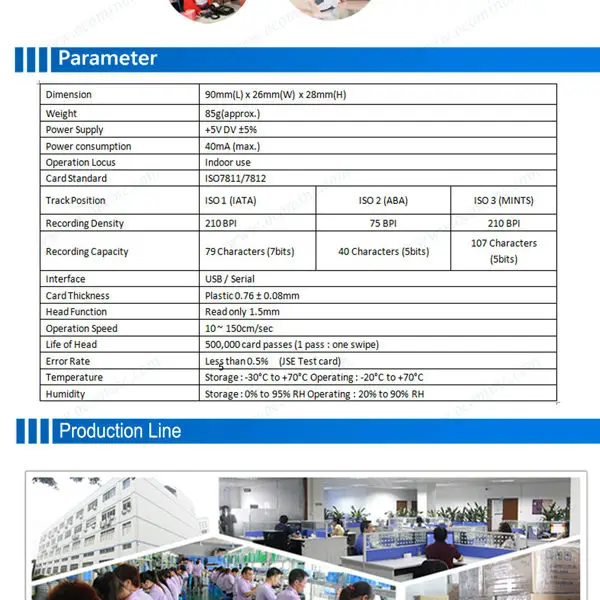

Specifications:
Dimension | 90mm(L) x 26mm(W) x 28mm(H) | ||
Weight | 85g(approx.) | ||
Power Supply | +5V DV ±5% | ||
Power consumption | 40mA (max.) | ||
Operation Locus | Indoor use | ||
Card Standard | ISO7811/7812 | ||
Track Position | ISO 1 (IATA) | ISO 2 (ABA) | ISO 3 (MINTS) |
Recording Density | 210 BPI | 75 BPI | 210 BPI |
Recording Capacity | 79 Characters (7bits) | 40 Characters (5bits) | 107 Characters (5bits) |
Interface | USB / Serial | ||
Card Thickness | Plastic 0.76 ± 0.08mm | ||
Head Function | Read only 1.5mm | ||
Operation Speed | 10 ~ 150cm/sec | ||
Life of Head | 500,000 card passes (1 pass : one swipe) | ||
Error Rate | Less than 0.5% (JSE Test card) | ||
Temperature | Storage : -30 °C to +70 °C Operating : -20 °C to +70 °C | ||
Humidity | Storage : 0% to 95% RH Operating : 20% to 90% RH | ||
USB Magnetic Card Readeools:
Related Products
product catalogue
Mini Blue tooth printer | Direct thermal printer Thermal transfer printer | Mini dot matrix printer Small dot matrix pritner | 2D barcode scanner Fixed barcode scanner Ring barcode scanner | Andorid industrial PDA Win CE data terminal Stock taking Terminal |
All-in-one POS Machine | 12"/15"/17" Touch monitor 12"/15"/17" LCD monitor 12"/15"/17" LED monitor
| VFD customer display LED pole display LCD customer display | Programmable pos keyboard Pinpad/Numeric keypad | Magnetic card reader Fingerprint reader |
Accessories | Others | |||
Bill counter machine Coin counter sorter | Big Cash drawer small cash drawer Fliptop cash drawer USB trigger for cash drawer |
| Theraml paper roll, Sticker label | Tablet PC Pallet Racking Suppermarket Shelve |
