VMC1100 высокое качество WEIDA/ЧПУ 3 axis cnc вертикальный обрабатывающий центр с

Описание и отзывы

Характеристики

	unit	VMC1100
Table size	mm	1100x600
T slot no./width/distance	no/mm	5/18/115
Max. load of worktable	kg	600
Longitudinal travel	mm	1100
Cross travel	mm	600
Vertical travel	mm	600
spindle nose to table surface	mm	125-725
spidle axis to column surface	mm	660
Spindle  taper		BT40
Speed Range	rpm	40-8000
spindle motor power	kw	7.5
cuttiing feed  X/Y/Z	mm / min	1-10000
rapid feed  X/Y/Z	m / min	standard:24/24/18 option:30/30/24
tool magazine capacity	piece	24
tool magazine type		round disc type
Max. Dimension of tool	mm	Ø80(full)/120(empty)×300
Max. tool weight	kg	8
Tool changing time (tool-tool/cut-cut)	s	1.75/5
positioning accuracy	mm	±0.005/300 JIS
repeat  positioning accuracy	mm	±0.003      JIS
air pressure	Mpa	0.5-0.7
overall dimensions(LxWxH)	mm	2800x2220x2800

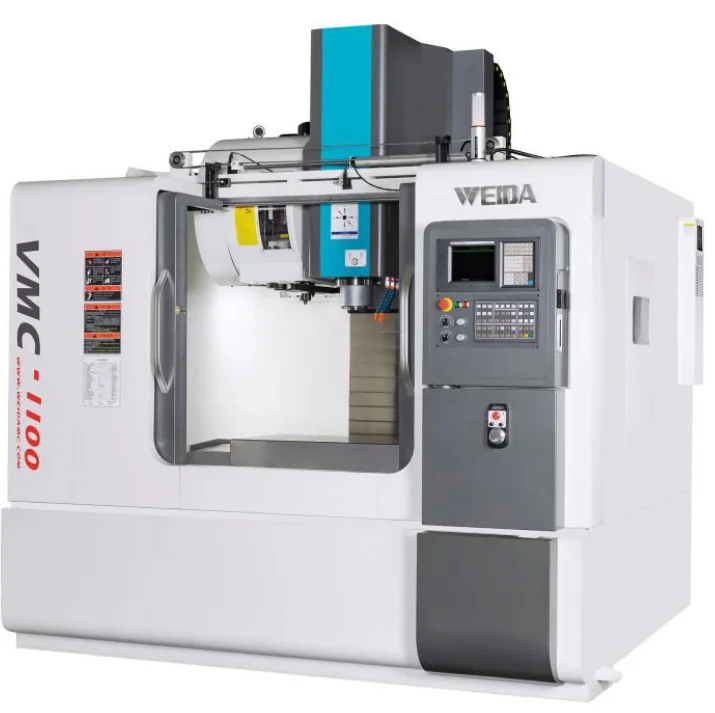

VMC1100 high quality WEIDA cnc 3 axis cnc vertical machining center  is composed of base, column, middle sliding saddle, table, headstock,operation panel, tool magazine, pneumatic system, lubricant system, cooling, lighting, protection system, CNCsystem, electrical system.

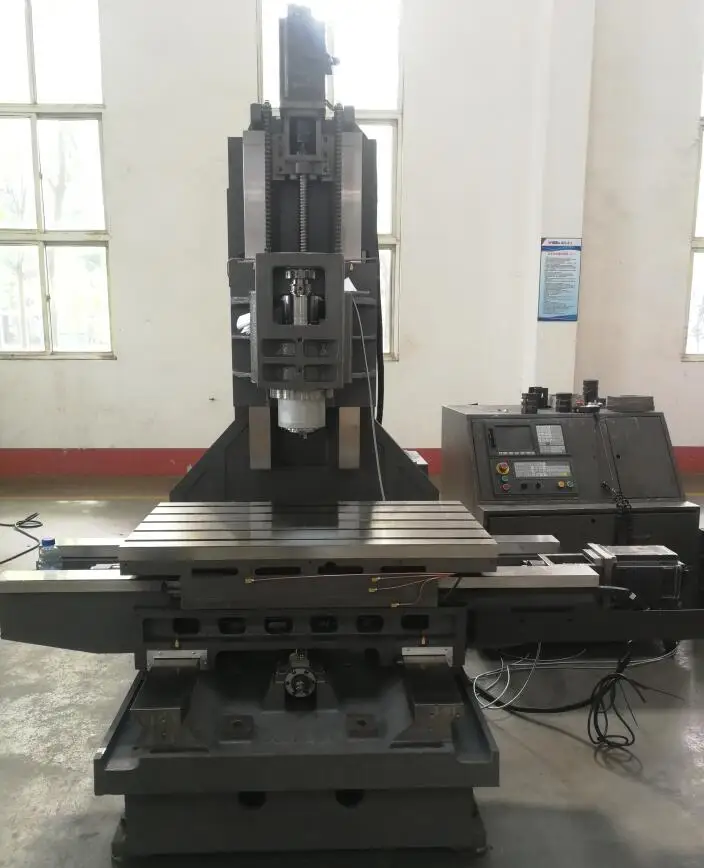

The guideway for VMC1100 can be box guideways and also international advanced linear rolling guide ways, which is high rigidity, heavy-load, low friction; driving lead screw is heavy-load, low friction, high accuracy ball screw, spindle speed range is 40~8000 rpm.Timing and fixed quantity lubricant system is equipped, which prolongs the working life of machine, totally enclosed protection device is adopted, which assures the safety of worker and lustration of environment.



We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal

machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,

Shanghai C N C gantry guide rail grinding machine, Beijing C N C gantry type boring milling machine and automatic

powder coating line .Besides, C N C machine tool project laboratory with advanced testing equipments is built for quality

control.

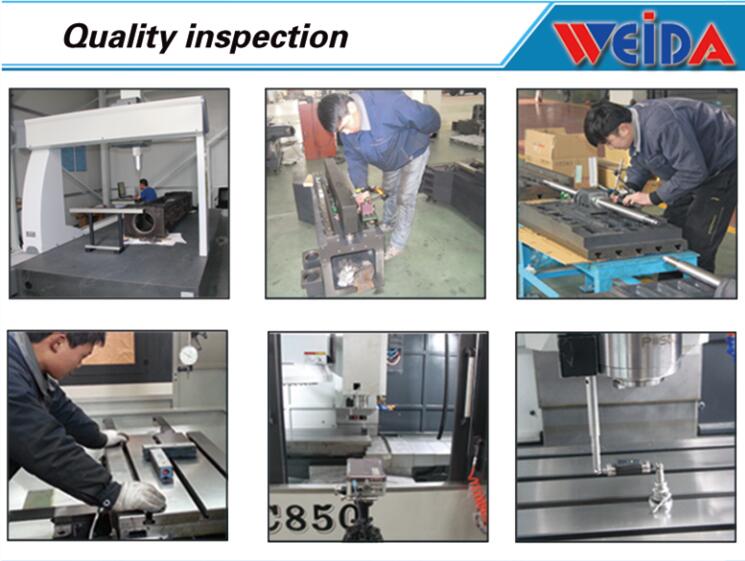

We will test every machines carefully in different status by our professional engineers to make sure our machines quality. For linear guides cnc milling machine, we will test the accuracy by Renishaw laser interferometer and will make ball bar test, as well as cutting test before delivery.With the sequence testing, we can make sure the machines' quality.



Machine model: VMC1100 high quality WEIDA cnc 3 axis cnc vertical machining center

Type of package: Plywood case

Packing dimension: 300X228X255CM

Suitable Container and quantity:

40 High container:  5sets



Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds,

connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the

processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining

center can meet the basic processing requirements.

Optional accessories

The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.

You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.

Processing equipment





We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic powder coating line .

Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.



Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers an area 500,000square meters,the building zone is about 350,000square meters,and the total assets is more than RMB500million, there are 365 engineers and 632sets of production equipment&measuring test instrument in the company.

We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products

have developed to 8 series:cnc gantry type machining center,  machiningcenter mini,cnc milling machine,horizontal boring machine,radial drilling machine,universal knee type milling machine,vertical milling machine, milling drilling machine,altogether more than 90 specifications.

We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.

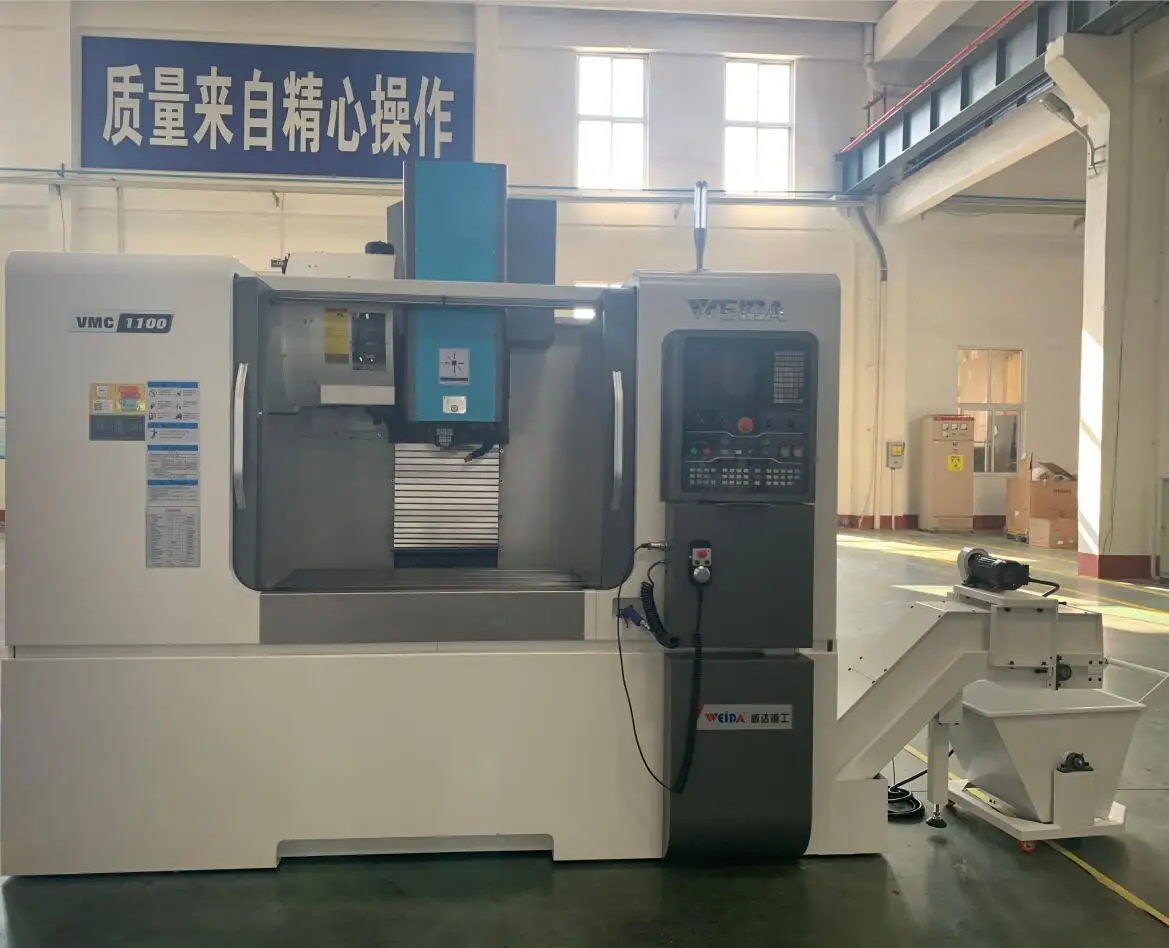

We have different workshops to produce different machines,it mainly includes cnc workshop,milling machine workshop, radial drilling machine workshop,processing department etc.

For cnc workshop as above, we will produce vertical machining center,gantry type machining center,horizontal machining center,linear guides cnc milling machine etc.. Every year we will produce hundreds of machining centers for abroad customers. Our brand is well-known in many markets. And in every exhibitions in home and abroad, we will avertise them. And we get great effect from exhibition.

For milling machine workshop, we produce conventional milling machine, cnc milling machine. We have more than 15  years experience on conventional milling machines. We have great experience and professional engineers,

the quality for them is good, you can trust.And our brand for conventional milling machine

has been popular in abroad market. We supply the machines to many famous companies, such as Germany

KNUTH company, Germany OPTIMUM company, Russia JET company, American companies etc.



 All our machines have been passed CE certification,such as universal milling machine,cnc vertical machining center,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complys with European standard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc.
