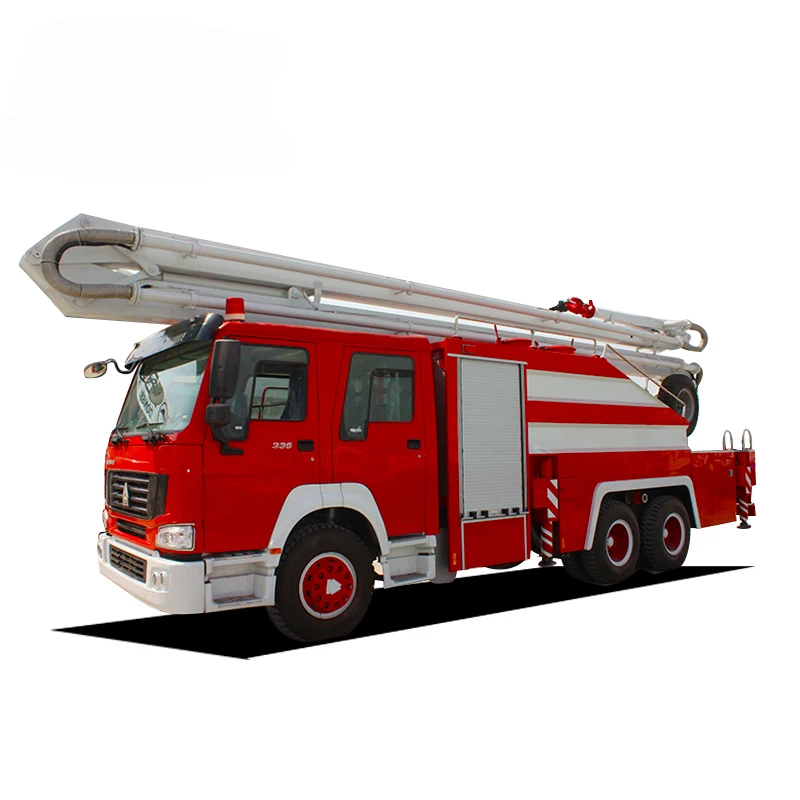

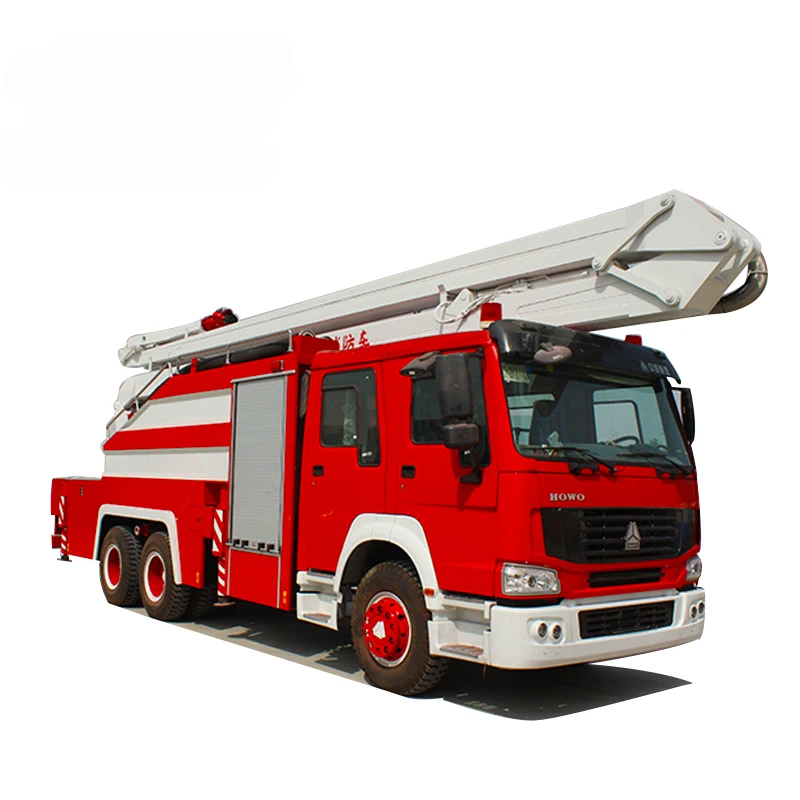

6x4 бак для воды воздушная башня пожарная

Main performance data

Overall size : (L x W x H)

11600×2500×3870mm

Maximum total mass

32350kg

Maximum truck speed

≥95km/h (Electronic speed limit)

Minimum turning diameter

≤23m

Approach angle

≥14°

Departure angle

≥9°

Maximum climbing ability

≥25%

Outrigger span

Outrigger longitudinal span

5925mm

Outrigger transversal span

4830mm

Electronic speed limit

25m

Max. working radius

13m

Range of amplitude of the boom

Angle between the first section arm and the water level: 0-85°;

Angle between the first section arm and the second section arm: 0-150°;

Angle between the third section arm and the second section arm: 80-170°.

Turning range

≤30s

Leg deployment time

≤60s

Rotation speed of the boom

0.5~1.5r/min

Fire pump

Rated flow

80 L/s

Rated pressure

1.4MPa

Fire monitor

Model

PLKD80-3480+5178+738

PLKD80+738

Rated flow

80 L/s±8%

Rated pressure

0.8MPa

Shoot range

Water: 75m

Foam: 70m
