12V Heavy Duty Giant Scale Digital 100 kg Torque Servo
The advantage of Serial bus servo:
1.Beautiful wiring structure,
2.Easy to control signal,
3.real-time feedback of position,tempreture,speed,voltage,Current data,
4.Less occupied port.
5.Digital transmission signal is
Flexible, convenient, reliable and good compatibility
6.intercommunication;
Now PWM is Simulate Transmission,Pulse width variation stand for control vector,so easily interfered by the outside world.
it is daisy chained servos, has feedback, etc... However, the SCS100 comes with brackets, horns, etc...

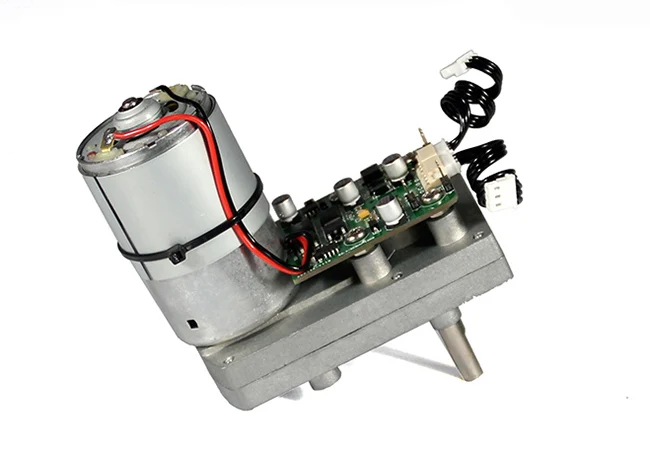

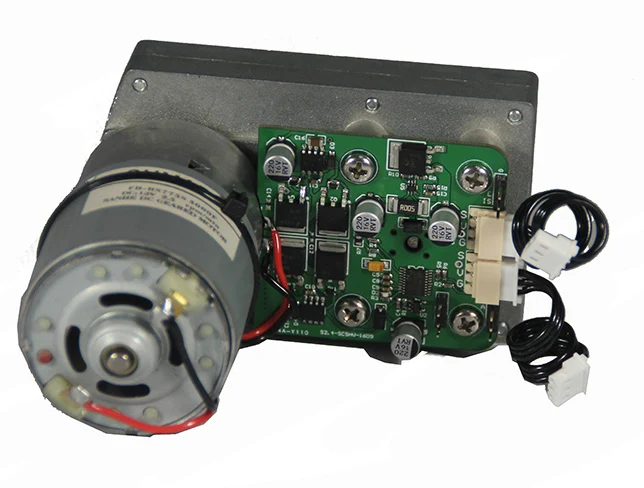

The SCS100 high torque robot servo has the ability to track its speed, temperature, shaft position, voltage, and load. The servo can be configure as positional or continuous rotation mode. The control algorithm used to maintain shaft position on the SCS100 robot servo can be adjusted individually for each servo, allowing you to control the speed and strength of the motor's response. All of the sensor management and position control is handled by the servo's built-in microcontroller. This distributed approach leaves your main controller free to perform other functions.
The SCS100 robot servo is a Serially Controlled servo that provides commands and feedback parameters to allow complete control over your robot application. The Serial protocol is daisy chained, meaning several servos can be connected to each other in a chain and offer several compliance and sensing parameters that can be configured and read including position, velocity and temperature.
The SCS100 smart control servo use special half-duplex UART bus as input source. User need to use a SCPC-2 programmer to configure the smart control servos using PC via USB port, or make a TTL linker circuit to communicate to other host MCU.

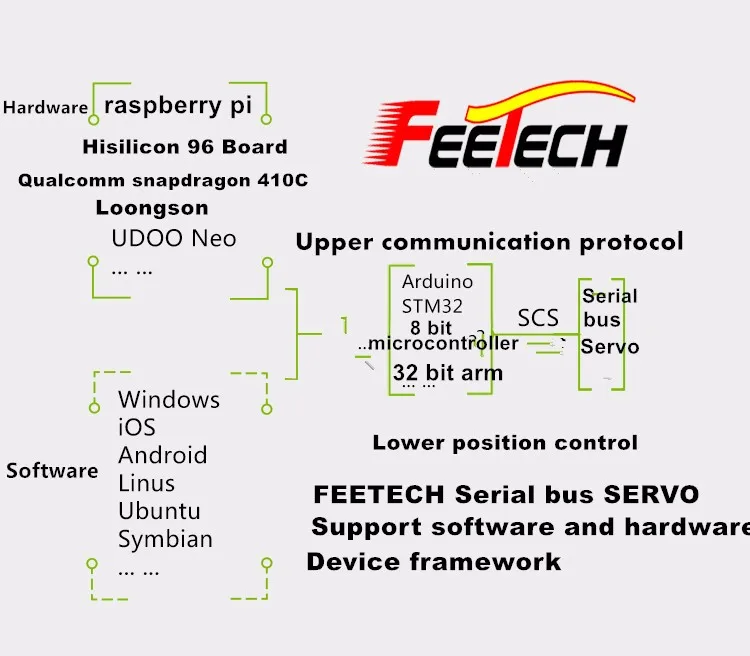

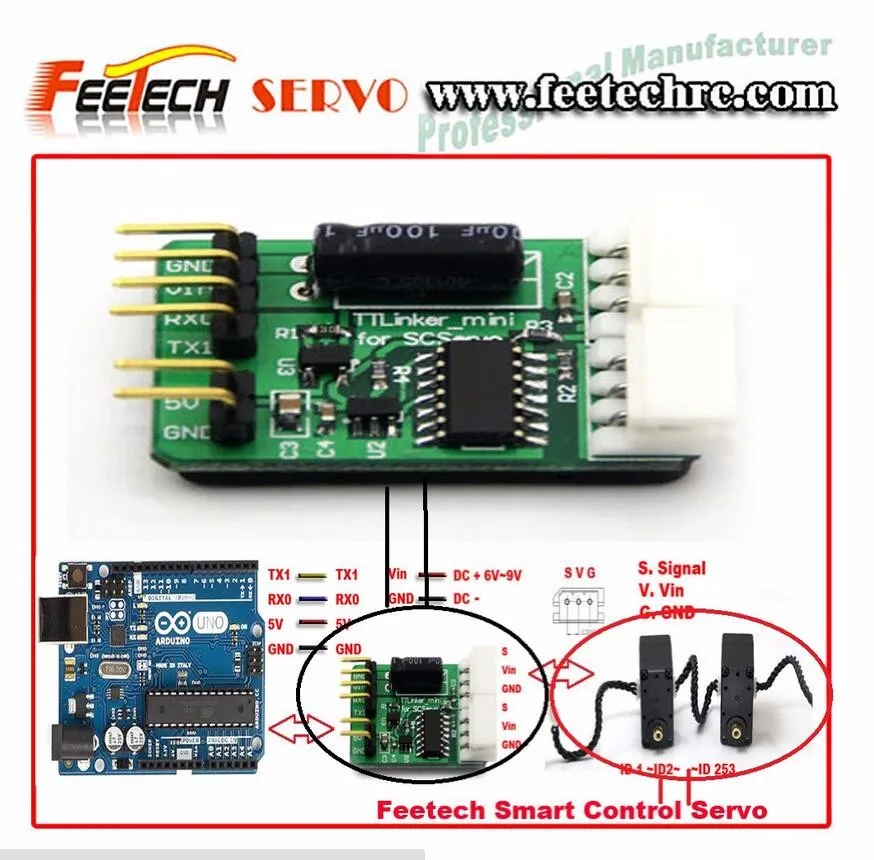

You can use Arduino to control SCServo. You will need a TTLinker connected between Arduino and SCServo.
TTLinker is a signal conversion board. Arduino needs to convert its UART signals to the half duplex type and through TTLinker connect to SCServo.
Feature:
SCServo can work at servo mode and wheel mode.
The servo mode can be used to multi-joints robot since the robots can be controlled with specific angles. (The factory default setting is servo mode)
The wheel mode can be used to wheel-type operation robots since motors of the robots spin infinitely. (If wheel mode is available you need to program the value of position limitation the both are 0.)
If you want to reprogram servo, you need to download the PC software (SCServo_Debug), and to connect SCPC-2(Serial Control Programming Card) between servo and PC.

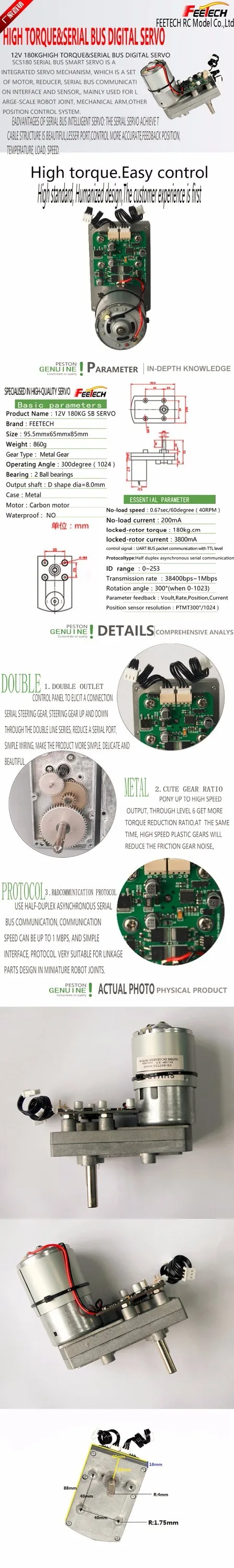

Please Click the picture to open the datasheet link:
Packaging & Shipping
Packing:
1-PE bag (A servo + accessory)
2-Box (A servo + accessory)
Related Similar Products:
Please Click the picture to open the purchase link:
Warm Remind:
1. Serial bus servo series demonstration video link address:
https://www.youtube.com/watch?v=GG9mVx1J3VI
2. This product can be connected with the arduino control board / STM32 control board by Linker-mini.
3.Our company have own research and development of the serial bus servo agreement. Digital servo more stable and stable operation, 300 ° large degree, response flexible. With parameter feedback function, overload protect function, maximum angle limit, error calibration, host computer parameter settings, firmware upgrade.
4.customize different specifications of high-quality serial bus servo.
5.SCServo can work at servo mode and wheel mode.
The servo mode can be used to multi-joints robot since the robots can be controlled with specific angles. (The factory default setting is servo mode)
The wheel mode can be used to wheel-type operation robots since motors of the robots spin infinitely. (If wheel mode is available you need to program the value of position limitation the both are 0.)
6.If you want to reprogram servo, you need to download the PC software (SCServo_Debug), and to connect SCPC-2(Serial Control Programming Card) between servo and PC.
More about SCServo_Debug and SCPC-2 introduce please reference its instructions.
7.SCServo has a unique ID number to identify on BUS network.
The range from 0 to 253 (0xFD) can be used (The factory default setting is ID 1), and, especially, 254(0xFE) is used as the Broadcast ID. If the Broadcast ID is used to transmit Instruction Packet, we can command to all SCServo.
After programmed servo ID, to be best way is written it on the sticker of servo. If not, maybe you will forget the ID when you programmed many servos.
8.SCServo have kinds of baud rate available.
The baud rate from 38400 bps to 1M bps can be used.
They are 38400, 57600,76800,115200,128000,250000,500000,1000000. (The factory default setting is 1000000 bps)
9.SCServo can feedback the value of Position, Temperature, Load, Speed and Input Voltage.Also we can reprogram the speed of rotation, the max output torque, operating voltage limit, and operating temperature limit etc.
10.Half Duplex Asynchronous Communication
Half duplex UART is a serial communication protocol where both TxD and RxD can’t be used at the same time. This method is generally used when many devices need to be connected to a single bus. Since more than one device is connected to the same bus, all the other devices need to be in input mode while one device is transmitting.
11.The Main Controller that controllers of the SCServo actuators sets the communication direction to input mode, and only when it is transmitting an Instruction Packet, it changes the direction to output mode.
