    A2RS068 Water Soluble Aluminium Solder Paste



Product Description



Product Usage

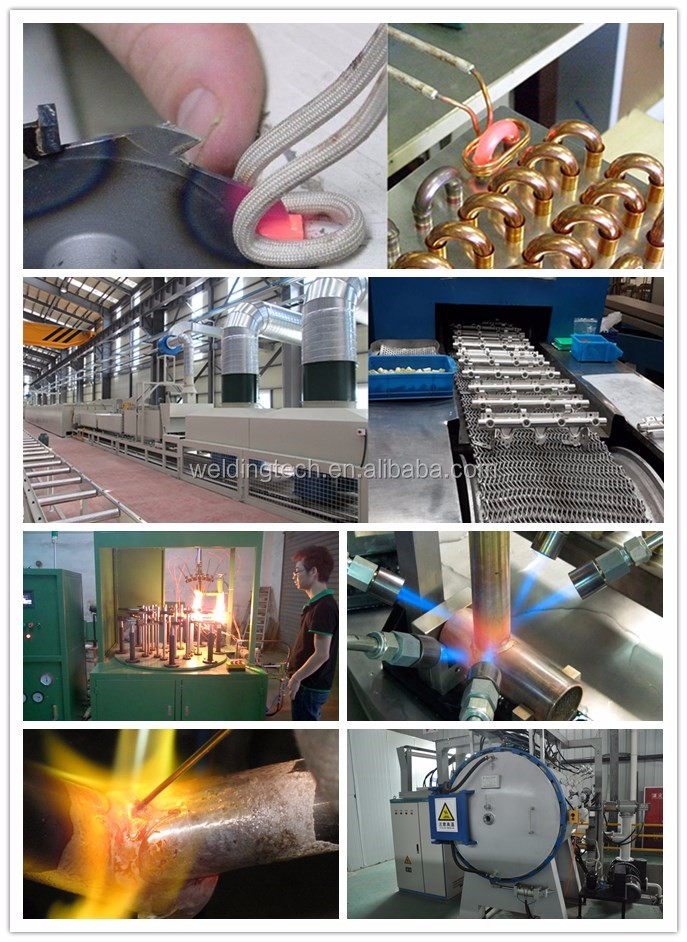

Aluminum brazing flux powder/paste can work together with aluminum or zinc based brazing filler metals on aluminum, aluminum alloy, copper alloy at the temperature range of 450-600°C in frame brazing, induction brazing, electrical resistance welding, furnace brazing, and so on.

Physical Description

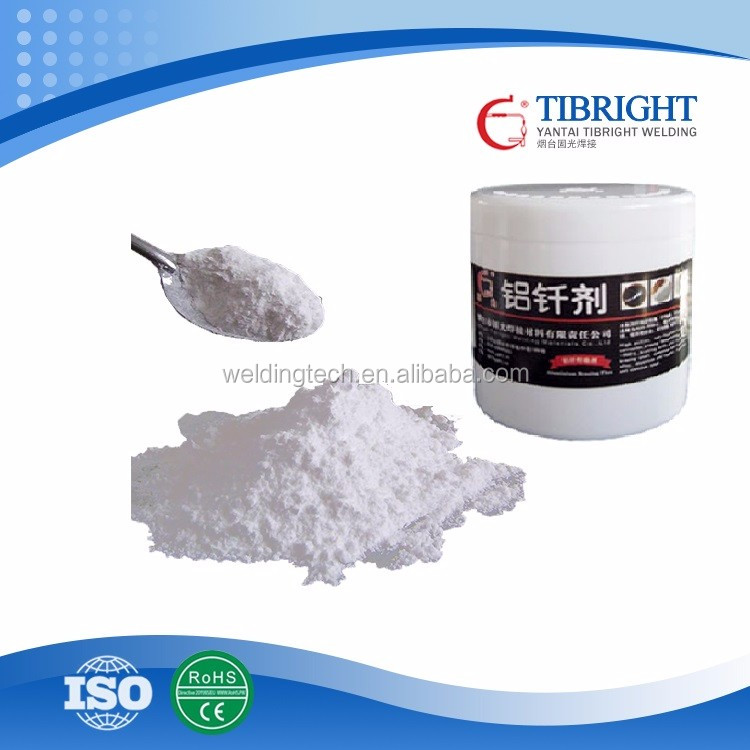

White powder/paste, granularity ≤ 150um.

Standard

JB/T6045-2015 Fluxes for Brazing, Shao Sun

Storage

Keep it in dry and cool place. Protect against damp, inedible.

Package

a)   226.8g (8 Oz)/Plastic Can,  80 Cans/ Carton

b)   454 g (16 Oz)/Plastic Can,  40 Cans / Carton

c)   500 g / Plastic Can,        40 Cans / Carton

d) 500 g / Plastic Bag, 60 Bags / Drum

e)   Customized Package is available.



Code

Activity range(°C)

Description

FB201S-11

450-660

Good fluidity,strong ability in removing oxidation film.Can be mixed with water to become paste,with good viscosity. Water soluble, no residual left. Recommend for repairement market.

FB201S-21

500-600

Good fluidity,strong ability in removing oxidation film.Can be mixed with water to become paste,with good viscosity. Water soluble, no residual left. Recommend for radiator brazing.

FB205S

450-600

Best activity for brazing with AlSi12, 4047 filler metal for the best brazing quality the requirements.  Water soluble, no residule left. Highly recommend for radiator, bike producer.

FB206S/C

450-600

Great activity with AlSi12, 4047 filler metal alloy.  water soluble, no residule left. Highly recommend for situation of high requirements in powder or paste form.

FB501S

560-600

Superior ability in removing oxidation film. Potassium floroaluminate flux system. Non-water-soluble. Thin residual film remain. Recommend for auto-radiator furnace brazing procedure.

FB502S

430-600

Superior ability in removing oxidation film. Low melting temperature, water washable. Expensive materials with cesium.  Recommend for auto-radiator furnace brazing procedure.

FB503S/C

520-600

Great activity, low temperature, non-water soluble, thin residual film remain, in powder or paste form.

FB504S/C

560-600

Self flux and no filler metal is needed. Non-water soluble, thin residual film remain, in powder or paste form.




Contact Information

.png

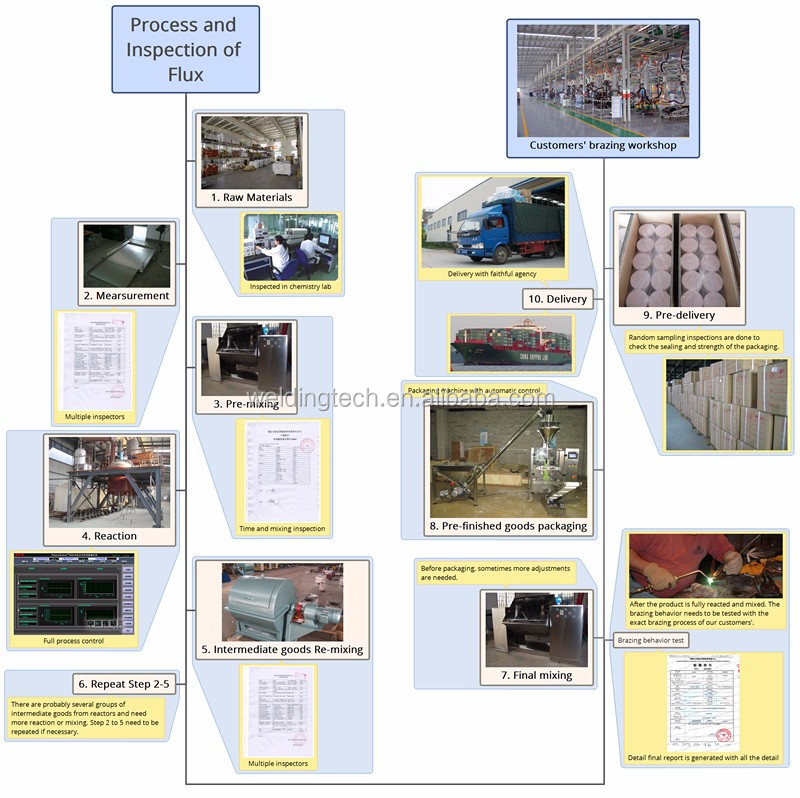

Process Flux

 Process and Inspection of Flux_.jpg





Application




Buying Guides



Yantai TiBright Welding Materials Co. Ltd., founded in 2000, is a professional developer and international supplier of inclusive brazing materials, equipment, and consultant. TiBright has hundreds of products for different applications. Customized products are also available for specific purposes.
         When choose from
our product library, please check out our recommended product list, If you have any questions, please let us know, We will try our best to satisfy your inquiry. Sometimes we need our customers to try different samples to make the perfect decision. Generally, we need to know the following information to choose a right product for you.



1. Materials of your parenting parts (to-be-brazed parts).



2. Heating methods. (eg. flame, induction, vacuum furnace etc. )



3. Atmosphere of application. (eg. room air, protective inert gas, reductive gas, vacuum, etc.)



4. Dimensions of your parts. Photos or graphs are preferred. (Different dimensions require different procedures.)



5. Current solution. (eg. brazing materials, equipment, procedures, etc.)



6. The reasons of searching new solution. (eg. price, strength, applicability, etc.)



7. Industry of your application. (Help us refer to similar examples.)

Packaging & Shipping

Normal packaging:

Other packing can be customized according to customer's requirement

ProductDimensionPacking
Brazing Alloy Rod500 mm1 kg/bag, 20 kg/box,10 kg/bag
Brazing Alloy Rod1000 mm5 kg/bag, 30 kg/box
Brazing Alloy WireRoll5 kg/roll, 10 kg/roll, 20 kg/roll
Brazing Alloy Sheet/StripAll kinds1 kg/bag, 10 kg/box, 20 kg/box
Brazing Alloy RingAll kinds1 kg/bag, 10 kg/box, 30 kg/box
Brazing Alloy Powder 5 kg/bag, 10 kg/box, 30 kg/barrel
Brazing Alloy Paste 1 kg/can, 10 kg/barrel, 30 kg/barrel
Brazing Flux Powder 500 g/can, 500 g/bag, 20 kg/box
Brazing Flux Paste 1 kg/can, 1 kg/bag, 40kg/box
Brazing Flux Paste-Auto 1 kg/can, 1.5 kg/can, 9kg/box
Brazing Flux-liqui/gas 3 liter/barrel, 3.5 kg/barrel, 12kg/box, 200 liter/barrel
Our Services

              With hundreds of products in our product library, TiBright is a professional developer and international supplier of inclusive brazing materials, equipment, and consultant.

One highlight of our services is that we provide customized products specially designed for specific customers. We have a lot of successful cases in which the customers had the products suitable for their own procedures, environment and operation routines perfectly.
          We also provide entire brazing solution for customers to solve all the problems related to brazing process. We provide consultant for customers with complicated applications and innovative demand.

          About sixty percent of our equipment and devices are designed and crafted in our own machine workshop, which engaged us the ability of prompt reaction towards new updates from customers. We also produce specially designed brazing tools and machines. We often develop products together with our customers for their individual needs.

Company Information



Yantai TiBright Welding Materials Co. Ltd. was started from a laboratory in 1996 and founded in 2000. The company is the first one who specialized in brazing materials in China. The pioneers of the company started product formulas from very basic research. With hundreds of products, TiBright has become a professional developer and international supplier of inclusive brazing materials, equipment, and consultant.



       As we focus on brazing materials, our main products are brazing fluxes, brazing alloys, self fluxing brazing alloys, brazing alloy paste, and brazing tools. We make brazing alloys with main components of silver, copper, aluminum, nickel, chromium, zinc, tin, manganese, etc. We also make fluxes and binder agents for these alloys.



       Since 2010, our research team has been focusing on the brazing alloy powder and paste as well as the self-fluxing alloys, such as flux coated wires and rings, flux cored wires and rings.



In the year 2015, TiBright was asked to be the first draftsman of the industry standard of China "JB 6045-2015, Fluxes for Brazing" and attended the drafting work of many standards as expertise. TiBright’s research team members apply for patents and publish research articles on academia periodicals every year. By 2016, TiBright has been authorized 15 patents.



       Our main current customers are in dozens of different industries, such as radiator, compressor, air conditioner, refrigerator, electric, eye glasses, auto parts, cutting tools, kitchen and bathing, medical instruments, nuclear station, and so on. Our famous customers include Haier, Gree, Media, Siemens, Sanhua, and so on.
