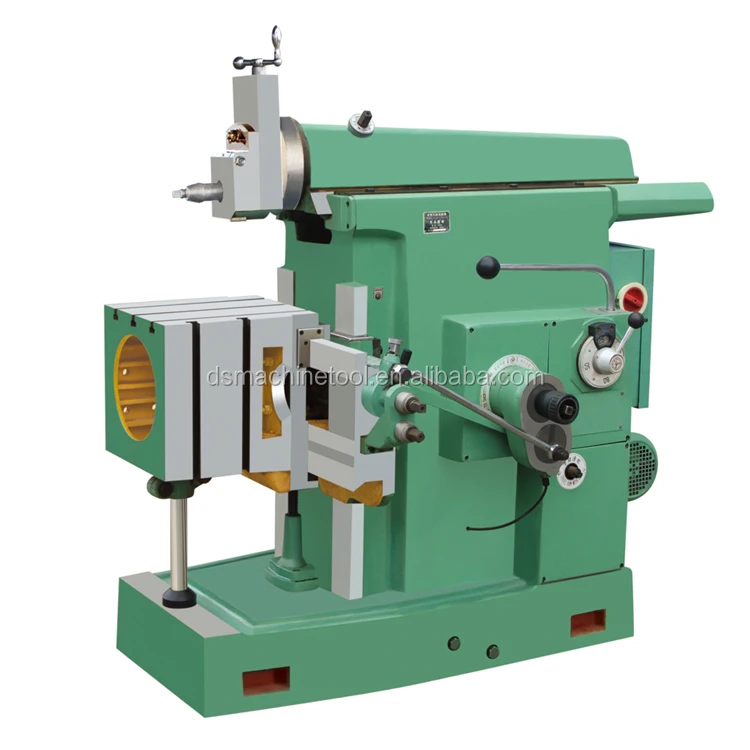

High Precision Metal Shaping Machine Tool  DSBC635A

 Features



Shaper is mainly used for planing the plane on the small and medium-sized workpieces in small batch production of a single piece, sculptured surface and grooves.

Its five characteristics:

1. The worktable can about rotate angles, meanwhile, it is equipped with horizontal and lifting mechanism for planing inclined plane which enlarge its using scope.

2. It is convenient to adjust feedings and change tool path by adopting cam mechanism as feeding system.

3. The shaper has installed protections against overloading inside the tool path system, due to careless operation or external influences and overload cutting, the blade will slide automatically, non-destructive parts will work to ensure the normal operation of the machine.

4. The ram, rail bed, speeding gear and major sliding guide are all lubricated by the oil pump.

5. The shaper has parking brake mechanism, therefore, it is unnecessary to cut off electric power when changing speed, starting and stopping the machine.

The technology parameter for shaper machine DSBC635A



Model		DSBC635A
Maximum cutting length(mm)		350
Maximum distance from ram bottom to table surface(mm)		330
Maximum table horizontal travel(mm)		400
Maximum table vertical travel(mm)		270
Leading surface of the planer to bed out of the maximum distance		550
The maximum displacement of the ram		170
Maximum turning angle of the worktable(no vice)		±90°
Maximum turning angle of the worktable(vice)		±55°
The turret maximum vertical travel		110
Number of ram strokes per minute (NO/min)		32,50,80,125times min
The ram back and forth a table feed amount	Wheeled round a tooth(vertical)	0.18
	Wheeled round a tooth(horizontal	0.21
	Wheel rotation 4 tooth(vertical)	0.73
	Wheel rotation 4 tooth(horizontal)	0.84
Motor  Power		1.5kw  1400r/min
Package Size  (mm)		1530×930×1370
N.W/G.W		1000kg/1200kg
