LPC-60-1400 Waterproof IP67 60W 1400mA Mean Well Constant Current LED Driver
Product Description
Features:
- Meanwell Waterproof LED Driver IP67
- Constant current design
- Universal AC input / Full range
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Over voltage
- Cooling by free air convection
- Fully encapsulated with IP67 level
- Fully isolated plastic case
- Class Ⅱ power unit, no FG
- Class 2 power uni
- Pass LPS
- Suitable for LED lighting and moving sign applications
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
Model Series:
LPC-60-1050 / LPC-60-1400 / LPC-60-1750
Similar Models: LCM-60 / More
Details:
MODEL | LPC-60-1050 | LPC-60-1400 | LPC-60-1750 | |
| OUTPUT | RATED CURRENT | 1050mA | 1400mA | 1750mA |
| DC VOLTAGE | 9 ~ 48V | 9 ~ 42V | 9 ~ 34V | |
| RATED POWER | 50.4W | 58.8W | 59.5W | |
| RIPPLE & NOISE (max.) | 200mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |||
| CURRENT ACCURACY | ±5.0% | |||
| LINE REGULATION | ±1.0% | |||
| LOAD REGULATION | ±2.0% | |||
| SETUP, RISE TIME | 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load | |||
| HOLD UP TIME | 50ms/230VAC 16ms/115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY | 87% | 85% | 87% | |
| AC CURRENT | 1.2A/115VAC 0.7A/230VAC | |||
| INRUSH CURRENT | COLD START 60A(twidth=540µs measured at 50% Ipeak) at 230VAC | |||
| LEAKAGE CURRENT | 0.25mA / 240VAC | |||
| PROTECTION | OVER VOLTAGE | 50.4 ~ 60V | 44.1 ~ 56.7V | 39.1 ~ 45.9V |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70 °C(Refer to output load derating curve) | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80 , 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | 0.03%/°C (0 ~ 50°C) | |||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | U1310 Class 2, CAN/CSA C22.2 No. 223-M91(for LPC-60-1750 only), IP67 approved ; design refer to TUV EN60950-1, EN61347-2-13 | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH | |||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3 | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | |||
| OTHERS | MTBF | 732Khrs min. MIL-HDBK-217F (25°C) | ||
| DIMENSION | 162.5*42.5*32mm (L*W*H) | |||
| PACKING | 0.4Kg; 32pcs/13.8Kg/0.56CUFT | |||

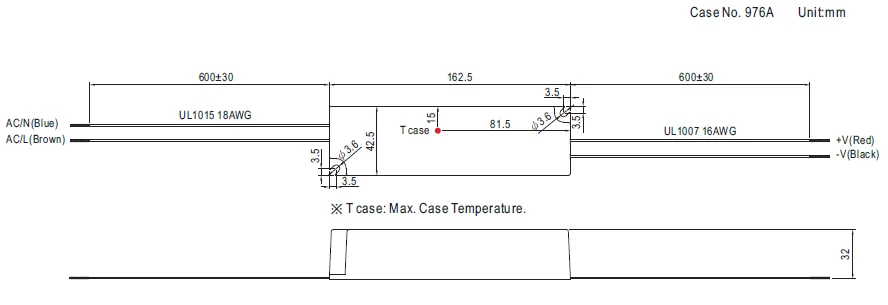

Mechanical Specification:

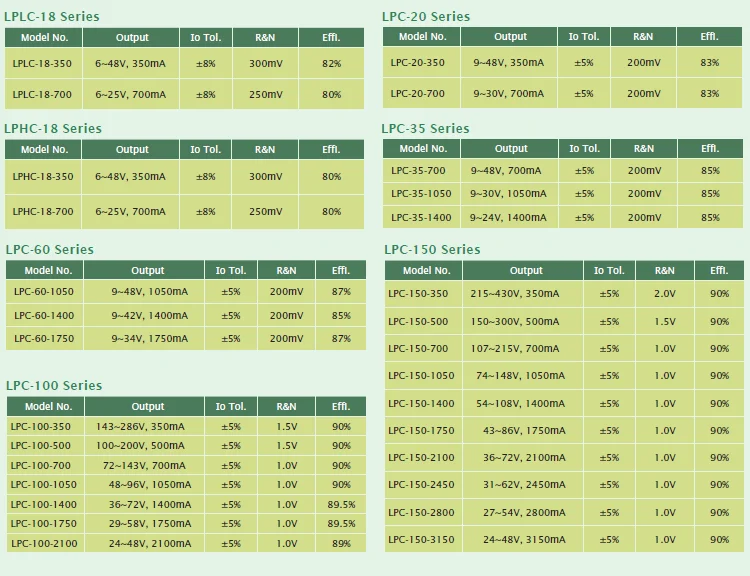

Other Series for Choose:
More Products for Choose:

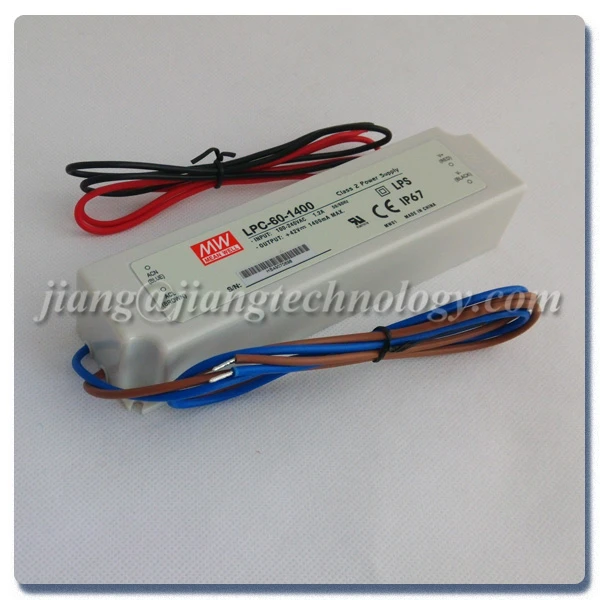

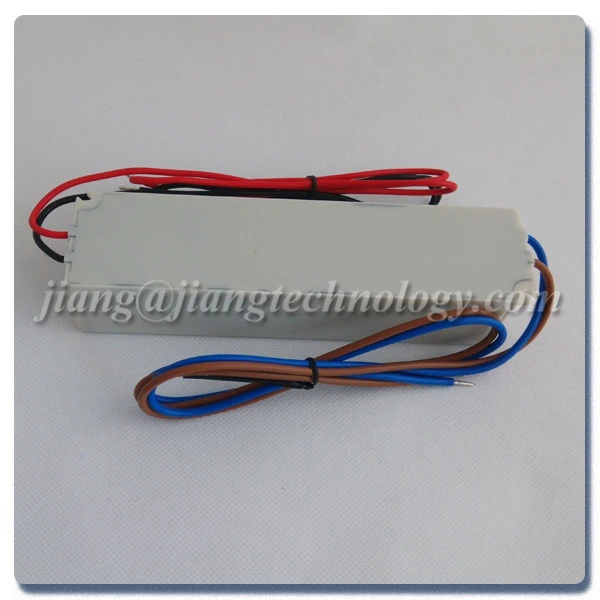

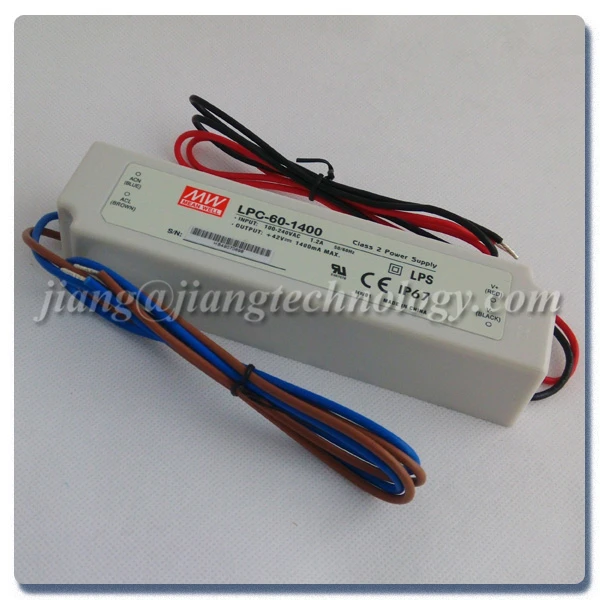

LPC-60-1400 Waterproof IP67 60W 1400mA Mean Well Constant Current LED Driver

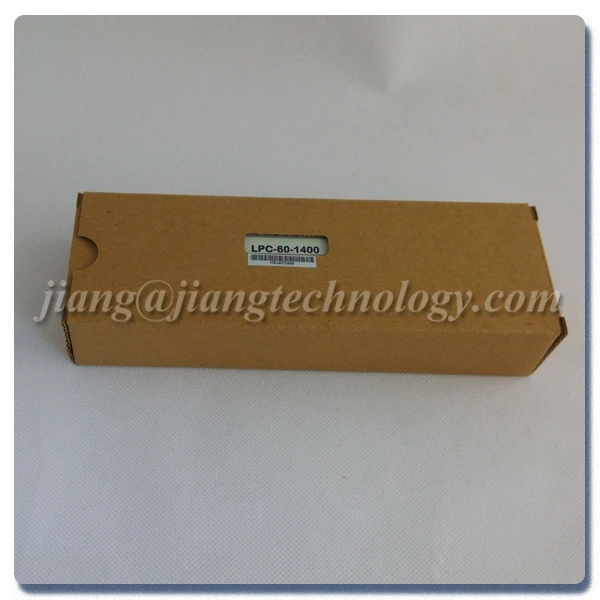

Warehouse & Shipping
Applications
What our Power Supply can do for you?
Certifications
What Certification do we have?
FAQ
Q1. Are you original Mean Well Power Supply?
A: Yes, We sell 100% Genuine Mean Well. And there are 2 method to identify:
Method 1: The Original Brand Logo is 'Mean Well', not 'MiWi' 'MeanWell' or 'MingWei' etc.
Method 2: Each product has an unique Serial No. on it, which can be checked in Mean Well official website. (For more information, please contact our sales. )
Q2: Do you offer guarantee for the products?
A: Yes, we offer 2 ~ 7 years warranty.
If the goods have quality problem during warranty period, we provide maintenance service.
If you have using problem, welcome to contact us for help.
Q3. Can I have a sample order firstly? What is your MOQ limit?
A: Yes, sample order is acceptable. And we do not have MOQ limit. Welcome to inquiry.
Q4. What about the lead time and shippment?
A: For common type like APV, LPV, HL, ELG, LRS, DR, MDR series, we have enough stock. Sample Order can be delivered within 3 days, Bulk Order can be delivered within 3~7 days after payment, not common type need 10~35 days after payment, for detail lead time, please contact our sales.
For shipping, we often use DHL, FedEx, UPS, and TNT. And they take 3-5 days to arrive. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost.
Q5: What is your payment terms?
A: We accept pay via Bank Transfer, Paypal and Western Union.
For bulk order, if the lead time is long, we also accept 30% in advance, and 70% balance before shipping.
We also accept Trade Assurance online to get 100% guarantee for your orders.
(For more details, please contact us)
Q6. How to proceed an order?
A: 1. Inquiry: Tell us your requirements, such as model No, Quantity and delivery address...
2. Quotation: We will quote you soon according to your requirements.
3. Confirmation: If quotation is OK, we will send PI to you for payment.
4. Payment: After your payment, please give us your bank slip, then we can arrange goods for you soon.
5. Delivery: Once get your payment and goods all ready, we will delivery goods soon, and tell you the tracking number or Vessel No. then (For more details, please contact us.)
