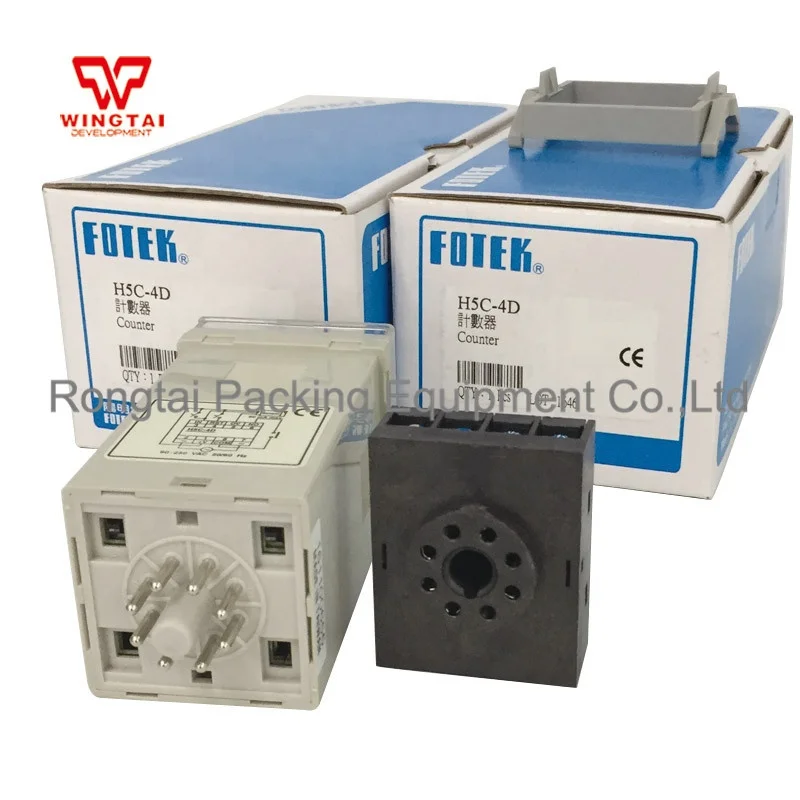

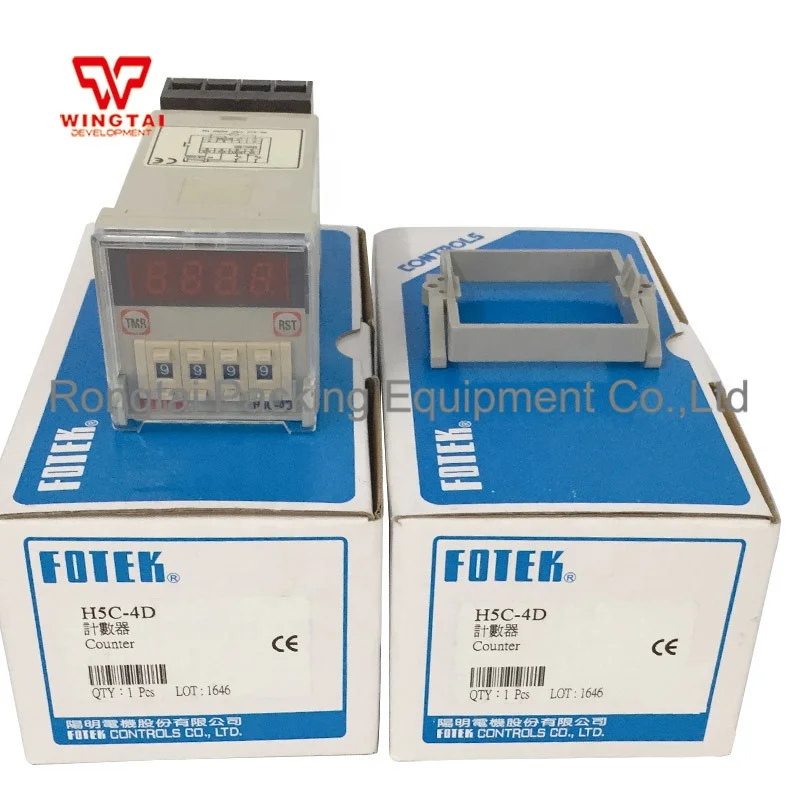

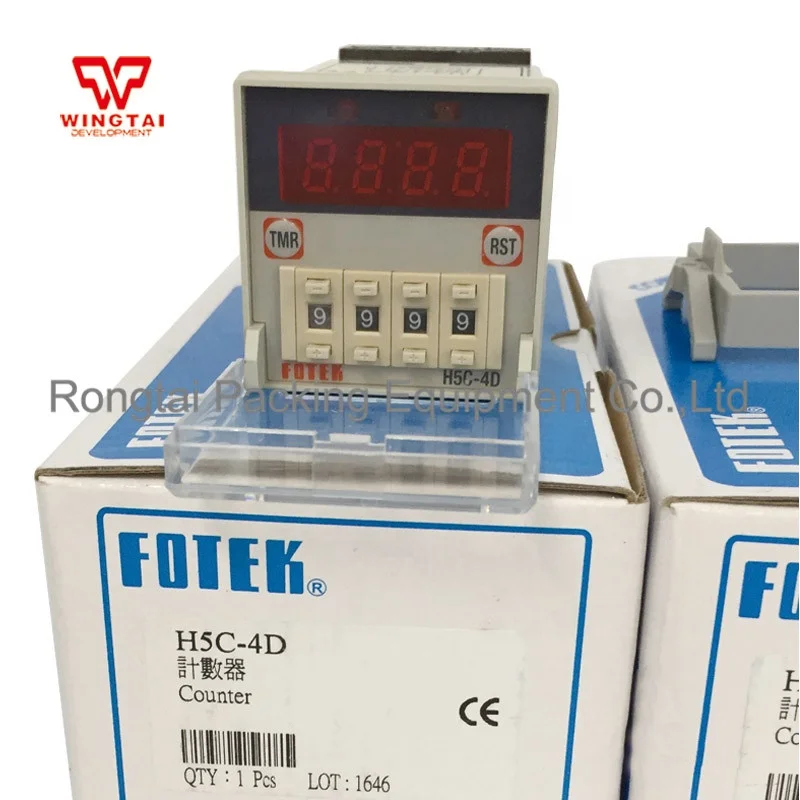

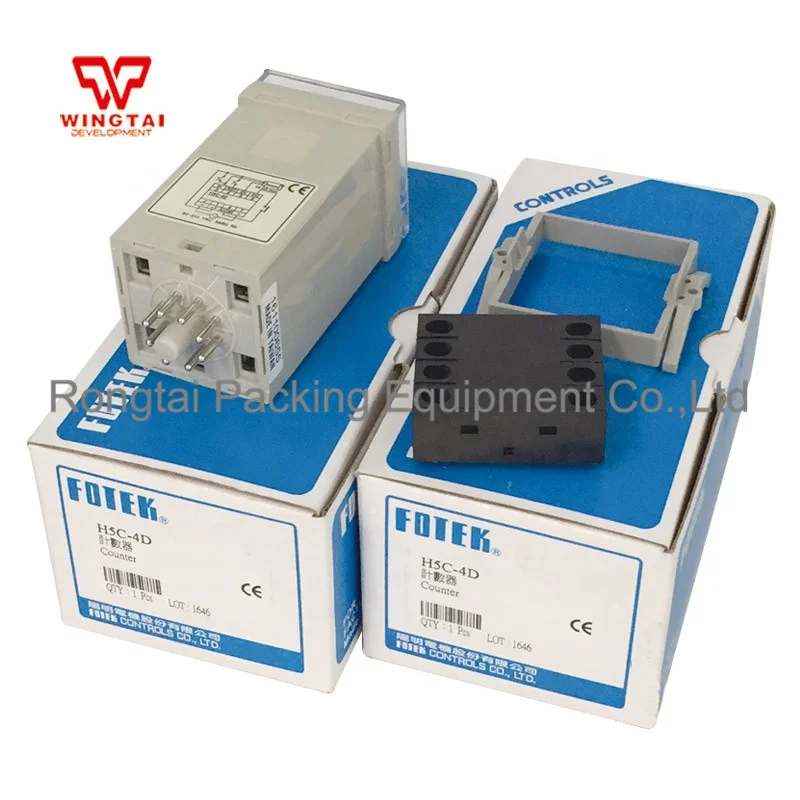

Taiwan Fotek Digital Counter H5C-4D
Product Description
·DIN 48X48
·Up Counter or Down Counter Selectable.
·Decimal Point Selectable.
·Response Frequence:Hi < 1K Hz/Lo< 30 Hz Selectable.
·Output Control:Manual Reset or Auto Reset Selectable.
·Output Delay Time:0.1S ~ 9.9 S
·DC Output:60 mA /12 VDC
·Switching Power Supply:90 ~ 250 VAC50 / 60 Hz
Features
Feature:
1.The unique input light, easy to enter the situation monitoring.
2.High-speed response time 0.1ms (5Kcps), ultra-high 20Kcps.
3.The high current supply 100mA / 12V, adequate to supply current for the sensor operating.
4.Adopt 0.56 "high brightness display, suitable for long-distance monitoring.
5.Adopt Ni-Cd battery, can keep 2000 hours of long memory.
6.High transparent plastic protective cover, anti-oil, anti-dust.
7.Exclusively use of AC110V / 220V ± 20% power supply, suitable for Southeast Asia, mainland and other areas with the large change rate of voltage.
Technical Data
Digits | 4 Digits |
Model | H5C-4D |
Range | 0~9999 |
Outline | 48*48 |
Weight | 160g |
Power Supply | 90~250 VAC 50/60Hz |
Wattage | 5VA max. |
DC Output | 60mV / 12VDC |
Memory Method | EEPROM or Non-Memory |
Counting Method | UP or Down Counting |
Response Freq. | Hi> 1KHz, Lo <30Hz |
Count Input | Hi>6V, Lo <2V |
Reset Input | Hi>6V, Lo <2V |
Output Method | Relay, 1a / 10A |
Output Control | N or R Selectable |
Decimal Point | 0 ,1 or 2 Selectable |
Delay Timer | 0.1~9.9 Sec |
Insulation Strength | 100MΩ/500VDC |
Dielectric Strength | 2.5K / 1min. |
Circumstance | -20°C ~ +60 °C , 35%~85%RH |
