BTCP-297A A4 копировальная бумага полосная упаковочная машина
US $19000-$43000
Автоматическая машина для обмотки поддонов стрейч-пленки
- Категории: Оберточные машины >>>
- Поставщик: Qingdao,Ausense,Packing,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

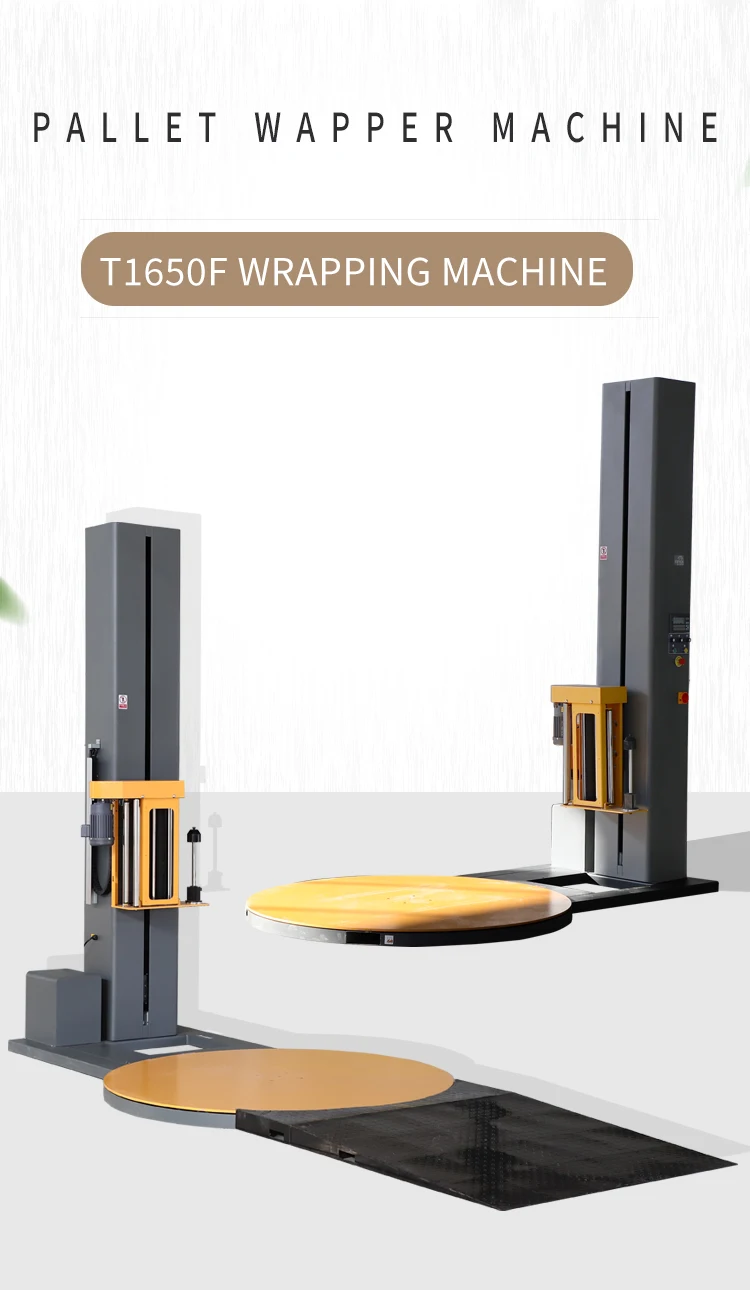

The T1650F pallet packing machine is our brand new entry level premium machine. Despite the low price the operator has full control over how many wraps are applied to the top and bottom of the pallet giving you full control over how much film you apply to the pallet something you would associate with machines costing much more. Excellent build quality, durability and user friendly. The T1650F pallet packing machine is set to become one of our biggest selling machines.
Autoamtic pallet stretch wrapping machine
Autoamtic pallet stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transporte & storage to protect them from tip, spill or from being damaged. Additionally,wrapped loads can easily separated and identified. The T1650F automatically detect cargo height with PLC pallet wrapping machine is one of the most high performance pallet wrapping machine in Ausence company, the pre-stretch type and automatically detect cargo height, PLC control system. Which make the pallet wrapping machine more perfect and hot sealing.
Video Description
Product Paramenters
Model | T1650Fz |
Voltage | 380V 50HZ 3P |
Power | Turntable Motor: 0.75kw, Film Motor: 0.4kw, Column Motor: 0.37kw |
Wrapping Size(L*W mm) | (500-1100)*(500-1200) |
Wrapping Height | 500-1800/2400 |
Capacity | 20-40 Pallet/Hour |
Turntable size | 2000mm |
Turntable Height | 400mm |
Max loading | 2000kg |
Speed | Adjustable |
Machine Size | 3200*2000*2100mm |
The T1650F pallet wrap machine is our brand new entry level premium machine.Despite the low price the operator has full control over how many wraps are applied to the top and bottom of the pallet giving you full control over how much film you apply to thepallet something you would associate with machines costing much more. Excellent build quality, durability and user friendly. The T1650F pallet stretch wrapping machine is set to become one of our biggest selling machines.
Product Advantages
Pallet Packing Machine Standard Features:
•1650mm turntable diameter•2000mm wrapping height
•Spring break stretch
•Home position: the turntable always stops at the same position
•Speed control on turntable
•Choose between 1 & 9 top and bottom wraps with re-enforce wrap
•Up & down or up only wrap cycle
•Semi auto and manual wrap options
•Adjustable pallet height photo sensor
•Secure Top Sheet Function
•Lockable control panel
•Adjustable tension with quick release
•Soft start and stop
•Machine can be paused during cycle
•Magnetic brake holds turntable still during loading/unloading
•Audible warning when running a cycle
Pallet Packing Machine Safety Features:
•1650mm turntable diameter•2000mm wrapping height
•Spring break stretch
•Home position: the turntable always stops at the same position
•Speed control on turntable
•Choose between 1 & 9 top and bottom wraps with re-enforce wrap
•Up & down or up only wrap cycle
•Semi auto and manual wrap options
•Adjustable pallet height photo sensor
•Secure Top Sheet Function
•Lockable control panel
•Adjustable tension with quick release
•Soft start and stop
•Machine can be paused during cycle
•Magnetic brake holds turntable still during loading/unloading
•Audible warning when running a cycle
Pallet Packing Machine Safety Features:
•conforms to current HSE legislations
•safety cut-out on film carriage and control panel
•height limitation sensors •600mm gap between the edge of the turntable and the nearest fixed point
•height limitation sensors •600mm gap between the edge of the turntable and the nearest fixed point
•Anti drop film carriage
•Audible warning when running a cycle
•Audible warning when running a cycle
Pallet Packing Machine Standard Options:•Multi-positional ramp for hand pallet trucks (3000 kilos maximum load weight)
•Extra-long ramp for use with powered pallet trucks
•Pit Frame •1800mm-3000mmTurntable (Special Order)
•2200mm-3000mm Wrapping Height (Special Order)
•Horse Shoe Style Turntable (Special Order)
•Extra-long ramp for use with powered pallet trucks
•Pit Frame •1800mm-3000mmTurntable (Special Order)
•2200mm-3000mm Wrapping Height (Special Order)
•Horse Shoe Style Turntable (Special Order)

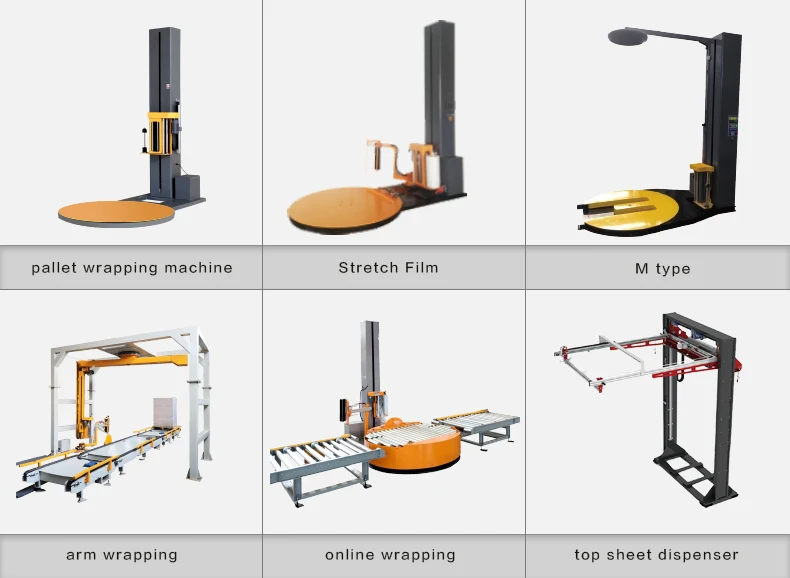

More Related Products
Our workshop
Company Profile
Qingdao Ausense has been established in 2008, which focus on the planning, R&D and manufacturing of automatic packaging production line. such as automatic carton packing line,shrinking wrapping line, fully automatic pallet strapping line,Conveyor system and soon......
Ausense main brand is YUPACK. All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Ausense main brand is YUPACK. All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Since 2017, Qingdao Ausense had successfully introduced robots into our end of packaging production line which can effectively integrate into the application of enterprise MES manufacturing execution system, and provide a complete set of automation industry 3.0 to 4.0 transformation and upgrading services.
FAQ
1.Are you manufacturer or trading company?
We are a professional manufacturer of packaging machine in Qingdao,China. We have more than 10years experiences.
2.Can you do OEM?
Yes,we can do OEM and also can print your logo on machine.
3.Approved CE?
All of our machines had approved CE&BV. And we will do our best to every customer.
4.Can you help us contact the shipping agent in your loading port?
Of course,we have our own shipping forwarder who always provide the best services&price to us. And you can check the
machine size and gross weight in production description. Thus you will have no problem to check freight by yourself.
machine size and gross weight in production description. Thus you will have no problem to check freight by yourself.
