800w 12V/24V Hydrualic power pack unit for pallet truck
Product Description
General Description Consisting of high pressure gear pump, DC motor, multifunctional manifold, valve, tank, etc. This power unit can be widely used in the industry logistic devices such as minifork lift. The lowering movement is controlled by the solenoid valve with the sped controlled by the balance valve.
Model Specifications
Model
Motor Info
Pump Displacement
Tank Capacity
Pressure
Mounting
Oil Port

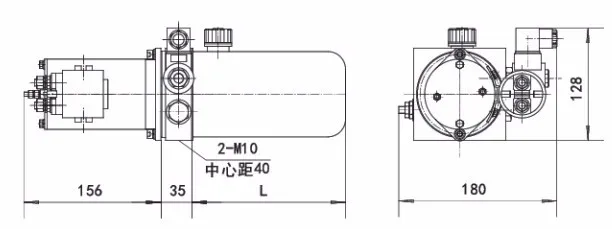

L(mm)
HPU-10ABBCAHAEAA
12V 0.8KW 3650RPM
0.5cc/r
1.0L
16MPa
Horizontal
1/4*BSPP
178
HPU-10ABBDAHAEBA
12V 0.8KW 3650RPM
0.75cc/r
1.2L
210
HPU-10BBBCBHAEAA
24V 0.8KW 3650RPM
0.5cc/r
1.0L
178
HPU-10BBBDBHAECA
24V 0.8KW 3650RPM
0.75cc/r
1.7L
170
Remark: 1.The manual override function, the different pump displacement, motor power, tank capacity are available on request.
Special notes
1. The duty of this power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours.
Packaging & Shipping
If you need other kinds of hydraulic power units pack, we can supply cusotmization service, you just need to tell me the following items :
Cutomization is avalable:
For customization, please tell me the following specifications:
Voltage
Motor power
single action or double action
with or without pressure holding
Single oil cylinder or multiple oil cylinder
gear pump displacement mL/r
flow rate L/min
Pressure( Mpa)
oil tank capacity
vertical or horizontal
square or round
voltage of solenoid valve
Then we can make hydraulic power units according to your need, minimum quantity is 1 PIECE. Welcome to send inquiry to our hydraulic power pack unit.
FAQ
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Q: How much time about the mass production?
A: The lead time of mass production will depend on quantity, production and so on.
Q: Could I customize our products in your factory?
A: Customization is available. You can send me your specifications and drawings.
