Wholesale CE EN APPROVED 8fun/bafang mid drive motor kits bbs02 750w MM G320.750
| Motor | 48V 750W mid motor |
| Battery | NO, can be optional |
| Controller | 48V independent controller , high quality |
| Throttle | Yes, Thumb / Twist throttle |
| Display | Yes, The lastest LCD display |
| Brake lever | Yes, 1 pair, alloy material, water proof cable |
| PAS Sensor | 1:1 PAS, lastest removable model |
| Charger | No,can be optional |
| Size | 32*24*27CM |
| GW/NW | 6/5KG |
SPECIFICATIONS
Core Data
| Position | Mid Motor |
| Wheel Diameter (Inch) | Optional |
| Construction | Gear drive |
| Rated Voltage (DCV) | 43/48 |
| n0 (Rpm) | 140/160 |
| Rated Power (W) | 750 |
| nT(Rpm) | 120/135 |
| Max Torque | 160 N.m |
| Efficiency (%) | ≥ 80 |
| Pedal Sensor | Speed |
| Shaft Standard | JIS |
| Color | Black |
| Weight (kg) | 5.6 |
| Noise Grade (dB) | < 55 |
| Operating Temperature | -20-45℃ |
CE EN APPROVED 8fun/bafang mid drive motor kits bbs02 750w MM G320.750
Function
| E-Brake | Yes |
| Gearsensor Function | Yes |
| Light Drive Capacity (DCV / W) | 6 /3(max) |
Further Specifications
| Speed Detection Signal (Pulses/Cycle) | 1 |
| Reduction Ratio | 1:21.9 |
| Magnet Poles (2P) | 8 |
CE EN APPROVED 8fun/bafang mid drive motor kits bbs02 750w MM G320.750
Tests & Certifications
| IP | IP 65 |
| Certifications | CE/ EN 14764 / ROHS |
| Salt Spary Test Standard(h) | 96 |
CE EN APPROVED 8fun/bafang mid drive motor kits bbs02 750w MM G320.750
CE EN APPROVED 8fun/bafang mid drive motor kits bbs02 750w MM G320.750
CE EN APPROVED 8fun/bafang mid drive motor kits bbs02 750w MM G320.750
Packaging & Shipping

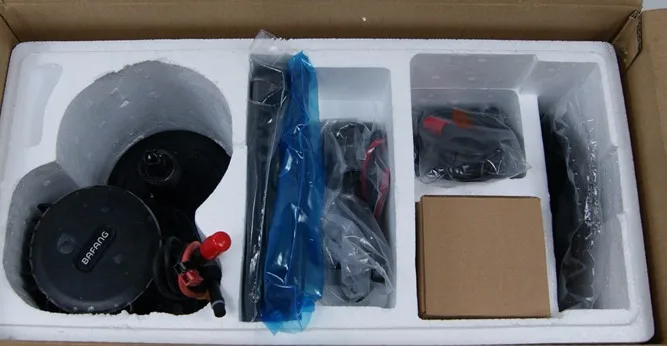

The e-bike battery 36 volt lithium battery pack ebike battery is packed by the foam and carton box, one pc in one box.
The packing size is 45*20*25 CM. The gross weight would be 4.5KGS.
