Модуль IP-камеры безопасности 2MP 15fps H.264 с функцией дневного/ночного

Описание и отзывы

Характеристики

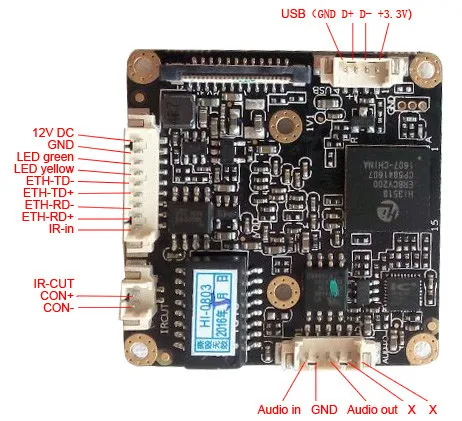

2MP 15fps H264 Hisilicon processor module Single board

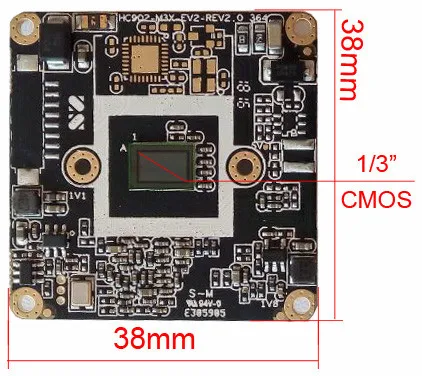

38*38 single board

10/100m RJ45 interface

two-way audio interface

USB WIFI interface(need firmware support)

HI3516CV200  H.264 processor

support H.264/MJPEG output

2MP(1920*1080) @15fps

1.3MP(1280*960)@25fps





Model		IPB200L
Module Type		2MP IP camera Module
Module	Image Sensor	1/3 inch 2.0MP CMOS 0803
	Effective Pixels	1920(H)x1080(V)
	DSP	Hisilicon 3516E
	Day/Night	IR-cut
	Min.Illumination	Color 0.2Lux/F1.2; B/W 0.05Lux/F1.2
	Electronic Shutter	1s-1/100,000s
	Lens	6mm CS Lens
	Lens Mount	CS Mount
Compression	Compression standard	H.265 / MJPEG
	Video frames	Real-time 1-25fps Adjustable
	Video stream output	Support adjustable stream 0.1M ~ 10Mpbs
Image	Quality	AWB, AGC, BLC,HDR up to 80dB
	Resolution	Main Stream:  Real-time,1920×1080@15fps; 1280×960@25fps
		Sub Stream:640×360,352×288,320×180(0~25fps)
Network	Parameter settings	WEB configure and OSD supported,
		Transmission ;Motion detection
	Protocol	Onvif/DHCP/DDNS/P2P/HTTP
	Intelligent Alarm	Support Motion Detection, Linkage Alarm, Linkage recording,
		Sensor trigger alarm functions
	Privacy Mask	Support 4 area can be set
	Basic	Anti-flicker, Dual stream,  Password protection
Interface	Video output	RJ45
	Power	DC jack :  12V
	Network interface	RJ45 10M/100 MEthernet port
	Audio	G.711   1ch input + 1ch output
Other	Work environment	-10℃~60℃90%RH

























Other service

1. Good quality products and low factory direct price
2. Free technical support and professional advice,timely communication and after-sale service
3. 24-hour aging process, 2-year warranty, CE/FCC/RoHS compliant
4. OEM/ODM service
a) Customized camera housing
b) Print logo on the camera
c) Any your idea on camera we can help you design and put it into production
5. Fast delivery, 3-7 days for production
6. Accept paypal, T/T, western union payment
7. Delivery by DHL/EMS/FedEx, by air or by sea etc

How to contact us
1. Please send inquiry to me
2. Please add my skype: CCDCAMP or WhatsApp: +86 13699795686
