Product Introduction Rack gear jack lifting rack Jack

This machine is suitable in laying the railway track and the installation of bridge as well as lifting the vehicle,equipment and the heavy object.Since its simple structure,convenient using safety and reliability and it can be used at the same time,it is widely used lifting tools

Main Parameter Rack gear jack lifting rack Jack

Model	Max lifting capacity of the top	Max lifting capacity of foot-boot	Lifting height	Total height(include the height of the machine)	Foot-boot
QD5	5T	2.5T	160mm	345mm	43mm
QD10	10T	5T	180mm	410mm	45mm
QD15	15T	7.5T	280mm	580mm	60mm
QD20	20T	10T	350mm	680mm	75mm

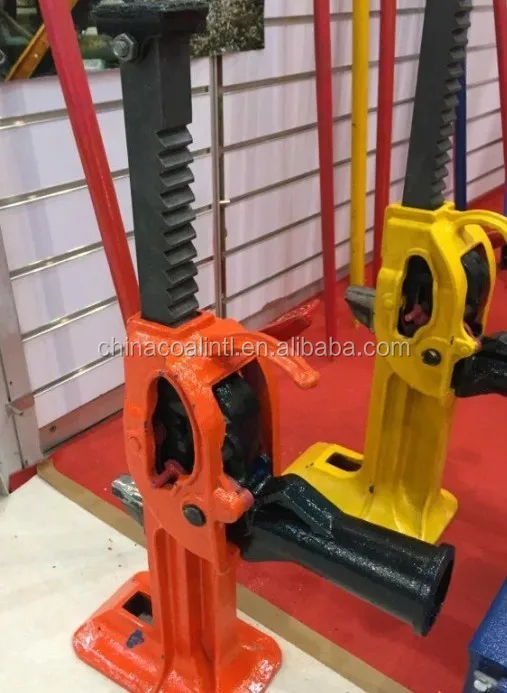

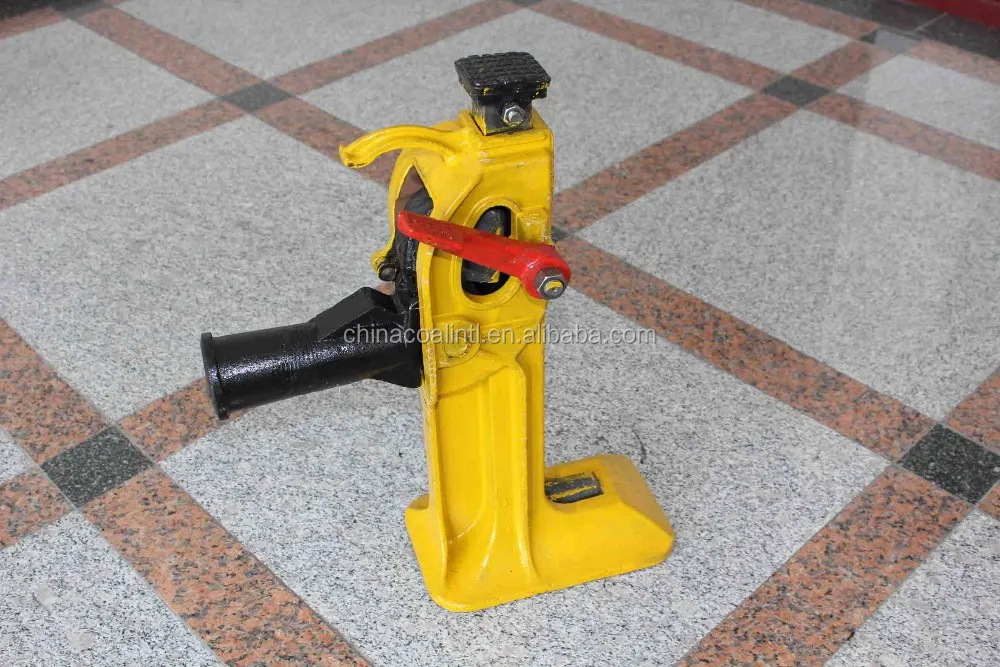

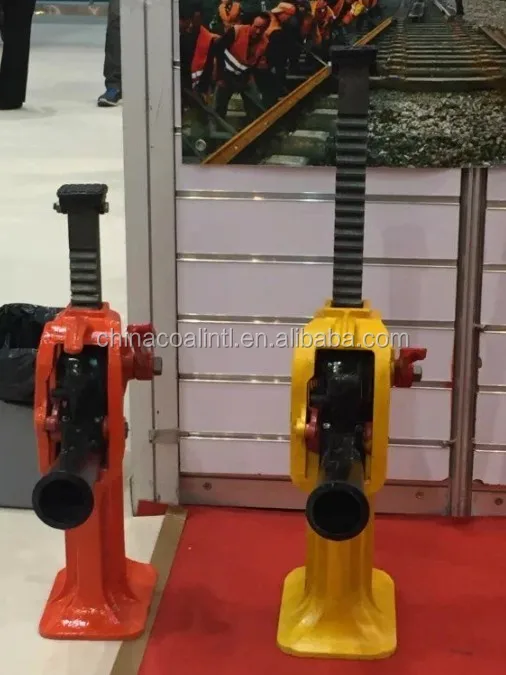

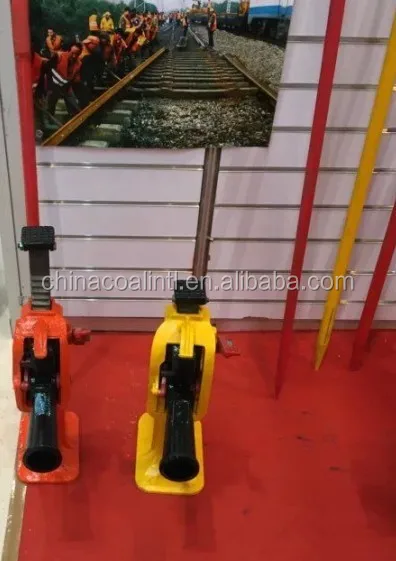

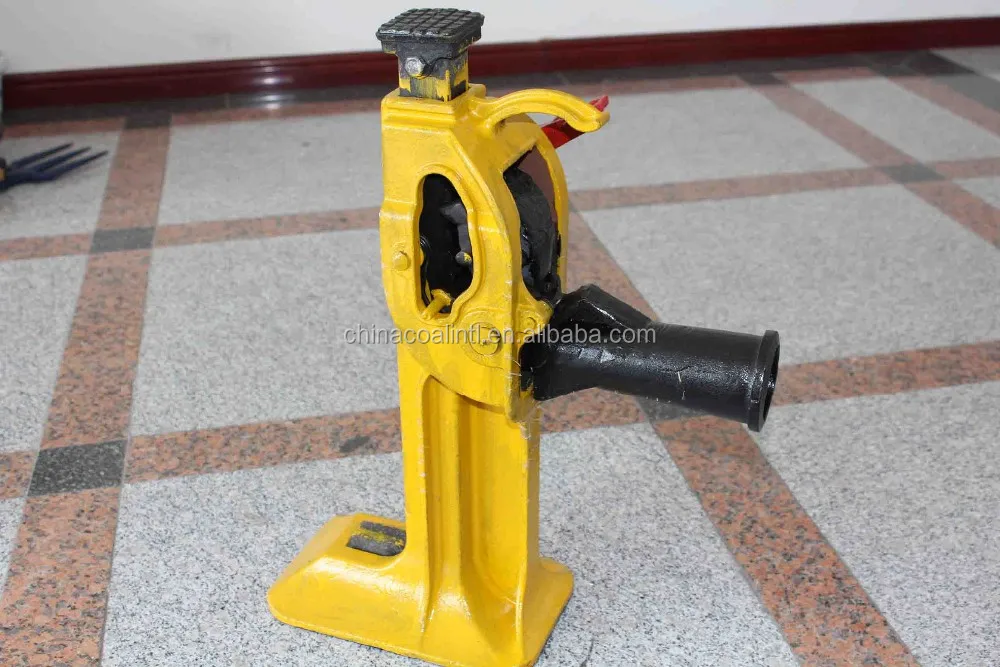

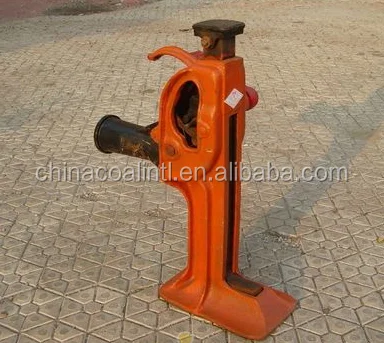

Figure Photos Rack gear jack lifting rack Jack
