5 оси коммутационная плата для шагового

Описание и отзывы

Характеристики

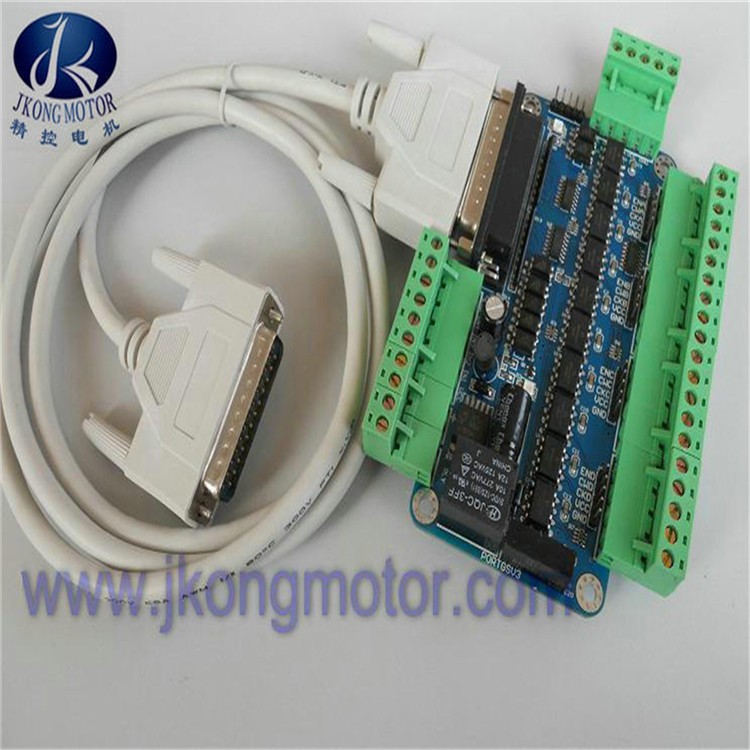

5 axis breakout board

BREAKOUT BOARD MANUAL
I. FUNCTION INTRODUCE
II. OVERALL WIRING
III.CONNECTION WAY FOR BREAKOUT BOARD AND STEPPER DRIVER
IV.CONNECTION WAY FOR LIMIT SWITCH AND BREAKDOWN SWITCH
V.CONNECTION WAY FOR RELAY CONTROL PORT
VI .OUTPUT DEFINE FOR 25 PINS
VII. MACH3 SOFTWAY SETTING AND APPLICATION METHOD
a.Mach3 software startup
b.Mach3 software Basic setting for breakout board
c.Mach3 software Basic setting for limit switch
e.G code run method
I. FUNCTION INTRODUCE
It can connect with 5 pcs stepper motors at meantime ,and control 5 pcs motors’ running.
Standard parallel line port, support Mach3 software
Including quadruplex input system, it can connect limit switch, emergency stop switch, reset etc..
Including relay control, it can control spindle motor run or stop
Breakout board built-in 5VDisplayport to HDMI, power supply connect with 12v-36v power supply, it can
share power supply with stepper motor driver.
