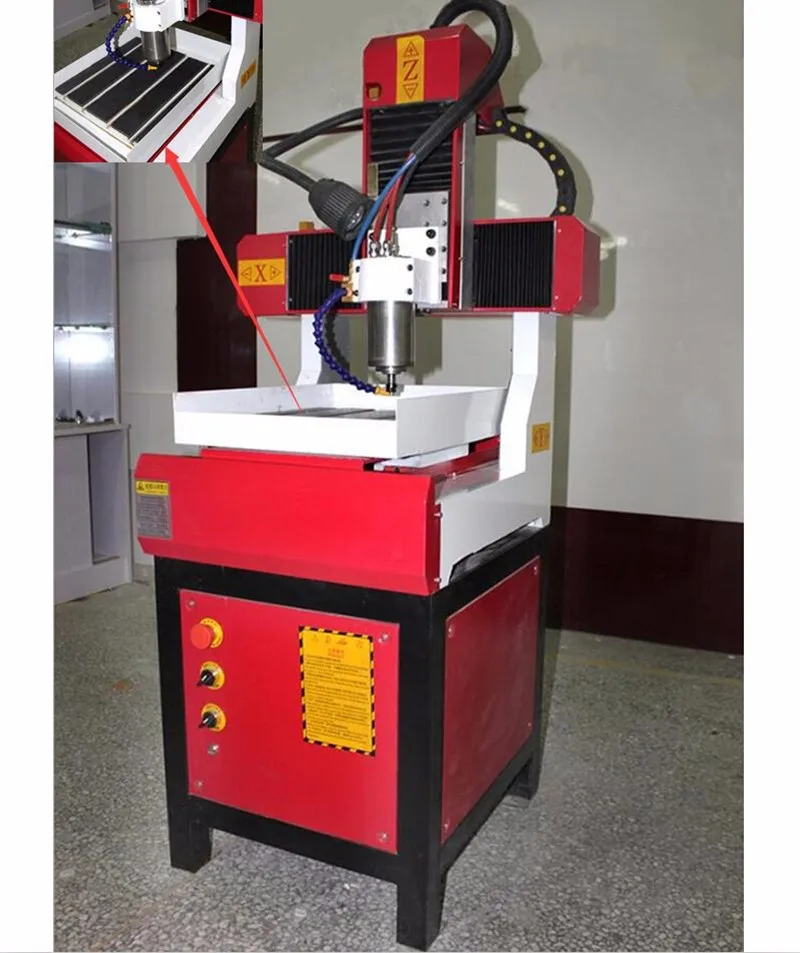

Wax stamp metal engraving machine for metal carving







Structure: lathe,monoblock cast,high precision,good durability; guide track use imported guide roller ball thread and screw nut

Applicable environment: kinds of metal, brass and other stamp material, jade crafts engraving and so on.

Cooling mode: water cooling





XYZ axis travel: 360*360*50(mm)/ Z axis can be increased to 130mm

Max running speed: 3m/min

Max engraving speed: 3m/min

Max material height: 130mm

Resolution: 0.005mm

Repeat position accuracy: 0.01mm

Engraving command: HCP,G

Software runtime environment: indows98/2000/xp/Win7

Working voltage: 220V/110V,50HZ

Spindle Power: 800W/1500W

Spindle speed: 6000----24000rpm/min

Working mode: Stepper motor/servo motor

Operation system: DSP

Machine size: 700*750*125mm

Packaging size: 850*950*1500mm

Machine weight: 65KG
