Meanwell Power Supply HL 1050mA LED Driver IP65 Outdoor LED Lighting 7 Years Warranty LED Driver HL-320H-C1050A
Product Description
Features:
- Meanwell Power Supply HL
- Constant current mode output
- Universal AC input / Full range(up tp 305VAC)
- Metal housing with class Ⅰ design
- Built in active PFC function
- Protections: Short circuit / Over voltage/Over temperature
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Applications:
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED greenhouse lighting
- LED bay lighting
- Type "HL" for use in Class Ⅰ, Division 2 hazardous (Clssified) location.
Model Series:
HL-320H-C700 / HL-320H-C1050 / HL-320H-C1400/ HL-320H-C1750 / HL-320H-C2100
HL-320H-C2800 / HL-320H-C3500
| A: | IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer. |
| B: | IP67 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance. |
| D2: | IP67 rated. Smart timer dimming function. Please contact MEAN WELL for details. |
| DA: | IP67 rated. DALI control technology. |
Detail:
| MODEL | HL-320H-C700A | HL-320H-C1050A | HL-320H-C1400A | HL-320H-C1750A | |
| OUTPUT | RATED CURRENT | 700mA | 1050mA | 1400mA | 1750mA |
| RATED POWER | 299.6W | 320.25W | 320.6W | 320.25W | |
| CONSTANT CURRENT REGION | 214 ~ 428V | 152 ~ 305V | 114 ~ 229V | 91 ~ 183V | |
| OPEN CIRCUIT VOLTAGE | 435V | 311V | 234V | 187V | |
| CURRENTADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | ||||
| 350 ~ 700mA | 525 ~ 1050mA | 700 ~ 1400mA | 875 ~ 1750mA | ||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||
| CURRENT TOLERANCE | ±5% | ||||
| SET UP, TIME | 1000ms/115VAC, or 500ms/230VAC | ||||
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127VDC ~ 431VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR | PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC at full load | ||||
| TOTAL HARMONIC DISTORTION | THD< 20% (@ load≥50% /115VAC, 230VAC; @ load≥70%/277VAC) | ||||
| EFFICIENCY | 94% | 94% | 94% | 94% | |
| AC CURRENT | 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC | ||||
| INRUSH CURRENT | COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC;Per NEMA 410 | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 436 ~ 460V | 320 ~ 352V | 235 ~ 252V | 192 ~ 211V | |
| Shut down and latch off o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85°C | |||
| MAX. CASE TEMP. | Tcase=+85°C | ||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||
| STORAG E TEMP., HUMIDITY | -40 ~ +80°C, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | ||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | U8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13, EN62384 independent; IP65 or IP67 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC I/P-FG:2K VAC O/P-FG : 1.5KVAC | ||||
| ISOLAT ION RESIS TANCE | I/P-O/P,I/P-FG, O/P-FG :100M Ohms/500VDC/25°C/70% RH | ||||
| EMC EMISSION | Compliance to EN55015,EN61000-3-2 Class C (≥50% load); EN61000-3-3 | ||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) | ||||
| OTHERS | MTBF | 168.2K hrs min. MIL-HDBK-217F (25°C) | |||
| DIMENS ION | 252*90*43.8mm (L*W*H) | ||||
| PACKING | 1.88Kg; 8pcs/16Kg/0.92CUFT | ||||
| MODEL | HL-320H-C2100A | HL-320H-C2800A | HL-320H-C3500A | |
| OUTPUT | RATED CURRENT | 2100mA | 2800mA | 3500mA |
| RATED POWER | 319.2W | 319.2W | 318.5W | |
| CONSTANT CURRENT REGION | 76 ~ 152V | 57 ~ 114V | 46 ~ 91V | |
| OPEN CIRCUIT VOLTAGE | 156V | 118V | 95V | |
| CURRENTADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | |||
| 1050 ~ 2100mA | 1400 ~ 2800mA | 750 ~ 3500mA | ||
| CURRENT RIPPLE | 5.0% max. @rated current | |||
| CURRENT TOLERANCE | ±5% | |||
| SET UP, TIME | 1000ms/115VAC, or 500ms/230VAC | |||
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127VDC ~ 431VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC at full load | |||
| TOTAL HARMONIC DISTORTION | THD< 20% (@ load≥50% /115VAC, 230VAC; @ load≥70%/277VAC) | |||
| EFFICIENCY | 94% | 94% | 94% | |
| AC CURRENT | 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC | |||
| INRUSH CURRENT | COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 160 ~ 175V | 120 ~ 132V | 96 ~ 105V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85°C | ||
| MAX. CASE TEMP. | Tcase=+85°C | |||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAG E TEMP., HUMIDITY | -40 ~ +80°C, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | U8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13, EN62384 independent; IP65 or IP67 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC I/P-FG:2K VAC O/P-FG : 1.5KVAC | |||
| ISOLAT ION RESIS TANCE | I/P-O/P,I/P-FG, O/P-FG :100M Ohms/500VDC/25°C/70% RH | |||
| EMC EMISSION | Compliance to EN55015,EN61000-3-2 Class C (≥50% load); EN61000-3-3 | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) | |||
| OTHERS | MTBF | 168.2K hrs min. MIL-HDBK-217F (25°C) | ||
| DIMENS ION | 252*90*43.8mm (L*W*H) | |||
| PACKING | 1.88Kg; 8pcs/16Kg/0.92CUFT | |||

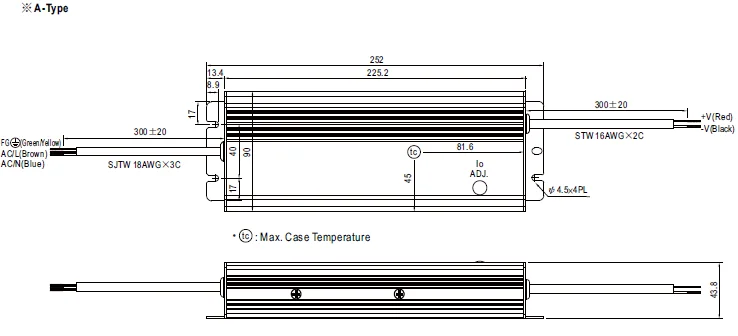

Mechanical Specification:
Meanwell Power Supply HL 1050mA LED Driver IP65 Outdoor LED Lighting 7 Years Warranty LED Driver HL-320H-C1050A
