Product Description


Main features

1. Gentle size reduction for heat sensitive lumps and agglomerations
2. Screen size: 6-80 mesh
3. Capacity: 15-1000 kg/h
4. Product size is adjustable by changing screen


Working principle

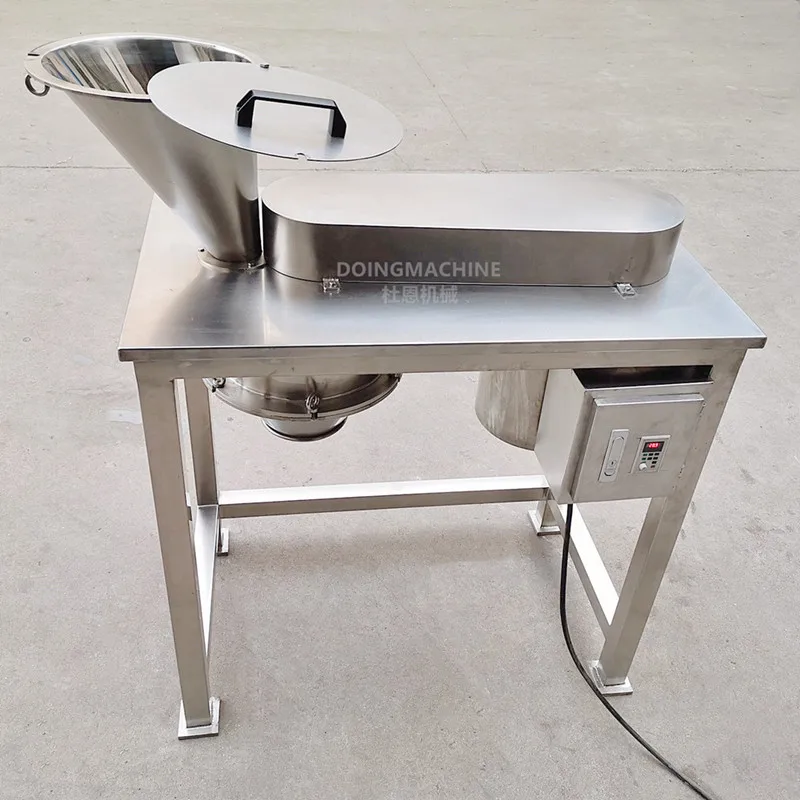

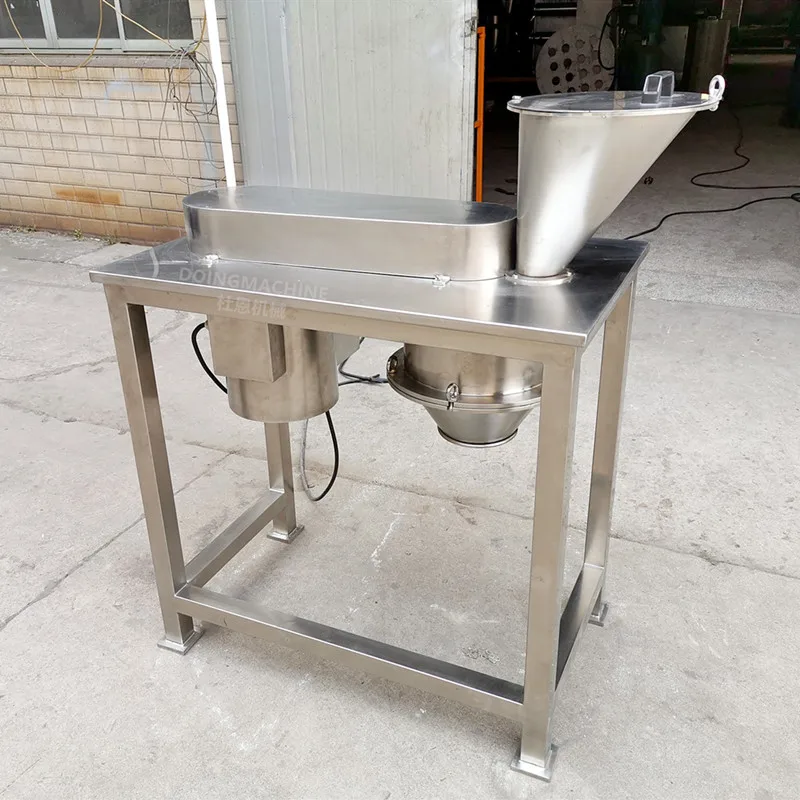

FZ series conical screen cone mill, which consists of feed hopper, drive motor, rotator, conical screen and discharge chute, is designed for gentle, intermediate grinding and deagglomeration of powders and granules usually after drying, mixing and granulation to get uniform sized product.


Material to be processed is gravity fed into the milling chamber. The low velocity grinding rotor forces the feedstock into a vortex flow path. Due to the high shear impact by the rotor, most of the product is reduced to below the hole size of screen and discharged instantaneously via the chute. A small percentage of larger unground particles remain in the milling chamber for further grinding. Product size is adjustable by the changing the screen with different hole size.








Technical advantages

1. Robust,simple and compact design requires minimum maintenance;
2. Made by SUS304 or SUS316 and mirror polished to meet GMP standards.
3. Gentle grinding action. Permits uniform size distribution, resulting in the minimum of fines.
4. Very easy and convinent for cleaning and changing screen.
5. Low dust levels. No need for air filtration. Keeps installation costs toa minimum.
6. High efficiency and low heat generation.

Main technical parameters



Model
FZ-150
FZ-300
FZ-450
FZ-1000
Capacity  kg/h
15-150
30-300
45-450
100-1000
Product size   mesh
6-80
6-80
6-80
6-80
Drive shaft temp.  ℃
≤30
≤30
≤30
≤30
Rotating speed  RPM
300-3600
300-3600
300-3600
300-3600
Motor power  KW
1.5
1.5
2.2
5.5
Dimension LxWxH mm
810X445X1345
810X445X1345
920X445X1430
1100X560X1785
Weight  kg
100
150
300
500




Detailed Images

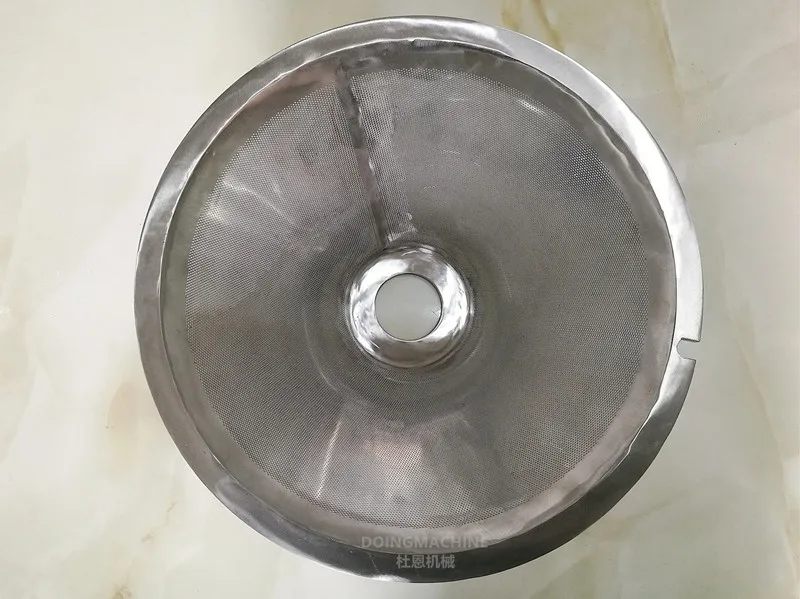

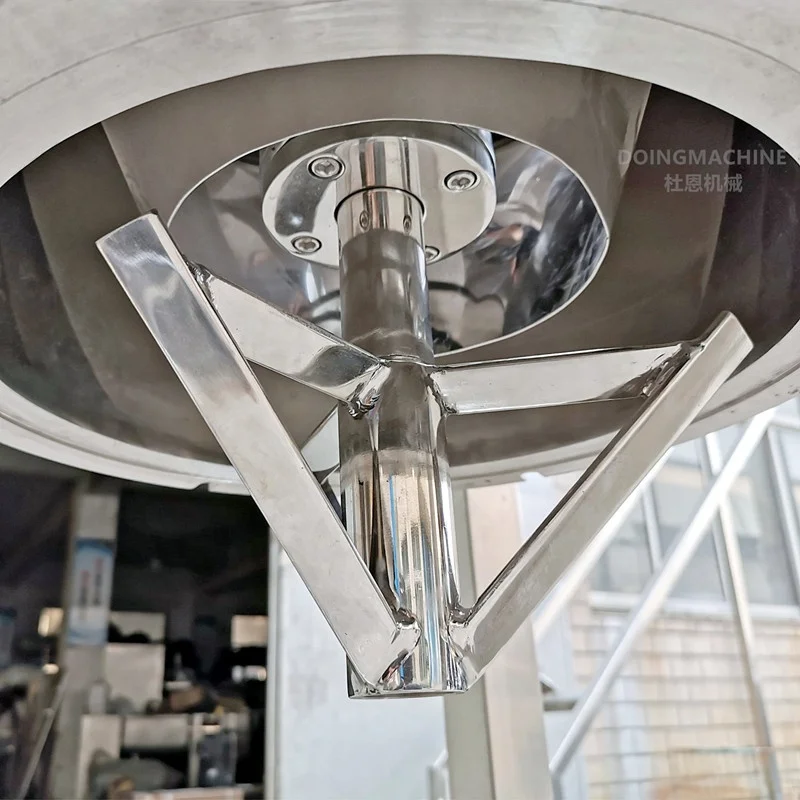

                                          Grinding rotor                                                                              Screen ( 0.5-5mm)

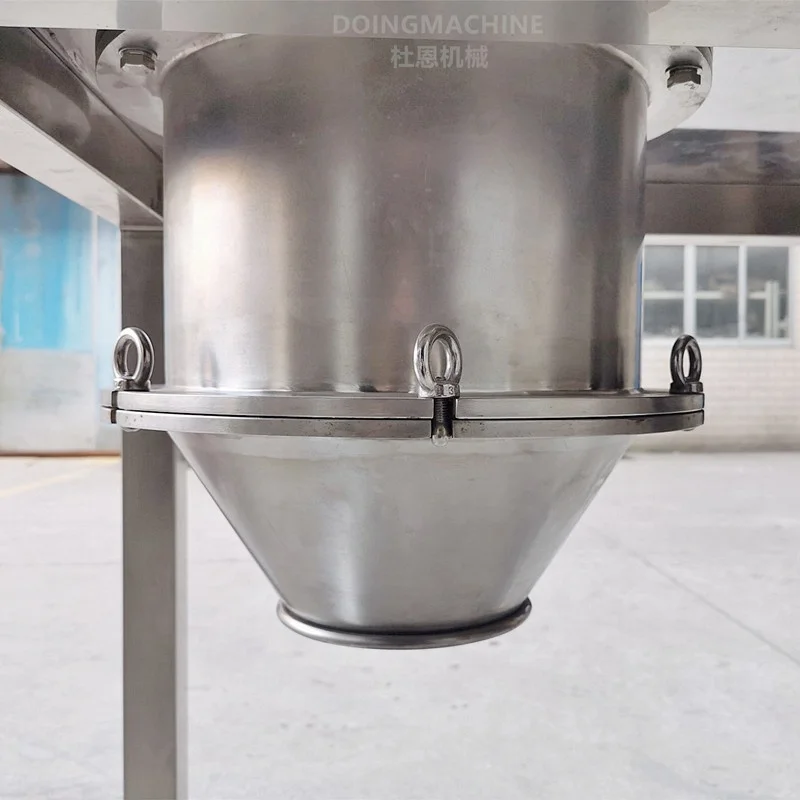

Discharge chute

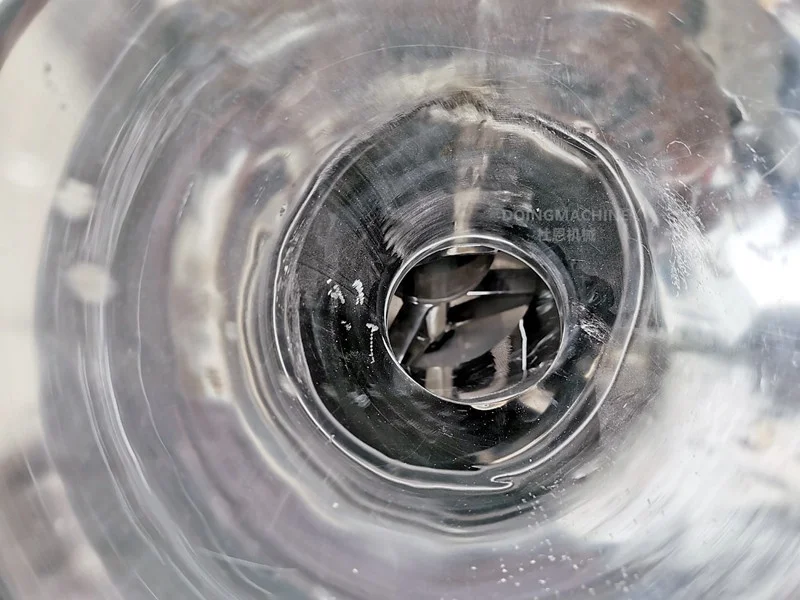

Milling/crushing chamber


Typical applications


                         Fish feed

               Fluid bed dried granules

 Dry compactor flakes size reduction



Packing & Delivery




FAQ


Q: What information should be provided in order to get a proposal or quotation?
A: Our cone mill can be customerized. Before we can work out a detailed quotation, we have to know the following information:

1) What product you are going to process
2) Product size before milling
3) Required final product size
4) Process capacity in kg/h

Q: How the machine will be delivered ?
A: The granulator is packed in plywood box for shipping
