                               Sunnen honing abrasive mandrel K8





We produce a full range of diamond honing stones, CBN honing stones, honing tools, mandrels, hone head, adapters, wedges,

retainers, alignment bushes, trueing sleeves in China.

Our honing abrasives are designed for Sunnen, Nagel, Gehring, Nissin, Fuji, Mas and other honing machines.

                                           Horizontal diamond honing Stones



K series diamond honing Stone

Series No.	K3	K4	K5	K6	K8	K10	K12	K16	K20	AK20	AK30
Stone Length	15	15	18	19	32	32	45	57	63	63	63
Bore diameter	2.5-3	3-4	4-5	5-6	6-8	8-9.5	9.5-13	13-16	16-19	19-32	32-40
Adapter	K3	K4	k5	K6	K8	K10	K12	K16	K20	AK20	AK30



 B series diamond honing Stone

Series No.	B8	B10	B12	B14	B15	B20	AB20	AB30
Stone Length	47	47	60	70	85	95	95	95
Bore diameter	6-8	8-9.5	9.5-13	9.5-13	13-16	16-19	19-32	32-40
Adapter	B8	B10	B12	B14	B15	B20	AB20	AB30



 L series diamond honing Stone

Series No.	L3	L4	L5	L6	L8	L10	L12	L16	L20
Stone Length	25	25	32	35	57	57	88	114	114
Bore diameter	1.9-3	3-4	4-5	5-6	6-8	8-9.5	9.5-13	13-16	16-32
Adapter	L3	L4	L5	L6	L8	L10	L12	L16	L20



 Honing Stones parameters

Code	NM75	NM55	NM50	NM45	NM65	NM85	NM95	NM15	NM05	NM04	NM005
Grit size	80#	100#	120#	140#	180#	240#	280#	300#	400#	500#	800#
PEPA Grit	D181	D151	D126	D107	D91	D64	D54	D48	D35	D25	D15
Roughness	2.0-1.6	1.6-1.4	1.6-1.4	1.4-1.3	1.3-1.0	1.0-0.8	0.8-0.7	0.8-0.6	0.6-0.4	0.4-0.2	0.2-0.1
Stock Removal	0.1-0.2	0.05-0.1	0.05-0.1	0.05-0.1	0.03-0.1	0.03-0.07	0.02-0.035	0.015-0.03	0.01-0.015	0.01-0.015	0.005-0.01

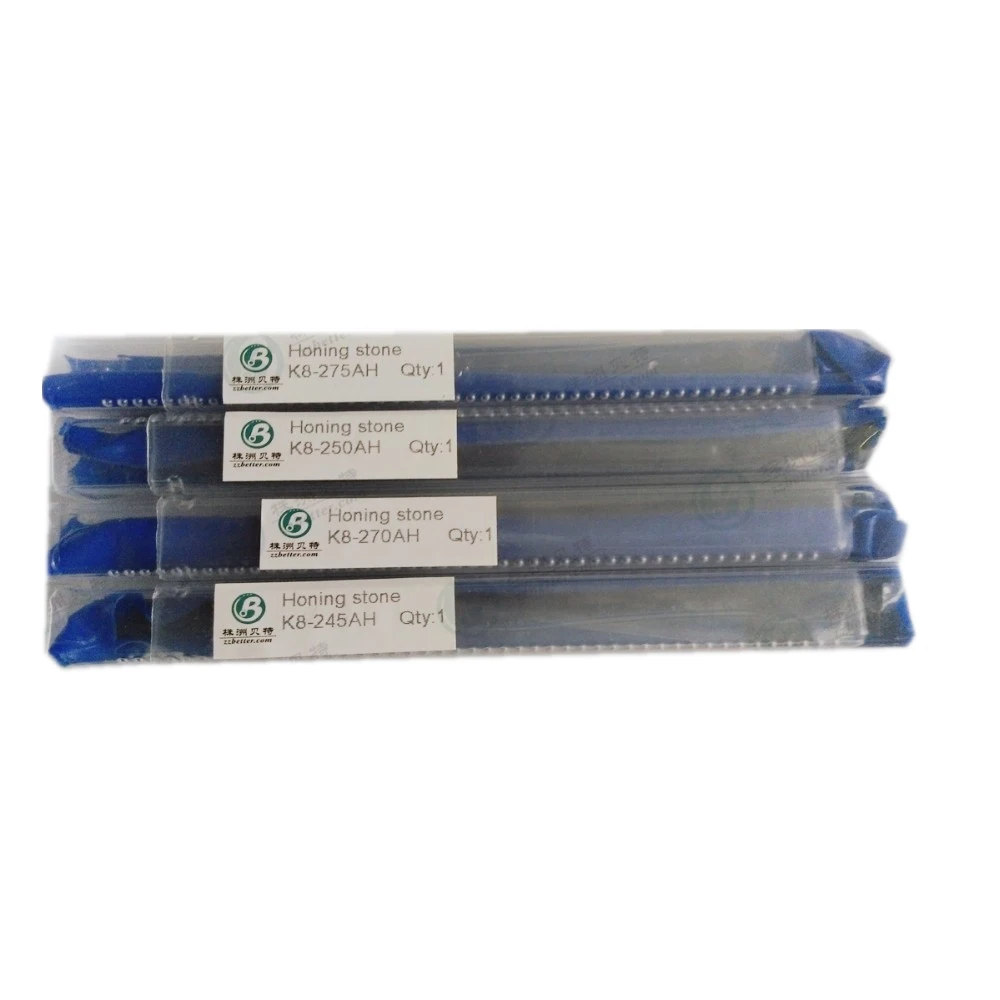

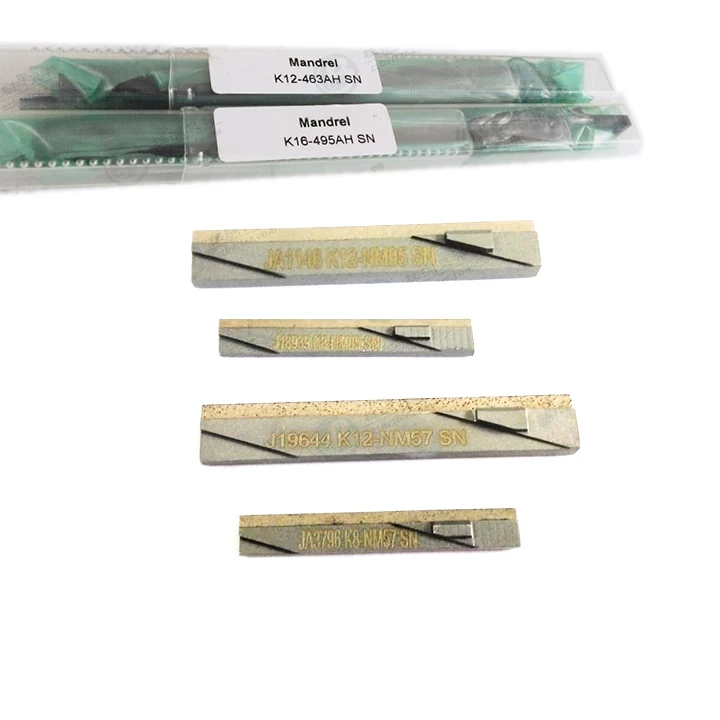

Photo as belows:







 Any inquiry about honing tools, PLS feel free to us!
