wireless zigbee ha home automation light link zll automatic dimmer switch

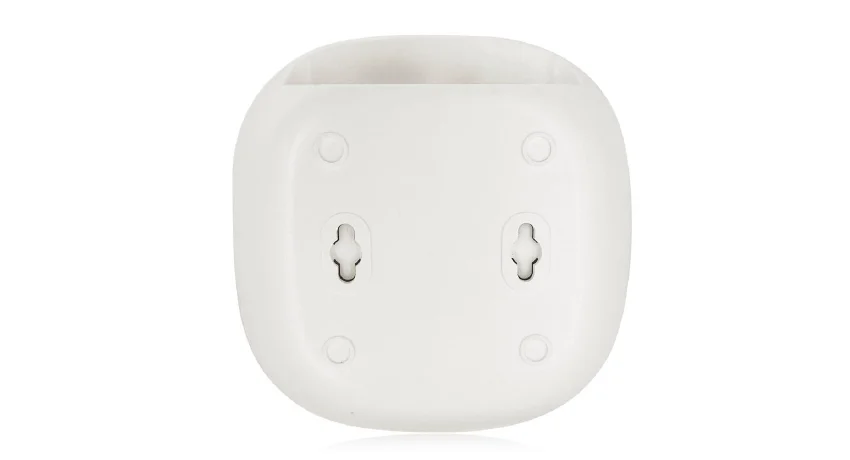

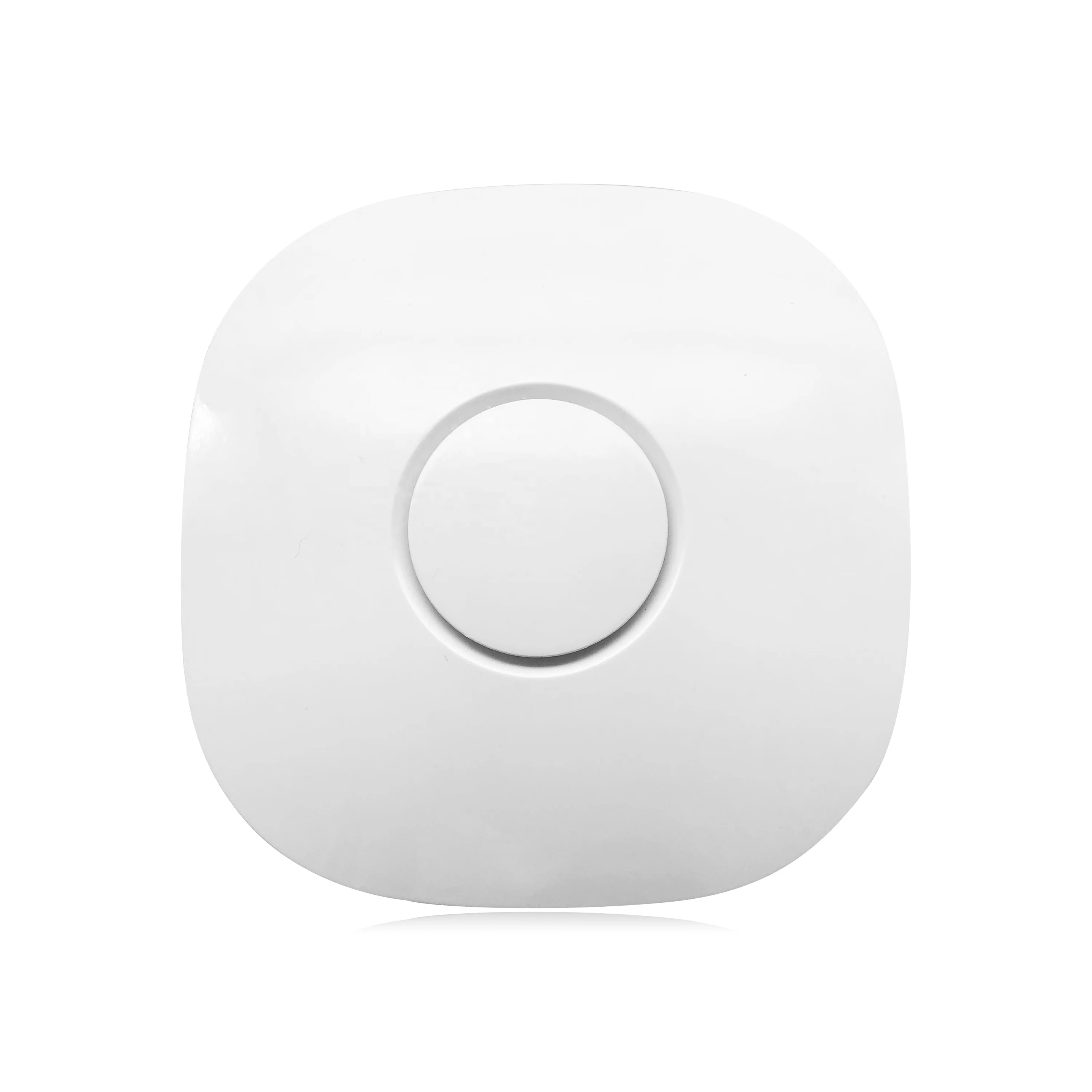

HGW735 is a kind of ZigBee HA1.2 Ethernet-Zigbee gateway. It is used for receiving commands from application “iLightsIn Pro” of Area/ Scene/ Schedule/ Settings/ Power metering/ Alerts/ Account management/ OTA functions. One gateway supports 100 devices.

Five optional adapters: EU, US, UK, AU, CN.



















                                   IF YOU WANT TO KNOW MORE, PLEASE CONTACT ME HERE.

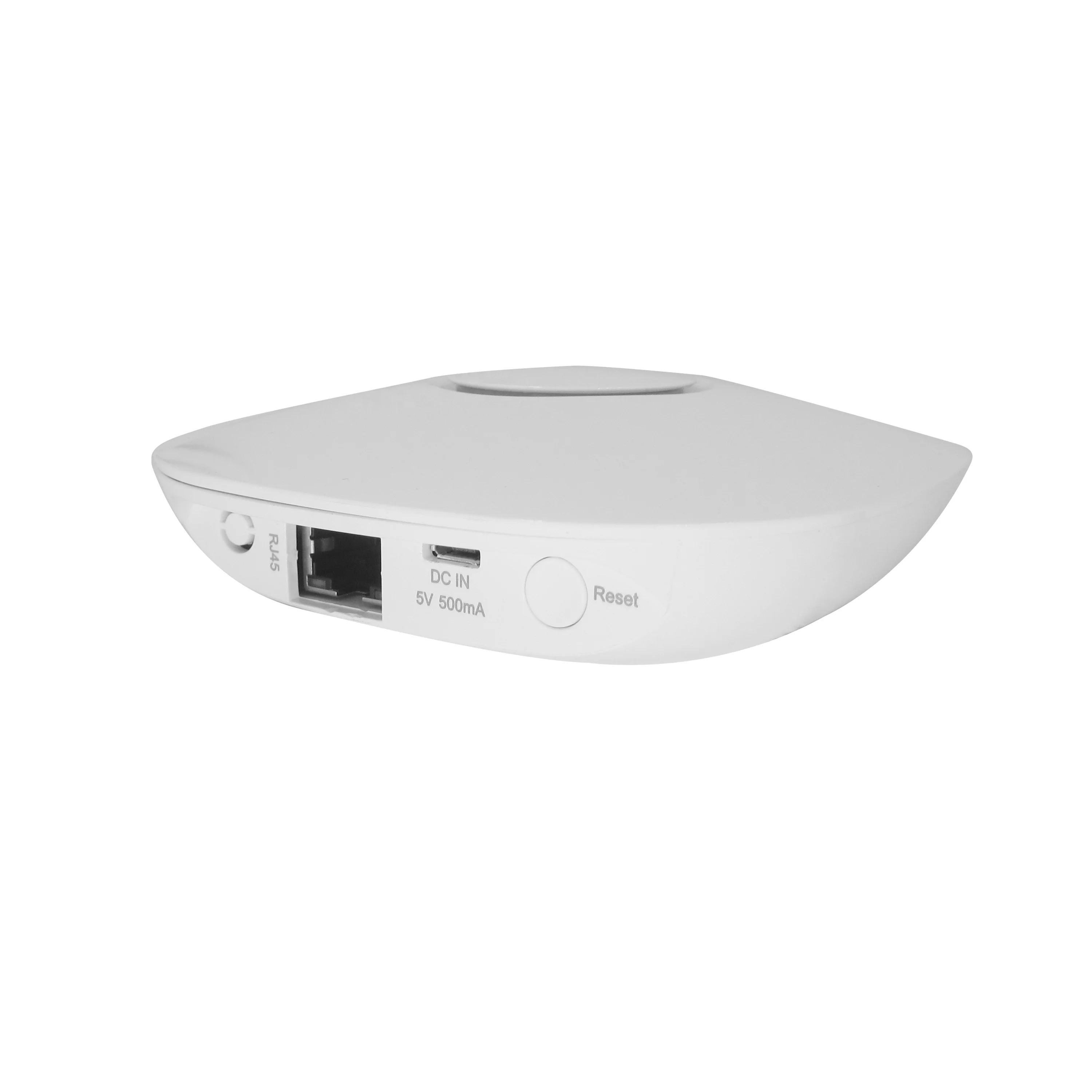

Note: “Reset” key is to reset the admin account password only!









Function	Gateway Power Status
Area/Scene/Schedule control	Need power on
Sensor binding/Sensor parameters setting	Need power on
Power metering/Alerts/Status report	Need power on
Touch dimming switch binding setting	Need power on
Touch dimming switch control	No need power on
Sensor control	No need power on





Parameters	HGW735
Adapter Input	AC100-240Vac
Gateway Input	5V
Frequency	2.4GHz
Operating Temperature	-20°C to 55°C
Control Range (Distance with the first Zigbee device)	30m
OTA	Yes







Size:106mmx106mmx31.2mm



Weight:Gateway: 94g / Adapter: 20g



Package: 1pc gateway +1pc adapter



iLightsIn Pro Product List:

Zigbee-Ethernet Gateway: AHGW735



Controller



IP20 ZigBee 0-10V/ 1-10V/ PWM Dimming Controller: AHLC610-Z-SC-XX-XX-XX-PRO

IP65 ZigBee Round 0-10V/ 1-10V/ PWM Dimming Controller: AHLC734-Z-SC-A-XX-PRO

IP65 ZigBee 0-10V/ 1-10V/ PWM Dimming Controller: AHLC612-Z-SC-A-PRO

Zigbee 12VDC 0-10V Dimming Controller: AHLC606-Z-PRO

ZigBee Triac Dimming Controller: AHLC721-Z-PRO

ZigBee 3 Channel On Off Controller: AHLC614-Z-PRO

ZigBee 12V/ 24V RGBCW/ RGBW/ RGB/ CCT/ Dimming Controller: AHLC502-Z-PRO

Zigbee Single Phase 2-Wire Din Rail Circuit Breaker: AHCB818-Z-PRO



Driver

ZigBee 80W Dimming/ CCT Linear Driver with Power Metering: AHLD816-Z-XX-PRO

ZigBee 40W Dimming/ CCT Linear Driver with Power Metering: AHLD817-Z-XX-PRO

ZigBee 40W Dimming/ CCT Driver: AHLD503-Z-XX-PA-T-PRO

ZigBee 25W Dimming/ CCT Driver: AHLD719-Z-XX-PA-XX-PRO

ZigBee 15W Dimming/ CCT/ RGB/ RGBW/ RGBCW Driver: AHLD728-Z-XX-PRO

ZigBee 13W Dimming/ CCT Driver: AHLD812-Z-XX-PA-PRO



Sensor



ZigBee Standalone AC100V-277V/ DC12V IP65 Daylight Sensor: AHDS611-Z-PRO

ZigBee Round Standalone AC100V-277V IP65 Daylight Sensor: AHDS826-Z-PRO

ZigBee Round Standalone AC100V-277V IP65 CCT Daylight Sensor: AHDS826-Z-CT-PRO

ZigBee Standalone AC100V-277V IP65 15M Motion Sensor: AHMS823

Wired DC5V IP20/ IP65 15M Motion Sensor: AHMS810/ AHMS810-P

Wired DC5V IP20 15M Motion Sensor: AHMS616

Wired DC5V IP20 8M Motion sensor: AHMS808



Switch/ Remote control



ZigBee HA1.2 EU/ US 6-Scene Touch Switch: AHTP501-Z-6S-PRO/ AHTP601-Z-6S-PRO

ZigBee HA1.2 EU Dimming/ CCT Touch Switch: AHTP501-Z-XX-PRO/ AHTP501-ZM-XX-PRO

ZigBee HA1.2 US Dimming/ CCT Touch Switch: AHTP601-Z-XX-PRO/ AHTP601-ZM-XX-PRO

ZigBee HA1.2 EU 1/ 2/ 3-Channel On Off Touch Switch: AHTP501-Z-1/ 2/ 3S-PRO

ZigBee HA1.2 US 1/ 2/ 3-Channel On Off Touch Switch: AHTP601-Z-1/ 2/ 3S-PRO

ZigBee HA1.2 4-Channel Dimming/ CCT Remote Control: AHRC811-Z-PRO



Bridge

ZigBee 0-10V/ RS232/ Dali/ Dry contract/ L/N Detect Bridge: AHBG806-Z-PRO

ZigBee DC5V RGB Lights Music Dancing Audio Bridge: AHBG813-Z-PRO
