Часовой механизм Cuckoo с кварцевым механизмом Skp
US $3.50-$5.00
Шаговый механизм часов с шагом 20 мм
- Категории: Clock Parts & Accessories >>>
- Поставщик: Dongguan,OKA,Clock,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specifications
| Size | 56*56*16.3mm |
| Certification | CE RoHS |
| Net weight | 25g |
| Operating Voltage | 1.25V~1.7V |
| Operating Temperature | -10~ +50℃ |
| Average Consumption Current | ≤140μ at 1.5V |
| Torque | 180μ~240μ High torque:250~300μ |
| Average time keeping | ±1 sec/day |
| Battery | AA*1 |
| Battery life | approx 1 year |
| Guarantee | 2 years |
| Main Market | EU, USA, Austrilia, New Zealand, etc |
Movement Items
| Item NO. | Minute Shaft Length | Hour Shaft Length | Screw Length | Nut Fix | Snap In Fix |
| OK888-7 | 7.0mm | 3.9mm | yes | ||
| OK888-9 | 9.00mm | 5.90mm | - | yes | |
| OK888-11 | 11.00mm | 7.90mm | 3.2mm | yes | |
| OK888-13 | 13.00mm | 9.90mm | 5.2mm | yes | |
| OK888-14.5 | 14.50mm | 10.95mm | 6.7mm | yes | |
| OK888-15 | 15.00mm | 11.90mm | 6.7mm | yes | |
| OK888-17 | 17.00mm | 13.90mm | 8.7mm | yes | |

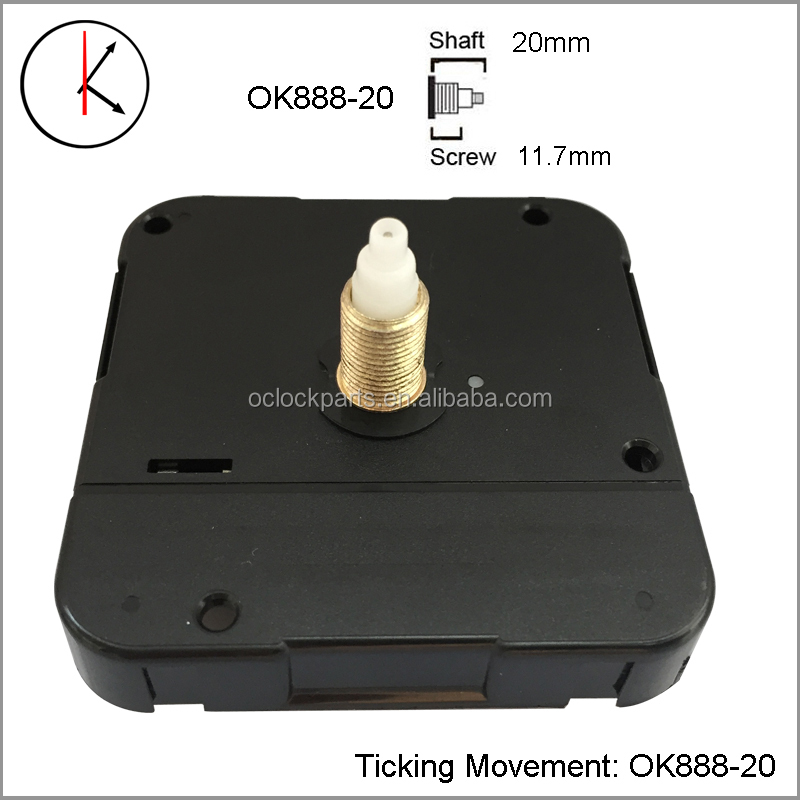

| OK888-20 | 20.00mm | 16.90mm | 11.7mm | yes | |
| OK888-23 | 23.00mm | 19.90mm | 15.4mm | yes | |
| OK888-28 | 28.00mm | 25.20mm | 19mm | yes | |
| OK888-31 | 31.00mm | 27.90mm | 23mm | yes |

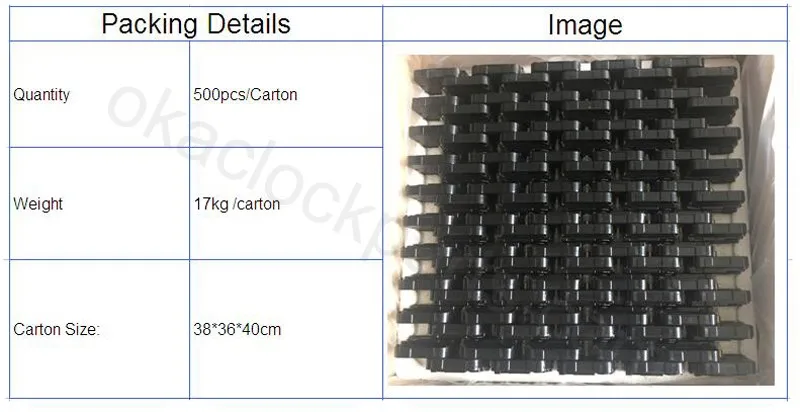

Packing
