VTV точный 40 Вт 60 1550 об/мин коробка передач мотор-редуктор YN90-60

Reducer gear is integrate gear box and motor. This integrated body would normally be called a gear motor or gear motor.
1, gear motor with international technical requirements for manufacturing, high technology content.
2, space-saving, reliable and durable, withstand high overload capacity, power up to 95KW or more.
3, low energy consumption, superior performance, speed reducer efficiency up to 95%.
4, small vibration, low noise, energy, high-quality forged steel, steel cast iron box, gear surface after HF treatment.
5, precision machining, to ensure parallel shaft and positioning accuracy, all this constitutes a gear drive gear motor assembly configured various types of motor, forming a mechanical and electrical integration, fully guaranteed product quality characteristics.
6, the product uses a series, modular design, a wide range of adaptability, this series has an extremely multi-motor combination, mounting position and structure of the program, according to the actual need to select any speed and a variety of structural forms.

1. precise gear motor
2. VTV motor manufacture good
3. fast delivery
4. cheap price

VTV-05SC 12V/24V Mini DC Gear motor

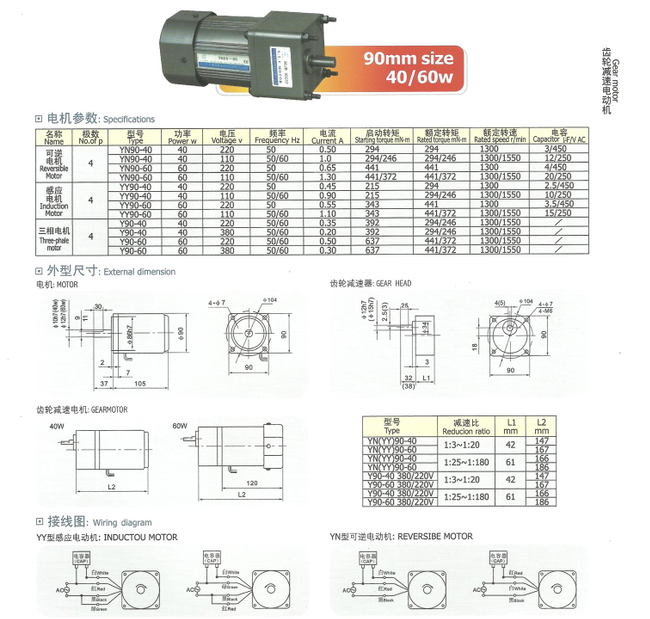

VTV YN90-60 220V 90*90mm AC Gear Motor

VTV VDM10 90*90mm 12V/24V Mini DC Gear motor

VTV US52 AC Gear Motor Speed Controller

CALT PD30 Mini incremental rotary encoder Apply for DC motor

CALT GHS38 incremental rotary encoder

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

Testing Machine

Oscilloscope

Testing Machine

Industrial microscope

Testing Machine

Plug and dial

warehouse: common type rotary encoders are all in stock can send our in 2-3 days.

warehouse

warehouse

Workshop1

Workshop2

Semifinished product
