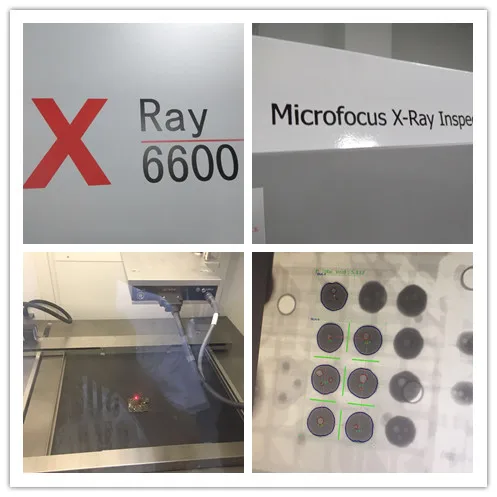

X-Ray inspection system X-6600 for

computer mobile phone PCB inspection

Applications of X-Ray

X-Ray inspection system is high-precision detection equipment. It inspects and analyzes the inner structure of the object without damage via the penetration power from X-Ray.

It has been widely applied to BGA detection, LED, SMT, semiconductor, battery, automotive electronics, ceramic products, casting, plastic, connectors, 3D image analysis, pharmaceutical products and other industries.

Specific application:

1) Defect inspection in IC encapsulation, e.g.: layer separation, cracking, void, and line integrity.

2) Measuring chip size, measuring line curvature, measuring the proportion of solder area of components.

3) Possible defects in PCB manufacturing processes, e.g.: misalignment, solder bridge and open.

4) SMT solder short, cold solder, component shifted, solder insufficient, solder void inspection and measurement.

5) Defect inspection of open, short or abnormal connections that may occur in automotive wiring harnesses and connectors.

6) Inner rupture or hollow inspection in plastic or metal.

7) Battery stacking uniformity, electrode welding inspection.

8) Seed, biological material inspection etc.

Main Functions

Technical Parameters

Standard Configuration

Object Table Control

1. Speed of table can be adjusted by the spacebar: low, normal and high speed.

2. X, Y, Z three-axis motion and inclined angle are controlled by keyboard.

3.Users can control the table speed and angle programmatically.

4. Large navigator view, clear navigation image, table will move to where you click the mouse.

NC Programming

1.    Simply click the mouse and you can write programs.

2.    Object table moves along X, Y direction for positioning; X-ray tube and detector move along Z direction for positioning.

3.    Voltage and current set by software.

4.    Image settings: brightness, contrast, auto gain and exposure

5.    Users can change the pause time for program conversion.

6.    Anti-collision system can maximize the tilt and observation of the workpieces.

7.    Automatical analysis on diameter, proportion of cavity, area and roundness of BGA.

Full Automatic Testing Procedures

Click programming without the need for operator intervention on the component can detect automatically.

Our advantages:

1. 13 years experience of LED BGA rework station, X-ray inspection machine, LED LCD TV screen panel repair machine;
2. All models with CE approved;
3. High reputation around the world;
4. Professional service and technology support
5. Competitive price with good quality

Our Service:

1. Your inquiry will be replied in 24 hours.
2. Offer free spare parts and service within one year of warranty,
3. Technology Support Provide Demo operation video for training;
4. Professional after-sales service team;
5. Give great discount to AGENCY to ensure agents profit.

We support all kinds of delivery and payment methods.
Packaging: Fumigating-free Plywood crate.

Zhuomao, 13-year professional manufacturer of LED BGA rework station, X-ray inspection machine, LED LCD TV screen panel repair machine, etc. We are a high-tech enterprise including R&D, production, Sales and After sales service.

Currently, our products has been sold around Europe, Asia, Australia, Oceania and Southeast Asia, Middle East and other countries and region. We are also vendor of NVIDIA, LENOVO, Panasonic, SANMINA-SCI, GIGABYTE, SAMSUNG, and so on.

1. How about the package ? Is it safe during the delivery ?
All machines would be packaged Safely, by standard strong wooden carton with foam inside.

2. What is the delivery way ? How many days will the machine arrrive us ?
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, 7-30days to arrive.

3. Do you provide the Warranty ? How about the after sales service ?
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

4. This machine is easy to use ? if I have no experience, I can also operate it well ?
Do you provide the user manual and operating videos to support us ?
Yes, our BGA machine is designed to use easily, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free , and the operation video is available.

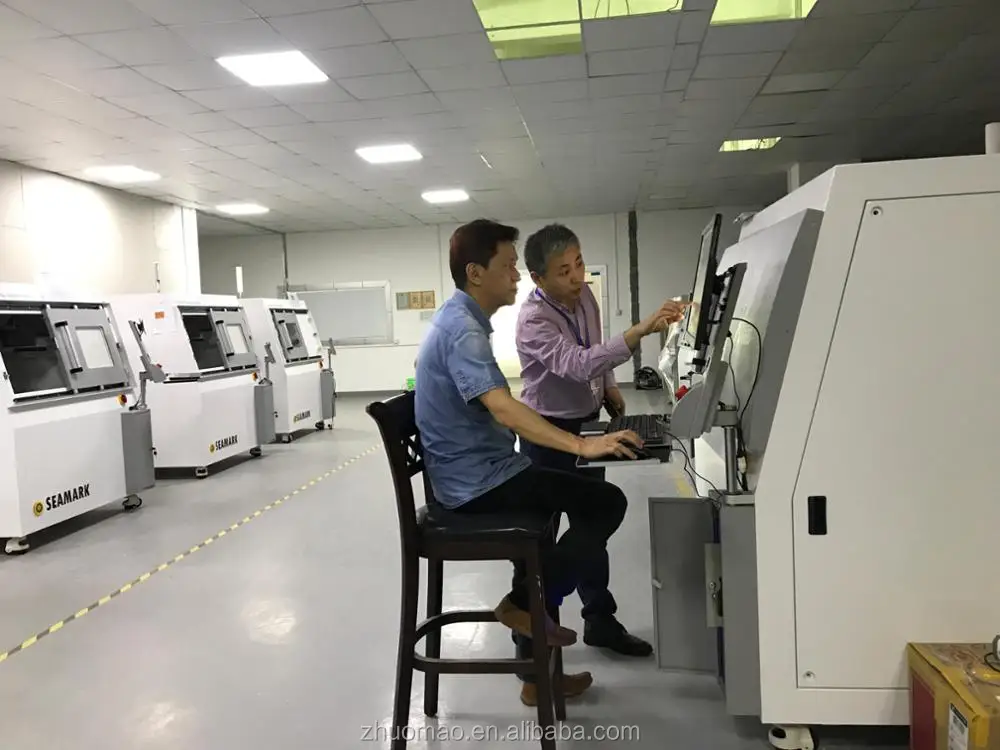

5. If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.

6. What is the payment way ?
We accept the payment terms: L/C, D/P, T/T, WesterUnion, Moneygram, Paypal, etc.
