Электрический велосипед NMC литий-ионный аккумулятор 48 в 40 Ач глубокий
- Категории: Rechargeable Batteries >>>
- Поставщик: Shenzhen,Herculesi,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Electric Bike NMC Li Ion Battery 48V 40Ah Deep Cycle
Product Description
-Long Life Cycle, No Memory Effect, Environment Friendly
-High Energy Density, Low Self Discharge
-BMS Protection Cell Balancing
-Light Weight, Small Size, Easy to Carry
| Battery Type | 48V 40Ah Lithium Ion Battery | |
| Rated Voltage | 48V | |
| Rated Capacity | 40Ah | |
| Source Resistance | ≤ 40mΩ | |
Type of Cell (Cell Compose) | 3.7V 5.0Ah 26650 | |
| 13S8P | ||
| Charge | Charge Model | CC/CV |
| Standard charge Current | 2A (20Hours) | |
| Fast Charge Current | 5A (8 Hours) | |
| Charge Cut-off Voltage | 54.6V | |
| Cell Overcharge Protection Voltage | 4.2V/Cell | |
| Discharge | Rated Discharge Current | 50A |
| Max Continuous Discharge Current | 80A | |
| Peak Discharge Current | 150A | |
| Discharge Cut-off Voltage | 41 +/-1V | |
| Cell Overdischarge Protection Voltage | 2.8V/Cell | |
| Working Temperature | Standard Charge | 0~45°C |
| Quick Charge | 10~45°C | |
| Standard Discharge | -20~65°C | |
| Safety test | Short Circuit Safety Test | No Firs, No Explosion |
| Overcharge Safety Test | ||
| Crush Safety test | ||
| Needling safety test | ||
| Extrusion Safety Test | ||
| 130 C high Temperature safety test | ||
| Retention of charge | ≥95% | |
| Cycle Life | 800-1000 times | |
| Fit for Motor | ≤ 2500W | |
| Dimension | 120*140*380mm | |
| Weight | about 10.5kgs | |
| Certifications | CE, UL, ROSH, UN38.3, MSDS | |
| Application | E-bike, E-motorcycle, E-scooter etc. | |
| Warranty | 13 Months | |
Details Images

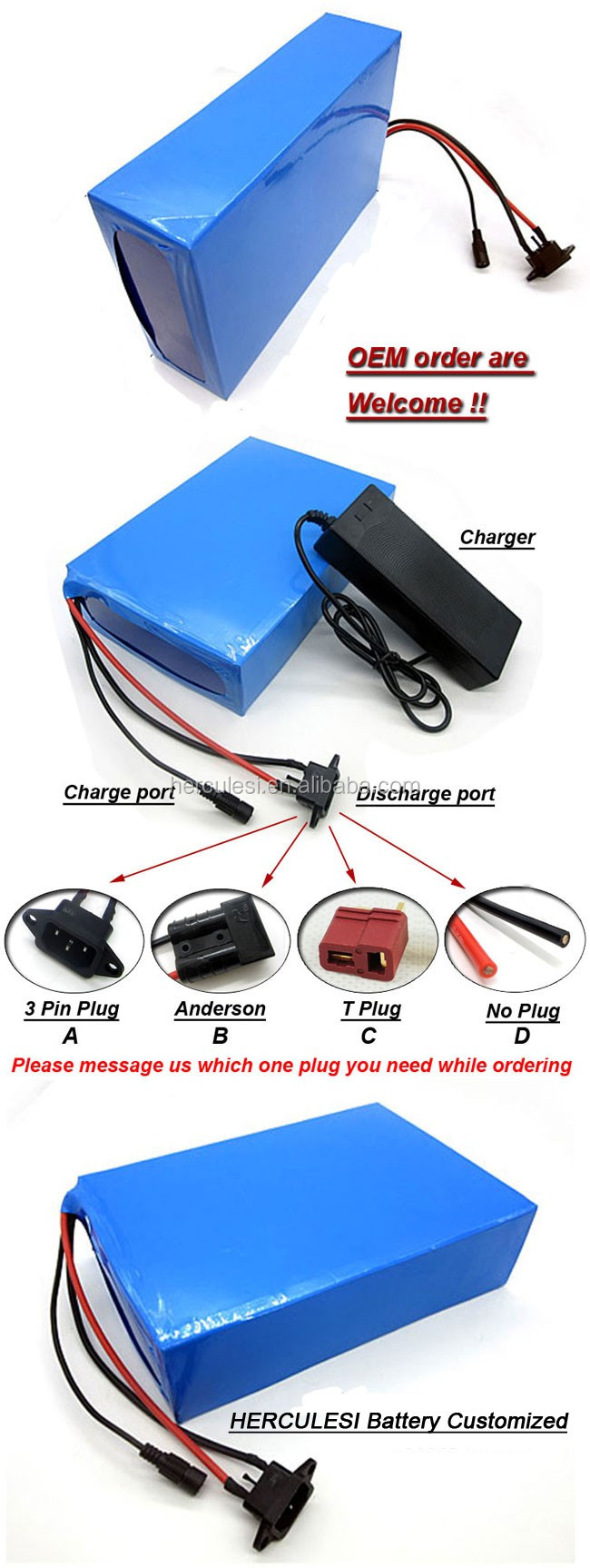

48V 40Ah Lithium Ion Battery
Parts Includes:
1. Lithium Battery with PVC Case
2. Built-in 50A BMS

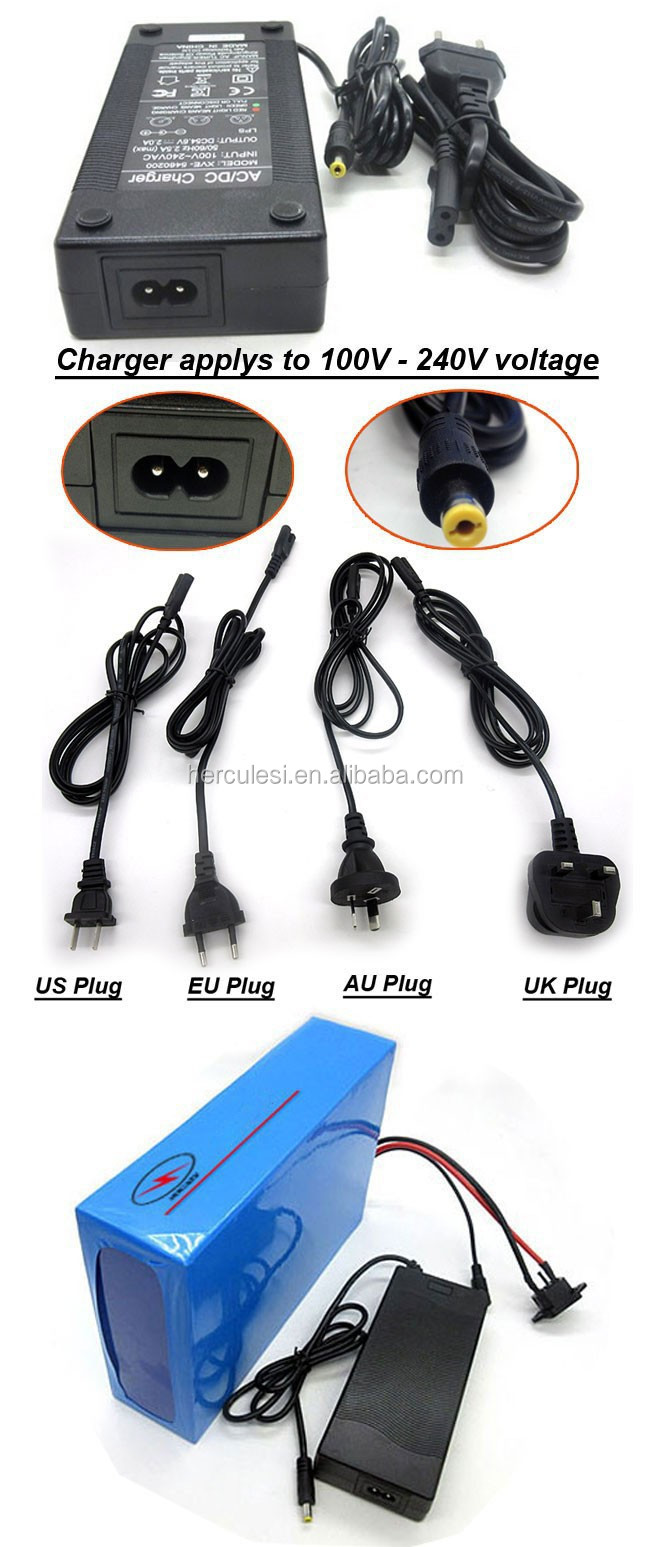

3. Charger (54.6V 2.0A 100-240V 50/ 60HZ, US, UK, AU, EU Plug)
Quality Control
Testing before Shipping
As usual, we produced a batch of cells, and need do below test firstly.
After the cell is passed test, we will build the pack as below procedure.
About Us
Company Introduction
Quality is our culture. Shenzhen HERCULESI have over 10 years since 2005 experience in green rechargeable lithium battery field, specialized in LiNMC, LiFePO4, Ni-CD, Ni-MH with highly reliable and 100% real capacity. Offering high quality after-sales service and best solution according to your requirement. OEM also warmly welcome in our factory!
Packaging & Shipping
Package & Shipping
-Packing: Each / Carton (with polyfoam, waterproof) Or according to the customer request
-Shipping: sample order by express (delivery within 5days upon receipt of payment)
order quantity >20pcs by air or sea (delivery time is decide on each specific matter)
Or according to customer request
