EN818-2 G80 alloy steel black short link weld lifting chain/lifting chain
- Категории: Chains >>>
- Поставщик: Ningbo,Toplifting,Imp.,&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
EN818-2 G80 alloy steel black short link weld lifting chain
Product Description
G80 LIFTING CHAIN DETAILS
| Dimensions in millimeters | ||||||
| Nominal size Dn | weld diameter ds max | pitch | Internal Width away from Weld W1 min | External Width over the Weld W2 max | ||
| Pn | Pmax | Pmin | ||||
| 4 | 4.4 | 12 | 12.4 | 11.6 | 5.2 | 14.8 |
| 5 | 5.5 | 15 | 15.5 | 14.6 | 6.5 | 18.5 |
| 6 | 6.6 | 18 | 18.5 | 17.5 | 7.8 | 22.2 |
| 7 | 7.7 | 21 | 21.6 | 20.4 | 9.1 | 25.9 |
| 8 | 8.8 | 24 | 24.7 | 23.3 | 10.4 | 29.6 |
| 10 | 11 | 30 | 30.9 | 29.1 | 13 | 37 |
| 13 | 14.3 | 39 | 40.2 | 37.8 | 16.9 | 48.1 |
| 16 | 17.6 | 48 | 49.4 | 46.6 | 20.8 | 59.2 |
| 18 | 19.8 | 54 | 55.6 | 52.4 | 23.4 | 66.6 |
| 19 | 20.9 | 57 | 58.7 | 55.3 | 24.7 | 70.3 |
| 20 | 22 | 60 | 61.8 | 58.2 | 26 | 74 |
| 22 | 24.2 | 66 | 68 | 64 | 28.6 | 81.4 |
| 26 | 28.6 | 78 | 80.3 | 75.7 | 33.8 | 96.2 |
| 28 | 30.8 | 84 | 86.5 | 81.5 | 36.4 | 104 |
| 32 | 35.2 | 96 | 98.9 | 93.1 | 41.6 | 118 |

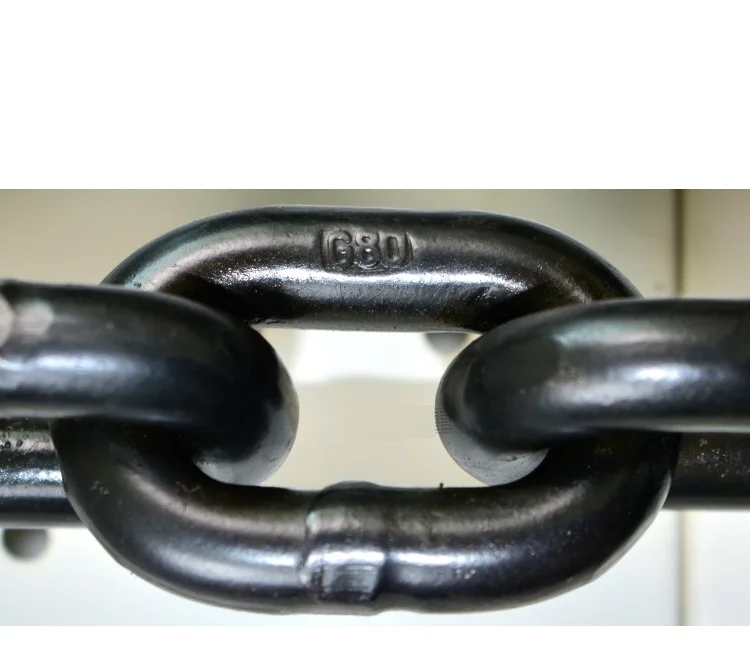

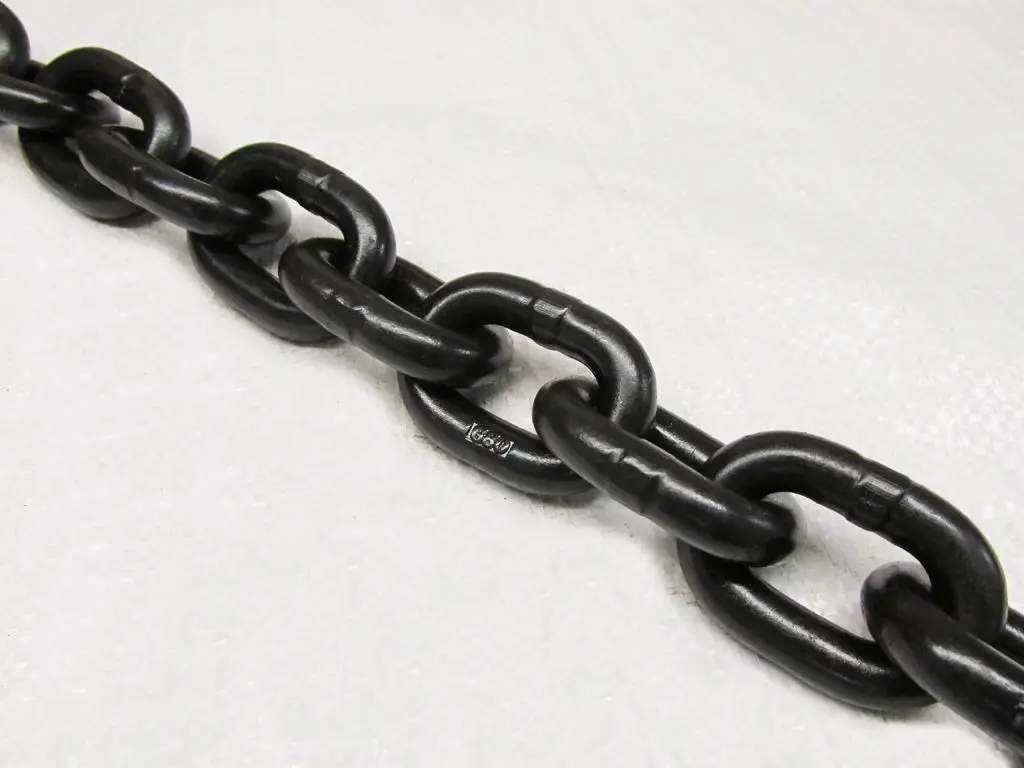

Details Image

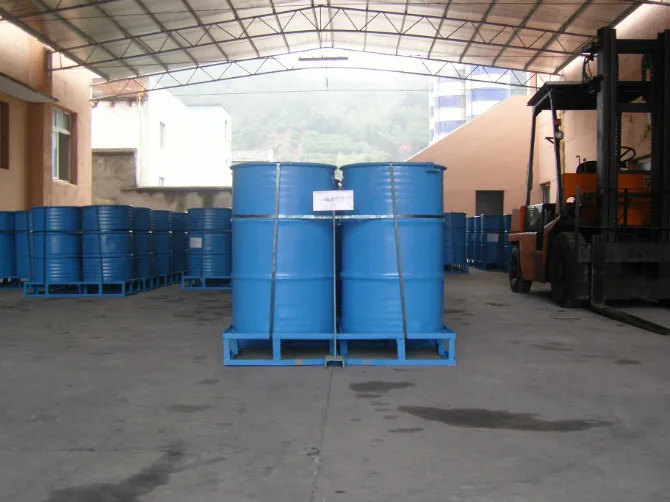

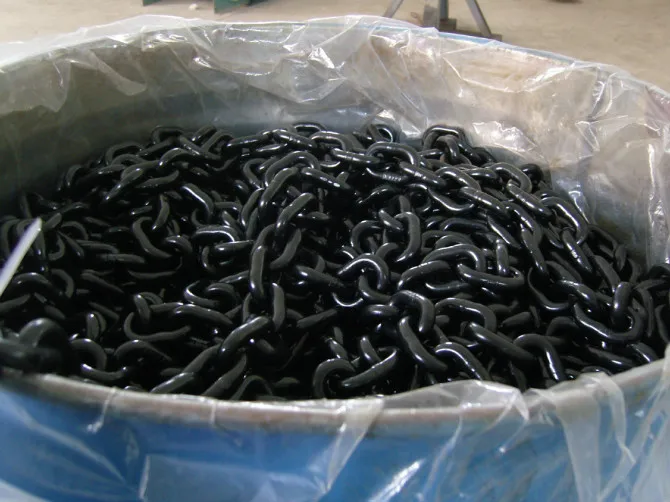

Package
We also supply various kinds of chains, commercial chains, high tensile chains or as you required.
| Welded Link Chain: | Ordinary Mild Steel Link Chain, USA Standard Chain with Hooks, |
| ASTM80 Standard Link Chain, NACM90 Standard Link Chain, NACM96 Standard Link Chain, | |
| Australian Standard Link Chain, DIN5685A/C Short/Long Link Chain, DIN763 Link Chain,DIN764 Link Chain, DIN766 Link Chain, | |
| Norwegian Standard Link Chain, Korean Standard Link Chain. | |
| Weldless Chain: | USA Standard Double Loop Chain, DIN5686 Knotted Chain and so on. |
| Stainless Steel Chain: | Japanese/DIN766/DIN5685A/DIN763(DIN5685 C) /Korean/Australian/ASTM80/NACM90 Standard or others. |
| High tensile chains: | Lifting chain, Lashing chain, chains for shipping, fishing chain,three-link chain for coal transfer,transport chain…… |
| Material: | carbon steel, alloy steel, high-quality alloy steel, stainless steel |
| Surface: | self-colour, polishing, blackened, painted, plastic coating, hot-dipped galvanized, electro galvanized or as you required. |
| Grade: | G30,G43,G70,G80,C100 |
| Manufacture Standard: | ISO,DIN,BS,JIS,ASTM |
| We can also make the non-standard chain according to your requirements. | |
Certifications
We test each order three steps.
1. Material test before production.
2. Random test during production progress
3. Test finished products before shipment.
4. Test report can be provided.
WORLDWIDE CUSTOMERS COMMENTS & FEEDBACK
Here are some of the comments from our worldwide customers.
You can check all the comments at our company profile.
Please visit www.chinatoplifting.en.alibaba.com
click " Company profile, then choose " Rating&Reviews"
Then you can see all the comments from our clients.
{ please note: all our customer comments are real, NOT FAKE.
[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]
Sample Room
Company Information
Introduce of Company
Ningbo Top Lifting Imp.&Exp. Co., Ltd
1. Entered the field of lifting and lashing more than 8 years.
2. Most of our staffs have the working experience from 2 to 10 years, who can surely offer you the efficient and excellent services and make sure that you can get the right products at the most competitive prices.
3. We control the quality very strictly, also most our products have TUV, CE and ISO certificate.
4. Our QC will inspect the products before mass production, during the production process and random check before shipment.
5. Fast delivery: 30 working days/20' container
6. OEM and ODM available
7. Main products:

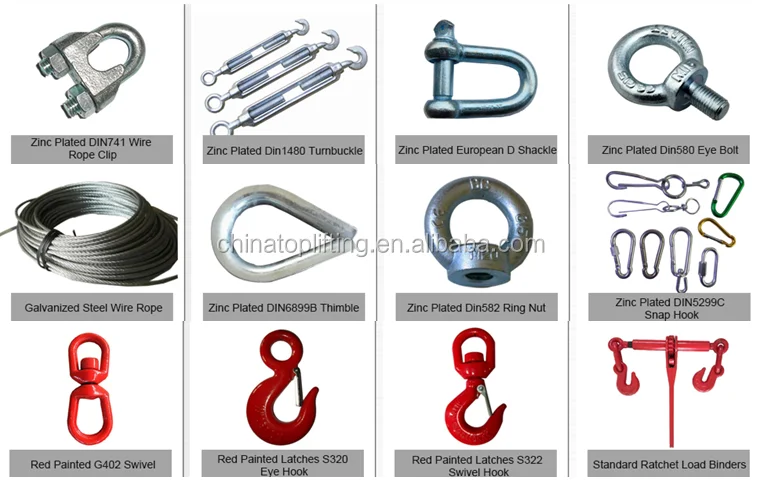

ratchet tie down straps, round sling, webbing sling, endless webbing sling, ratchet buckle, cam buckle, lifting chain, hoist chain, lashing chain, load binder, shackle, thimble, wire rope clip, turnbuckle etc.
FAQ
Our Services
1. We treasure and try to understand all the different needs of our clients and seek to forge a long-term professional relationship with them. The satisfaction of each and every customer is our main goal and motivation in conducting our business.
2. Our products are of high-quality standards and always come with the certificate of compliance by the manufacturers. There is the strict quality control for each of our products.
Contact Us
