Brief Introduction
Plastic card laminator YCY series
Application: Making plastic PVC smart cards.
Function: Laminating printed plastic sheets, inlay and overlay.
Suitable materials: PVC, ABS, TESLIN, PC, PETG, Paper, PCB.
Laminating size and material size: Different laminating machines for different sizes.
Pressure type: Hydraulic pressure.
Heating type: Electric heating tube.
Cooling type: Water cycling.

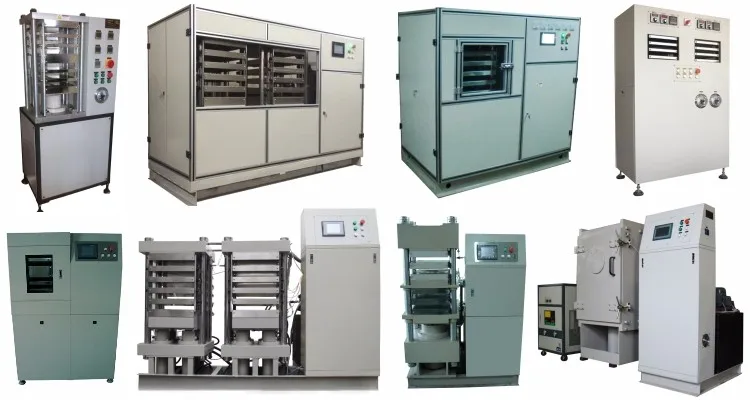

Our card laminating machines are divided into 4 categories:
1. Relays controlling + single/double tower + small/big size.
Suitable for small and medium card factories to make normal plastic cards.
Suitable for small and medium card factories to make normal plastic cards.
2. PLC controlling + double towers + big size.
Suitable for medium and large card factories to make high quality smart cards.
3. PLC controlling + single tower + big size + heat cool laminating integrated.
Suitable for medium and large card factories to make top high end smart cards.
4. PLC controlling + single tower + small size.
Suitable for small and medium card factories to make high quality smart cards.
Suitable for small and medium card factories to make high quality smart cards.
Detail Introduction

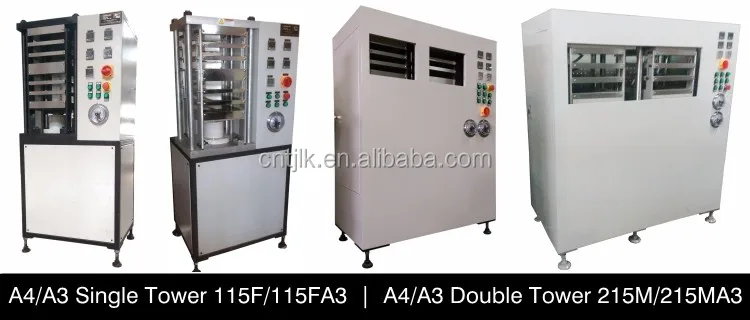

1. Relays controlling + single/double tower + small/big size.

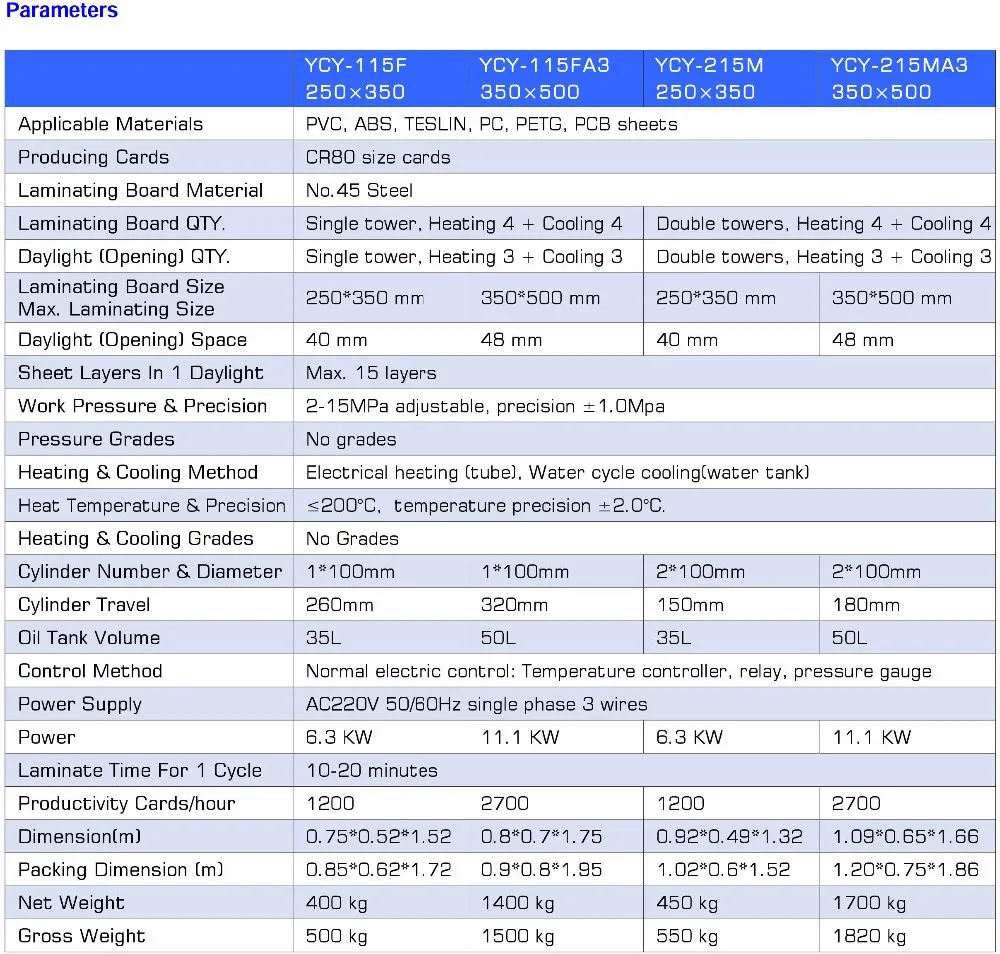

YCY-115F2 250*350; YCY-115FA3 350*500; YCY-215M 250*350; YCY-215MA3 350*500.
YCY-115F/FA3 Video link: https://youtu.be/EFP0uWofDKU
YCY-215M/MA3 Video link: https://youtu.be/rvO5HMGKIEU
Designed for laminating various plastic cards in A4/A3 sheets.
Characterized with hydraulic pressing, electric heating, water cooling, single/double tower and normal electric control.
The whole machine structure is well compact and rigid.
The heating temperature and the cool or heat pressure are controlled automatically with easy operation.
The hydraulic system applies imported famous-brand parts. The water circulating system is equipped.
The heating temperature and the cool or heat pressure are controlled automatically with easy operation.
The hydraulic system applies imported famous-brand parts. The water circulating system is equipped.
----------------------------------------------------------------------------------------------------------
2. PLC controlling + double towers + big size.

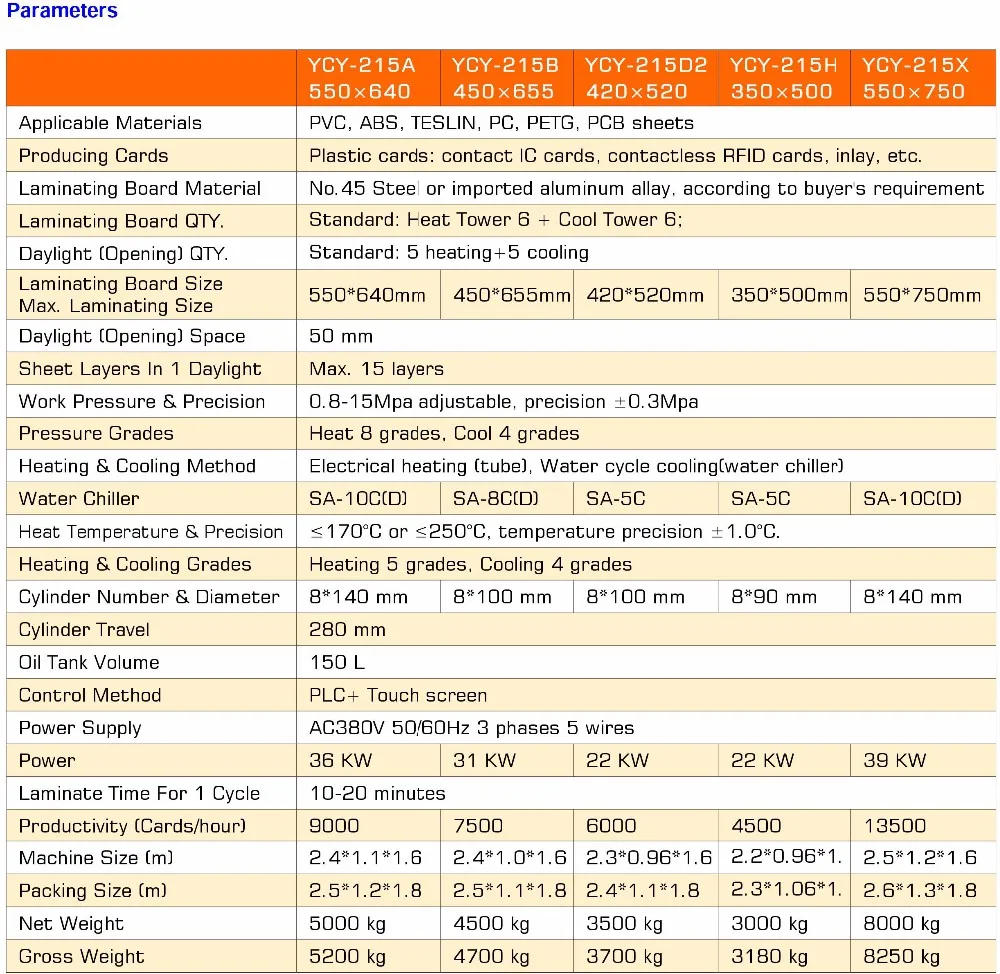

YCY-215A 550*640; YCY-215B 450*655; YCY-215D 420*520; YCY-215H 350*500; YCY-215X 550*750.
Video link: https://youtu.be/nSS6r7xMYEM
\tDesigned for laminating various smart cards such as Inlays, contactless card, contact IC card, electronic labels.
\tIt features hydraulic pressing, electric heating, water cooling and PLC controlling.
\tThe dual-tower structure is well compact and rigid.
\tThe pressure releasing spring is applied between the top template and upper beam to realize slight contact.
\tThe temperature for heating and the pressures for cool and heat lamination are controlled through the fully-closed loop.
\tThe temperature is evenly distributed and the control of pressure is accurate. The control precision of temperature is as ±1ºC and the control precision of pressures are as ±0.3MPa.
\tIn order to meet the special lamination demands of high-end cards, the process of hot template rising can be set into 1 to 5 sections as per specific technological requirements and the time for staying at each section can be flexibly set.
\tHot lamination has 8 grades and cool lamination has 4 grades.
\tThe human-machine interface adopts a touch screen which is simple and direct.
\tThe heat tower is on the right side and the cool tower is on the left side.
\tThere are two kinds of laminating board materials: 45# steel and imported aluminum alloy. We can use different materials according to customer requirement.

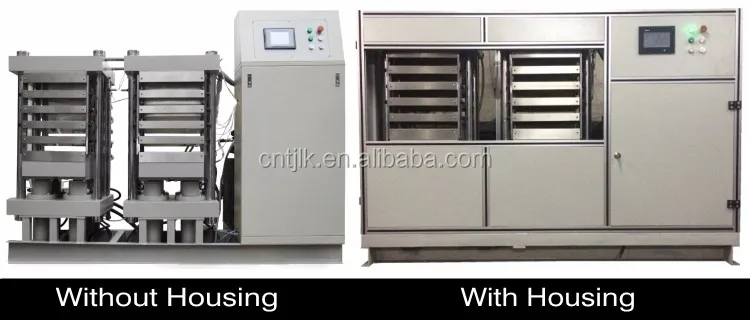

\tThere are two appearance types: without housing and with housing for your choice.
\tThe opening (daylight) No. can be made according to requirement up to 7.
\tDesigned for laminating various smart cards such as Inlays, contactless card, contact IC card, electronic labels.
\tIt features hydraulic pressing, electric heating, water cooling and PLC controlling.
\tThe dual-tower structure is well compact and rigid.
\tThe pressure releasing spring is applied between the top template and upper beam to realize slight contact.
\tThe temperature for heating and the pressures for cool and heat lamination are controlled through the fully-closed loop.
\tThe temperature is evenly distributed and the control of pressure is accurate. The control precision of temperature is as ±1ºC and the control precision of pressures are as ±0.3MPa.
\tIn order to meet the special lamination demands of high-end cards, the process of hot template rising can be set into 1 to 5 sections as per specific technological requirements and the time for staying at each section can be flexibly set.
\tHot lamination has 8 grades and cool lamination has 4 grades.
\tThe human-machine interface adopts a touch screen which is simple and direct.
\tThe heat tower is on the right side and the cool tower is on the left side.
\tThere are two kinds of laminating board materials: 45# steel and imported aluminum alloy. We can use different materials according to customer requirement.
\tThere are two appearance types: without housing and with housing for your choice.
\tThe opening (daylight) No. can be made according to requirement up to 7.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
3. PLC controlling + single tower + big size + heat cool laminating integrated.

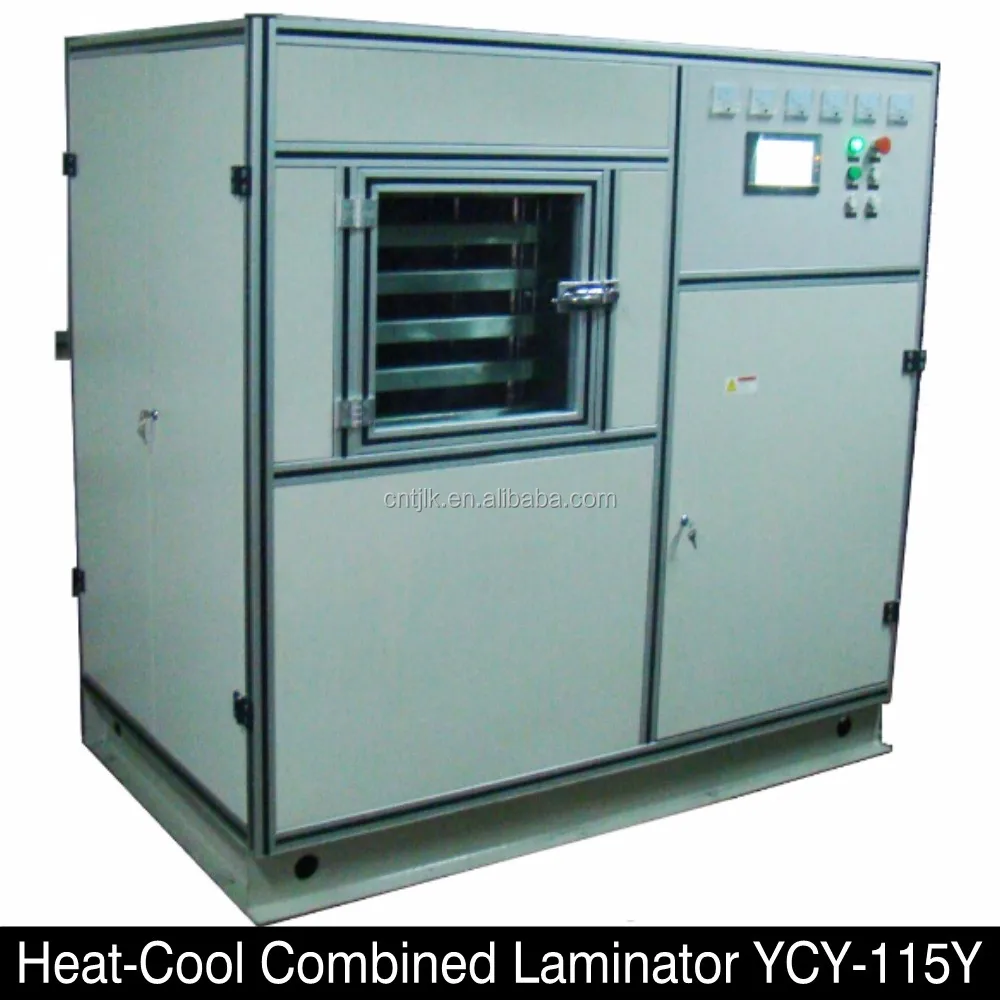

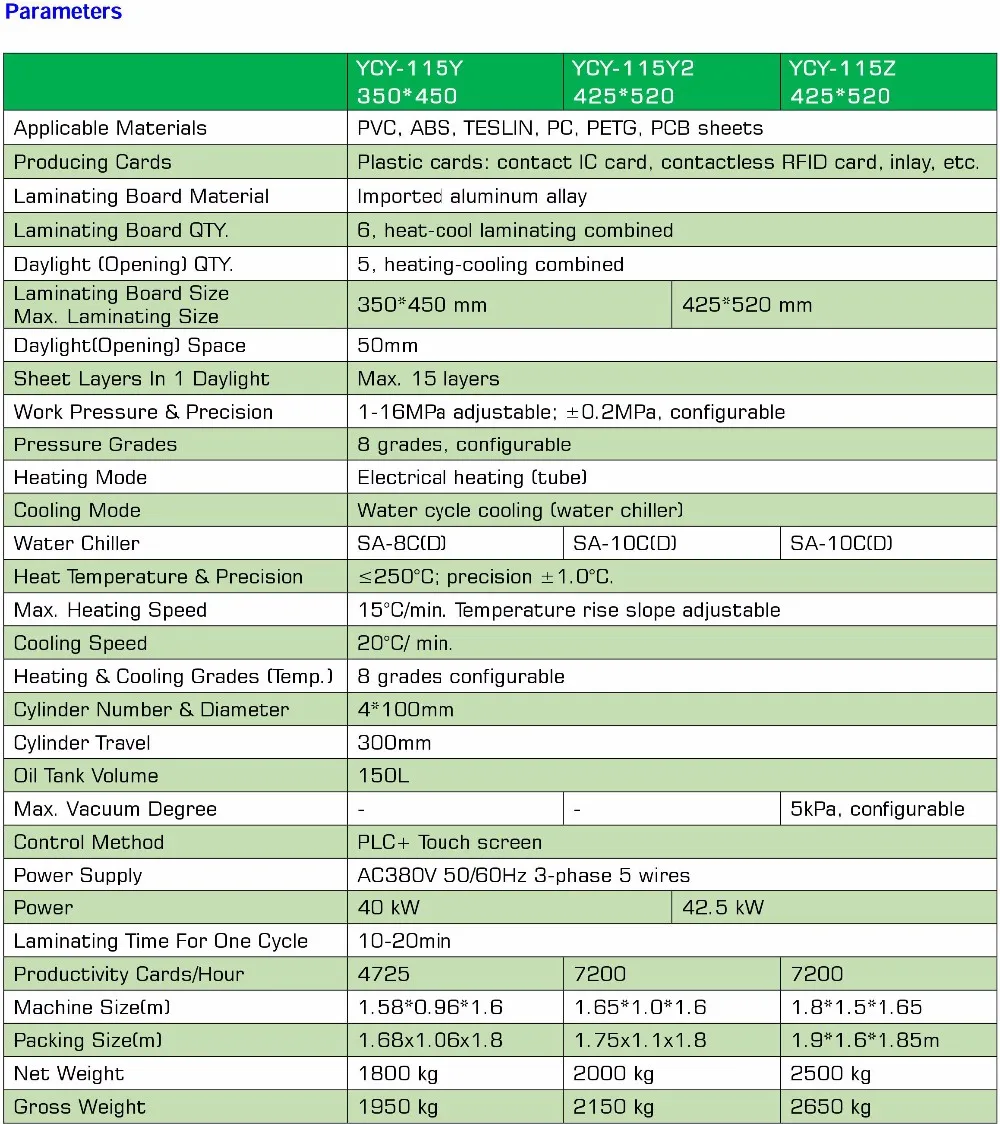

YCY-115Y 350x450; YCY-115Y2 425x520; YCY-115Z 425x520
Video link YCY-115Y: http://v.youku.com/v_show/id_XNjM2Mzc1NDcy.html
Video link YCY-115Z: http://v.youku.com/v_show/id_XNTQ1MTYyNTQ4.html
\tDesigned for laminating various smart cards such as Inlays, contactless card, contact IC card, electronic labels. Also it can be used for laminating of multilayer circuit boards in the industries of PCB, FPC and CCL.
\tIt features hydraulic pressing, electric heating, water cooling and PLC controlling.
\tThe cool-heat combined laminating boards apply imported aluminum alloy plates. The hydraulic system applies the parts made in Taiwan. The control system applies OMRON products. Heat & cool laminating are combined in same daylights (openings) without material transfer during laminating.
\tThe processing parameters are input with man-machine interface by touch screen. It is automatically inspected and controlled by PLC.
\tThe pressure releasing spring is applied between the top template and upper beam to realize slight contact.
\tThe temperature is evenly distributed and the control of pressure is accurate. The control precision of temperature is as ±1ºC and the control precision of pressures are as ±0.3MPa.
\tThe temperature rise slope is adjustable. The temperature and pressure can be increased or reduced by grade in 8 grades.
\tThere are 6 sets of processing parameters in the system, which can be selected freely.

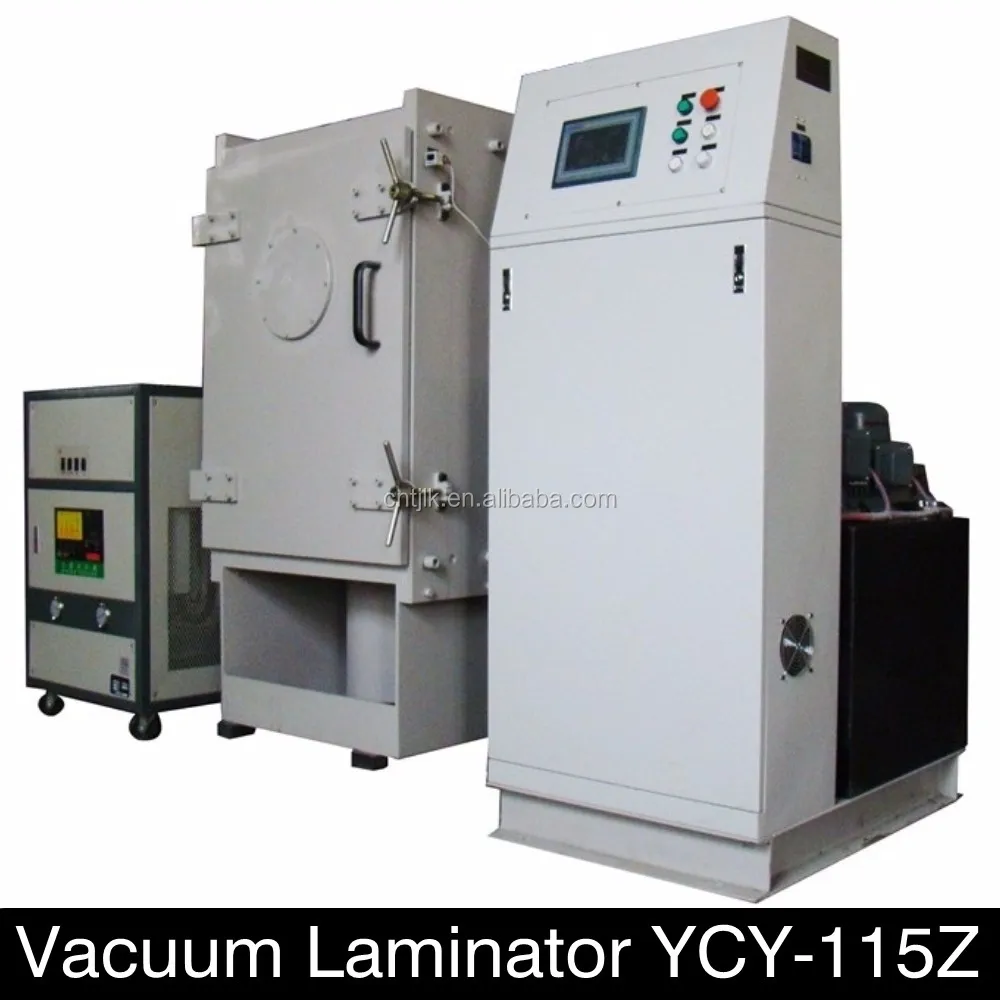

\tYCY-115Z is heat-cool combined vacuum laminator with vacuum system. The vacuum pump is by SIEMENSE.
4. PLC controlling + single tower + small size.

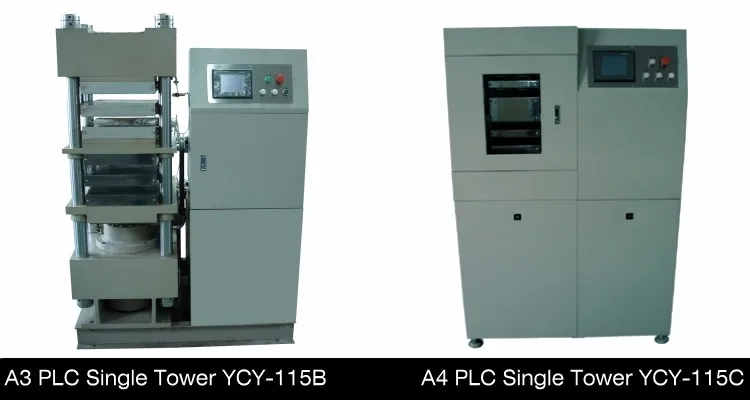

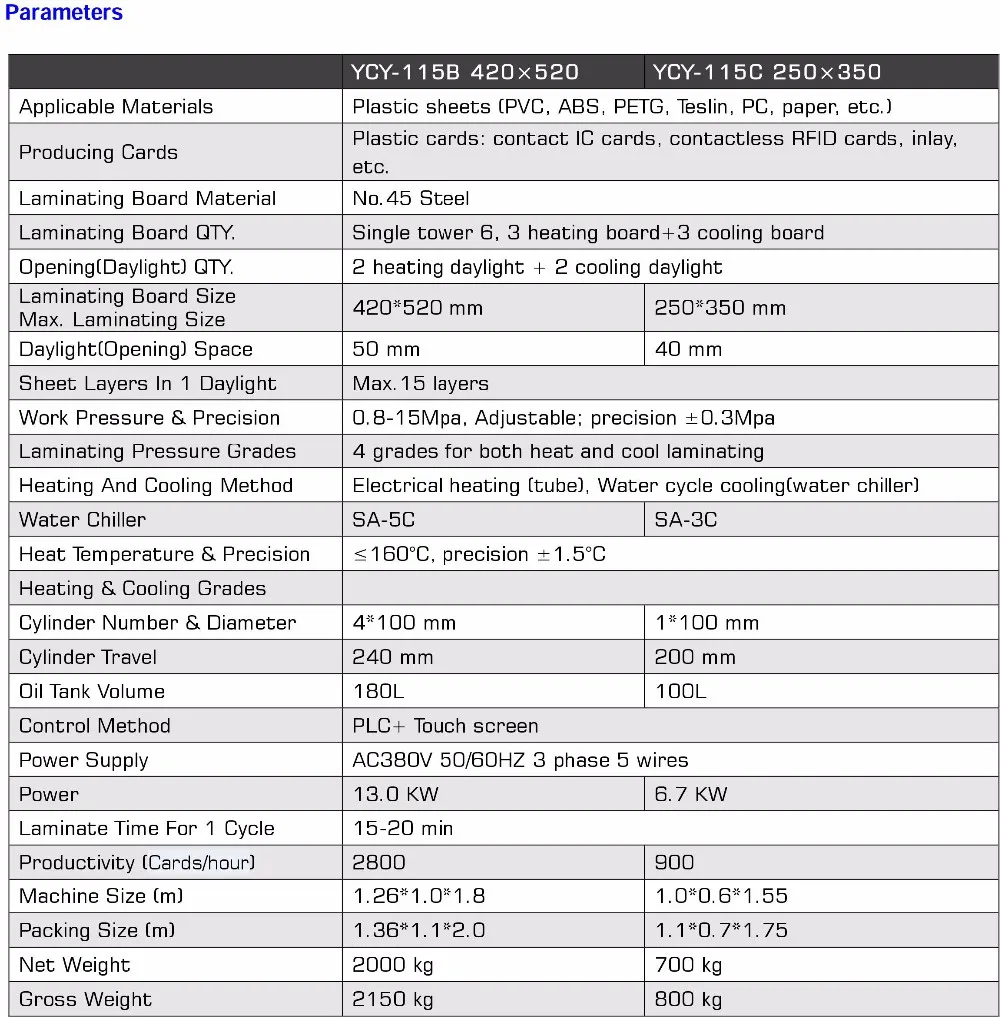

YCY-115B 420x520; YCY-115C 250x350
\tSingle tower PLC control type laminator YCY-115B 420x520 and YCY-115C 250x350 are designed for laminating various smart cards such as Inlays, contactless card, contact IC card, electronic labels.
\tIt features hydraulic pressing, electric heating, water cooling and PLC controlling.
\tThe whole machine structure is well compact and rigid.
\tThe heating temperature and the pressure for both hot and cool tower are controlled through the fully closed loop.
\tThe temperature is evenly distributed and the pressure controlling is accurate. The control precision of temperature is as ±1.5ºC and the control precision of pressure is ±0.3MPa.
\tBoth hot and cool lamination process can be divided into 4 grades.
\tThe human-machine interface adopts a touch screen which is simple and direct.
\tThe heat laminating openings is on the upper side and the cool laminating openings is on the lower side.
\tYCY-115B 420x520 is for laminating A3+ plastic sheets 3x8,4x8 layout; YCY-115B 250x350 is for laminating A4 2x5 plastic sheets.
Packing & Delivery
Card laminator machine inner packing by aluminum foil bag with vacuum. Outer packing by plywood case.
Our Company
Tianjin LK Trading Co.,Ltd. Beiijng YC Digittech Ltd.
Beiing YC Digittech Ltd. is professional manufacturer for plastic card making machines, located in Beijing, Since 1999.
Tianjin LK Trading Co.,Ltd.(former Tianjin LK Electric Automation Co., Ltd.), is import and export company owned by Beijing YC.
Contact: Mr. Lui Kane (Export Manager)
Mobile: +86-153000 41821 (Wechate/WhatsApp)
E-mail: tjlk(at)hotmail.com luikane(at)163.com
Skype: lui.kane
QQ: 1711417086
Website: www.tj-lk.cn www.chinabycd.com/english
Factory Address: No.3 Huang e Road, Dong Lucheng, Huangcun Township, Daxing District, Beijing China.102612.
