Направляющая подшипника SBR40S SBR40UU SBR50S SBR50UU
US $12.56-$13.00
Пружинная втулка болта алюминиевый литой Бронзовый Круглый циклический подшипник индивидуальная латунная Фланцевая шайба
- Категории: >>>
- Поставщик: Jiashan,PVB,Sliding,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

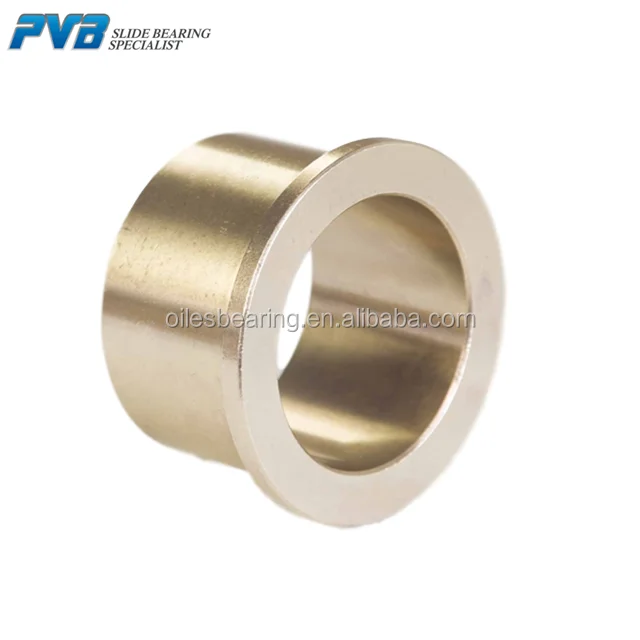

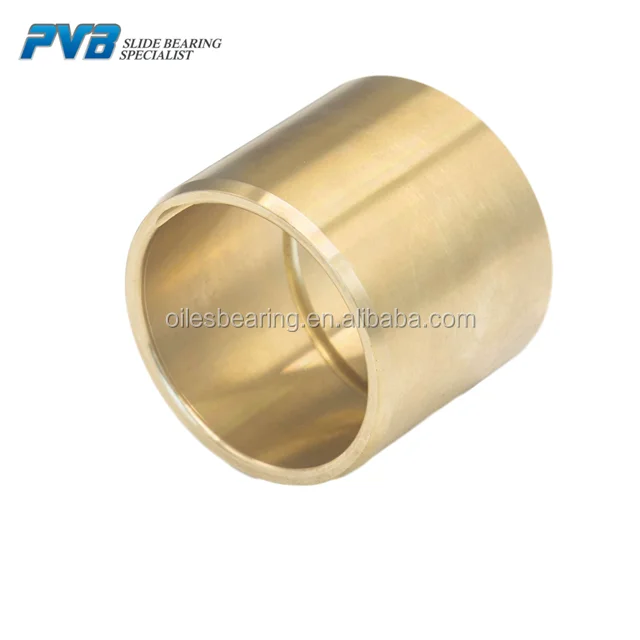

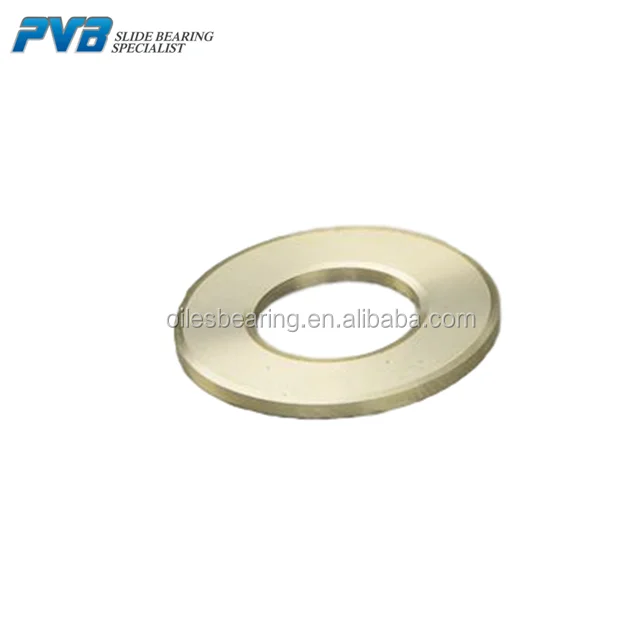

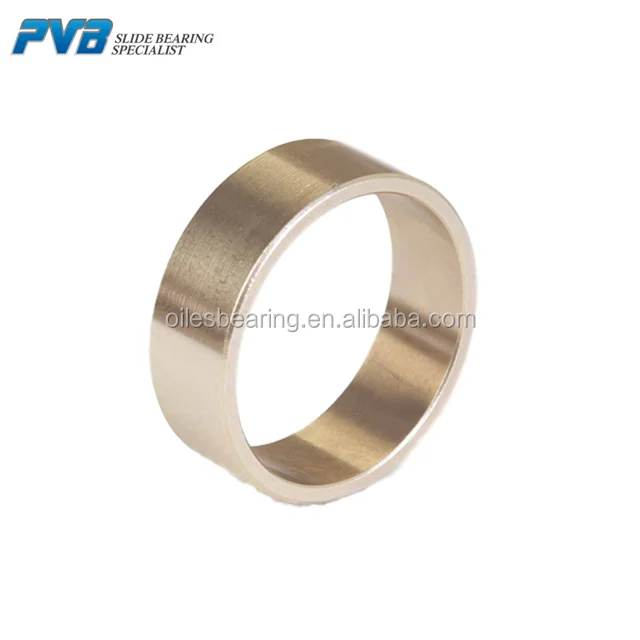

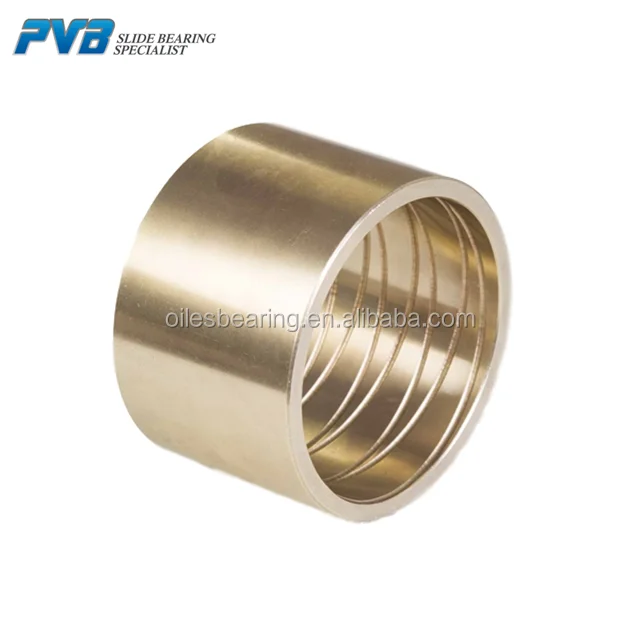

JDB-1U spring bolt bushing, Aluminium cast Bronze circular loop bearing, customized brass bush flange washer slide
Material | CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuZn32Al5Ni3 |
Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
HB hardness | >210 | >70 | >150 | >95 | >280 |
Tensile strength N/mm2 | >750 | >200 | >600 | >260 | >540 |
Yeild strength N/mm2 | >450 | >90 | >260 | >150 | >450 |
Elongation % | >12 | >15 | >10 | >8 | >0.3 |
Coefficient of linear expansion | 1.9x10-5/°C | 1.8x10-5/°C | 1.8x10-5/°C | 1.8x10-5/°C | 1.8x10-5/°C |
Max. temp. | -40~+300 | -40~+400 | -40~+400 | -40~+400 | -40~+150 |
Max. load N/mm2 | 100 | 60 | 50 | 70 | 150 |
Max. speed (Dry) m/min | 15 | 10 | 20 | 10 | 15 |
Max. PV N/mm2*m/min (Lubrication) | 200 | 60 | 60 | 80 | 200 |
Compression deformation | <0.01mm | <0.05mm | <0.04mm | <0.05mm | <0.005mm |
1. Q: Are you a factory or trading company?
A: We are professional factory and exporter with more than 15 years experience,we have professional production teams, technical team, QC team and sales team.
2. Q: What is your main products?

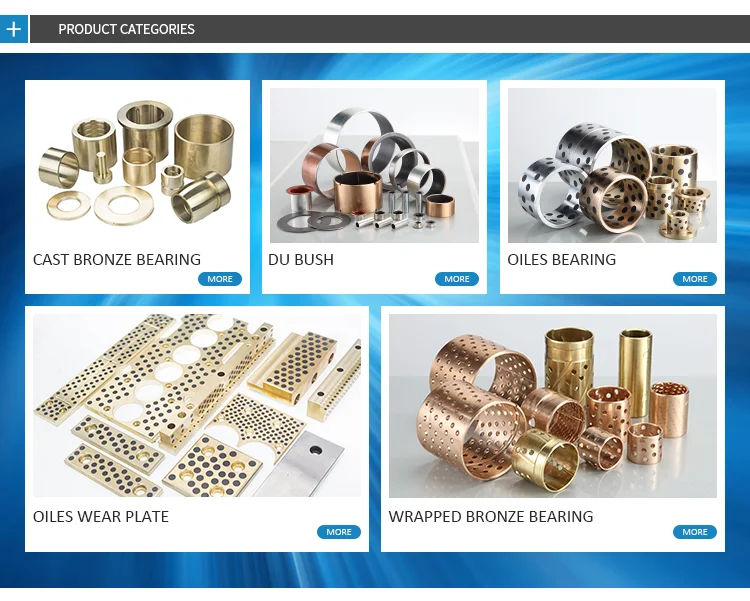

A: DU Bush, DX Bush, Bimetal Bearing, Wrapped bronze bearing, Cast bronze bearing, Oiles bearing, Oiles wear plates.
3. Q: How to get a sample?
A: For stocks, sample can be free of charge. If we need to make, it can be negotiated based on different situation.
4. Q:What’s your advantage?
(1) competitive price
(2) continuously stable high quality
(3) professional OEM manufacturer
(4) professional sales and technical tyeam to understand your requirement very well
(5) perfect customer service. Reply your inquiry or email within 6 hours on working time and 12 hours on weekends
(6) perfect package to protect your goods during long distance transportation
5. Q:What is your Minimum quantity?
A: Different type of bushes have different MOQ,pls contact us for details.
6. Q: What is your lead time?
A: Lead time depends on bush type and order quantity. Normally, our lead time is 20 days after receiving your down payment. If the items you choose with stocks, we can delivery within 3 working days
